DATALOGIC

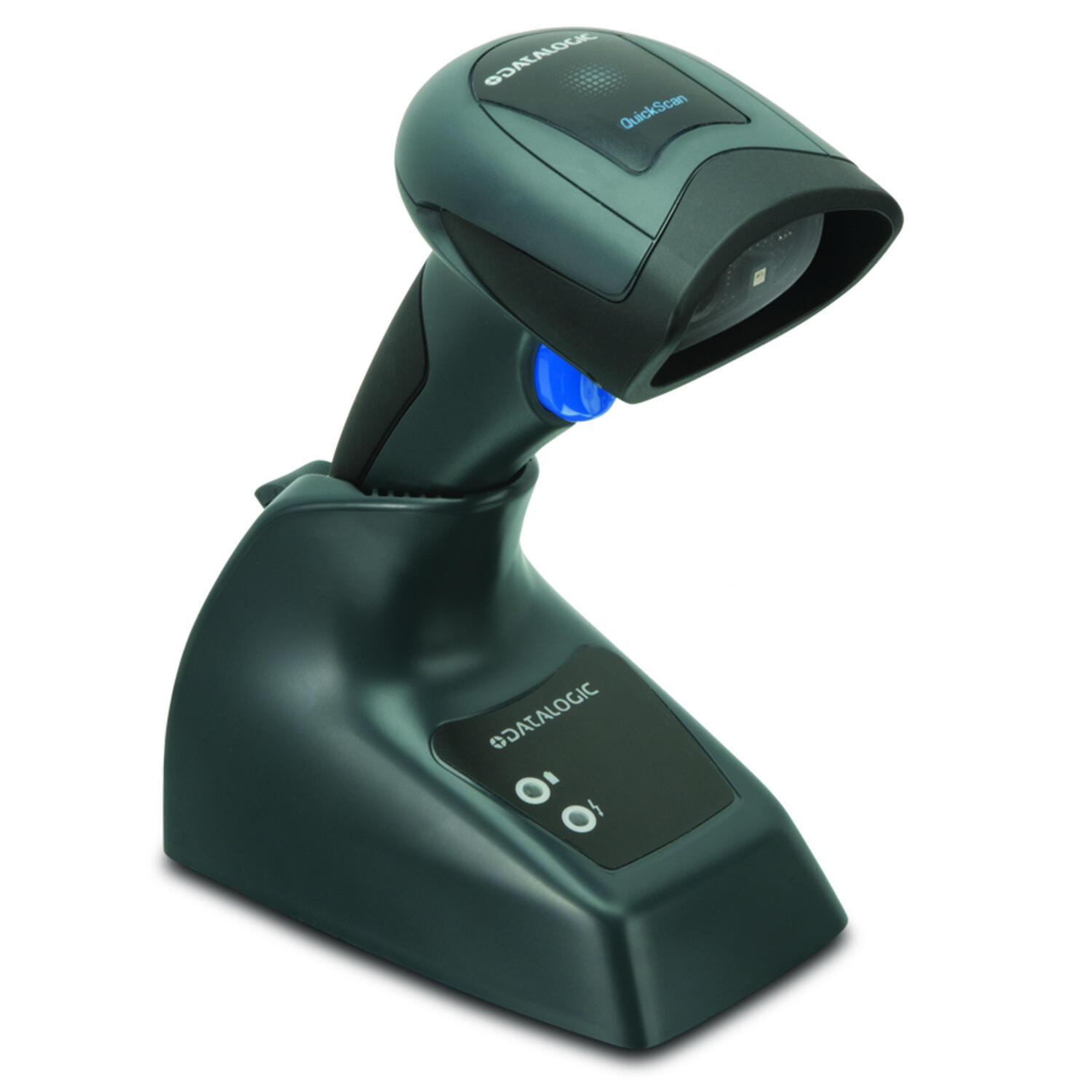

Datalogic QuickScan I QBT/QM2131

  • Detects 1D code types
  • Extra-wide scan angle
  • 400 reads/sec, 30,000+ reads per charge
  • Interfaces: High speed USB 2.0 host and client with USB type C connector

Selected variant

Avaible in several variants
DATALOGIC17.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Approvals RoHS
Battery Lithium-ion 1400 mAh
Charge time 4hrs @ 12VDC
Color Black
Dimension (mm) 163 x 91 x 41
Drop resistance Withstands repeated drops from 5ft onto concrete surface
Extra Features Kit includes: Scanner, Base Station, 90G000008 Cable, 8-0935 Power Supply and 6003-0940 Line Cord
Humidity 90% (Non-condensing)
Immunity To Ambient Light 0 - 120,000 lux
Interface High speed USB 2.0 host and client with USB Type C connector
IP Class IP42
Kit Yes
Light Source Red LED 610-650nm
Reading Angle Window Pitch:+/-65°; Tilt: +/- 45°; Skew: +/-70°
Reading Speed 400 reads/sec
Reads per charge 30000
Temperature range bearing, from -40
Temperature range bearing, to 70
Temperature range from 0
Temperature range to 50
Weight 190
Wireless Yes
Wireless Technology Datalogic STAR Cordless System

Downloads

Accessories

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

My favourites Articles Color Extra Features Wireless Technology Price
QuickScanQM2131,433 MHz,Kit,RS-232,Black (Charger,Cable,Power,LineCord)
Art:
QM2131-BK-433K2 Copied
Black
Kit includes: Scanner, Base Station, 90G000008 Cable, 8-0935 Power Supply and 6003-0940 Line Cord
Datalogic STAR Cordless System
QuickScan QM2131, 433 MHz, Kit, Black (Scanner, Charger)
Art:
QM2131-BK-433 Copied
Black
Kit includes: Scanner and Base Station/Charger
Datalogic STAR Cordless System
QuickScan QM2131, 433 MHz, Kit, White (Scanner, Charger)
Art:
QM2131-WH-433 Copied
White
Kit includes: Scanner and Base Station/Charger
Datalogic STAR Cordless System
QuickScan QM2131, 433 MHz, Kit, USB, Black (Scanner, Charger, Cable)
Art:
QM2131-BK-433K1 Copied
Black
Kit includes: Scanner, Base Station and USB Cable 90A052258
Datalogic STAR Cordless System
QuickScan QBT2101, Bluetooth, Kit, USB, Black (Scanner, Cable)
Art:
QBT2101-BK-BTK+ Copied
Black
Kit includes: Scanner and USB Micro Cable
Bluetooth Wireless Communication
QuickScan QBT2101, Bluetooth, Kit, USB, White (Scanner, Cable)
Art:
QBT2101-WH-BTK+ Copied
White
Kit includes: Scanner and USB Micro Cable
Bluetooth Wireless Communication
QuickScan QBT2131, Bluetooth, Kit, Black (Scanner, Charger)
Art:
QBT2131-BK Copied
Black
Kit includes: Scanner and Base Station/Charger
Bluetooth Wireless Communication
QuickScan QBT2131, Bluetooth, Kit, White (Scanner, Charger)
Art:
QBT2131-WH Copied
White
Kit includes: Scanner and Base Station/Charger
Bluetooth Wireless Communication
QuickScanQBT2131,BT,Kit,RS-232,Black(Scanner,Charger,Cable,Power,LineCord)
Art:
QBT2131-BK-BTK2 Copied
Black
Kit includes: Scanner, Base Station and 90G000008 RS-232 Cable, 8-0935 Power Supply and 6003-0940 EU Line Cord
Bluetooth Wireless Communication
QuickScan QBT2131, Bluetooth, Kit, USB, Black (Scanner, Charger, Cable)
Art:
QBT2131-BK-BTK1 Copied
Black
Kit includes: Scanner, Base Station and 90A052258 USB Cable
Bluetooth Wireless Communication

Selected variant

Select a variant in the list
