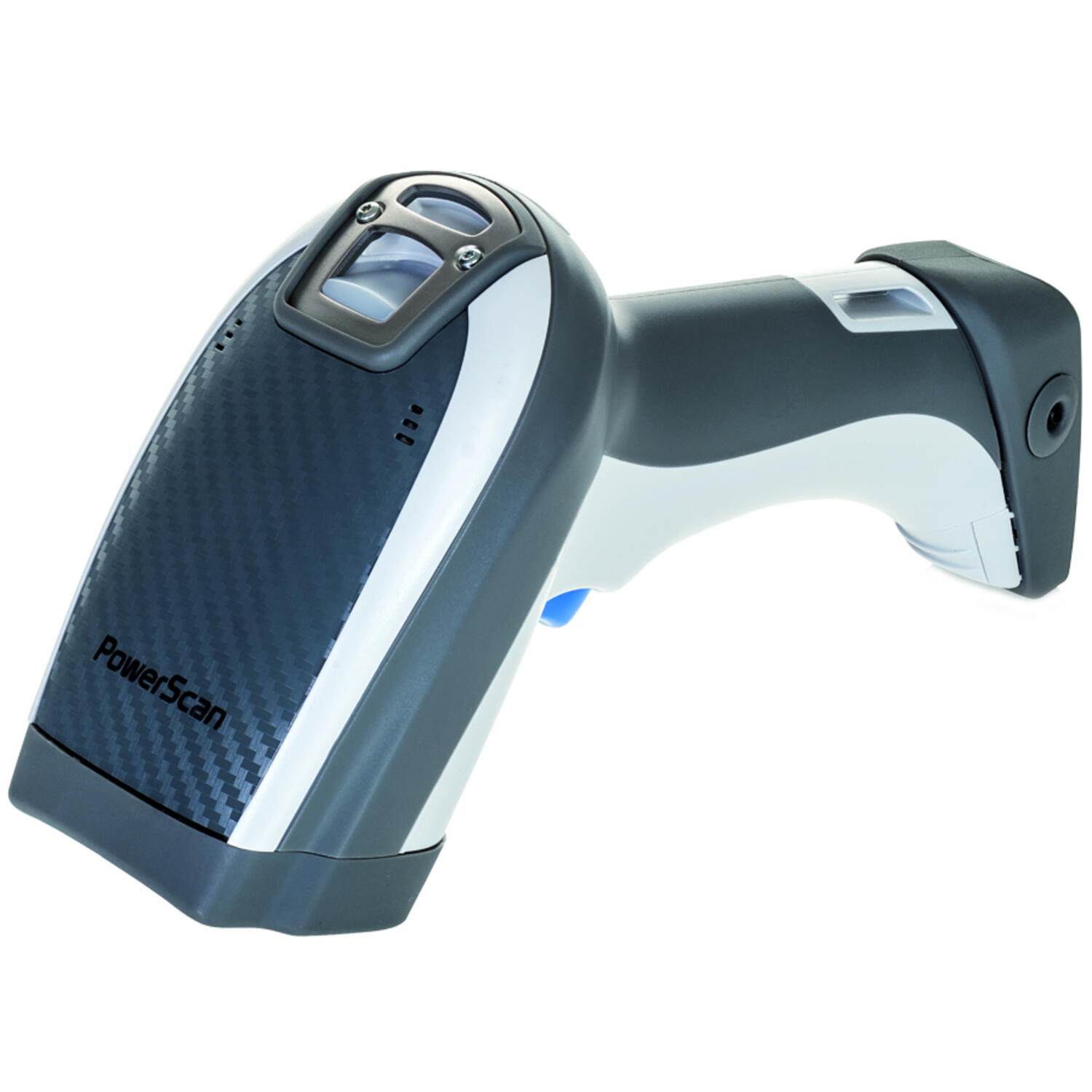

Specifications
| 1D Code types | Auto discriminates all standard 1D codes |
|---|---|
| 2D Code Types | Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code |
| Approvals | RoHS, REACH |
| Color | Black |
| Dimension (mm) | 212 x 110 x 74 |
| Drop resistance | Withstands 50 drops from 6.6ft onto concrete surface |
| Humidity | 95% (Non-condensing) |
| Immunity To Ambient Light | 0 - 100,000 lux |
| Interface | RS-232, USB COM, USB HID keyboard |
| IP Class | IP65 |
| Kit | No |
| Light Source | Red LEDs |
| Postal Code Types | China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Portuguese Post, Swedish Post, Australia Postal, Japan Postal |
| Readable code types | 1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking |
|---|---|
| Reading Angle Window | Pitch:+/-40°; Tilt: +/- 360°; Skew: +/-40° |
| Resolution | 1D: 4 mils, 2D: 7.5 mils |
| Sensor type | 864 x 544 |
| Stacked Code Types | EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites |
| Temperature range bearing, from | -40 |
| Temperature range bearing, to | 70 |
| Temperature range from | -20 |
| Temperature range to | 50 |
| Weight | 330 |
| Wireless | No |
