DATALOGIC

Datalogic Matrix 320 Imager

With its superior 2MP sensor, Matrix 320 offers a complete solution and top performance to achieve higher productivity. The Matrix 320 combines its excellent reading performance and a powerful Smart configurable 3 colour lighting option to solve extremely challenging traceability applications. Incorporating its reactivity and outstanding Depth of Field (DOF) to boost productivity in various Industrial and Logistics applications.

It is equipped with embedded electronic focus that dramatically reduces installation time and allows easy reconfiguration. This feature was added to improve production flexibility in line with Industry 4.0 requirements. Matrix 320 is very easy to install with its improved integrated aiming system, X-Press button HMI and DL Code software. Full industrial connectivity, overall compactness and rotating connectors make Matrix 320 an extremely easy install into every industrial environment.

Performance Analysis is also simplified by a new web interface to monitor the reader with a complete suite of diagnostics that leverages a new generation of FTP image saving. The new web Device Discovery simplifies the access and monitoring of all the readers in the network.

The Matrix 320 provides the highest flexibility with a modular design complemented by a complete portfolio of lenses, lightings, filters, and accessories.

  • 2MP imager
  • Detects 1D and 2D code types
  • Frame rates up to 60fps
  • Integrated communication via Ethernet 10/100/1000Mbit/s, Serial RS232/RS422FD, OPC UA

Selected variant

Avaible in several variants
DATALOGIC17.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Colour LED Red
Digital Inputs 2
Digital Outputs 3
Dimension (mm) 108.7 x 54 x 55.5
Distance Max 550
Distance Min 50
Frame Rate Max 60
Integrated Communication Interface Ethernet 10/100/1000Mbit/s, Serial RS232/RS422FD, OPC UA
IP Class IP65, IP67
Lens material Plastic
Material of body Aluminium
Number of LED 14
Power Consumption 10
Programming Options DL.CODE, Serial Host Mode programming, X-PRESS Human Machine Interface
Readable code types 1D / Linear Codes, 2D Codes
Resolution 1920 x 1080 (2.0MP)
Sensor size 1/3"
Sensor type CMOS
Shutter type Global
Supply voltage 24 V DC
Temperature range bearing, from -20
Temperature range bearing, to 70
Temperature range from -10
Temperature range to 45
Type of lens Liquid Lens, 60° aperture
Weight 380
Viewing angle 6mm

Downloads

Product description

With its superior 2MP sensor, Matrix 320 offers a complete solution and top performance to achieve higher productivity. The Matrix 320 combines its excellent reading performance and a powerful Smart configurable 3 colour lighting option to solve extremely challenging traceability applications. Incorporating its reactivity and outstanding Depth of Field (DOF) to boost productivity in various Industrial and Logistics applications.

It is equipped with embedded electronic focus that dramatically reduces installation time and allows easy reconfiguration. This feature was added to improve production flexibility in line with Industry 4.0 requirements. Matrix 320 is very easy to install with its improved integrated aiming system, X-Press button HMI and DL Code software. Full industrial connectivity, overall compactness and rotating connectors make Matrix 320 an extremely easy install into every industrial environment.

Performance Analysis is also simplified by a new web interface to monitor the reader with a complete suite of diagnostics that leverages a new generation of FTP image saving. The new web Device Discovery simplifies the access and monitoring of all the readers in the network.

The Matrix 320 provides the highest flexibility with a modular design complemented by a complete portfolio of lenses, lightings, filters, and accessories.

Accessories

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

telehaase
Blog

Smarter Control Starts Here Explore the TELE Haase Range at Demesne

In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.

DEMESNE CROKEpark
Company News

Team Building and Strategy Day

A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.


We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.

Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.

Thanks to all involved and also to our amazing team for their hard work and dedication 💪

klauke
Blog

Klauke Micro Allrounder & i-press Series: Smarter Crimping Starts Here

Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
PCE OVERLAY
Blog

Industrial Plugs and Sockets by PC Electric

PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.

rct cables
Blog

RCT Cables

Elevating Safety with RCT Cable Solutions
RCT Cable Solutions are designed with safety, efficiency, and durability at their core—ensuring reliable cable management in even the most demanding industrial environments. From cable clamps to cleats, glands, and routing systems, RCT products help protect installations from strain, damage, and fire risk. With high-quality materials and compliance with international safety standards, RCT offers smart, secure solutions that elevate the performance and longevity of electrical systems.

My favourites Articles Colour LED Dimension (mm) Distance Max Distance Min Frame Rate Max Number of LED Power Consumption Temperature range from Temperature range to Type of lens Weight Viewing angle Price

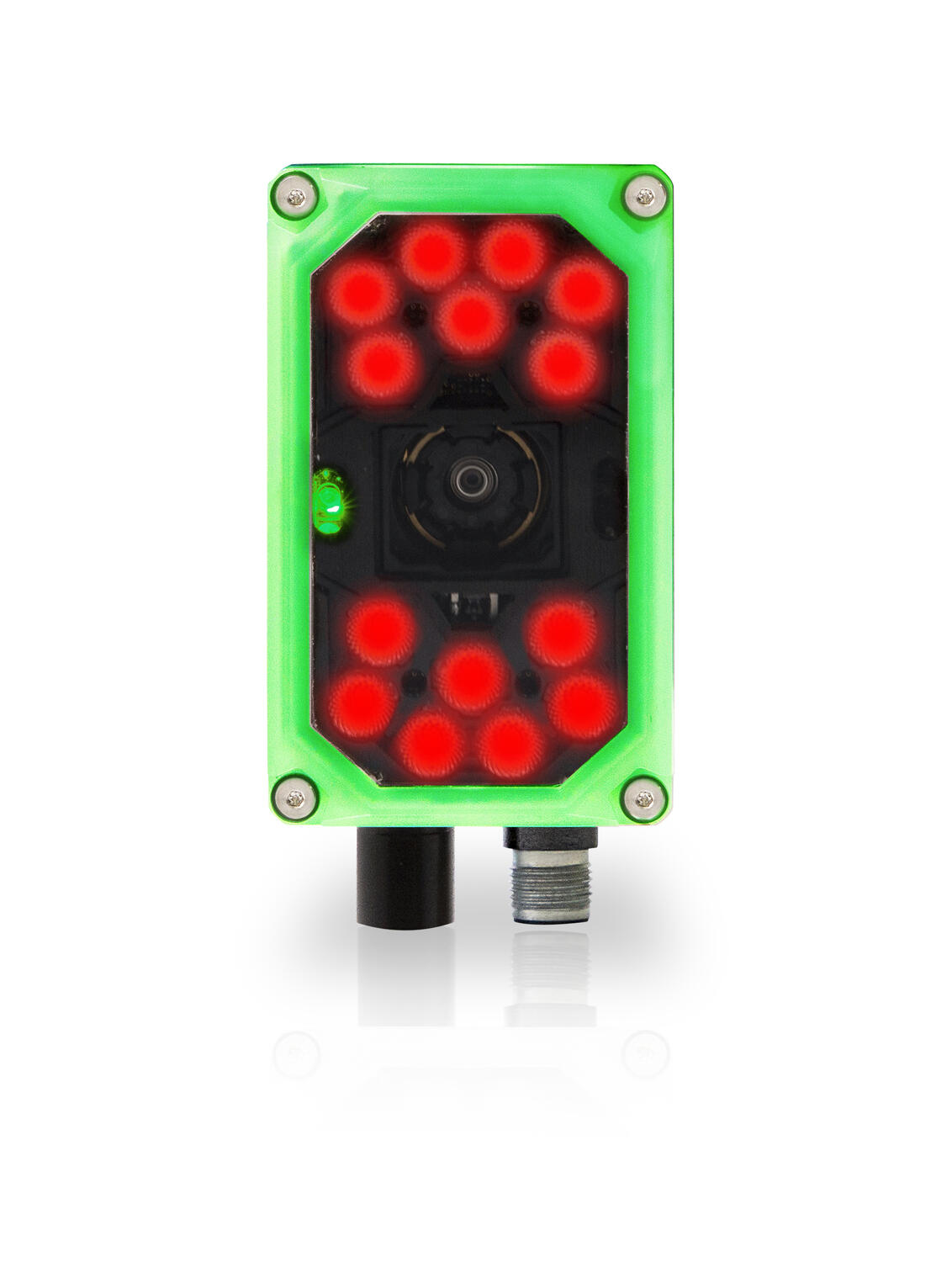

938100017, 14 LEDs, 6mm optics, 60°, Red
Art:
MATRIX320701230 Copied
Red
108.7 x 54 x 55.5
550
50
60
14
10
-10
45
Liquid Lens, 60° aperture
380
6mm

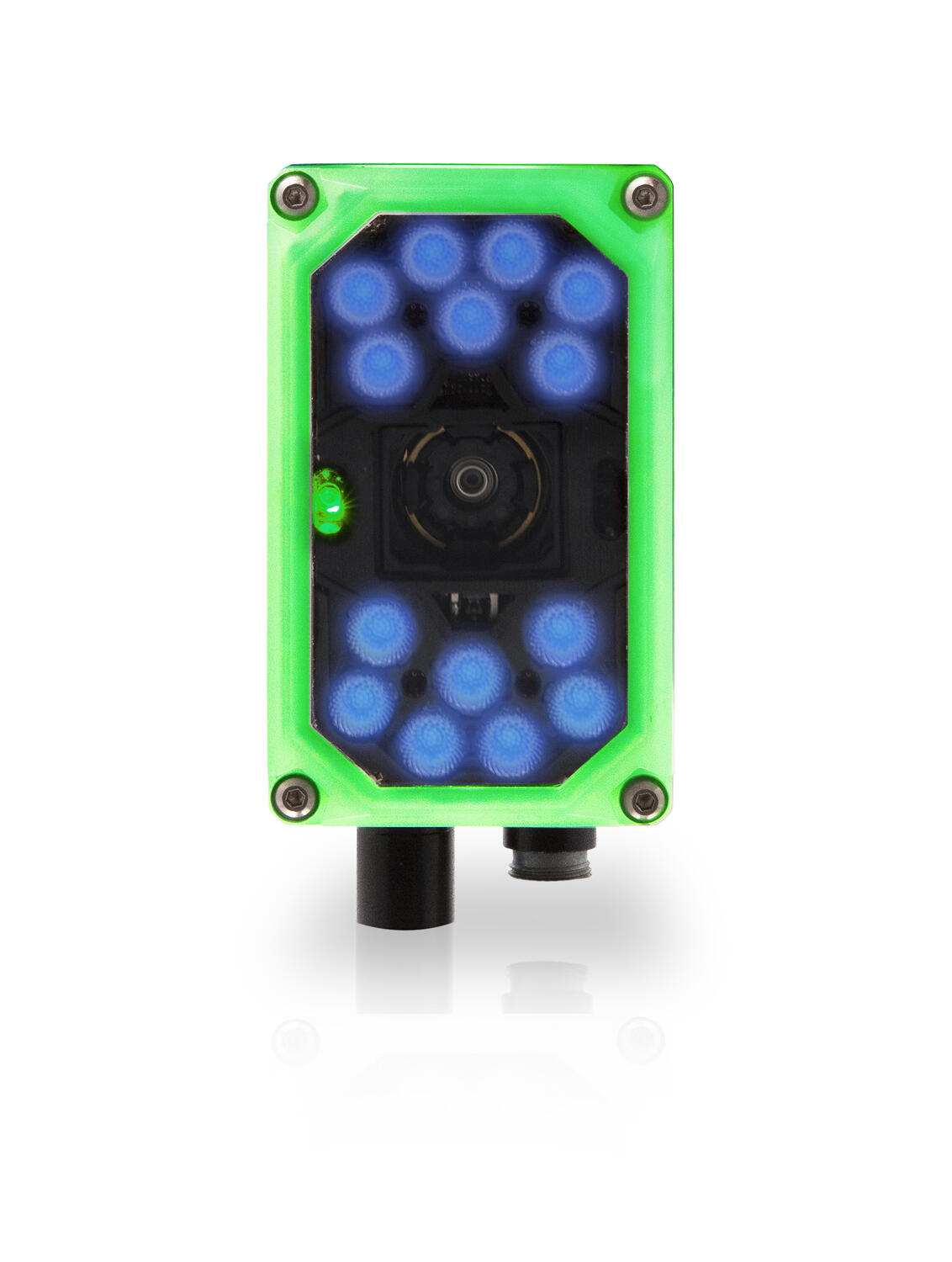

938100019, 14 LEDs, 6mm optics, 60°, Blue
Art:
MATRIX320703230 Copied
Blue
108.7 x 54 x 55.5
550
50
60
14
10
-10
45
Liquid Lens, 60° aperture
380
6mm
938100020, 14 LEDs, 9mm optics, 45°, red
Art:
MATRIX320705330 Copied
Red
108.7 x 54 x 55.5
1000
35
60
14
10
-10
45
Liquid lens, 45° aperture
380
9mm (34°)

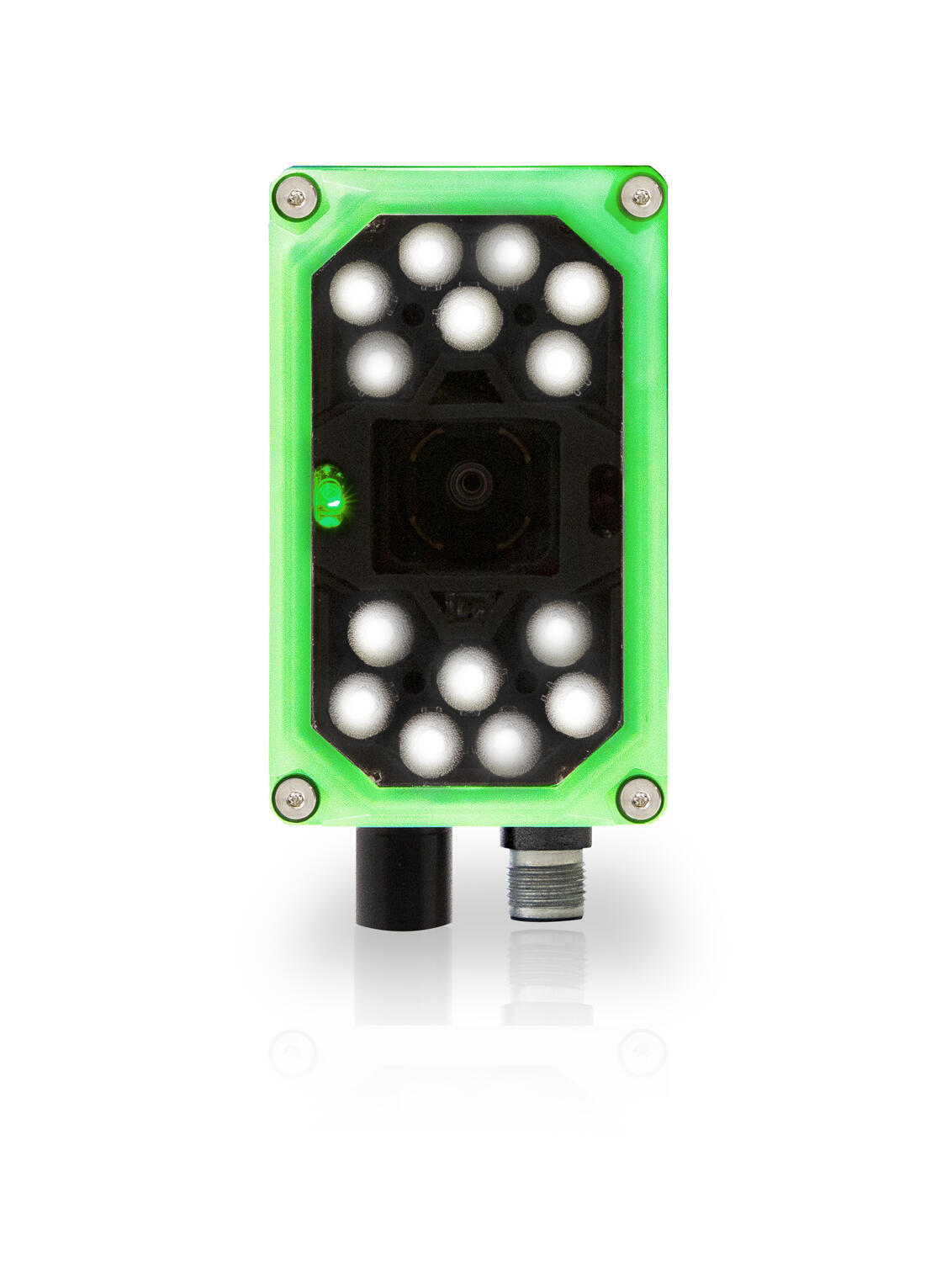

938100021, 14 LEDs, 9mm optics, 45°, white
Art:
MATRIX320706330 Copied
White
108.7 x 54 x 55.5
1000
35
60
14
10
-10
45
Liquid lens, 45° aperture
380
9mm (34°)
938100022, 14 LEDs, 9mm optics, 45°, blue
Art:
MATRIX320707330 Copied
Blue
108.7 x 54 x 55.5
1000
35
60
14
10
-10
45
Liquid lens, 45° aperture
380
9mm (34°)
938100023, 14 LEDs, 16mm optics, 25°, red
Art:
MATRIX320709430 Copied
Red
108.7 x 54 x 55.5
1500
70
60
14
10
-10
45
Liquid lens, 25° aperture
380
16mm (20°)
938100024, 14 LEDs, 16mm optics, 25°, white
Art:
MATRIX320710430 Copied
White
108.7 x 54 x 55.5
1500
70
60
14
10
-10
45
Liquid lens, 25° aperture
380
16mm (20°)
938100025, 14 LEDs, 16mm optics, 25°, blue
Art:
MATRIX320711430 Copied
Blue
108.7 x 54 x 55.5
1500
70
60
14
10
-10
45
Liquid lens, 25° aperture
380
16mm (20°)

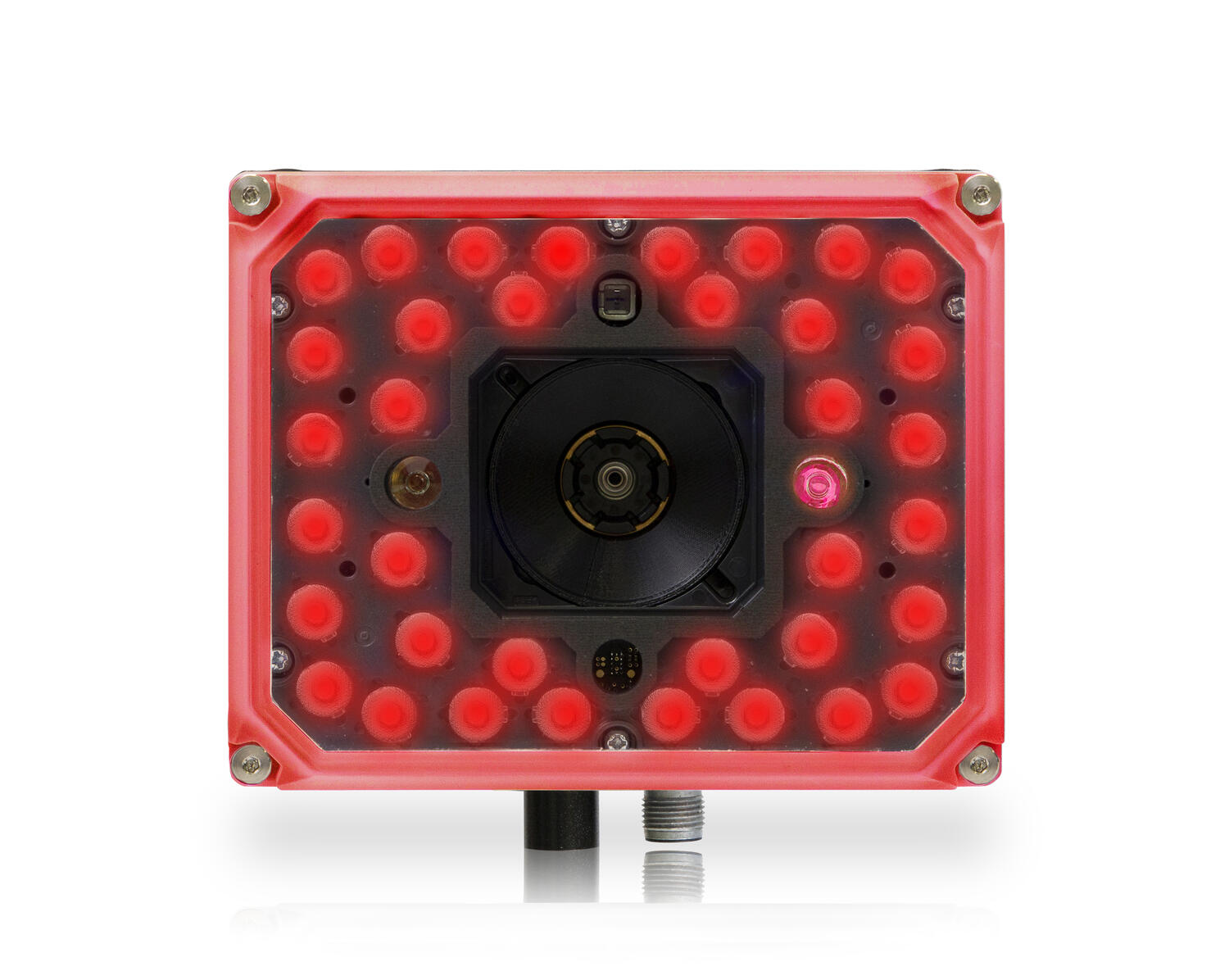

938100026, 36 LEDs, 6mm optics, 60°, Red
Art:
MATRIX320717230 Copied
Red
115.5 x 126 x 70.3
550
50
60
36
15
-10
45
Liquid Lens, 60° aperture
650
6mm

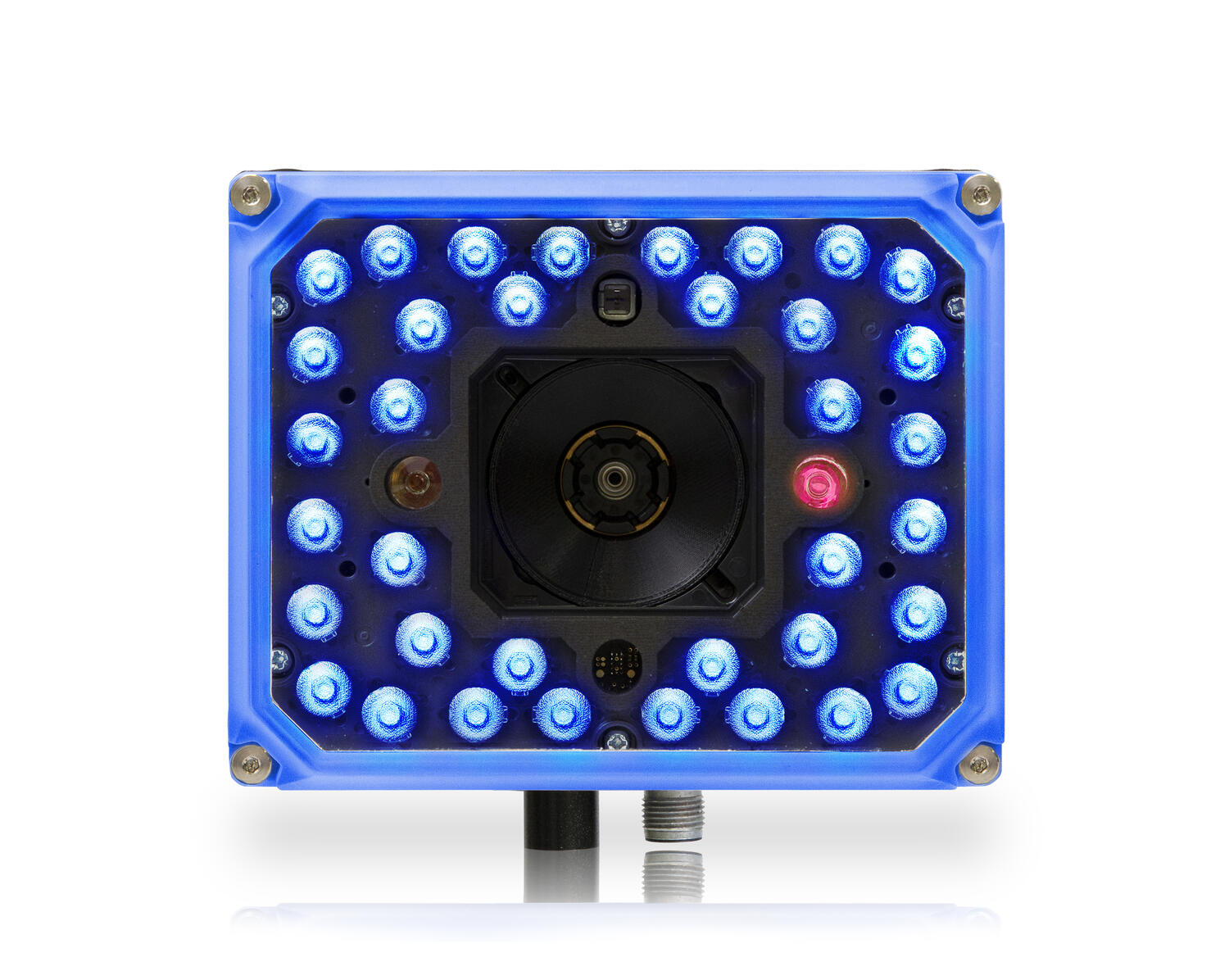

938100028, 36 LEDs, 6mm optics, 60°, Blue
Art:
MATRIX320719230 Copied
Blue
115.5 x 126 x 70.3
550
50
60
36
15
-10
45
Liquid Lens, 60° aperture
650
6mm
938100029, 36 LEDs, 9mm optics, 45°, red
Art:
MATRIX320721330 Copied
Red
115.5 x 126 x 70.3
1000
35
60
36
15
-10
45
Liquid lens, 45° aperture
650
9mm (34°)

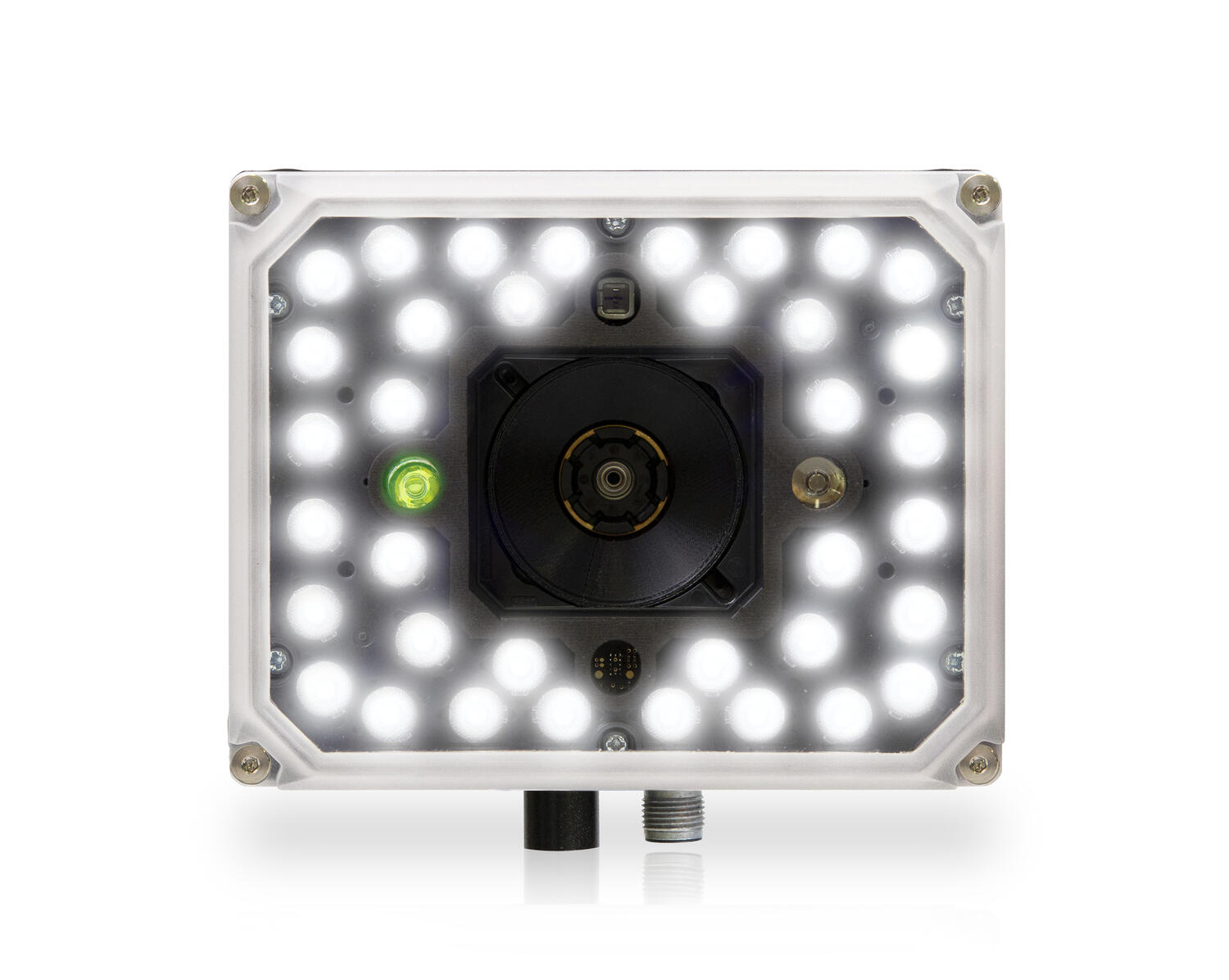

938100030, 36 LEDs, 9mm optics, 45°, white
Art:
MATRIX320722330 Copied
White
115.5 x 126 x 70.3
1000
35
60
36
15
-10
45
Liquid lens, 45° aperture
650
9mm (34°)
938100031, 36 LEDs, 9mm optics, 45°, blue
Art:
MATRIX320723330 Copied
Blue
115.5 x 126 x 70.3
1000
35
60
36
15
-10
45
Liquid lens, 45° aperture
650
9mm (34°)
938100032, 36 LEDs, 16mm optics, 25°, red
Art:
MATRIX320725430 Copied
Red
115.5 x 126 x 70.3
1500
70
60
36
15
-10
45
Liquid lens, 25° aperture
650
16mm (20°)
938100033, 36 LEDs, 16mm optics, 25°, white
Art:
MATRIX320726430 Copied
White
115.5 x 126 x 70.3
1500
70
60
36
15
-10
45
Liquid lens, 25° aperture
650
16mm (20°)
938100034, 36 LEDs, 16mm optics, 25°, blue
Art:
MATRIX320727430 Copied
Blue
115.5 x 126 x 70.3
1500
70
60
36
15
-10
45
Liquid lens, 25° aperture
650
16mm (20°)

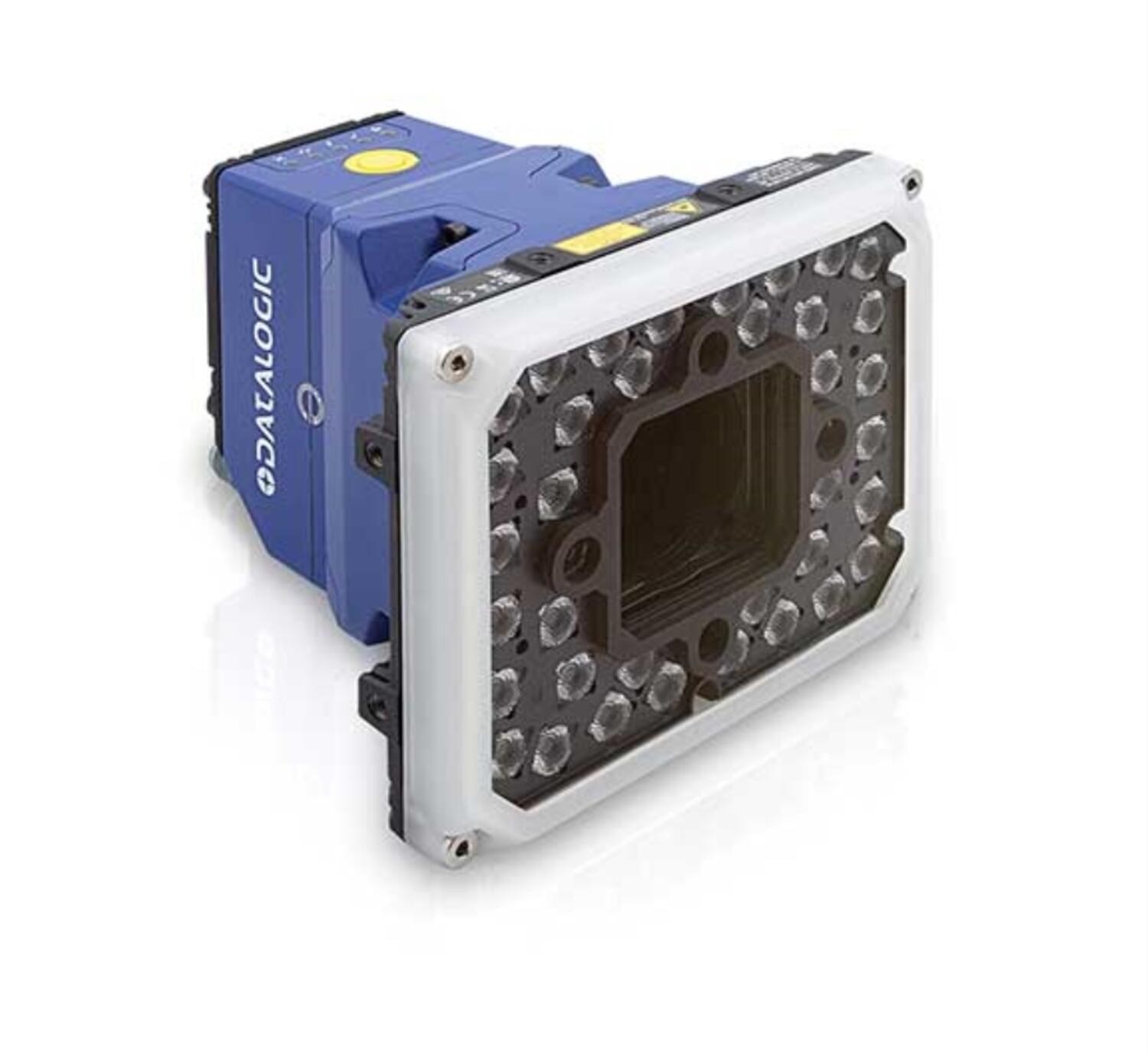

938100035, CM 2MP 1/3"
Art:
MATRIX320700030 Copied
Blue, White, Infrared, Ultraviolet
108.7 x 54 x 55.5
36
-10
50
C-Mount Lens
300
4mm(68°), 6mm(48°), 8mm(37°), 12mm(25°), 16mm(19°), 25mm(12°), 35mm(9°)
938100056, 14 LEDs, 9mm optics, 45°, red, X
Art:
MATRIX320705330X Copied
Red
108.7 x 54 x 55.5
1000
35
60
14
10
0
45
Liquid lens, 45° aperture
380
9mm (34°)
938100057, 14 LEDs, 9mm optics, 45°, white, X
Art:
MATRIX320706330X Copied
White
108.7 x 54 x 55.5
1000
35
60
14
10
0
45
Liquid lens, 45° aperture
380
9mm (34°)
938100058, 14 LEDs, 9mm optics, 45°, blue, X
Art:
MATRIX320707330X Copied
Blue
108.7 x 54 x 55.5
1000
35
60
14
10
0
45
Liquid lens, 45° aperture
380
9mm (34°)
938100059, 14 LEDs, 16mm optics, 25°, red, X
Art:
MATRIX320709430X Copied
Red
108.7 x 54 x 55.5
1500
70
60
14
10
0
45
Liquid lens, 25° aperture
380
16mm (20°)
938100060, 14 LEDs, 16mm optics, 25°, white, X
Art:
MATRIX320710430X Copied
White
108.7 x 54 x 55.5
1500
70
60
14
10
0
45
Liquid lens, 25° aperture
380
16mm (20°)
938100061, 14 LEDs, 16mm optics, 25°, blue, X
Art:
MATRIX320711430X Copied
Blue
108.7 x 54 x 55.5
1500
70
60
14
10
0
45
Liquid lens, 25° aperture
380
16mm (20°)
938100065, 36 LEDs, 9mm optics, 45°, red, X
Art:
MATRIX320721330X Copied
Red
115.5 x 126 x 70.3
1000
35
60
36
15
0
45
Liquid lens, 45° aperture
650
9mm (34°)
938100066, 36 LEDs, 9mm optics, 45°, white, X
Art:
MATRIX320722330X Copied
White
115.5 x 126 x 70.3
1000
35
60
36
15
0
45
Liquid lens, 45° aperture
650
9mm (34°)
938100067, 36 LEDs, 9mm optics, 45°, blue, X
Art:
MATRIX320723330X Copied
Blue
115.5 x 126 x 70.3
1000
35
60
36
15
0
45
Liquid lens, 45° aperture
650
9mm (34°)
938100068, 36 LEDs, 16mm optics, 25°, red, X
Art:
MATRIX320725430X Copied
Red
115.5 x 126 x 70.3
1500
70
60
36
15
0
45
Liquid lens, 25° aperture
650
16mm (20°)
938100069, 36 LEDs, 16mm optics, 25°, white, X
Art:
MATRIX320726430X Copied
White
115.5 x 126 x 70.3
1500
70
60
36
15
0
45
Liquid lens, 25° aperture
650
16mm (20°)
938100070, 36 LEDs, 16mm optics, 25°, blue, X
Art:
MATRIX320727430X Copied
Blue
115.5 x 126 x 70.3
1500
70
60
36
15
0
45
Liquid lens, 25° aperture
650
16mm (20°)
938100071, CM 2MP 1/3", X
Art:
MATRIX320700030X Copied
Blue, White, Infrared, Ultraviolet
108.7 x 54 x 55.5
36
-10
50
C-Mount Lens
300
4mm(68°), 6mm(48°), 8mm(37°), 12mm(25°), 16mm(19°), 25mm(12°), 35mm(9°)
938100053, 14 LEDs, 6mm optics, 60°, Red, X
Art:
MATRIX320701230X Copied
Red
108.7 x 54 x 55.5
550
50
60
14
10
0
45
Liquid Lens, 60° aperture
380
6mm
938100055, 14 LEDs, 6mm optics, 60°, Blue, X
Art:
MATRIX320703230X Copied
Blue
108.7 x 54 x 55.5
550
50
60
14
10
0
45
Liquid Lens, 60° aperture
380
6mm
938100062, 36 LEDs, 6mm optics, 60°, Red, X
Art:
MATRIX320717230X Copied
Red
115.5 x 126 x 70.3
550
50
60
36
15
0
45
Liquid Lens, 60° aperture
650
6mm
938100064, 36 LEDs, 6mm optics, 60°, Blue, X
Art:
MATRIX320719230X Copied
Blue
115.5 x 126 x 70.3
550
50
60
36
15
0
45
Liquid Lens, 60° aperture
650
6mm
