The MATRIX300N has been made obsolete and superseded by MATRIX320N 2MP OR MATRIX220 X 1.2MP. Please contact [email protected] for direct replacements.

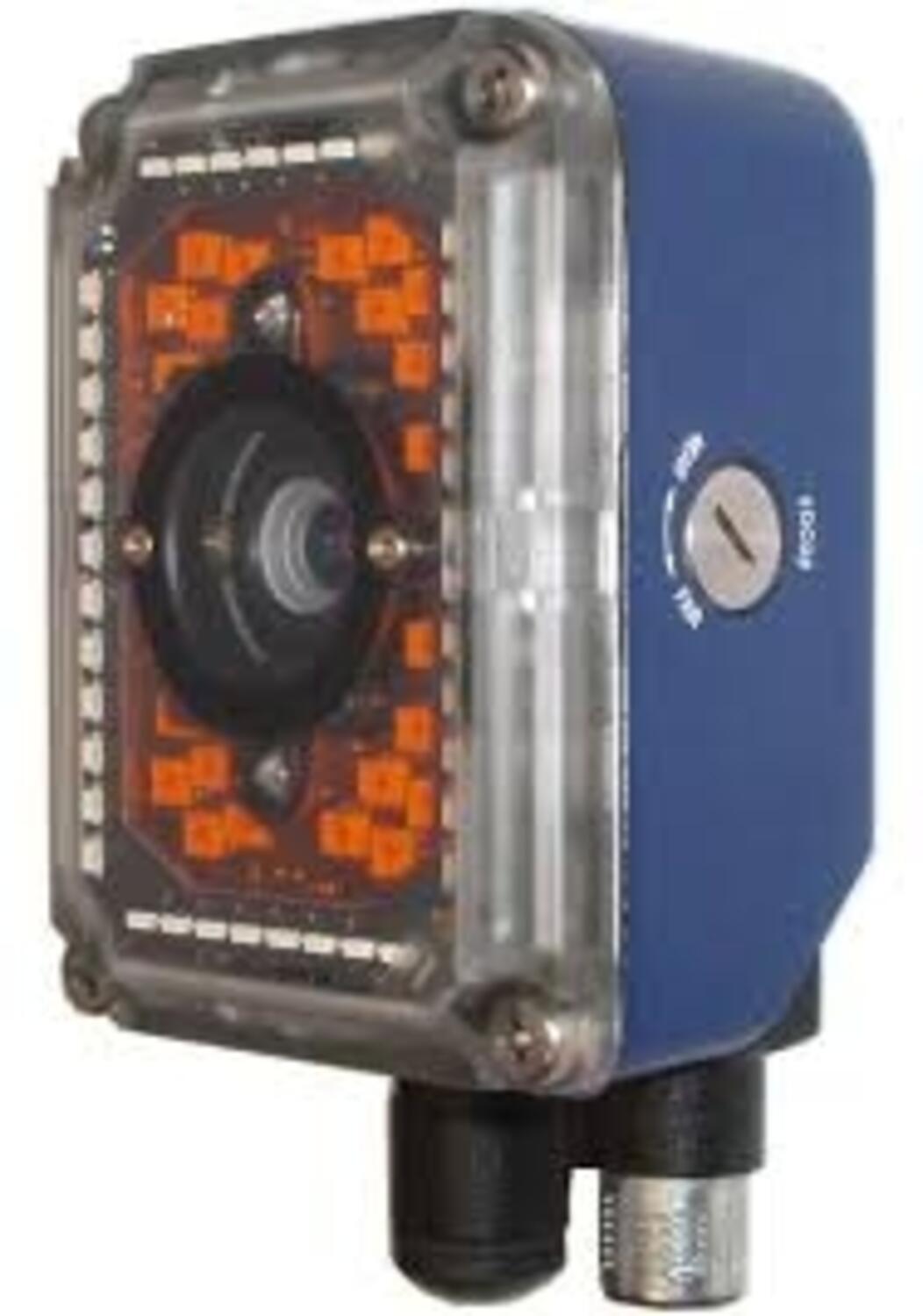

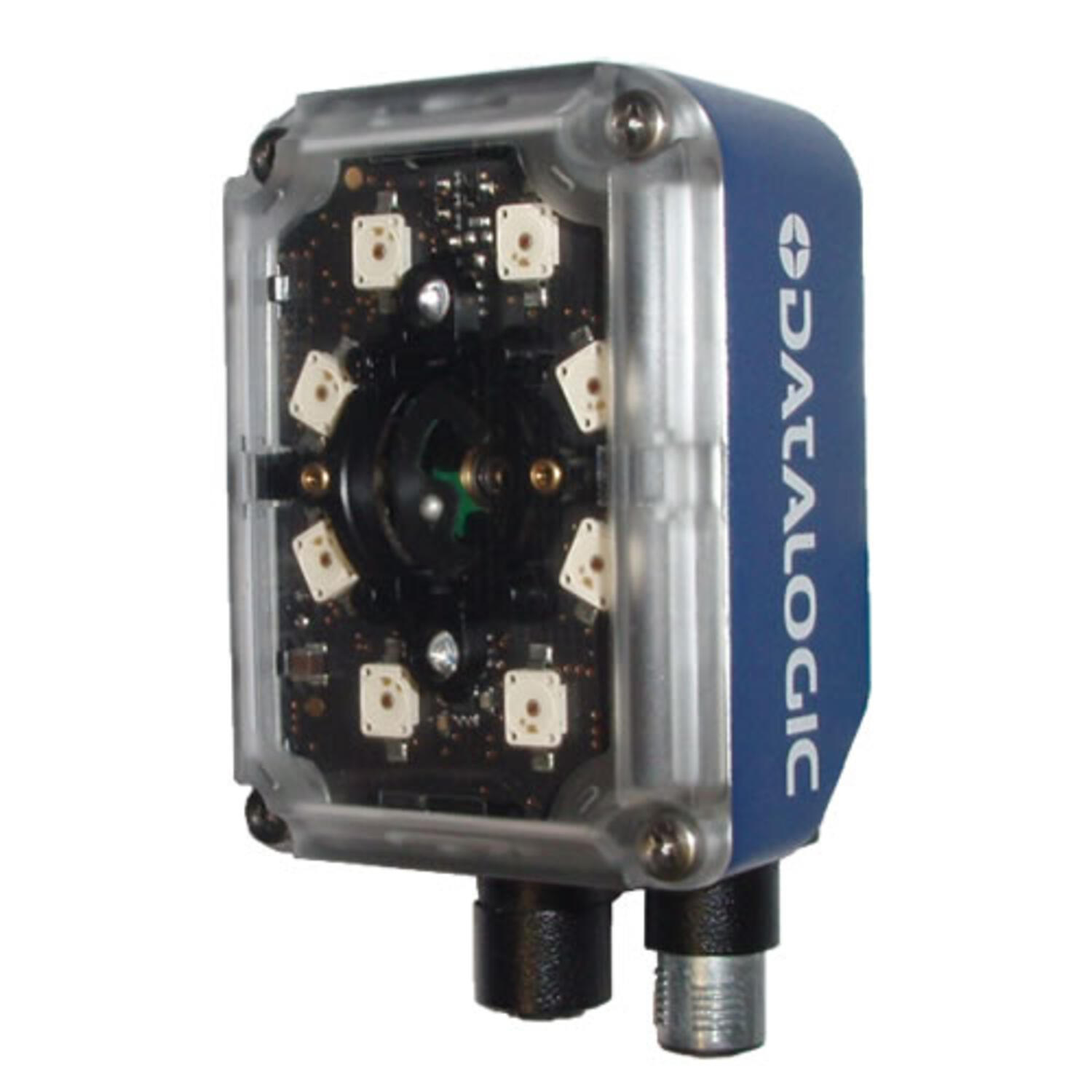

Matrix 300N™ is the next-generation, compact imager in the Matrix family. This high resolution sensor has ultra-fast image acquisition, at 1.3 megapixel and a frame rate of 60 frames per second. The Matrix 300N™ is ultra-compact, purpose built for superior performance on high speed and Direct Part Marking (DPM) applications.
For the eletronic focus control the optical system incorporates a liquid lens module, as a result the reader offers automatic focus adjustment without the addition of moving parts.

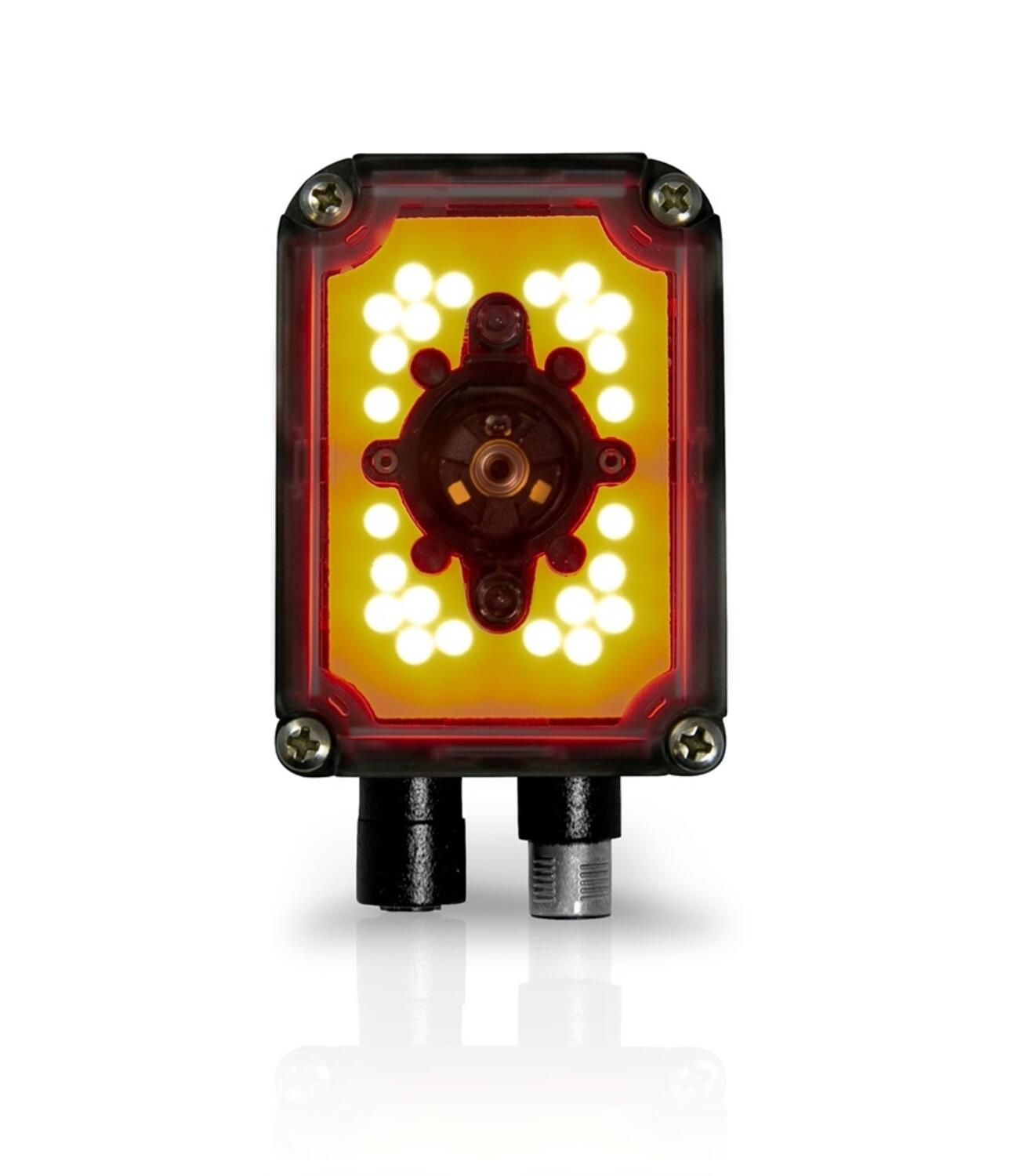

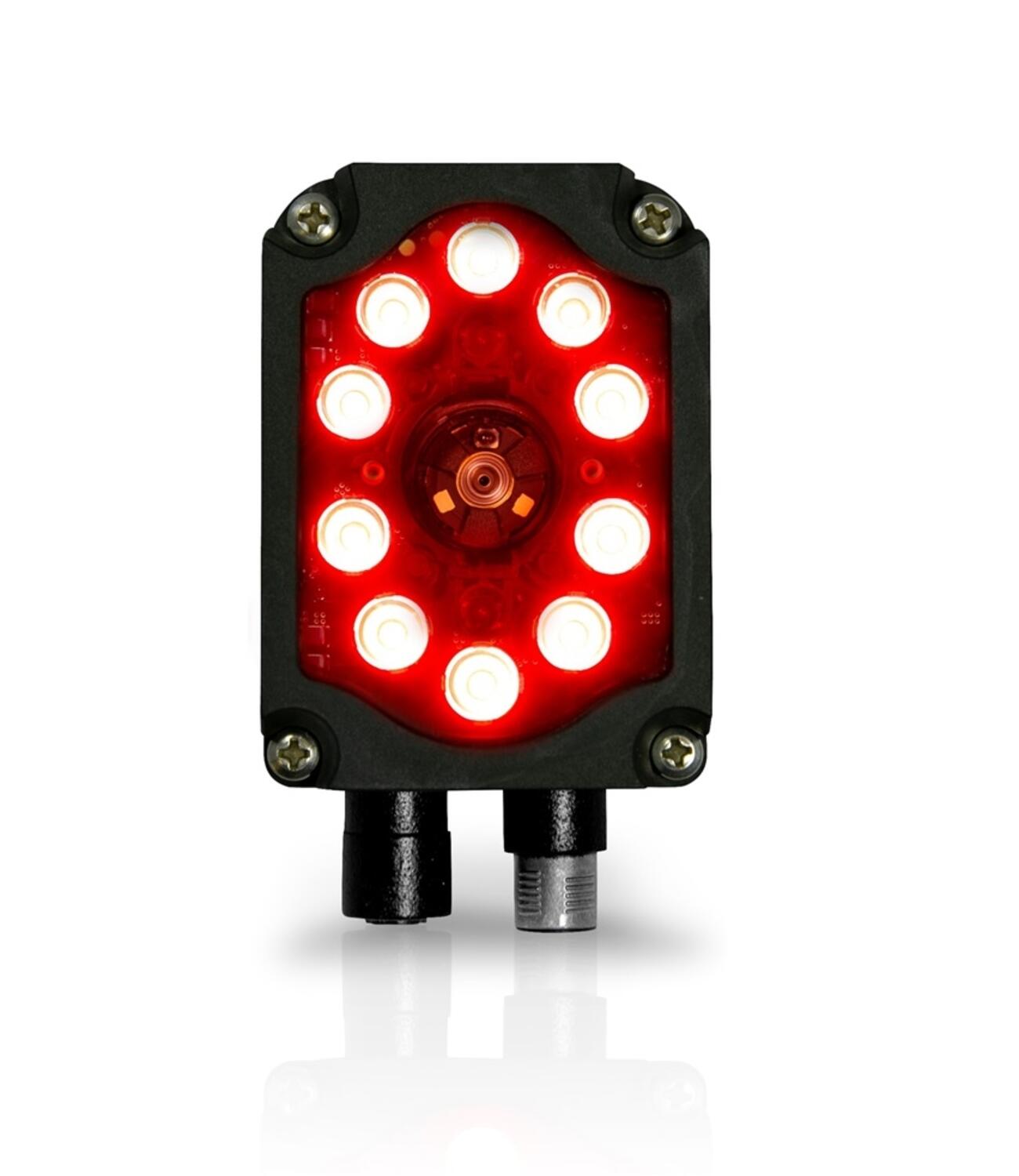

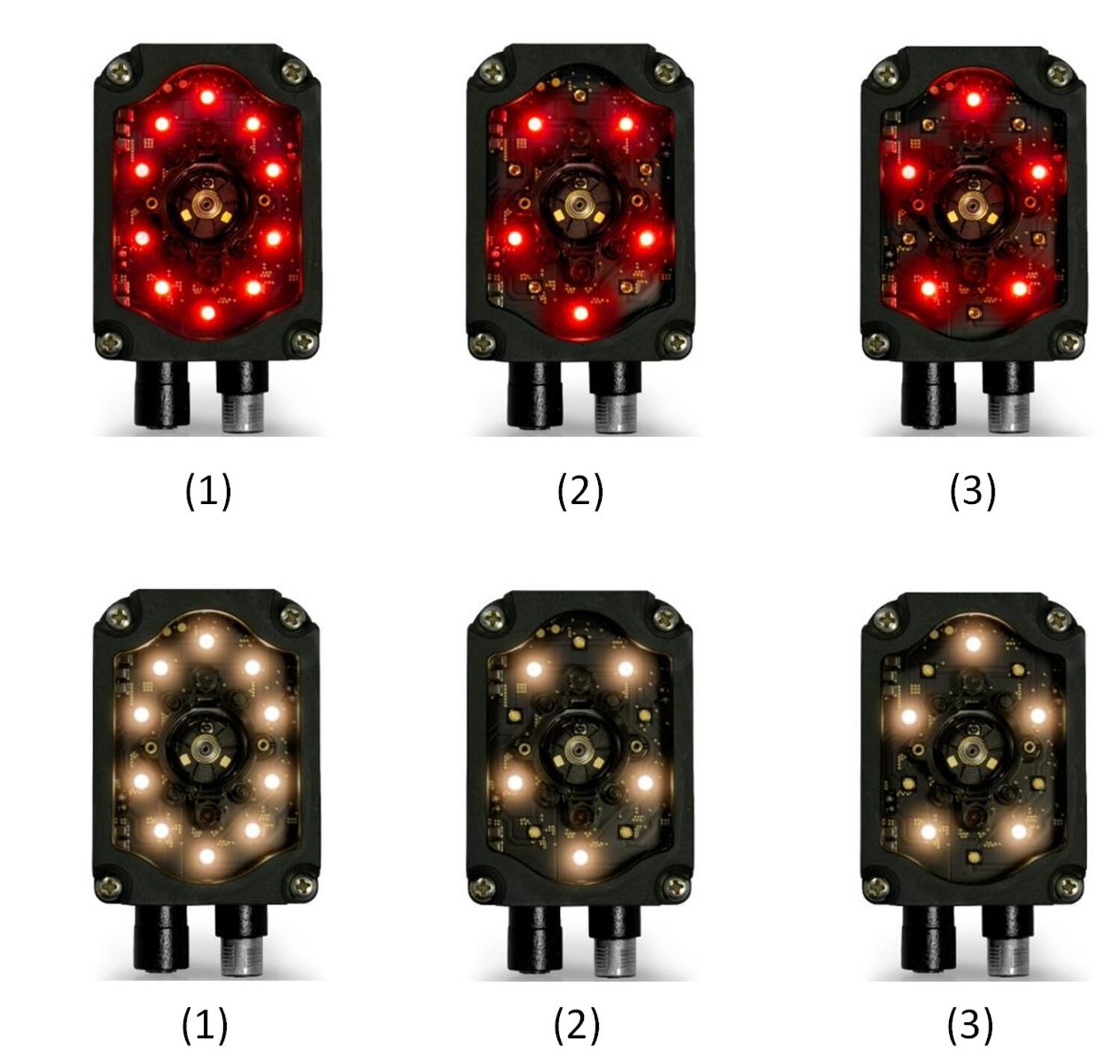

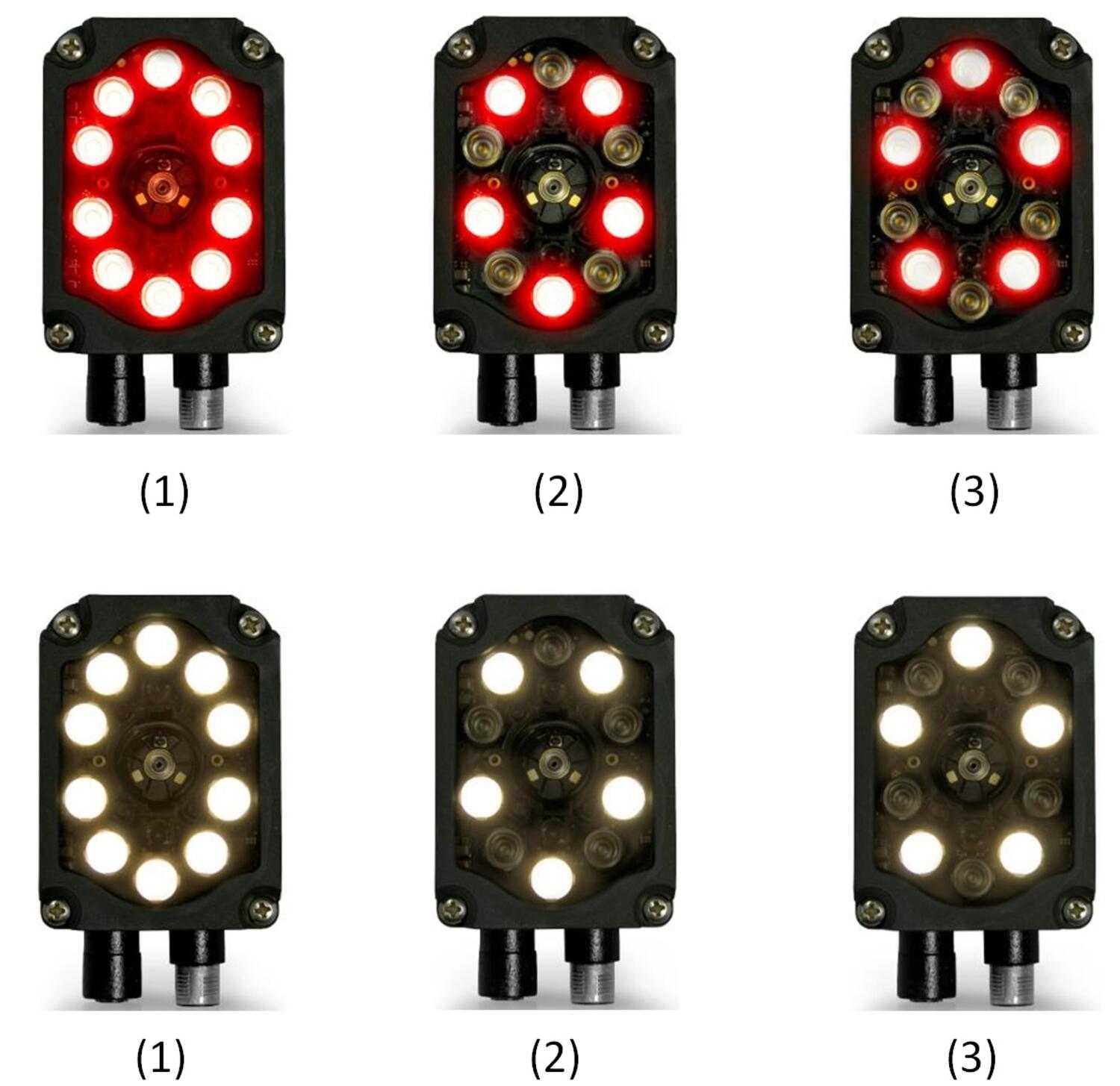

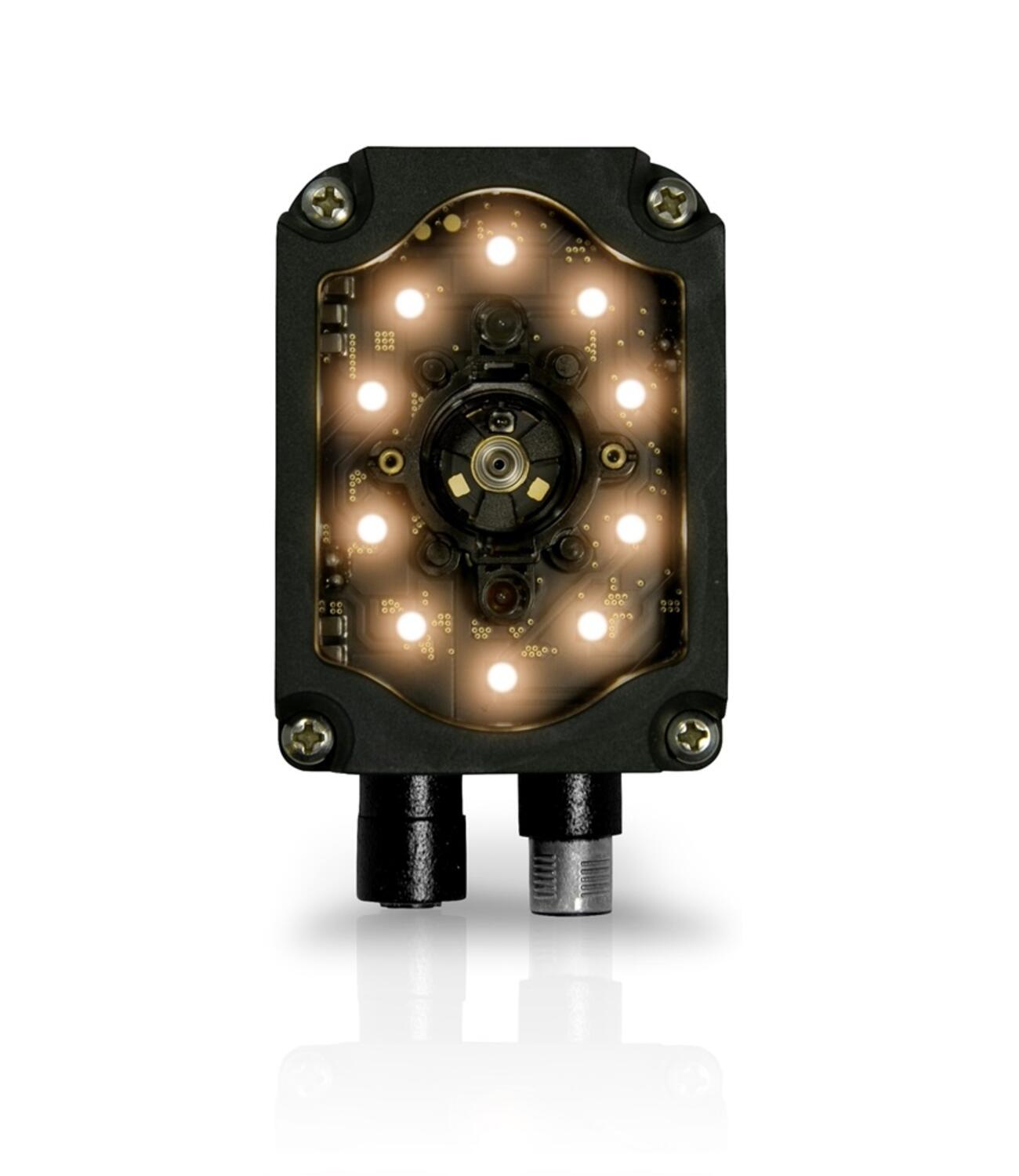

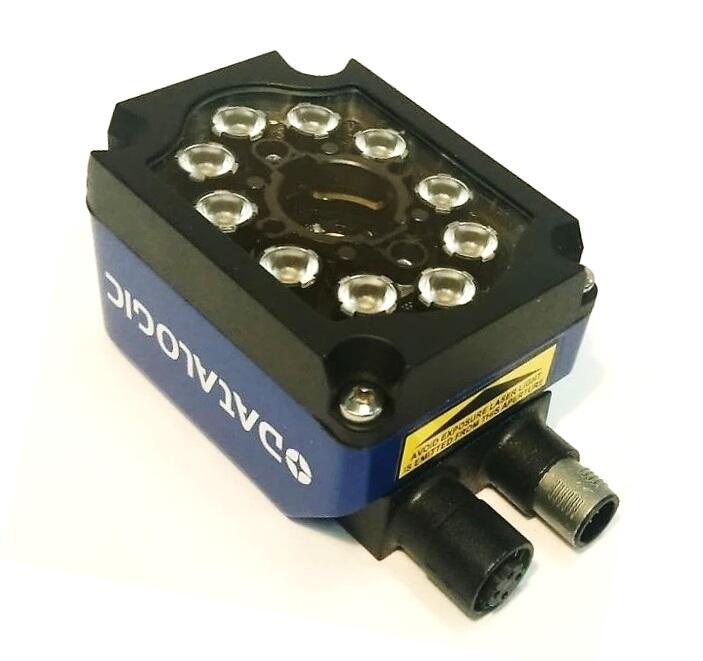

The innovative design of integrated illuminators emmbedded over the entire front surface allows for bright, uniform illumonation. Suitable for illumination on normal, etched, reflective or textured surfaces due to the lighting design using both bright and dark field patterns.
The small dimensions of the Matrix 300N™ and rotating connector makes it ideal for integrating into small, tight spaces, as well as the M12, 4 pole connections making for easy integration into existing systems.
Additionally the compact flexible design offers cost effective communication options with Power over Ethernet (POE) connection through standard ethernet connection. other connectivity options include PROFINETIO and ETHERNET/IP, eliminating external communication boxes or converters.
| 1D Code types | Auto discriminates all standard 1D codes |
|---|---|
| 2D Code Types | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code |
| Digital Inputs | 2 |
| Digital Outputs | 3 |

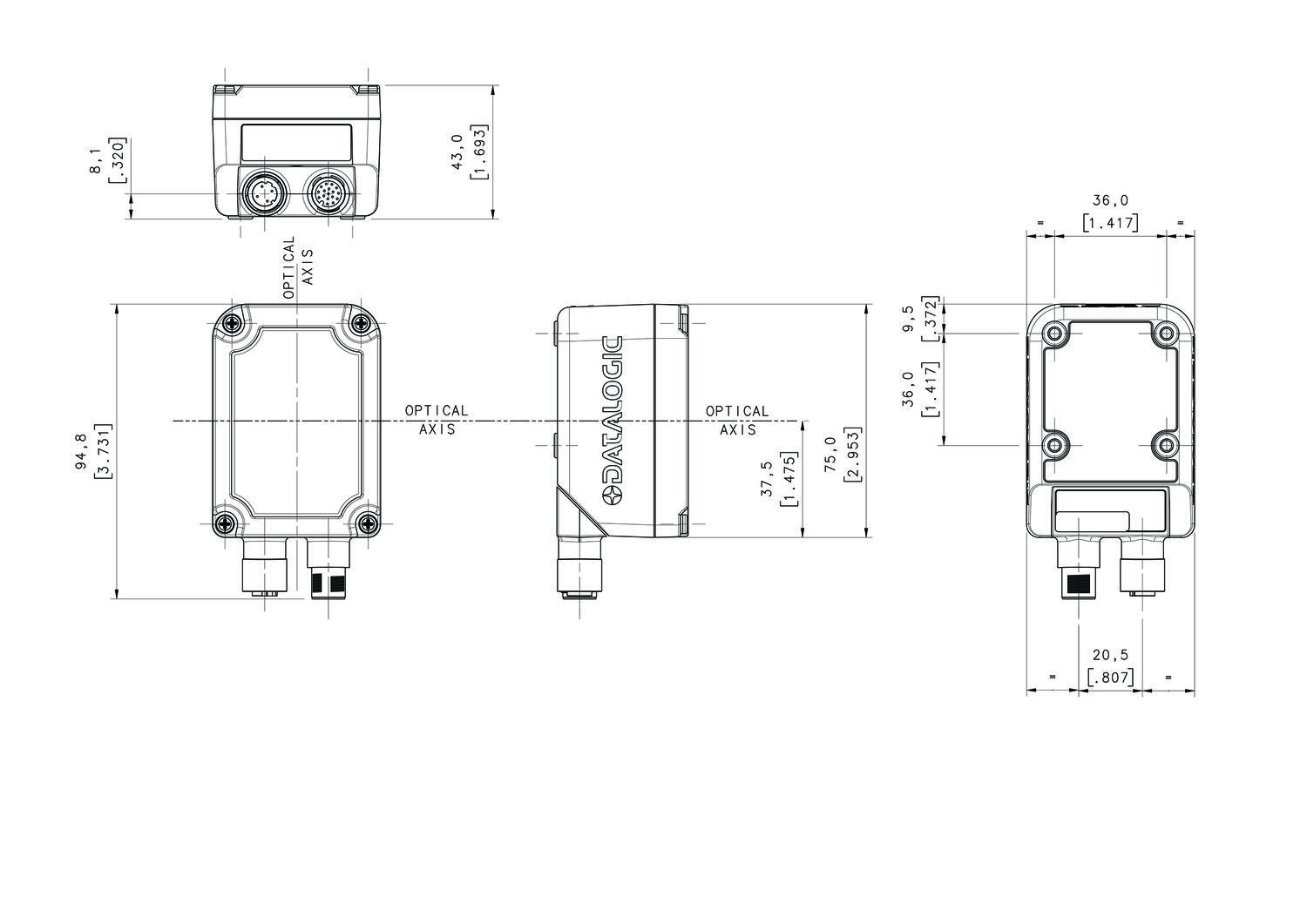

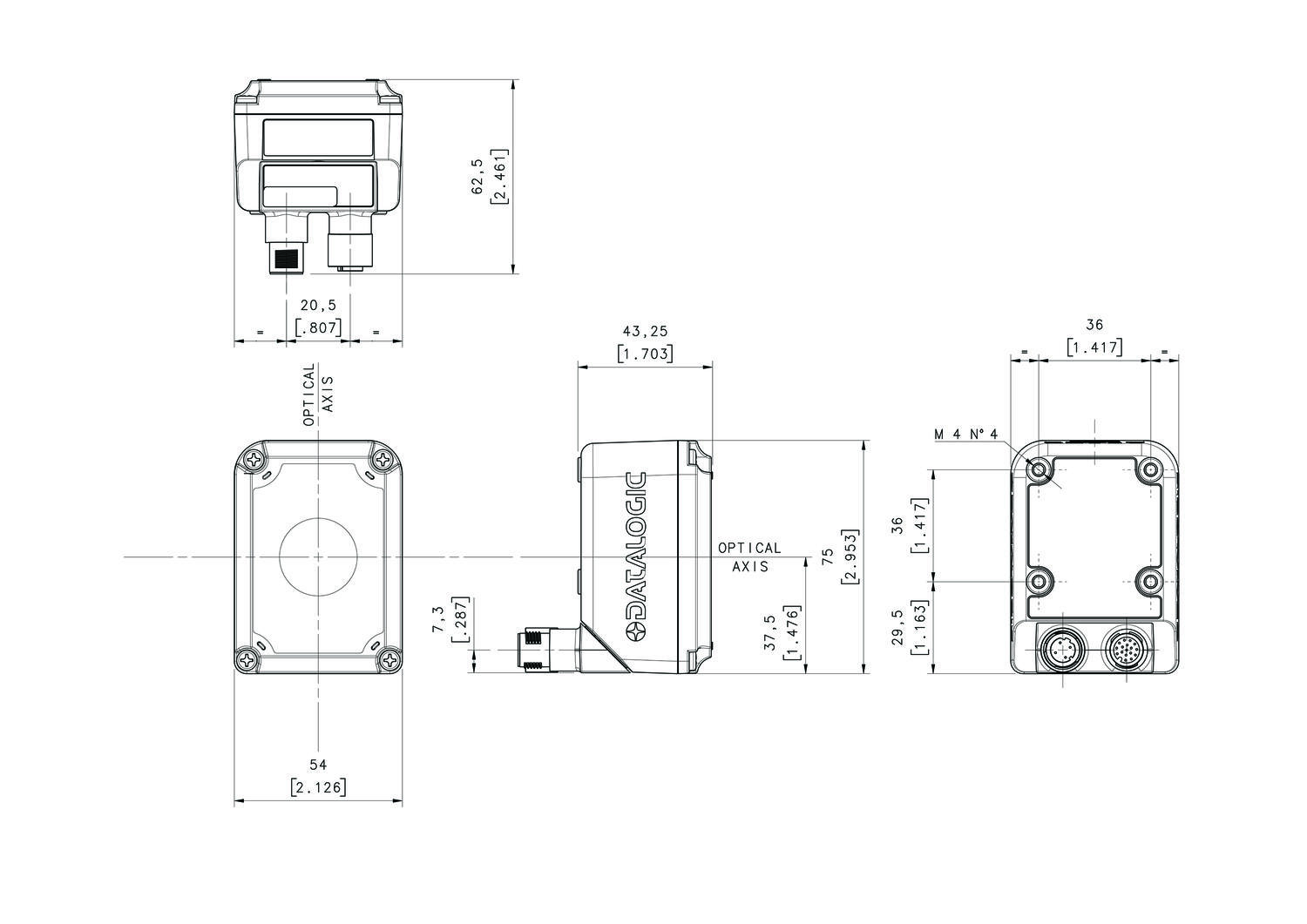

| Dimension (mm) | 95 x 54 x 43 |
| Extra Features | Narrow angle optics |
| Frame Rate Max | 60 |
| Integrated Communication Interface | Ethernet 10/100, RS-232/RS422/RS485 |
| IP Class | IP67 |
| Lens material | Plastic |
| Material of body | Aluminium |
| Postal Code Types | Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal |
| Power Consumption | 5 |
| Programming Options | Windows-based SW (DL.CODE) via Ethernet |
| Readable code types | 1D / Linear Codes, 2D Codes, Postal Codes |
|---|---|
| Resolution | 1280 x 1024 (1.3MP) |
| Sensor type | CMOS |
| Shutter type | Global |
| Supply voltage | 10-30 V DC |
| Temperature range bearing, from | -20 |
| Temperature range bearing, to | 70 |
| Temperature range from | 0 |
| Temperature range to | 50 |
| Type of lens | Manual focus |
| Weight | 238 |
| Viewing angle | 24° (16mm) |
The MATRIX300N has been made obsolete and superseded by MATRIX320N 2MP OR MATRIX220 X 1.2MP. Please contact [email protected] for direct replacements.
Matrix 300N™ is the next-generation, compact imager in the Matrix family. This high resolution sensor has ultra-fast image acquisition, at 1.3 megapixel and a frame rate of 60 frames per second. The Matrix 300N™ is ultra-compact, purpose built for superior performance on high speed and Direct Part Marking (DPM) applications.
For the eletronic focus control the optical system incorporates a liquid lens module, as a result the reader offers automatic focus adjustment without the addition of moving parts.
The innovative design of integrated illuminators emmbedded over the entire front surface allows for bright, uniform illumonation. Suitable for illumination on normal, etched, reflective or textured surfaces due to the lighting design using both bright and dark field patterns.
The small dimensions of the Matrix 300N™ and rotating connector makes it ideal for integrating into small, tight spaces, as well as the M12, 4 pole connections making for easy integration into existing systems.
Additionally the compact flexible design offers cost effective communication options with Power over Ethernet (POE) connection through standard ethernet connection. other connectivity options include PROFINETIO and ETHERNET/IP, eliminating external communication boxes or converters.
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.
We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.
Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.
Thanks to all involved and also to our amazing team for their hard work and dedication 💪
Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.
.png?as=1&iar=0&hash=810B0221860A0A9A4F02213200AE093A)
Elevating Safety with RCT Cable Solutions
RCT Cable Solutions are designed with safety, efficiency, and durability at their core—ensuring reliable cable management in even the most demanding industrial environments. From cable clamps to cleats, glands, and routing systems, RCT products help protect installations from strain, damage, and fire risk. With high-quality materials and compliance with international safety standards, RCT offers smart, secure solutions that elevate the performance and longevity of electrical systems.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Colour LED | Dimension (mm) | Distance Max | Distance Min | Extra Features | Frame Rate Max | Integrated Communication Interface | IP Class | Lens material | Number of LED | Postal Code Types | Power Consumption | Programming Options | Resolution | Shutter type | Supply voltage | Temperature range to | Type of lens | Weight | Viewing angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N435010
Copied
|
|
95 x 54 x 43
|
|
|
Narrow angle optics
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
24° (16mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N434010
Copied
|
|
95 x 54 x 43
|
|
|
Narrow angle optics
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
32° (12mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N423010
Copied
|
|
95 x 54 x 43
|
|
|
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N453010
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N473010
Copied
|
|
95 x 54 x 43
|
|
|
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N423040
Copied
|
|
95 x 54 x 43
|
|
|
Power over Ethernet
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
48 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N434040
Copied
|
|
95 x 54 x 43
|
|
|
Narrow angle optics, power over ethernet
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
48 V DC
|
50
|
Manual focus
|
238
|
32° (12mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N464010
Copied
|
|
95 x 54 x 43
|
|
|
Narrow angle optics
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
32° (12mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N435040
Copied
|
|
95 x 54 x 43
|
|
|
Narrow angle optics, power over ethernet
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
48 V DC
|
50
|
Manual focus
|
238
|
24° (16mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N465010
Copied
|
|
95 x 54 x 43
|
|
|
Narrow angle optics
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
24° (16mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N481010
Copied
|
|
95 x 54 x 43
|
|
|
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
66° (6mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N411010
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
66° (6mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N472010
Copied
|
|
95 x 54 x 43
|
|
|
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N482010
Copied
|
|
95 x 54 x 43
|
|
|
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N412010
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N452010
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N483010
Copied
|
|
95 x 54 x 43
|
|
|
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N483013
Copied
|
|
95 x 54 x 43
|
|
|
YAG filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N481011
Copied
|
|
95 x 54 x 43
|
|
|
ESD safe version
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
66° (6mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N411011
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, ESD safe version
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
66° (6mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N473011
Copied
|
|
95 x 54 x 43
|
|
|
ESD safe version
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N483011
Copied
|
|
95 x 54 x 43
|
|
|
ESD safe version
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N412011
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, ESD safe version
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N452011
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, ESD safe version
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N411012
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, ESD safe version, YAG filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
66° (6mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N412012
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, ESD safe version, YAG filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N412014
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, ESD safe version, polarizing filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N412015
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, polarizing filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N412040
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, power over ethernet
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
48 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N413015
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, polarizing filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N452012
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, ESD safe version, YAG filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N452014
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, ESD safe version, polarizing filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N452015
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, polarizing filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N452040
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, power over ethernet
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
48 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N453015
Copied
|
|
95 x 54 x 43
|
|
|
Wide angle optics, polarizing filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Royal Mail Code (RM4SCC), Japan Postal, Postnet (+BB)
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N465013
Copied
|
|
95 x 54 x 43
|
|
|
Narrow angle optics, YAG filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
24° (16mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N472011
Copied
|
|
95 x 54 x 43
|
|
|
ESD safe version
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N472012
Copied
|
|
95 x 54 x 43
|
|
|
ESD safe version, YAG filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N472040
Copied
|
|
95 x 54 x 43
|
|
|
Power over ethernet
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
48 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N472041
Copied
|
|
95 x 54 x 43
|
|
|
ESD safe version, power over ethernet
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
48 V DC
|
45
|
Manual focus
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N473012
Copied
|
|
95 x 54 x 43
|
|
|
ESD safe version, YAG filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
50
|
Manual focus
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N482011
Copied
|
|
95 x 54 x 43
|
|
|
ESD safe version
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N482012
Copied
|
|
95 x 54 x 43
|
|
|
ESD safe version, YAG filter
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
10-30 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N482040
Copied
|
|
95 x 54 x 43
|
|
|
Power over ethernet
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
48 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N482041
Copied
|
|
95 x 54 x 43
|
|
|
ESD safe version, power over ethernet
|
60
|
Ethernet 10/100, RS-232/RS422/RS485
|
IP67
|
Plastic
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
5
|
Windows-based SW (DL.CODE) via Ethernet
|
1280 x 1024 (1.3MP)
|
Global
|
48 V DC
|
45
|
Electronic Liquid lens
|
238
|
40° (9mm)
|
| ||
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N712010
Copied
|
Red
|
95 x 54 x 45
|
650
|
20
|
|
45
|
Ethernet 10/100 Mbit/s: Ethernet IP, Modbus TCP, Profinet IO, Serial RS232/RS422FD
|
IP65, IP67
|
|
10
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
6
|
DL.CODE, Host Mode programming, X-PRESS Human Machine Interface
|
1600 x 1200 (2MP)
|
|
10-30 V DC
|
45
|
|
250
|
9mm (H:44°, V:34°, D:54°)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N712015
Copied
|
Red
|
95 x 54 x 45
|
350
|
20
|
Polarized model
|
45
|
Ethernet 10/100 Mbit/s: Ethernet IP, Modbus TCP, Profinet IO, Serial RS232/RS422FD
|
IP65, IP67
|
|
10
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
6
|
DL.CODE, Host Mode programming, X-PRESS Human Machine Interface
|
1600 x 1200 (2MP)
|
|
10-30 V DC
|
45
|
|
274
|
9mm (H:44°, V:34°, D:54°)
|
| ||
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N752010
Copied
|
White
|
95 x 54 x 45
|
650
|
20
|
|
45
|
Ethernet 10/100 Mbit/s: Ethernet IP, Modbus TCP, Profinet IO, Serial RS232/RS422FD
|
IP65, IP67
|
|
10
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
6
|
DL.CODE, Host Mode programming, X-PRESS Human Machine Interface
|
1600 x 1200 (2MP)
|
|
10-30 V DC
|
45
|
|
250
|
9mm (H:44°, V:34°, D:54°)
|
| ||
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N772010
Copied
|
Red
|
95 x 54 x 43
|
350
|
20
|
Diffused model
|
45
|
Ethernet 10/100 Mbit/s: Ethernet IP, Modbus TCP, Profinet IO, Serial RS232/RS422FD
|
IP65, IP67
|
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
6
|
DL.CODE, Host Mode programming, X-PRESS Human Machine Interface
|
1600 x 1200 (2MP)
|
|
10-30 V DC
|
45
|
|
236
|
9mm (H:44°, V:34°, D:54°)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N726010
Copied
|
Red
|
95 x 54 x 45
|
1200
|
40
|
|
45
|
Ethernet 10/100 Mbit/s: Ethernet IP, Modbus TCP, Profinet IO, Serial RS232/RS422FD
|
IP65, IP67
|
|
10
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
6
|
DL.CODE, Host Mode programming, X-PRESS Human Machine Interface
|
1600 x 1200 (2MP)
|
|
10-30 V DC
|
45
|
|
273
|
16mm (H:25°, V:19°, D:31°)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N796010
Copied
|
White
|
95 x 54 x 45
|
1200
|
40
|
|
45
|
Ethernet 10/100 Mbit/s: Ethernet IP, Modbus TCP, Profinet IO, Serial RS232/RS422FD
|
IP65, IP67
|
|
10
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
6
|
DL.CODE, Host Mode programming, X-PRESS Human Machine Interface
|
1600 x 1200 (2MP)
|
|
10-30 V DC
|
45
|
|
273
|
16mm (H:25°, V:19°, D:31°)
|
| ||
|
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX300N776010
Copied
|
Red
|
95 x 54 x 43
|
450
|
40
|
Diffused model
|
45
|
Ethernet 10/100 Mbit/s: Ethernet IP, Modbus TCP, Profinet IO, Serial RS232/RS422FD
|
IP65, IP67
|
|
|
Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
|
6
|
DL.CODE, Host Mode programming, X-PRESS Human Machine Interface
|
1600 x 1200 (2MP)
|
|
10-30 V DC
|
45
|
|
236
|
16mm (H:25°, V:19°, D:31°)
|
|
Select a variant in the list
+35314047700
