Datalogic Matrix 210N Imager

***OBSOLETE - Please see Matrix 120 and Matrix 220 ranges for alternatives***

Datalogic's Matrix 210N™ has integrated Ethernet, Ethernet/IP and PROFINET in an ultra-compact housing, offering extreme reading performance. Both read data and captured images are transferred using the on-board Ethernet ports. The captured images can be either saved internally or easily and quickly uploaded to external PCs for storage or offline analysis.



The WVGA image sensor is able to capture up to 60 frames per second, with a flexible and powerful illuminator. The Matrix 210N™ offeres 'best-in-class' direct part marked barcode reading capabilities, with impressive decoding rates, high speed hardware platform delivering superior reading performance and supporting high system throughput delivering overall production efficiency.



You can choose between straight or right-angle optics and electronic variable focus is also available, providing suberb contact reading capability and simple mechanical integration into tight spaces thanks to its compact dimensions.



The Matrix 210N™ offers X-PRESS™ Interface making installation and maintenance extremely easy and The Green Spot technology providing easy and real-time feedback of the reading status without any additional software or accessories. X-PRESS features a five LED bar graph with a multifunction key for immediate access to functions such as Aiming, Setup, Automatic Learning, and Test Mode.

  • WVGA image sensor
  • Detect 1D and 2D code types
  • Upto 60 fps
  • Integrated communication via EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP

Selected variant

Avaible in several variants
DATALOGIC17.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

1D Code types Auto discriminates all standard 1D codes
2D Code Types Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Digital Inputs 2
Digital Outputs 2
Dimension (mm) 50 x 25 x 45
Extra Features Far lens
Frame Rate Max 60
Integrated Communication Interface EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
IP Class IP65
Lens material Plastic
Material of body Aluminium
Optics Fixed focus, straight optics
Postal Code Types Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal
Power Consumption 4.5
Programming Options Windows™ based SW (DL.CODE™) via serial, USB and Ethernet, User interface X-PRESS™, Embedded Human Machine Interface
Read Speed 60
Readable code types 1D / Linear Codes, 2D Codes, Postal Codes
Resolution WVGA 780 x 480
Sensor type CMOS
Shutter type Global
Supply voltage 10-30 V DC
Temperature range bearing, from -20
Temperature range bearing, to 70
Temperature range from 0
Temperature range to 50
Weight 204

Downloads

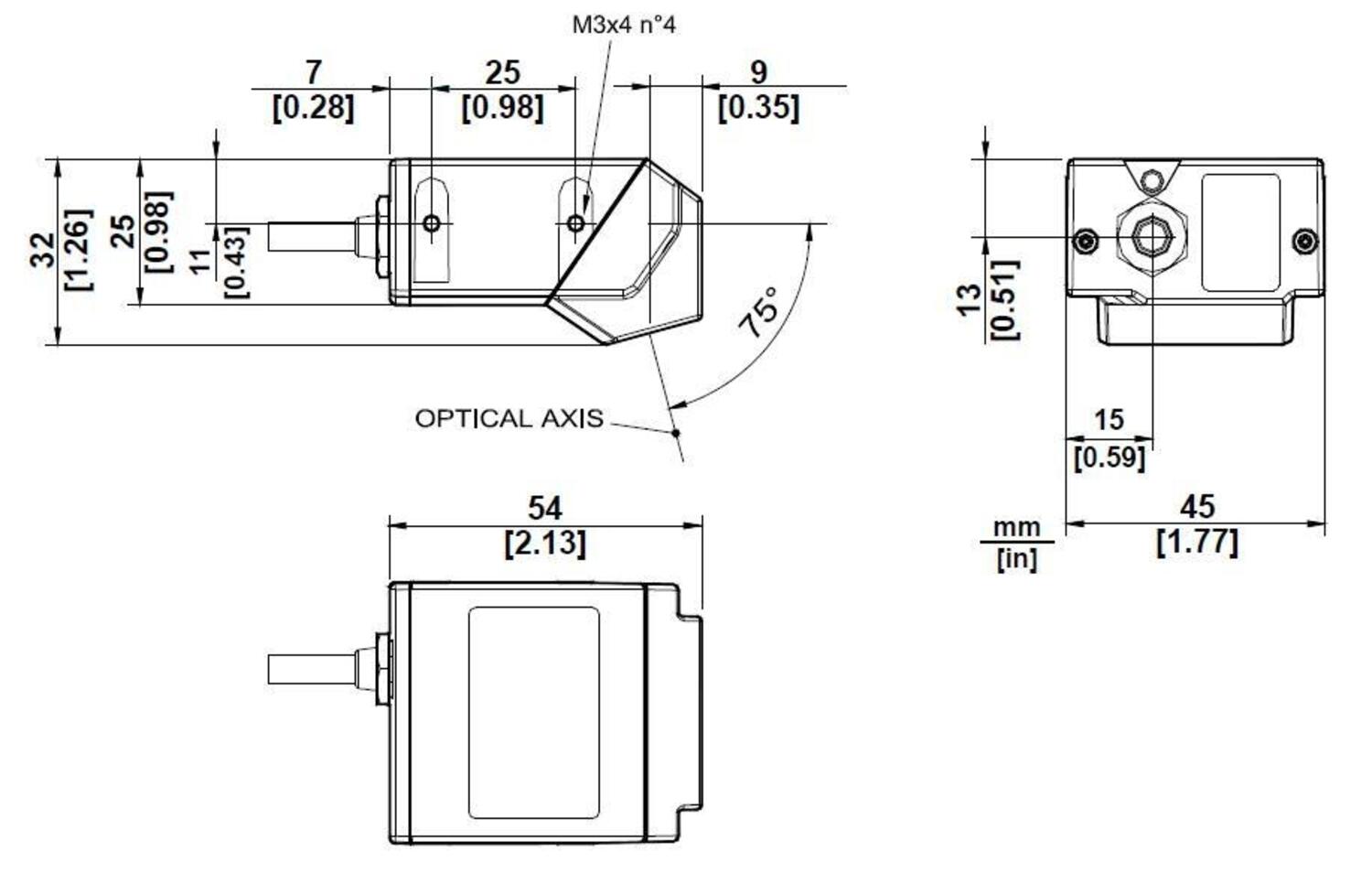

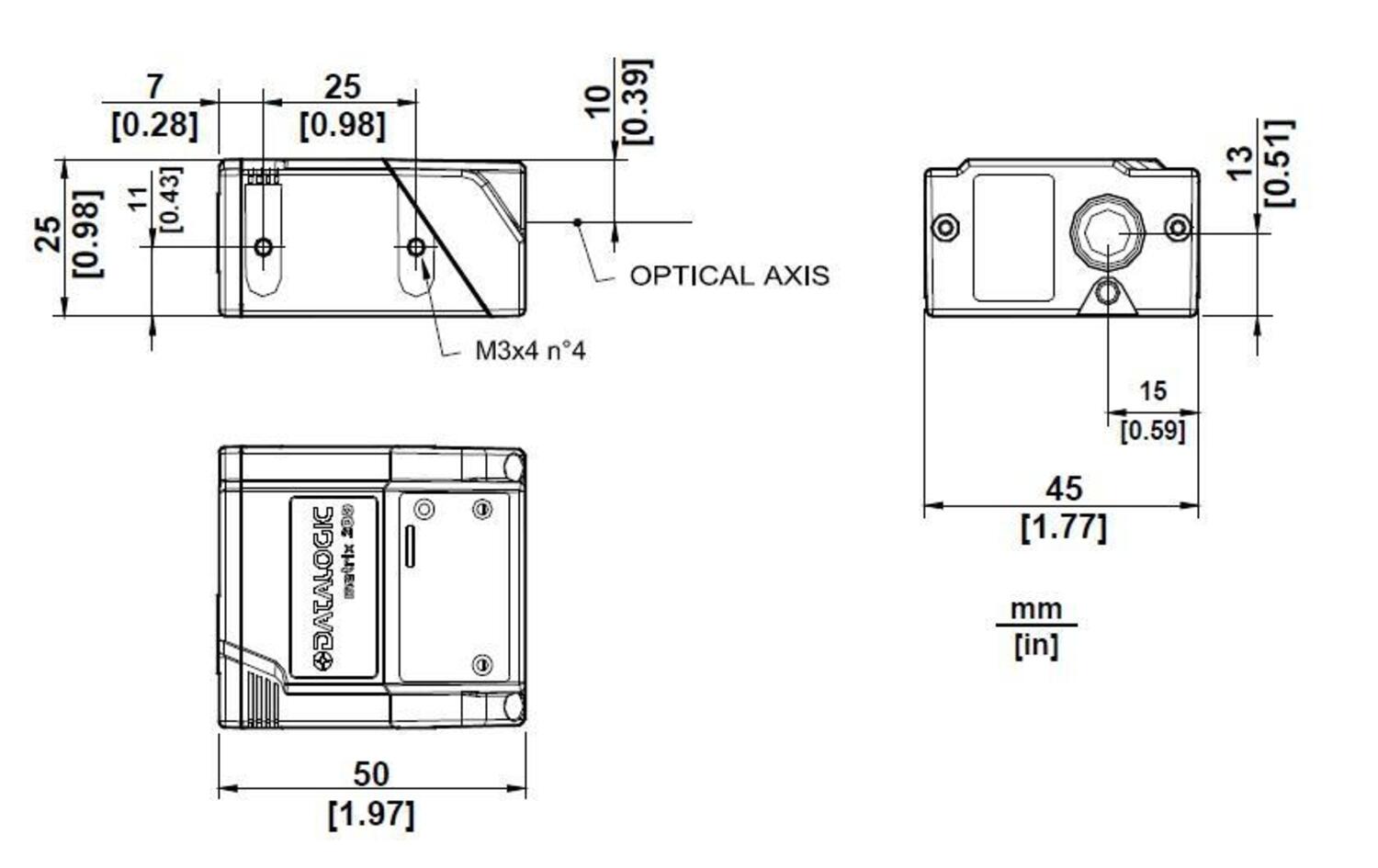

Measurements and connections

Product description

Datalogic's Matrix 210N™ has integrated Ethernet, Ethernet/IP and PROFINET in an ultra-compact housing, offering extreme reading performance. Both read data and captured images are transferred using the on-board Ethernet ports. The captured images can be either saved internally or easily and quickly uploaded to external PCs for storage or offline analysis.



The WVGA image sensor is able to capture up to 60 frames per second, with a flexible and powerful illuminator. The Matrix 210N™ offeres 'best-in-class' direct part marked barcode reading capabilities, with impressive decoding rates, high speed hardware platform delivering superior reading performance and supporting high system throughput delivering overall production efficiency.



You can choose between straight or right-angle optics and electronic variable focus is also available, providing suberb contact reading capability and simple mechanical integration into tight spaces thanks to its compact dimensions.



The Matrix 210N™ offers X-PRESS™ Interface making installation and maintenance extremely easy and The Green Spot technology providing easy and real-time feedback of the reading status without any additional software or accessories. X-PRESS features a five LED bar graph with a multifunction key for immediate access to functions such as Aiming, Setup, Automatic Learning, and Test Mode.

Accessories

draw wire

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

telehaase

Smarter Control Starts Here Explore the TELE Haase Range at Demesne

In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.

DEMESNE CROKEpark

Team Building and Strategy Day

A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.


We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.

Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.

Thanks to all involved and also to our amazing team for their hard work and dedication 💪

klauke

Klauke Micro Allrounder & i-press Series: Smarter Crimping Starts Here

Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
OEM

Demesne Electrical Joins OEM International

We’re pleased to announce that, as of January 13th, 2022, Demesne Electrical has been acquired by OEM International, one of Europe’s leading technology trading groups. Headquartered in Sweden, OEM operates across 14 countries with 34 business units. The acquisition includes Demesne Electrical Sales Limited Ireland, and it’s important to note that there will be no changes to our day-to-day operations. This move strengthens our position in the market and opens the door to new opportunities as part of a larger international group.

PCE OVERLAY

Industrial Plugs and Sockets by PC Electric

PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.

My favourites Articles 2D Code Types Dimension (mm) Extra Features Integrated Communication Interface Optics Temperature range to Weight Price
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213110 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Far lens
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N235110 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
61 x 25 x 45
Auto lens
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Electronic focus control, straight optics
45
237
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212110 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Medium lens
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211110 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code
50 x 25 x 45
Near lens
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211010 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Near lens
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212010 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Medium lens
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213010 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Far lens
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211111 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Near lens, ESD safe
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212111 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Medium lens. ESD safe
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213111 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Far lens, ESD safe
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211011 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Near lens, ESD safe
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212011 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Medium lens, ESD safe
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213011 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Far lens, ESD safe
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211112 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Near lens, ESD safe & YAG laser protection
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212112 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Medium lens, ESD safe & YAG laser protection
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213112 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Far lens, ESD safe & YAG laser protection
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211012 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Near lens, ESD safe & YAG laser protection
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212012 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Medium lens, ESD safe & YAG laser protection
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213012 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Far lens, ESD safe & YAG laser protection
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N235111 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
61 x 25 x 45
Auto lens, ESD safe
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Electronic focus control, straight optics
45
237
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N235112 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
61 x 25 x 45
Auto lens, ESD safe & YAG laser protection
EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
Electronic focus control, straight optics
45
237
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211100 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Near lens
RS232/RS422/RS485, Aux RS232
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212100 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Medium lens
RS232/RS422/RS485, Aux RS232
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213100 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Far lens
RS232/RS422/RS485, Aux RS232
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211000 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Near lens
RS232/RS422/RS485, Aux RS232
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212000 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Medium lens
RS232/RS422/RS485, Aux RS232
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213000 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Far lens
RS232/RS422/RS485, Aux RS232
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211101 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Near lens, ESD safe
RS232/RS422/RS485, Aux RS232
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212101 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Medium lens, ESD safe
RS232/RS422/RS485, Aux RS232
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213101 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Far lens, ESD safe
RS232/RS422/RS485, Aux RS232
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211001 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Near lens, ESD safe
RS232/RS422/RS485, Aux RS232
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212001 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Medium lens, ESD safe
RS232/RS422/RS485, Aux RS232
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213001 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Far lens, ESD safe
RS232/RS422/RS485, Aux RS232
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211120 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Near lens
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212120 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Medium lens
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213120 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Far lens
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211020 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Near lens
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212020 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Medium lens
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213020 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Far lens
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211121 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Near lens, ESD safe
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212121 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Medium lens, ESD safe
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213121 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
50 x 25 x 45
Far lens, ESD safe
Fixed focus, straight optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N211021 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Near lens, ESD safe
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N212021 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Medium lens, ESD safe
Fixed focus, Right angle optics
50
204
**OBSOLETE - Please contact [email protected] for more information**
Art:
MATRIX210N213021 Copied
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
54 x 32 x 45
Far lens, ESD safe
Fixed focus, Right angle optics
50
204

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account
