DATALOGIC
Datalogic Matrix 120 imager
The Matrix 120™ from Datalogic is the smallest ultra-compact industrial imager on the market, that can fit into any integration space, with embedded ethernet connectivity option.
Available in different models, a WVGA sensor is for standard applications, or the 1.2MP sensor for high resolution bar codes. A wide angle version is what makes the Matrix120™ the perfect solution for proximity reading, characterized with top industrial grade parts providing IP 65 protection. ESD safe models are perfect for applications in the electric industry, featuring a glass free reading window which is ideal for the food and beverage industry.
The Matrix 120™ leads the market in customer ease of use because of DL.CODE™ configuration software, X-Press™ button and intuitive HMI.
Ideal for applications where small dimensions, simple integration and performance are key drivers:
- Chemical/Biomedical industry
- Print & Apply applications
- Entry level applications in the Factory Automation area
- Electronics
- Packaging
- Food/Beverage
- WVGA or 1.2 MP resolution
- Detects 1D and 2D code types
- Up to 57 fps
- Integrated communication via RS-232/RS-422/USB 2.0 high speed, Ethernet 10/100: Ethernet, Profinet I/O
Selected variant
Selected variant
Specifications
| 1D Code types | Auto discriminates all standard 1D codes |
|---|---|
| Cable length | 1000 |
| Connection | SER+USB |
| Digital Inputs | 2 |
| Digital Outputs | 2 |

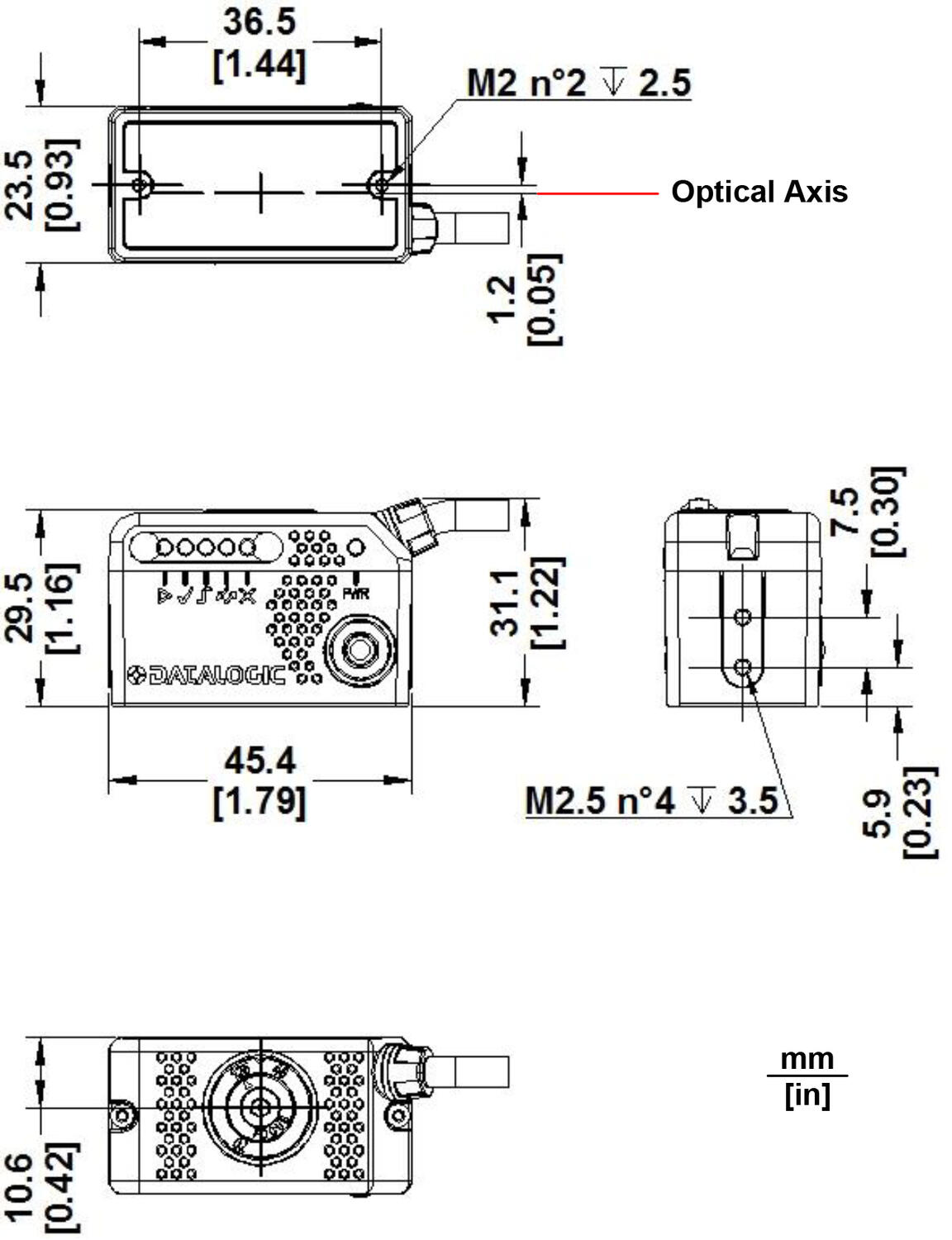

| Dimension (mm) | 45.4 x 31.1 x 23.5 |
| Distance Max | 190 |
| Distance Min | 25 |
| Frame Rate Max | 57 |
| Integrated Communication Interface | RS-232/RS-422/USB 2.0 high speed (USB-CDC, USB-HID) |
| IP Class | IP65 |
| Lens material | Plastic |
| Material of body | Aluminium |
| Multi Label Reading | Yes |
| Power Consumption | 2.4 |
|---|---|
| Programming Options | DL.CODE, Serial Host Mode programming, X-PRESS Human Machine Interface |
| Readable code types | 1D / Linear Codes |
| Resolution | WVGA - 752x480 px |
| Sensor type | CMOS |
| Shutter type | Global |
| Supply voltage | 5 - 30 V DC |
| Temperature range bearing, from | -20 |
| Temperature range bearing, to | 70 |
| Temperature range from | 0 |
| Temperature range to | 45 |
| Weight | 117 |
Product description
The Matrix 120™ from Datalogic is the smallest ultra-compact industrial imager on the market, that can fit into any integration space, with embedded ethernet connectivity option.
Available in different models, a WVGA sensor is for standard applications, or the 1.2MP sensor for high resolution bar codes. A wide angle version is what makes the Matrix120™ the perfect solution for proximity reading, characterized with top industrial grade parts providing IP 65 protection. ESD safe models are perfect for applications in the electric industry, featuring a glass free reading window which is ideal for the food and beverage industry.
The Matrix 120™ leads the market in customer ease of use because of DL.CODE™ configuration software, X-Press™ button and intuitive HMI.
Ideal for applications where small dimensions, simple integration and performance are key drivers:
- Chemical/Biomedical industry
- Print & Apply applications
- Entry level applications in the Factory Automation area
- Electronics
- Packaging
- Food/Beverage
