DATALOGIC

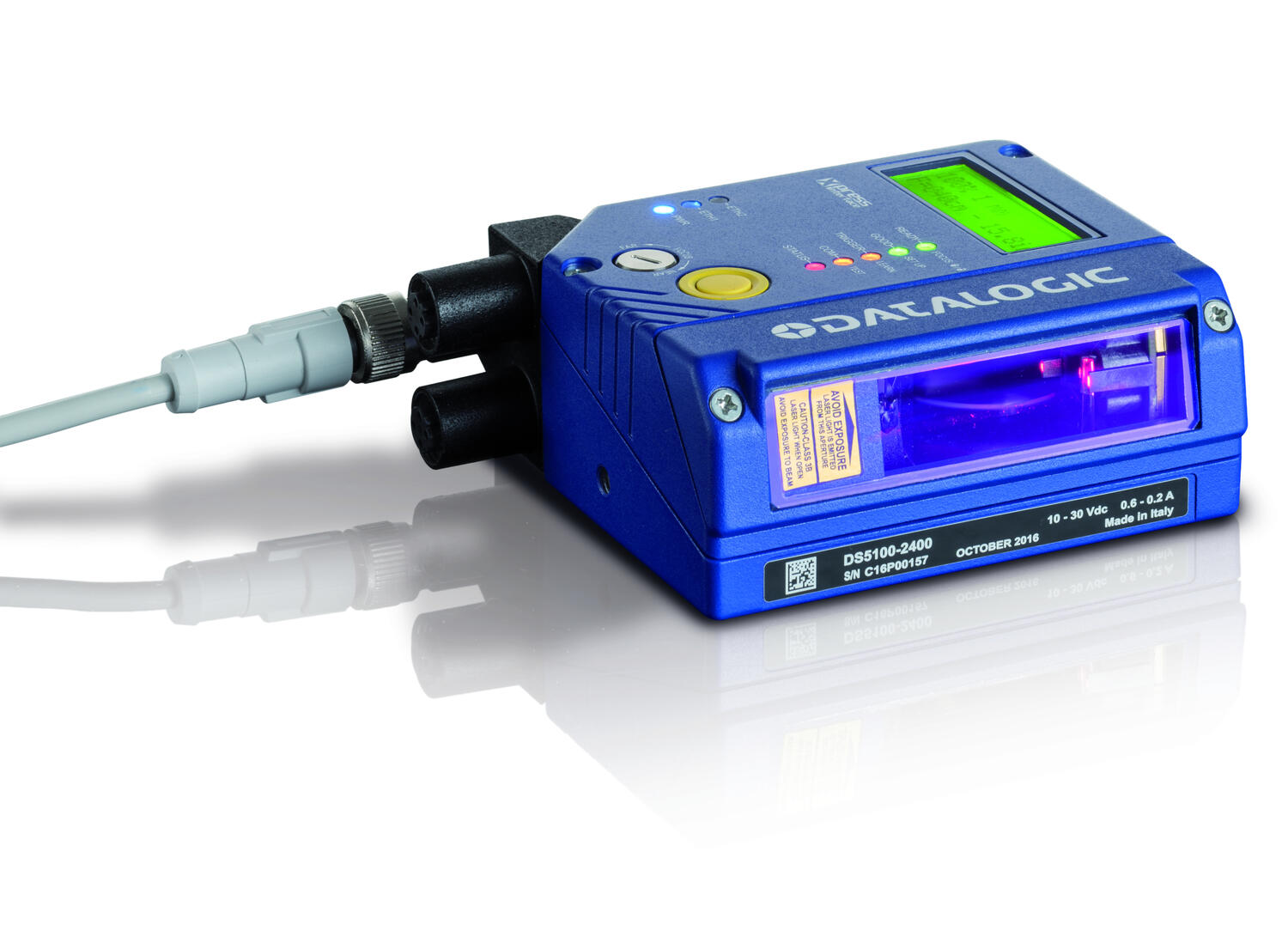

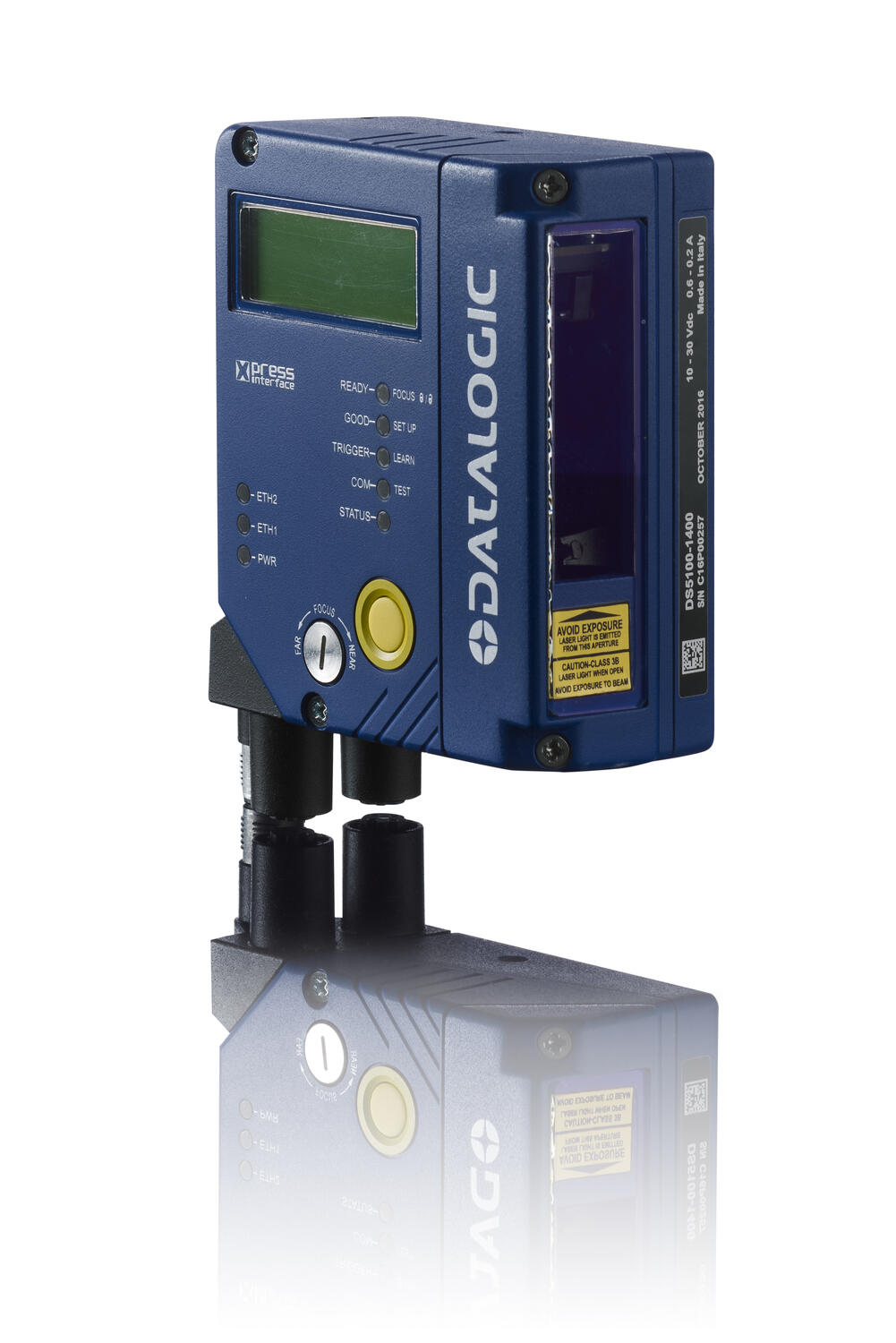

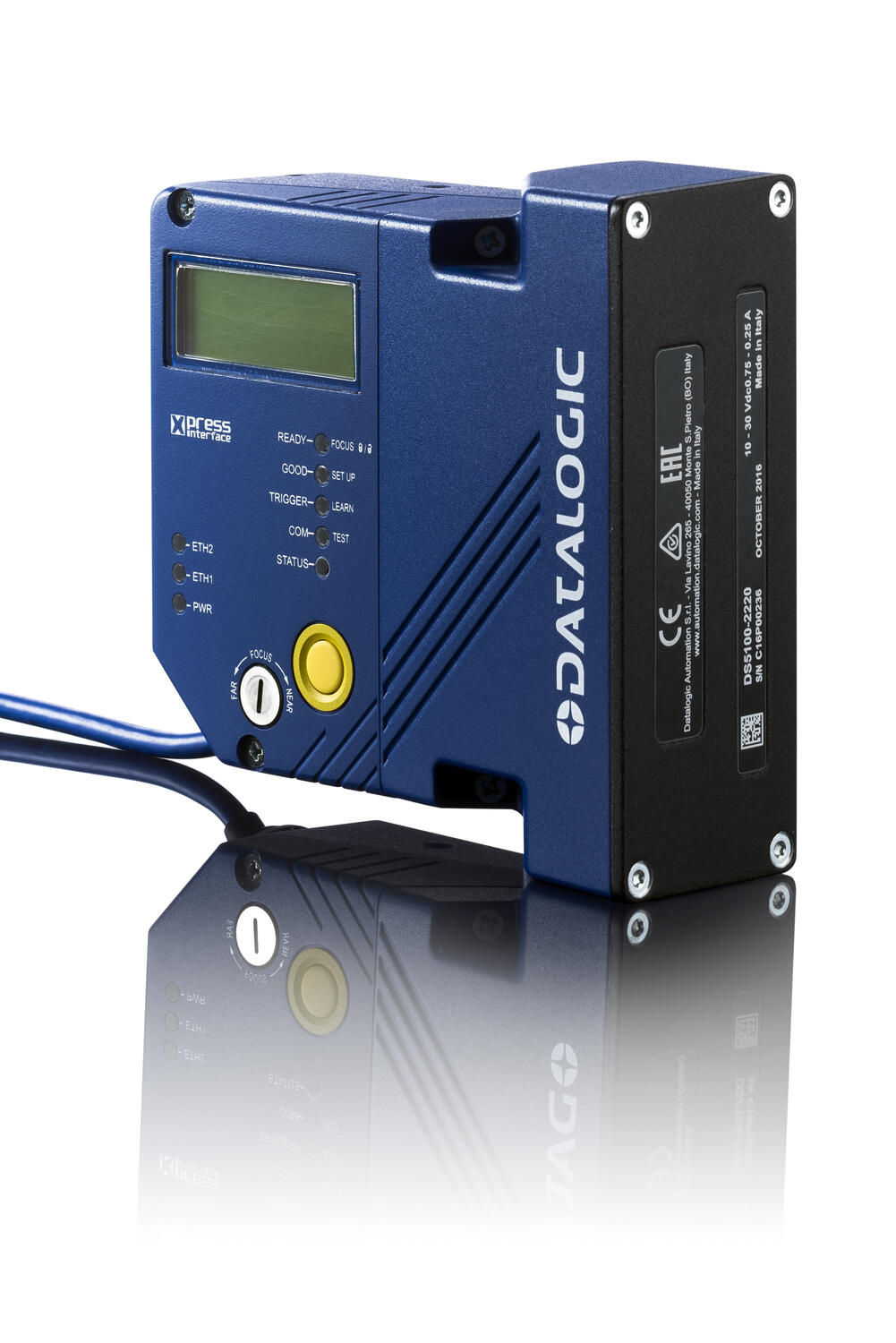

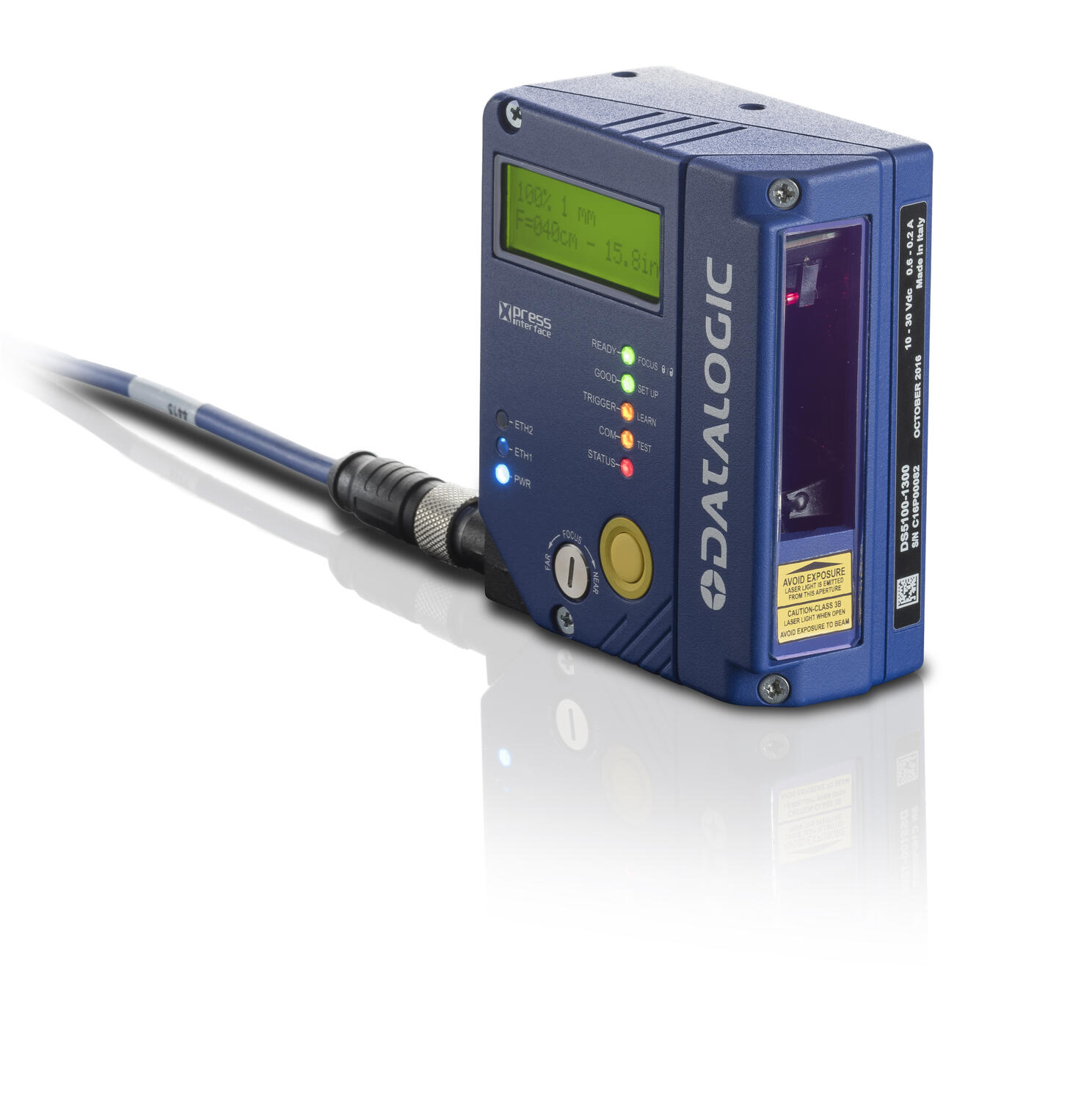

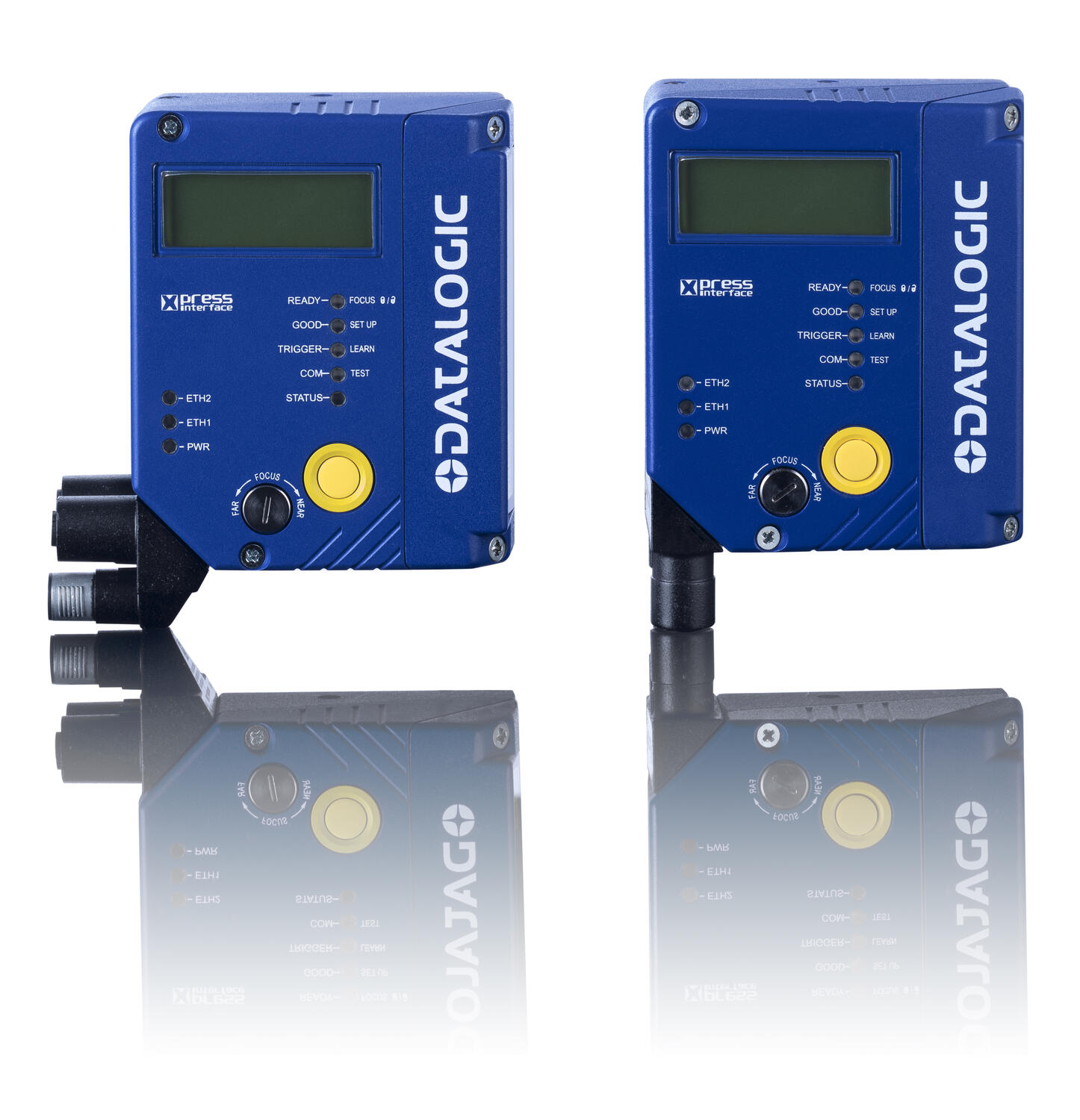

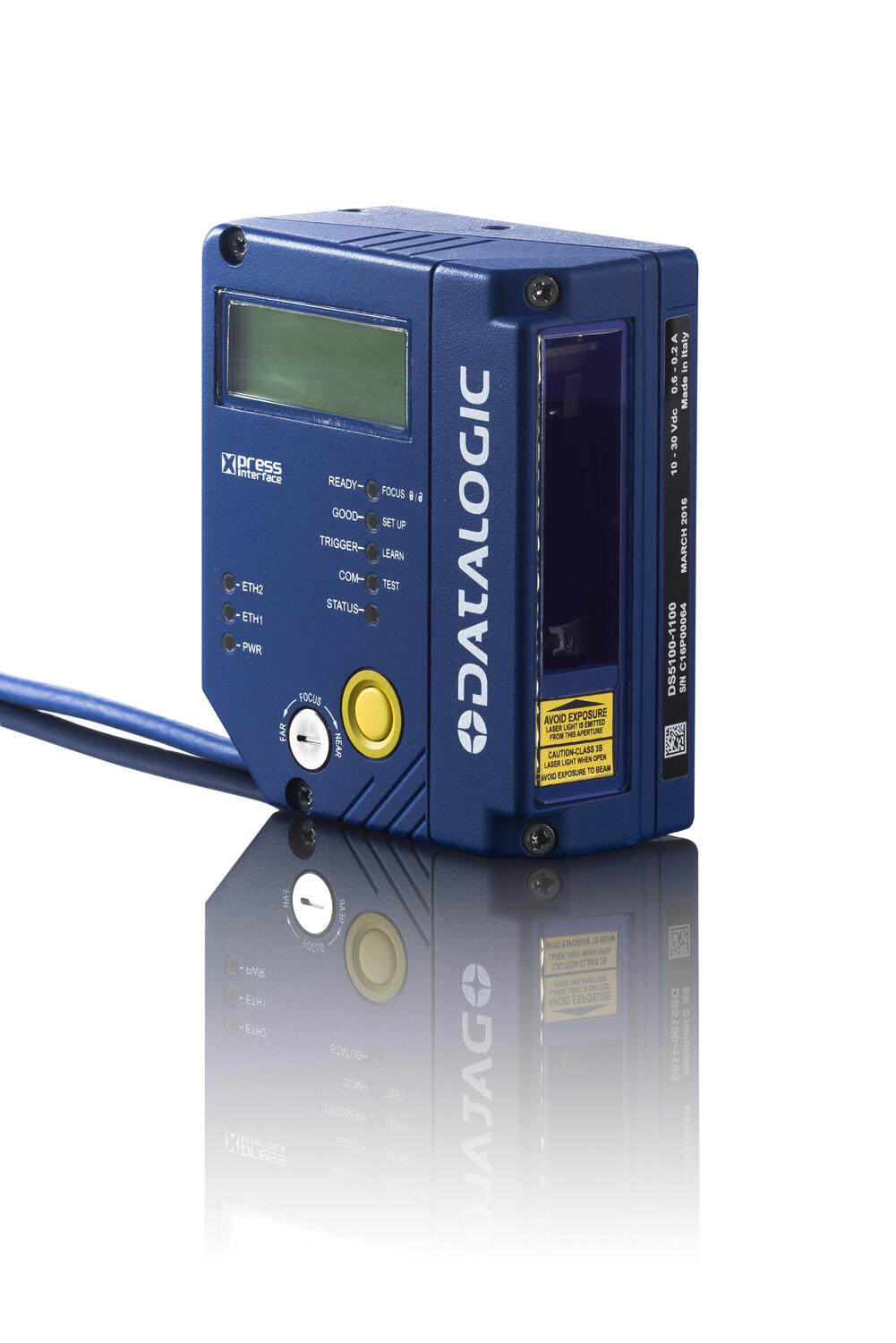

Datalogic DS5100 Laser Scanner

Advanced, Powerful and Compact

For a cost effective solution to satify the main identifiction needs of automotive, food & beverage, pharmaceutical and other manuafacturing plants, the DS5100 flexible, powerful and compact laser scanner is the ideal solution.

Offering a complete and flexible portfolio including medium and long range models with linear or oscillating mirro models for excellent reading performance.



Embedded communication options include, depending on version selected, RS232, TCP/IP, ProfiNet and Ethernet/IP. For cold store applications there is a sub-zero model available resulting in the DS5100 being the most allround laser barcode scanner on the market.

  • Maximum Resolution Up To 0.2mm
  • Scan Rate 800 Scan/sec
  • Multilabel Reading
  • ACR4

Selected variant

Avaible in several variants

Selected variant

Specifications

1D Code types Code 2/5, Code 39, Code 93, Code 128, EAN128, Codabar, Pharmacode, Plessey, ISBT128, UPC/EAN
Digital Inputs 2
Digital Outputs 2
Dimension (mm) 101 x 85 x 42
Distance Max 1000
Distance Min 200
Integrated Communication Interface RS232/RS485-FD, Aux RS232, ID-NET™ RS485
IP Class IP65
Material of body Aluminium
Multi Label Reading Yes
Power Consumption 6
Read Speed 800
Readable code types 1D / Linear Codes
Resolution 0.2mm
Supply voltage 10 - 30 V
Temperature range bearing, from -20
Temperature range bearing, to 70
Temperature range from 0
Temperature range to 50
Weight 580

Product description

For a cost effective solution to satify the main identifiction needs of automotive, food & beverage, pharmaceutical and other manuafacturing plants, the DS5100 flexible, powerful and compact laser scanner is the ideal solution.

Offering a complete and flexible portfolio including medium and long range models with linear or oscillating mirro models for excellent reading performance.



Embedded communication options include, depending on version selected, RS232, TCP/IP, ProfiNet and Ethernet/IP. For cold store applications there is a sub-zero model available resulting in the DS5100 being the most allround laser barcode scanner on the market.
