DATALOGIC

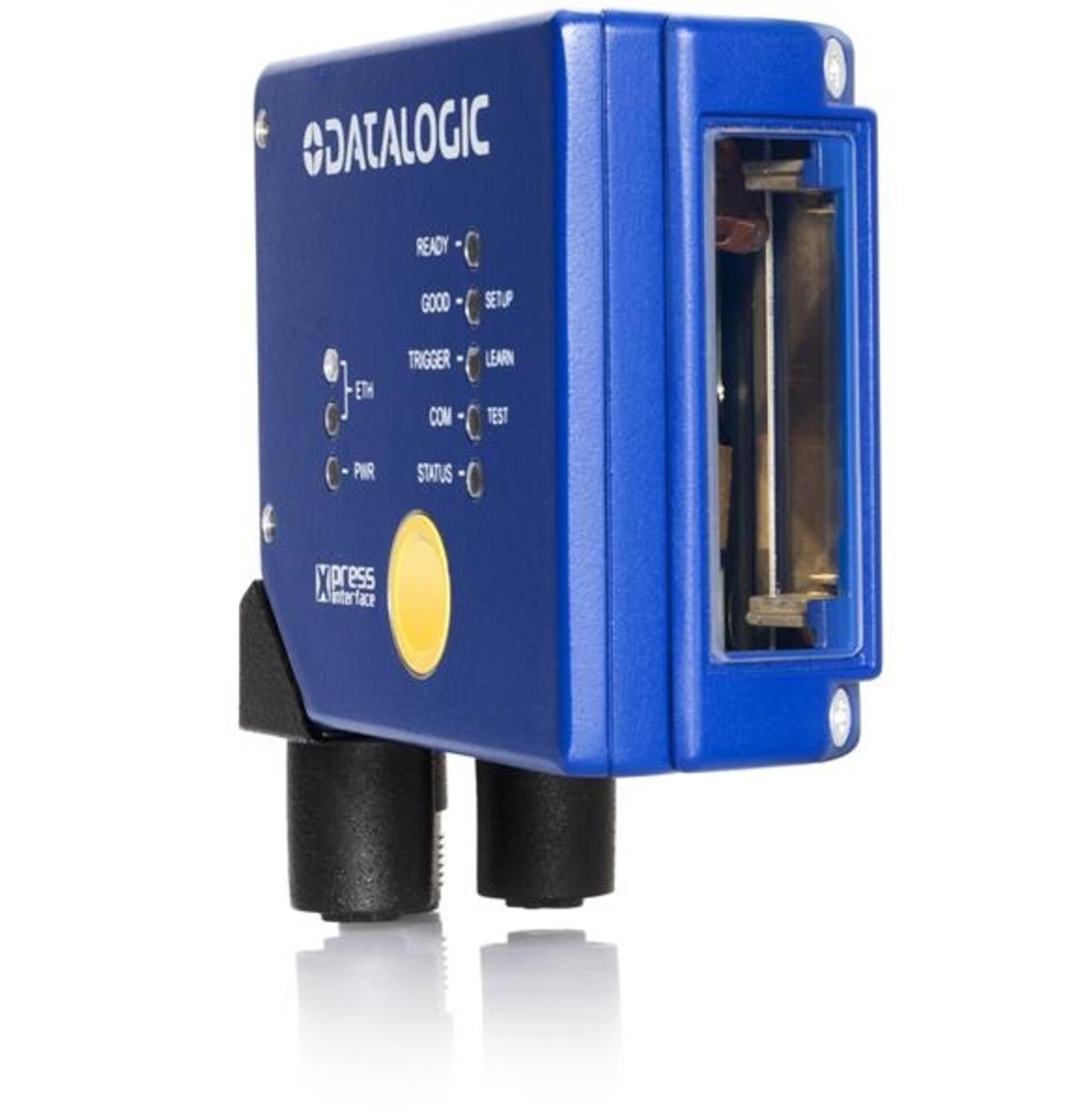

Datalogic DS2400N Laser Scanner
Enhanced Industrial Laser Scanner
DS2400N has been developed for ease of use, while at the same time offering outstanding read performance. DS2400N is equipped with the innovative X-PRESS™ interface which facilitates installation and maintenance. Together with the high-performance optics and built-in code reconstruction, ACB™, high read capacity is guaranteed. DS2400N has the same construction dimensions as DS2100N, but is designed for longer read distances.
X-PRESS™
Datalogic's innovative X-PRESS™ interface is designed to simplify and facilitate installation and maintenance. Status and diagnostic information are displayed clearly on the reader by means of 5 LEDs. The multifunction button on the reader allows easy calibration of settings such as read range, read distance and code learning.
ACB™ (Advanced Code Builder)
Advanced Code Builder permits reading of damaged codes by linking together two parts of a code. ACB™ is effective when you want to read low-height codes, damaged codes and poorly printed codes.
Genius™
Windows-based configuration program which offers a simple way of installing the reader and using functions such as remote control, software update or diagnostic control.
- Maximum Resolution Up To 0.12mm
- Scan Rate 500 To 1000 Scans/sec
- Multilabel Reading
- Advanced Code Reconstruction
Selected variant
Selected variant
Specifications
| Digital Inputs | 2 |
|---|---|
| Digital Outputs | 2 |
| Dimension (mm) | 84 x 68 x 34 |
| Distance Max | 600 |
| Distance Min | 70 |
| Integrated Communication Interface | RS232/RS422/RS485, Aux RS232, ID-NET RS485 |
| IP Class | IP65 |
| Multi Label Reading | Yes |
| Optics | Linear |
| Power Consumption | 4 |
|---|---|
| Programming Options | X-PRESS™ Human-machine interface, Genius™ (Windows™ based) SW |
| Read Speed | 1000 |
| Supply voltage | 10-30 V DC |
| Temperature range from | 0 |
| Temperature range to | 45 |
| Weight | 330 |
Product description
DS2400N has been developed for ease of use, while at the same time offering outstanding read performance. DS2400N is equipped with the innovative X-PRESS™ interface which facilitates installation and maintenance. Together with the high-performance optics and built-in code reconstruction, ACB™, high read capacity is guaranteed. DS2400N has the same construction dimensions as DS2100N, but is designed for longer read distances.
X-PRESS™
Datalogic's innovative X-PRESS™ interface is designed to simplify and facilitate installation and maintenance. Status and diagnostic information are displayed clearly on the reader by means of 5 LEDs. The multifunction button on the reader allows easy calibration of settings such as read range, read distance and code learning.
ACB™ (Advanced Code Builder)
Advanced Code Builder permits reading of damaged codes by linking together two parts of a code. ACB™ is effective when you want to read low-height codes, damaged codes and poorly printed codes.
Genius™
Windows-based configuration program which offers a simple way of installing the reader and using functions such as remote control, software update or diagnostic control.
