DS2100N has been developed for ease of use, while at the same time offering outstanding read performance. DS2100N is equipped with the innovative X-PRESS™ interface which facilitates installation and maintenance. Together with the high-performance optics and built-in code reconstruction, ACB™, high read capacity is guaranteed.
X-PRESS™ Datalogic's innovative X-PRESS™ interface is designed to simplify and facilitate installation and maintenance. Status and diagnostic information are displayed clearly on the reader by means of 5 LEDs. The multifunction button on the reader allows easy calibration of settings such as read range, read distance and code learning.
ACB™ (Advanced Code Builder)
Advanced Code Builder permits reading of damaged codes by linking together two parts of a code. ACB™ is effective when you want to read low-height codes, damaged codes and poorly printed codes.
Genius™
Windows-based configuration program which offers a simple way of installing the reader and using functions such as remote control, software update or diagnostic control.
| 1D Code types | Code 2/5, Code 39, Code 93, Code 128, EAN128, Codabar, Pharmacode, Plessey, ISBT128, UPC/EAN |
|---|---|
| Digital Inputs | 2 |
| Digital Outputs | 2 |

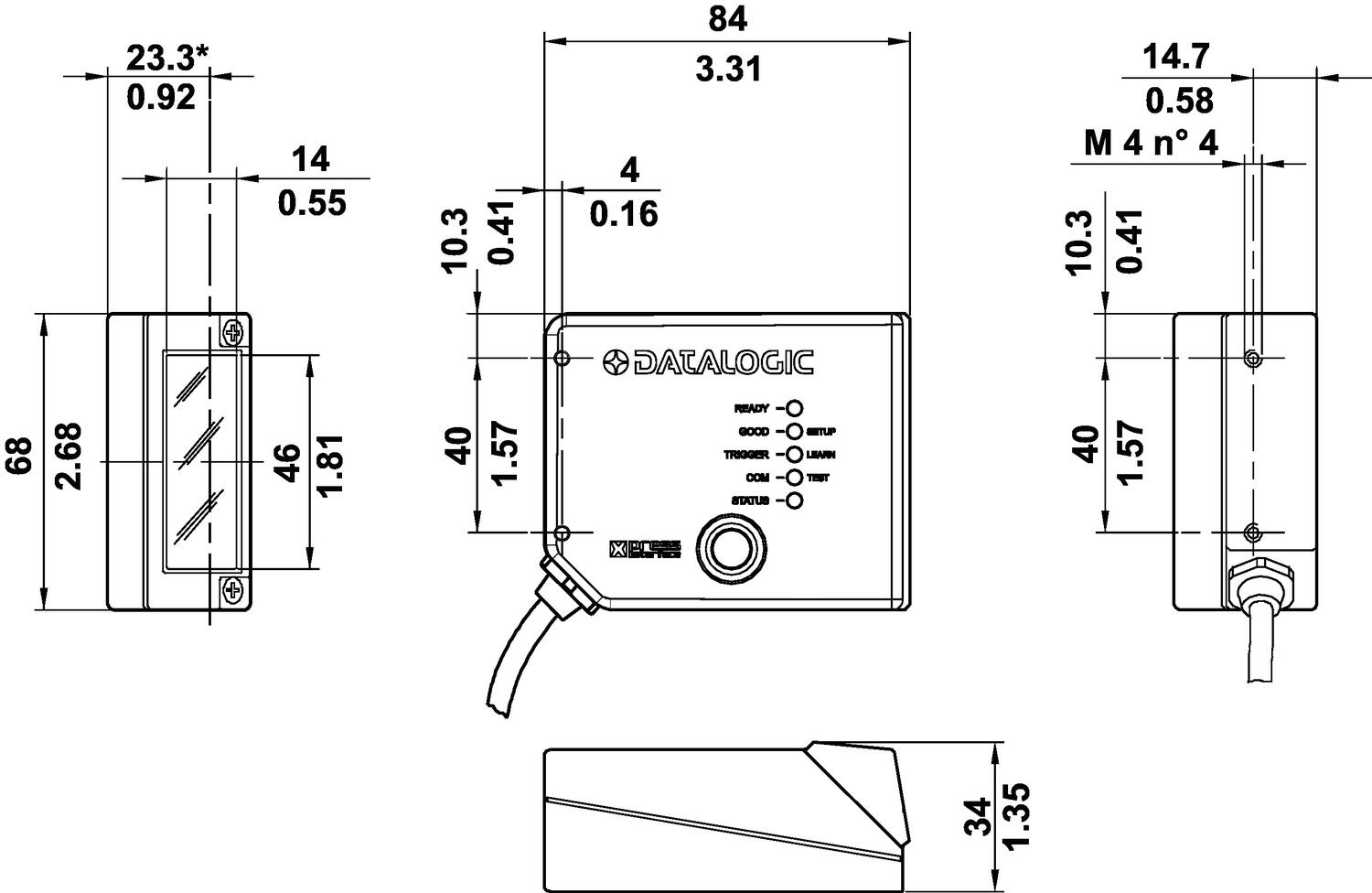

| Dimension (mm) | 84 x 68 x 34 |
| Distance Max | 300 |
| Distance Min | 50 |
| Integrated Communication Interface | RS232/RS422/RS485, Aux RS232, ID-NET RS485 |
| IP Class | IP65 |
| Material of body | Aluminium |
| Multi Label Reading | Yes |
| Optics | Linear |
| Power Consumption | 4 |
|---|---|
| Programming Options | X-PRESS™ Human-machine interface, Genius™ (windows based) SW |
| Read Speed | 1000 |
| Readable code types | 1D / Linear Codes |
| Resolution | 0.12mm |

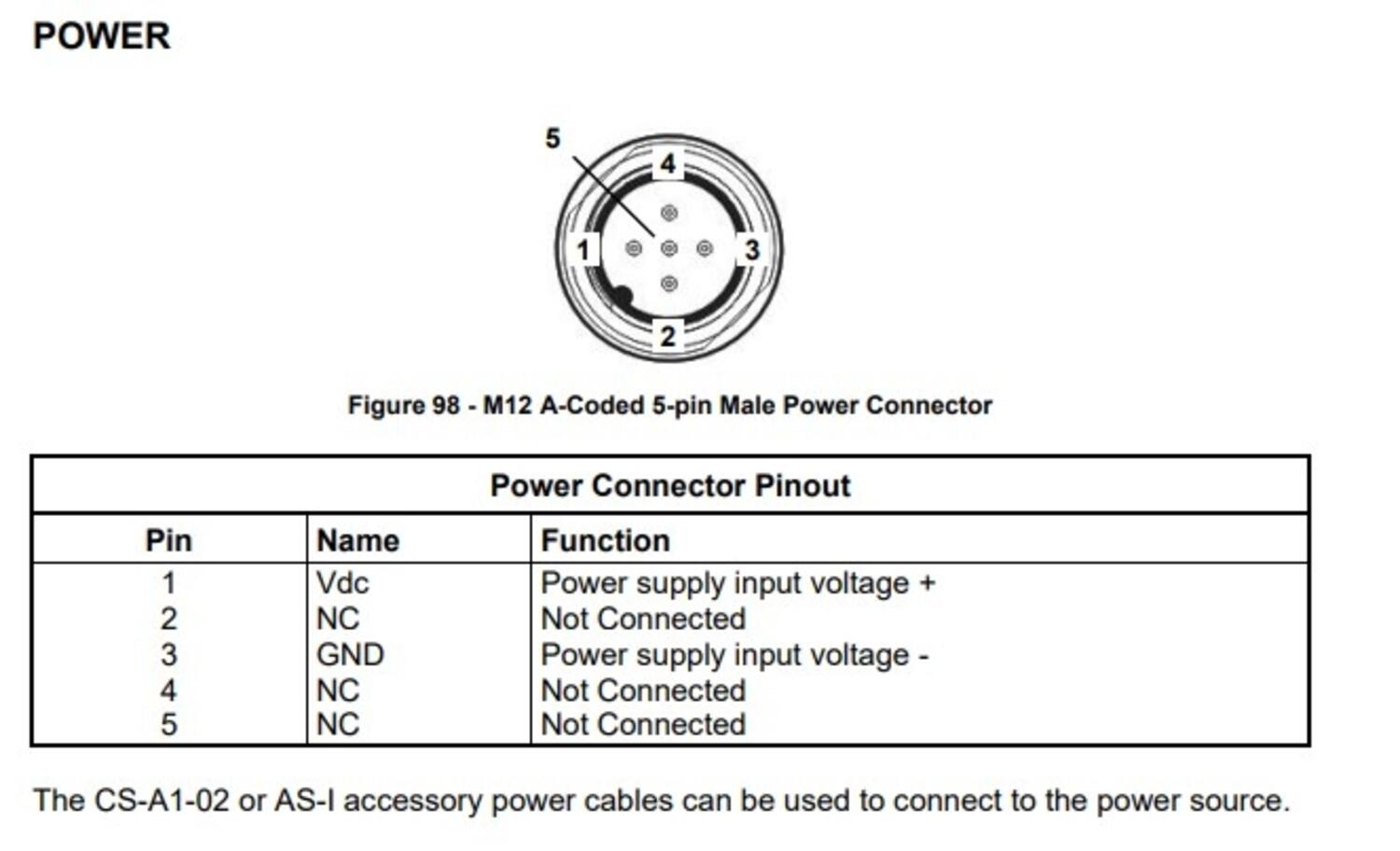

| Supply voltage | 10-30 V DC |
| Temperature range from | 0 |
| Temperature range to | 45 |
| Weight | 330 |
DS2100N has been developed for ease of use, while at the same time offering outstanding read performance. DS2100N is equipped with the innovative X-PRESS™ interface which facilitates installation and maintenance. Together with the high-performance optics and built-in code reconstruction, ACB™, high read capacity is guaranteed.
X-PRESS™ Datalogic's innovative X-PRESS™ interface is designed to simplify and facilitate installation and maintenance. Status and diagnostic information are displayed clearly on the reader by means of 5 LEDs. The multifunction button on the reader allows easy calibration of settings such as read range, read distance and code learning.
ACB™ (Advanced Code Builder)
Advanced Code Builder permits reading of damaged codes by linking together two parts of a code. ACB™ is effective when you want to read low-height codes, damaged codes and poorly printed codes.
Genius™
Windows-based configuration program which offers a simple way of installing the reader and using functions such as remote control, software update or diagnostic control.
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.
We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.
Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.
Thanks to all involved and also to our amazing team for their hard work and dedication 💪
Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.
.png?as=1&iar=0&hash=810B0221860A0A9A4F02213200AE093A)
Elevating Safety with RCT Cable Solutions
RCT Cable Solutions are designed with safety, efficiency, and durability at their core—ensuring reliable cable management in even the most demanding industrial environments. From cable clamps to cleats, glands, and routing systems, RCT products help protect installations from strain, damage, and fire risk. With high-quality materials and compliance with international safety standards, RCT offers smart, secure solutions that elevate the performance and longevity of electrical systems.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Dimension (mm) | Integrated Communication Interface | Optics | Weight | Price | |
|---|---|---|---|---|---|---|---|

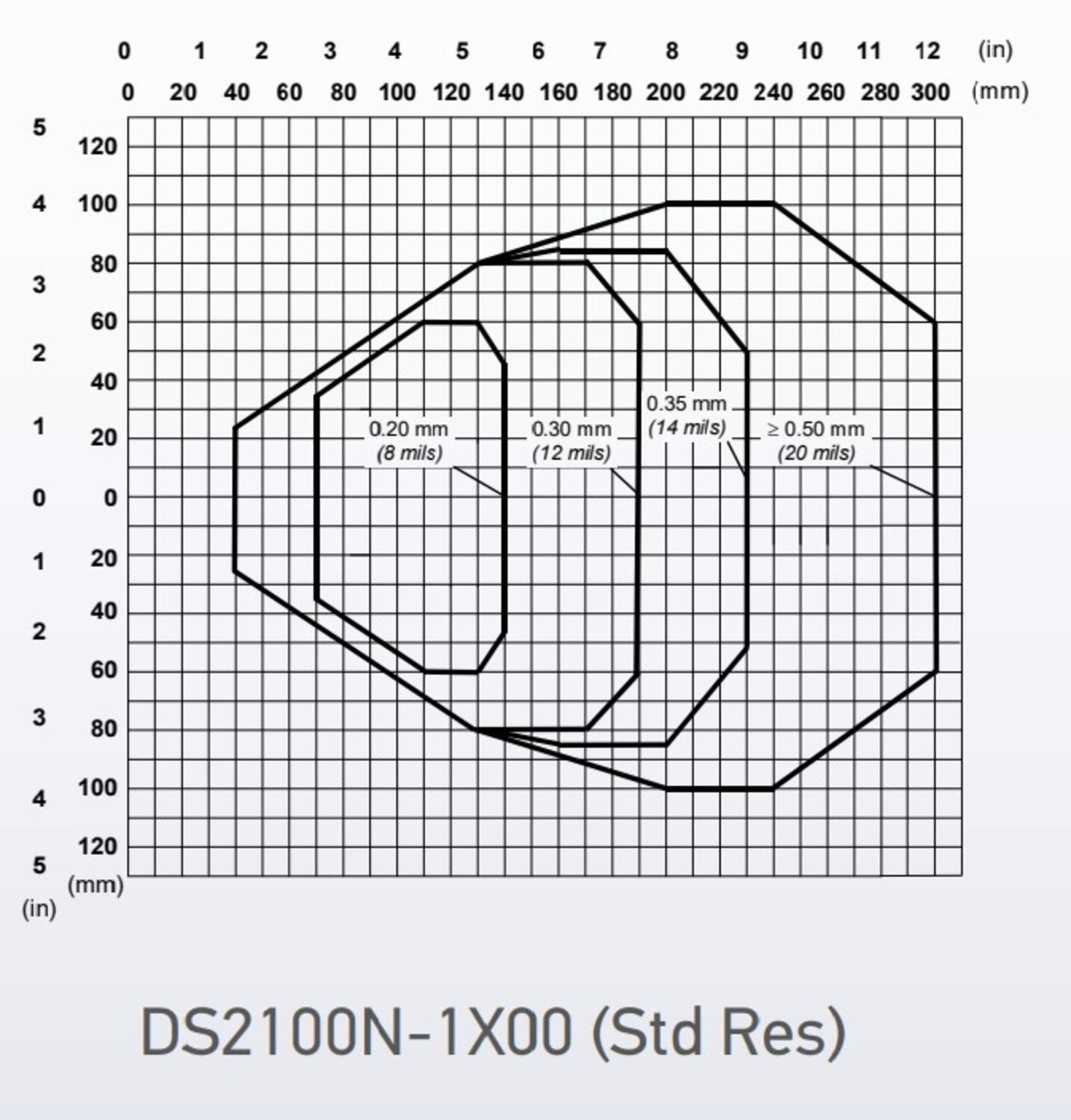

Standard resolution, RS232/485, Linear, Standard performance
Art:
DS2100N-1200
Copied
|
84 x 68 x 34
|
RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Linear
|
330
|
| ||
|
High resolution, RS232/485, Raster, Standard performance
Art:
DS2100N-2210
Copied
|
84 x 68 x 34
|
RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Raster
|
330
|
| ||
|
High resolution, RS232/485, Linear, Standard performance
Art:
DS2100N-2200
Copied
|
84 x 68 x 34
|
RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Linear
|
330
|
| ||
|
Standard resolution, RS232/485, Raster, Standard performance
Art:
DS2100N-1210
Copied
|
84 x 68 x 34
|
RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Raster
|
330
|
| ||
|

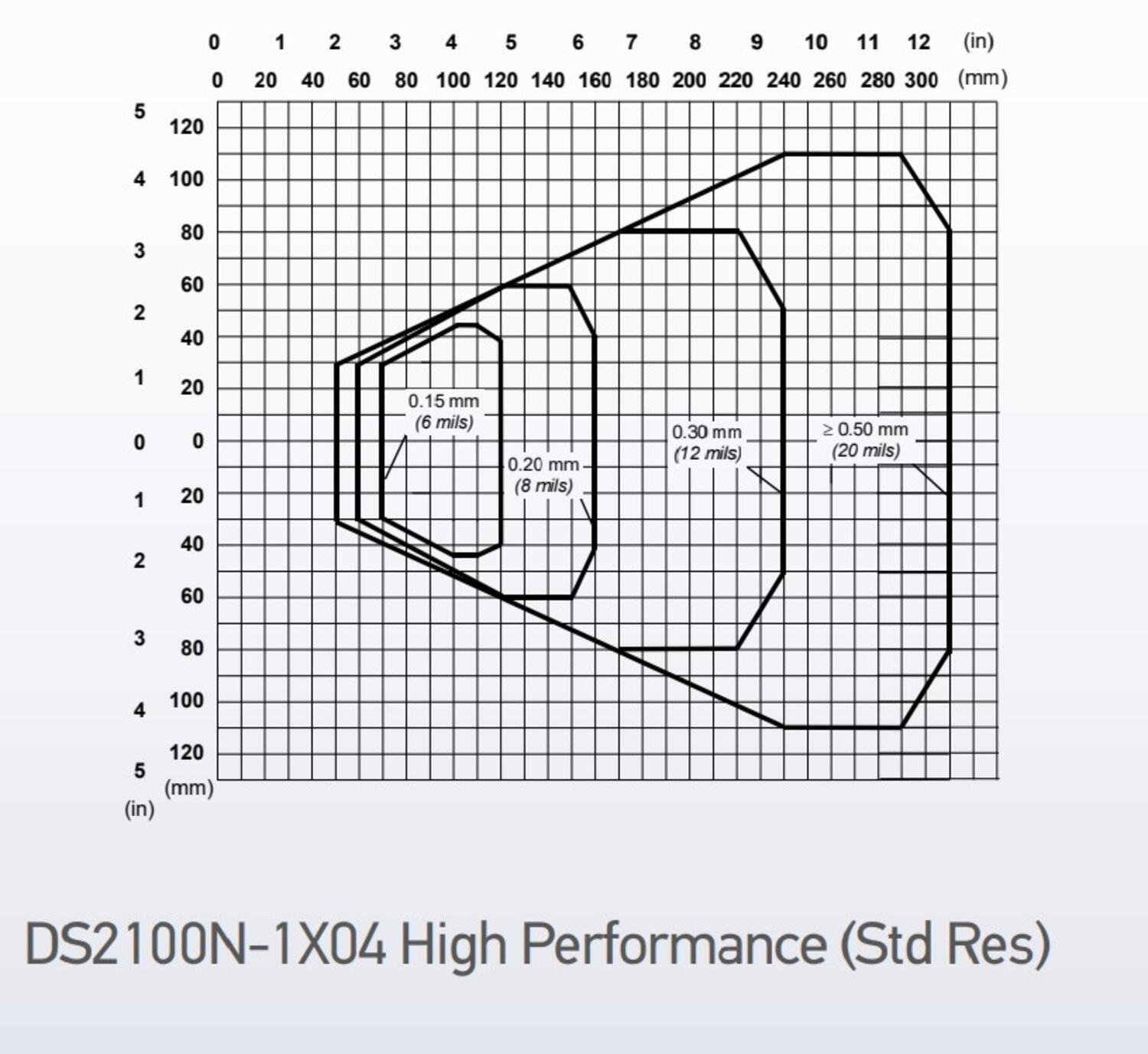

Standard resolution, RS232/485, Linear, High performance
Art:
DS2100N-1204
Copied
|
84 x 68 x 34
|
RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Linear
|
330
|
| ||
|
Standard resolution, RS232/485, Raster, High performance
Art:
DS2100N-1214
Copied
|
84 x 68 x 34
|
RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Raster
|
330
|
| ||
|

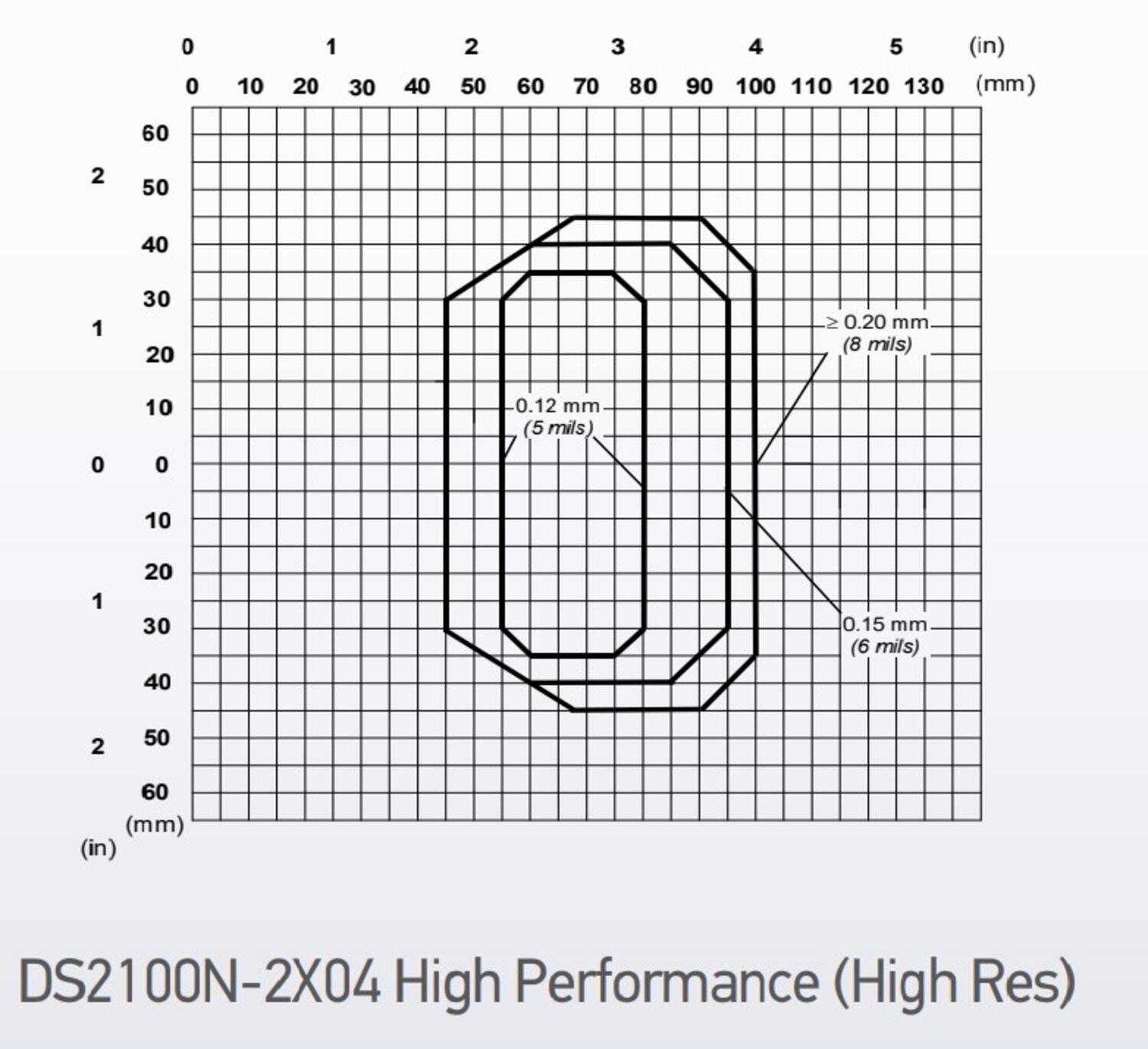

High resolution, RS232/485, Linear, High performance
Art:
DS2100N-2204
Copied
|
84 x 68 x 34
|
RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Linear
|
330
|
| ||
|
High resolution, RS232/485, Raster, High performance
Art:
DS2100N-2214
Copied
|
84 x 68 x 34
|
RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Raster
|
330
|
| ||
|
Standard resolution, Ethernet, Linear, Standard performance
Art:
DS2100N-1300
Copied
|
104 x 69 x 38
|
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Linear
|
281
|
| ||
|
Standard resolution, Ethernet, Raster, Standard performance
Art:
DS2100N-1310
Copied
|
104 x 69 x 38
|
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Raster
|
281
|
| ||
|
Standard resolution, Ethernet, Linear, High performance
Art:
DS2100N-1304
Copied
|
104 x 69 x 38
|
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Linear
|
281
|
| ||
|
Standard resolution, Ethernet, Raster, High performance
Art:
DS2100N-1314
Copied
|
104 x 69 x 38
|
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Raster
|
281
|
| ||
|

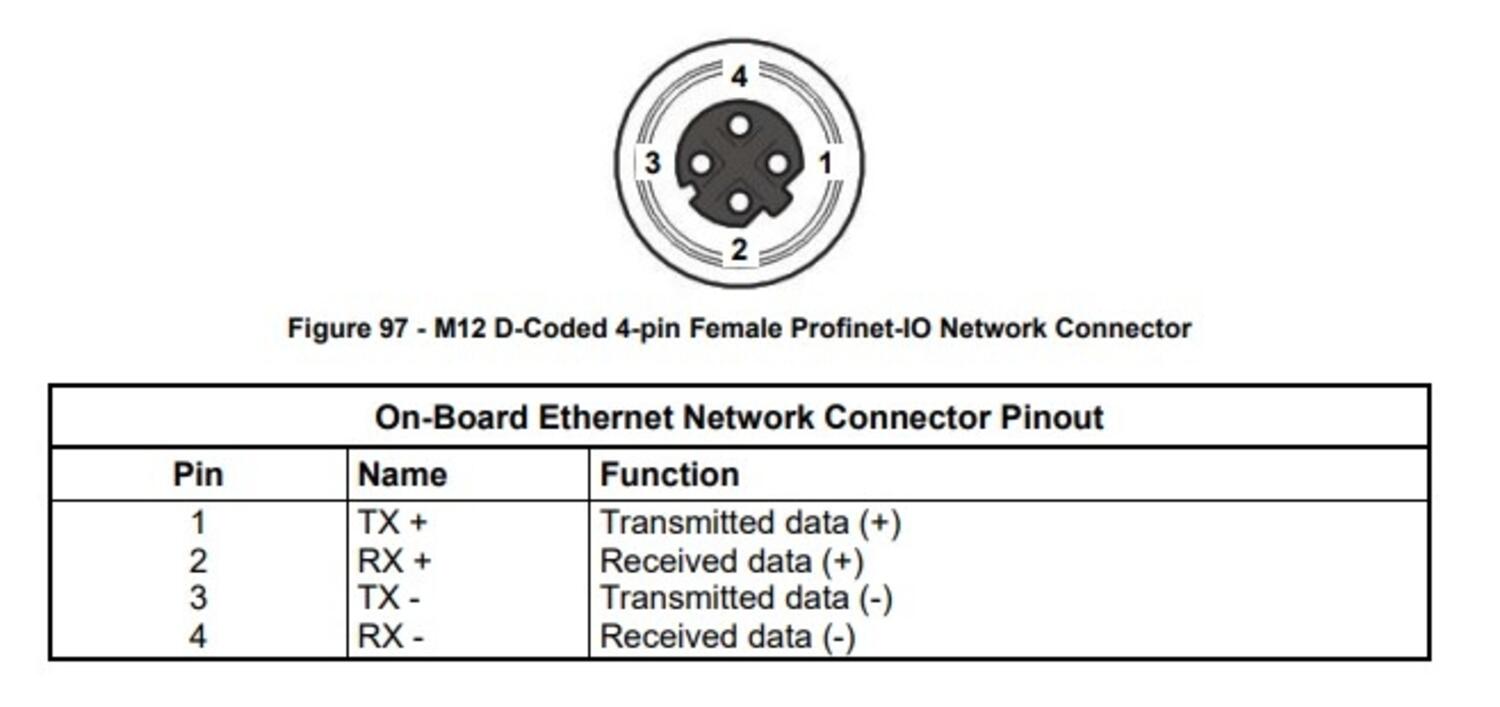

Standard resolution, Profinet IO, Linear, Standard performance
Art:
DS2100N-1400
Copied
|
104 x 86 x 38
|
PROFINET , Ethernet TC/PIP
|
Linear
|
308
|
| ||
|
Standard resolution, Profinet IO, Raster, Standard performance
Art:
DS2100N-1410
Copied
|
104 x 86 x 38
|
PROFINET , Ethernet TC/PIP
|
Raster
|
308
|
| ||
|
Standard resolution, Profinet IO, Linear, High performance
Art:
DS2100N-1404
Copied
|
104 x 86 x 38
|
PROFINET , Ethernet TC/PIP
|
Linear
|
308
|
| ||
|
Standard resolution, Profinet IO, Raster, High performance
Art:
DS2100N-1414
Copied
|
104 x 86 x 38
|
PROFINET , Ethernet TC/PIP
|
Raster
|
308
|
| ||
|
High resolution, Ethernet, Linear, Standard performance
Art:
DS2100N-2300
Copied
|
104 x 69 x 38
|
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Raster
|
281
|
| ||
|
High resolution, Ethernet, Linear, High performance
Art:
DS2100N-2304
Copied
|
104 x 69 x 38
|
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Linear
|
281
|
| ||
|
High resolution, Ethernet, Raster, Standard performance
Art:
DS2100N-2310
Copied
|
104 x 69 x 38
|
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Linear
|
281
|
| ||
|
High resolution, Ethernet, Raster, High performance
Art:
DS2100N-2314
Copied
|
104 x 69 x 38
|
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
|
Raster
|
281
|
| ||
|

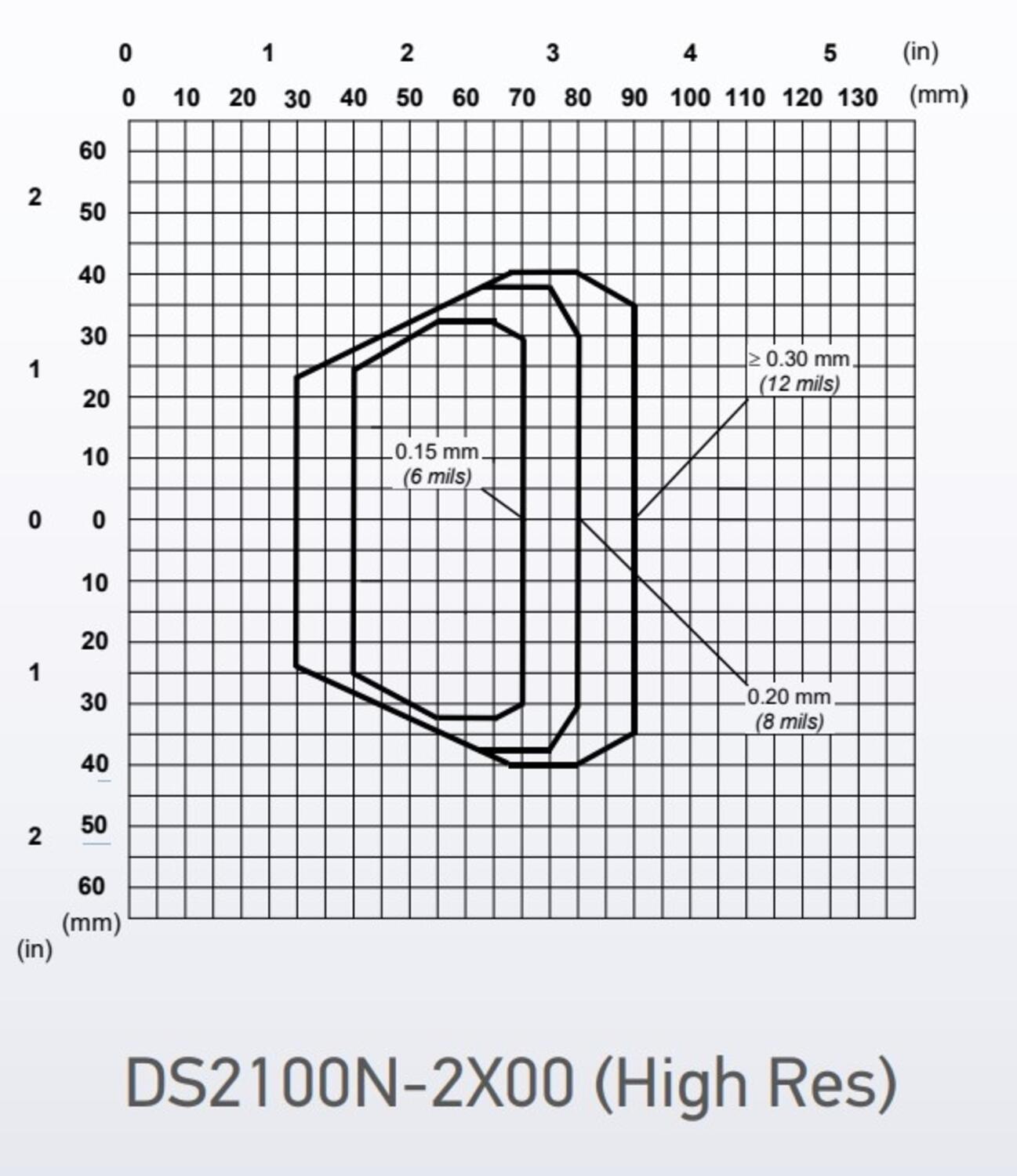

High resolution, Profinet IO, Linear, Standard performance
Art:
DS2100N-2400
Copied
|
104 x 86 x 38
|
PROFINET , Ethernet TC/PIP
|
Raster
|
308
|
| ||
|
High resolution, Profinet IO, Linear, High performance
Art:
DS2100N-2404
Copied
|
104 x 86 x 38
|
PROFINET , Ethernet TC/PIP
|
Linear
|
308
|
| ||
|
High resolution, Profinet IO, Raster, Standard performance
Art:
DS2100N-2410
Copied
|
104 x 86 x 38
|
PROFINET , Ethernet TC/PIP
|
Linear
|
308
|
| ||
|
High resolution, Profinet IO, Raster, High performance
Art:
DS2100N-2414
Copied
|
104 x 86 x 38
|
PROFINET , Ethernet TC/PIP
|
Raster
|
308
|
|
