DATASENSING

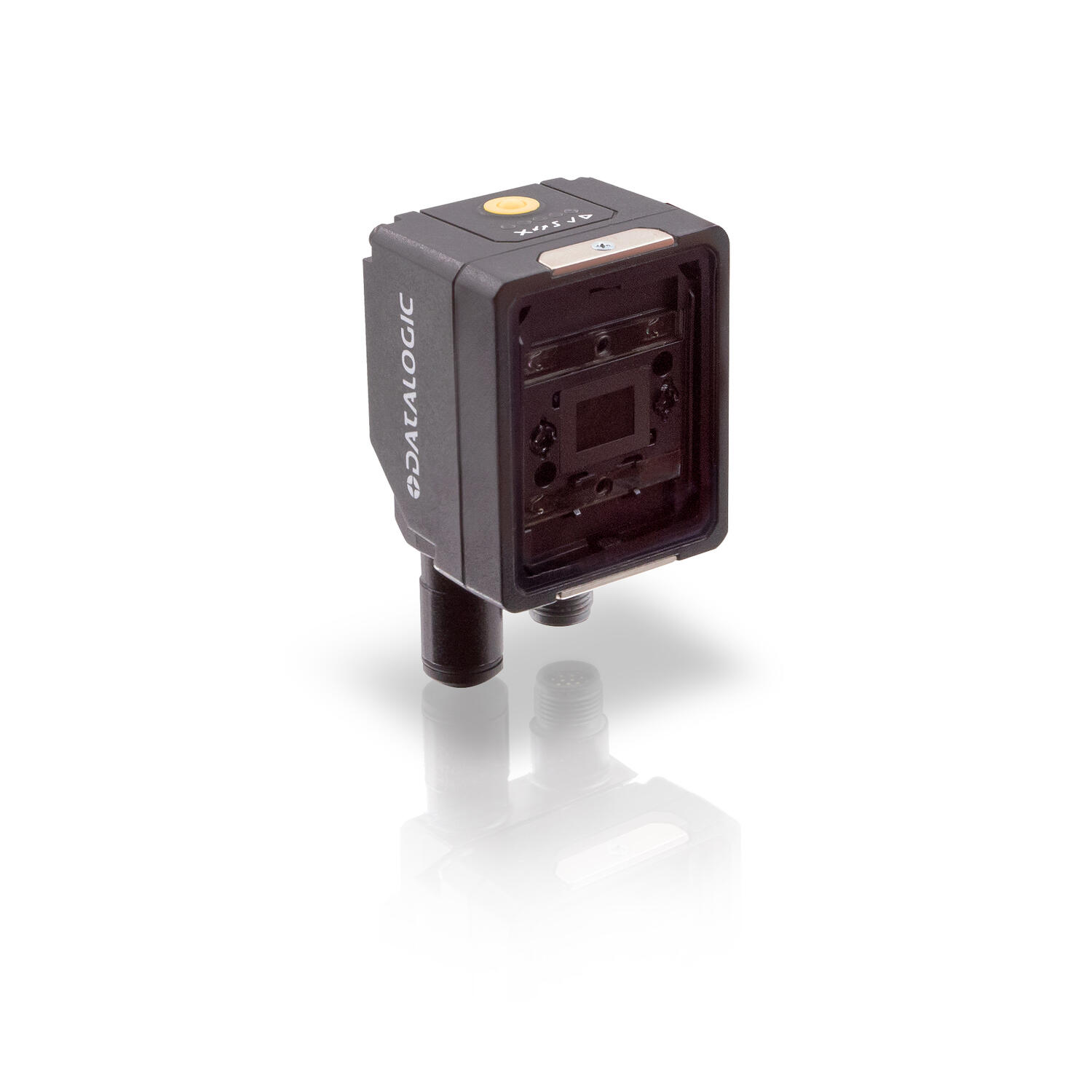

The Smart vision sensor or Smart-VS is a new, unique and innovative product from Datalogic. Designed for automation applications, it can quickly, easily and reliably detect 'good' and 'not good' objects.

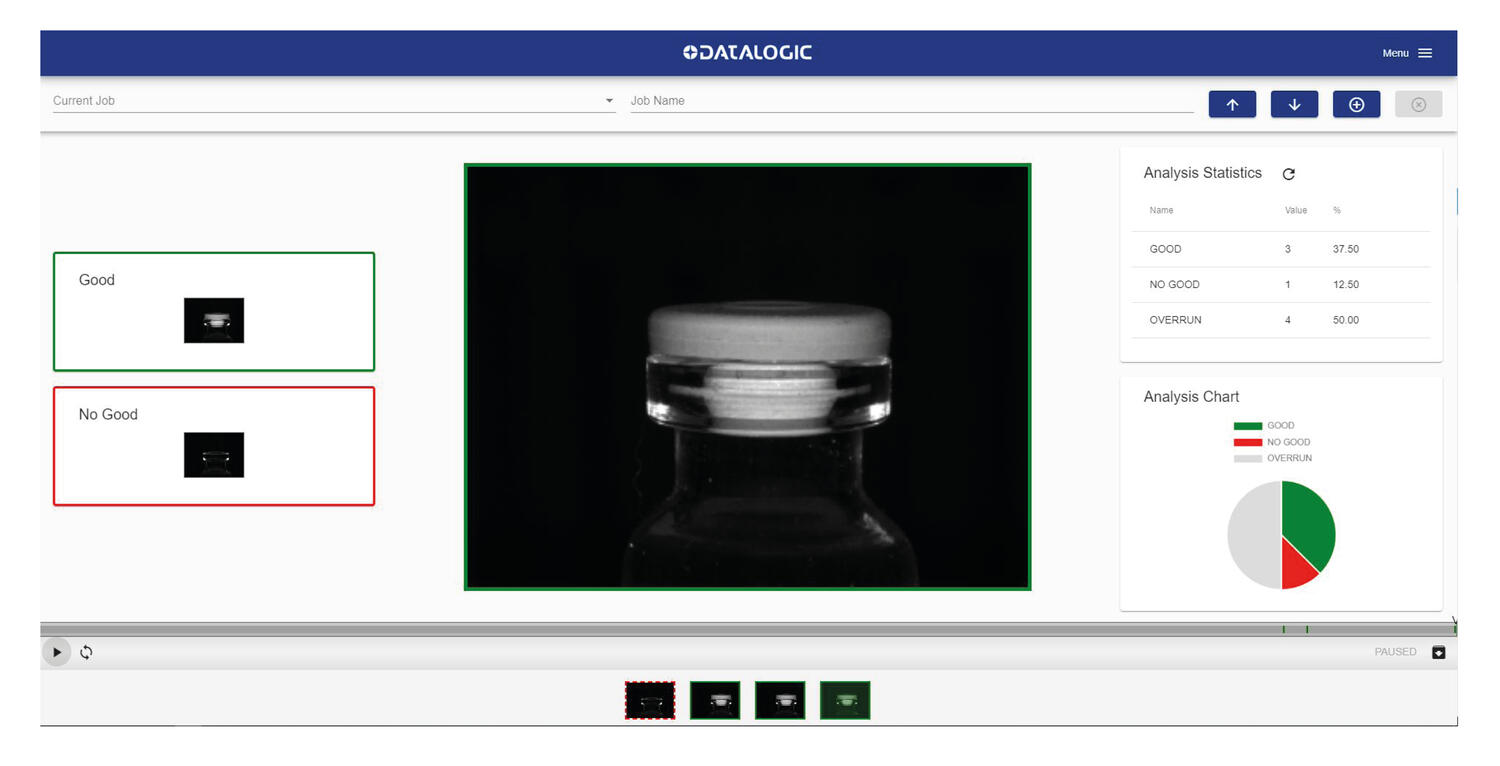

The Smart VS can easily be set up by simply pushing a button and following 3 easy steps, ease of use for all kinds of users and installers. There is no expert programming needed, no vision tool setting, and no external custom monitoring tools necessary to achieve object detection.

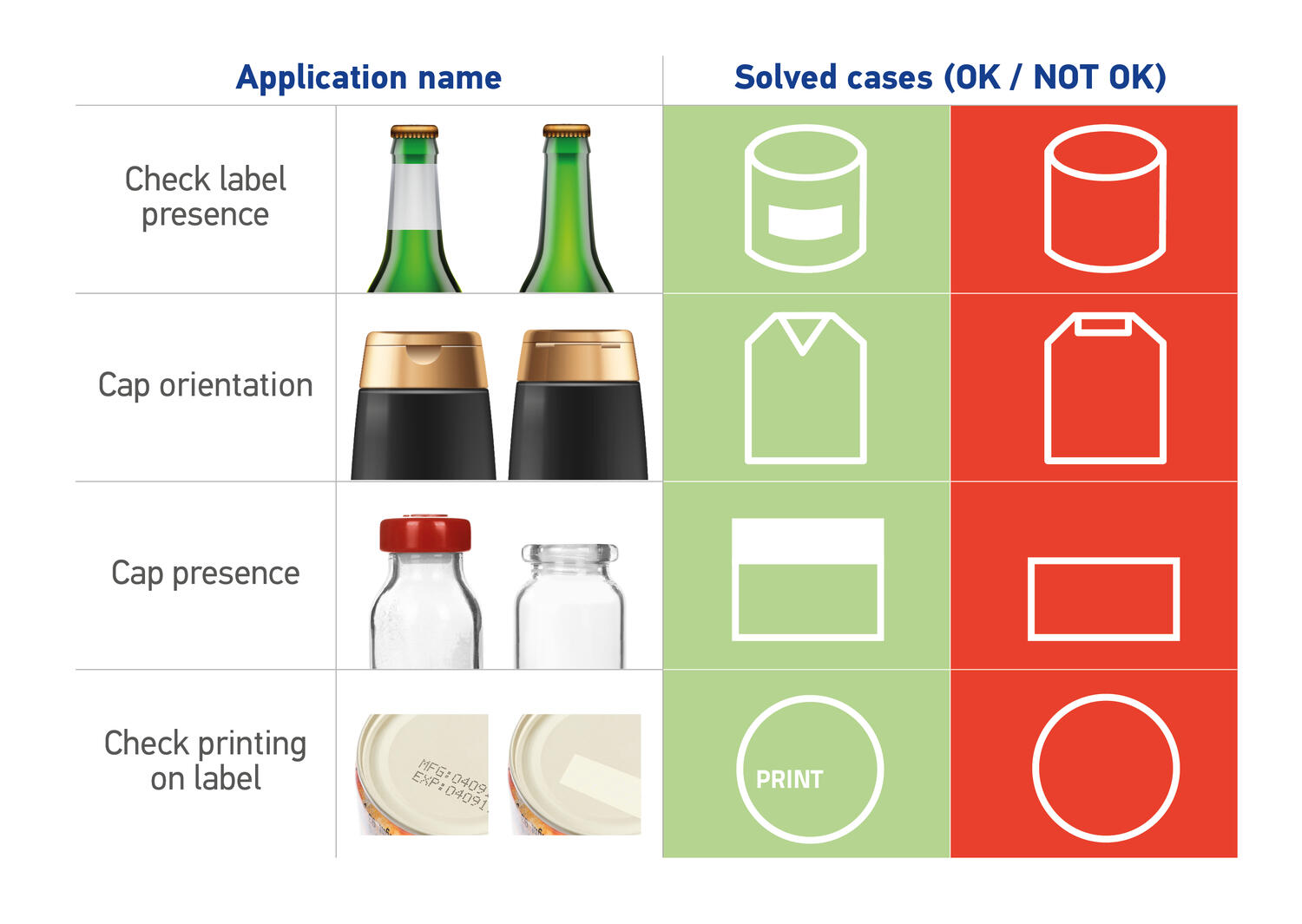

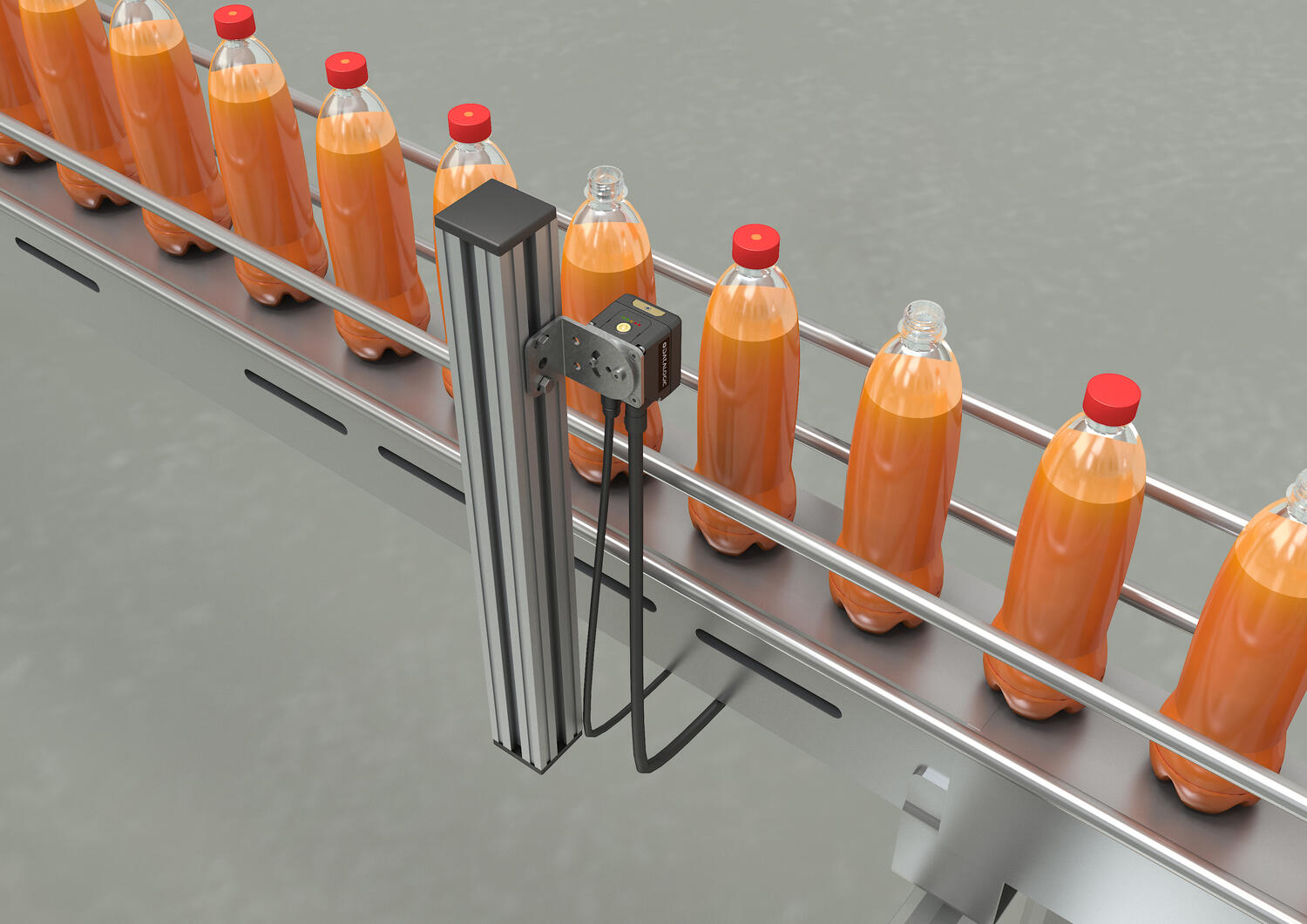

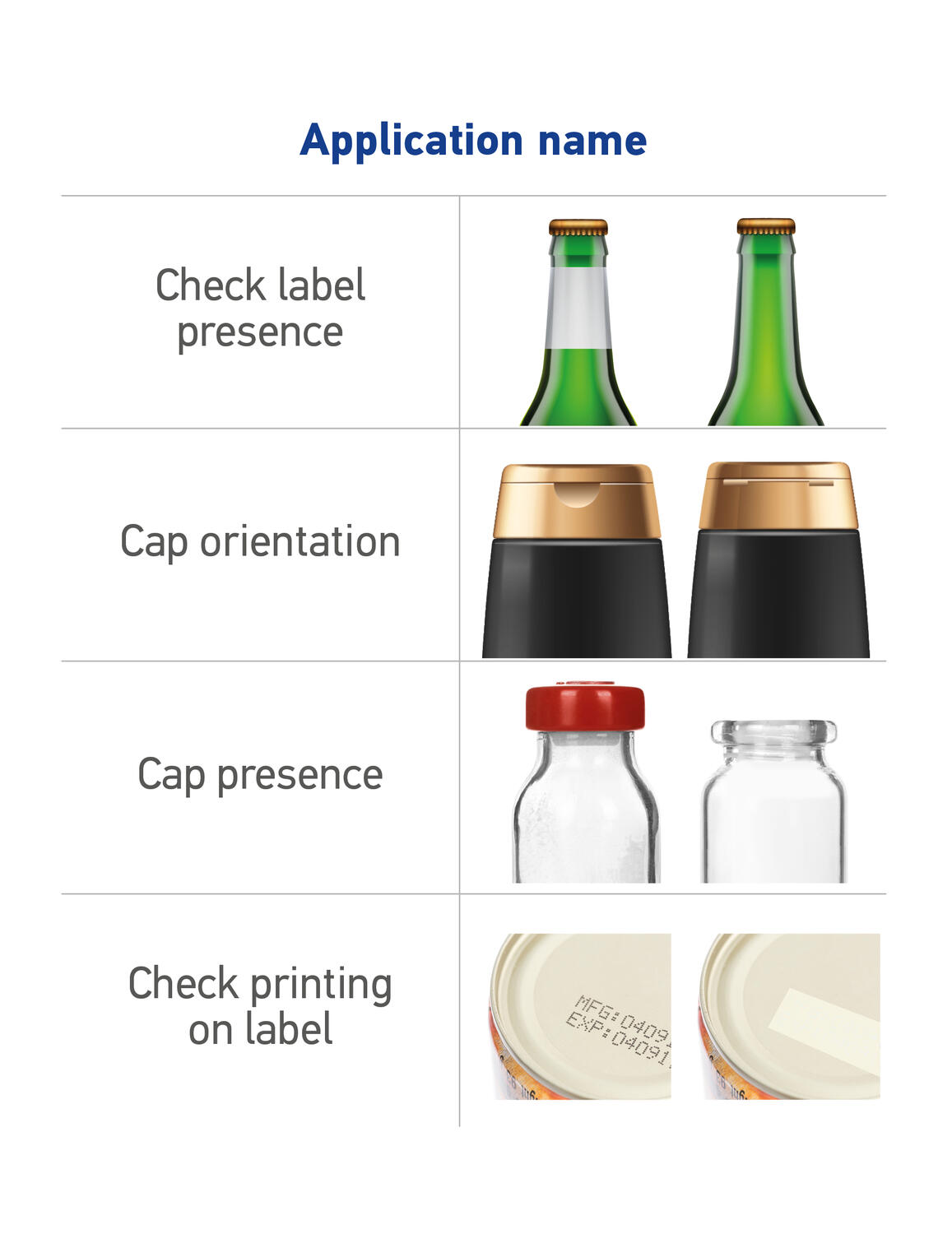

The Smart VS has a powerful 'System on Chip' and customised machine learning algorithms, making it reliable in response time which is deterministic in any detection condition. The features of the Smart VS make it the perfect solution for the following applications: the need to check the presence of labels and caps when filling bottles and vials; orientation of objects for proper labelling, independently by material, by color and format of the objects.
The versatility of the Smart VS makes it suitable for use in most varied sectors, such as automotive or automatic assembly of mechanical or electronic parts, but it also finds some it's greatest uses in the food and beverage, pharmaceutical and cosmetics packaging sectors.

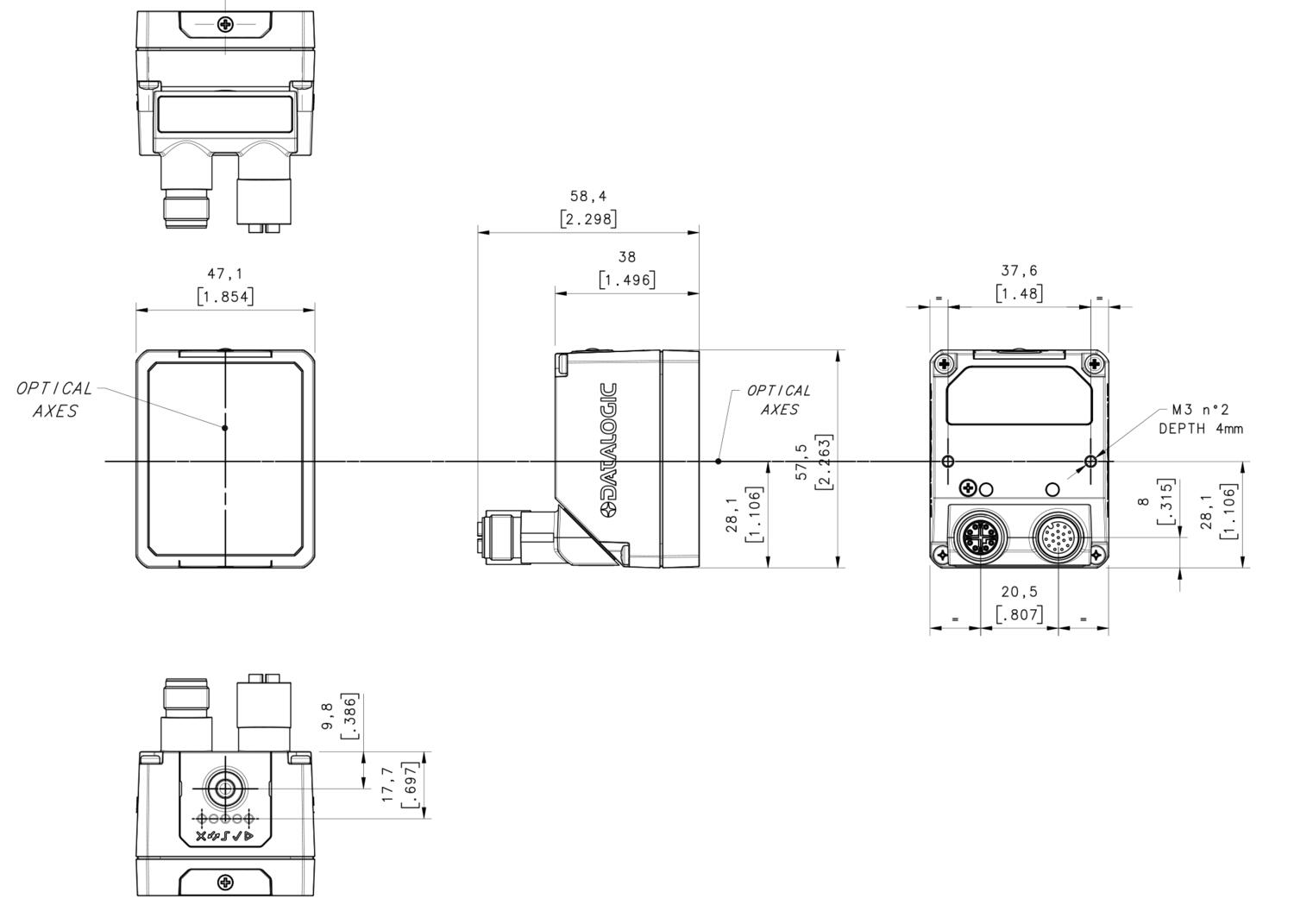

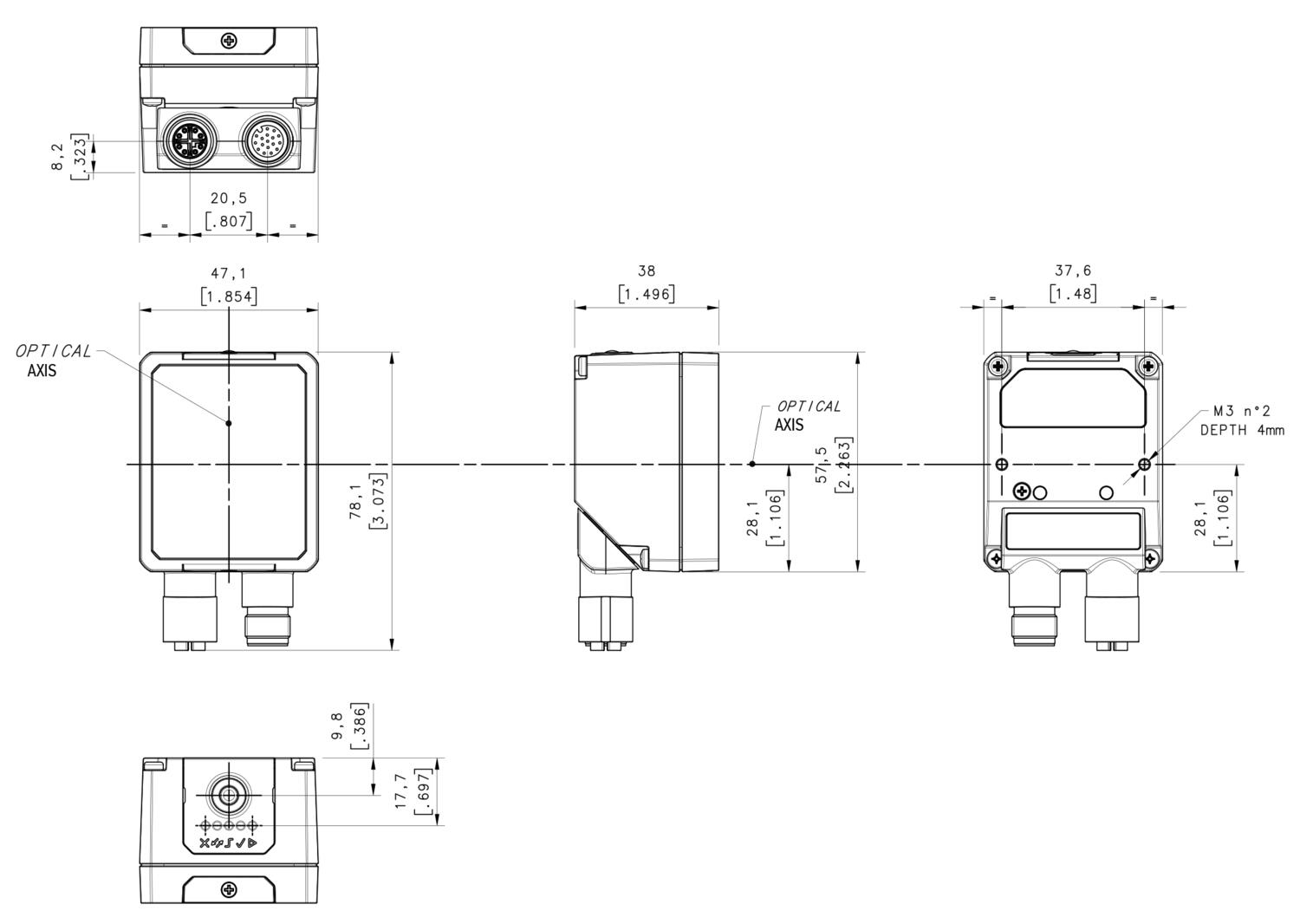

| Dimension (mm) | 78 x 47 x 38 |
|---|---|
| Distance Max | 150 |
| Distance Min | 50 |

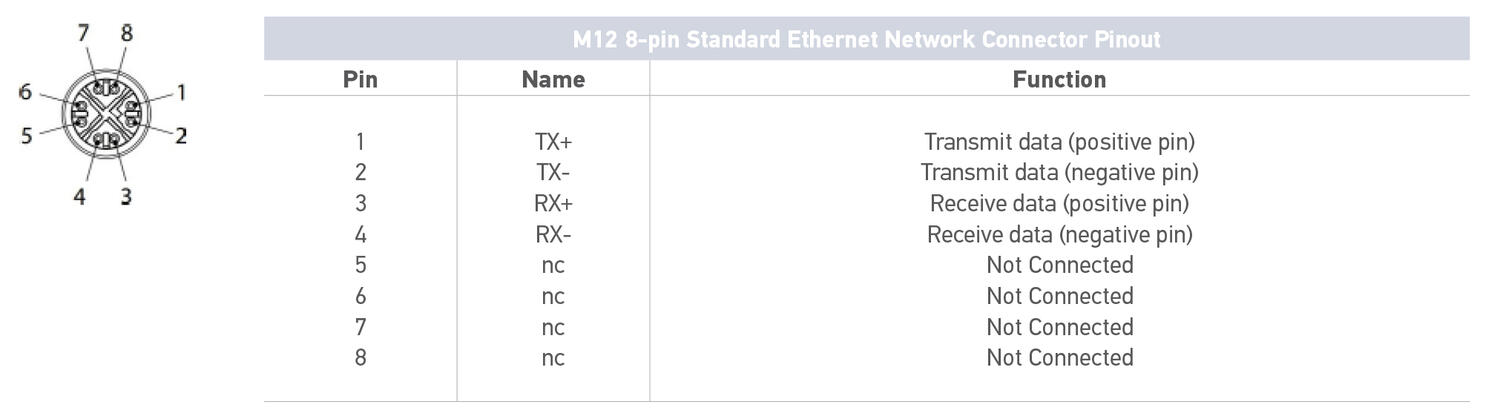

| Integrated Communication Interface | Ethernet 10/100Mbit/s |
| IP Class | IP65, IP67 |
| Light Type | White LED Polarised illuminator |
| Material | Aluminium |
| Max. images to handle | 6 images |

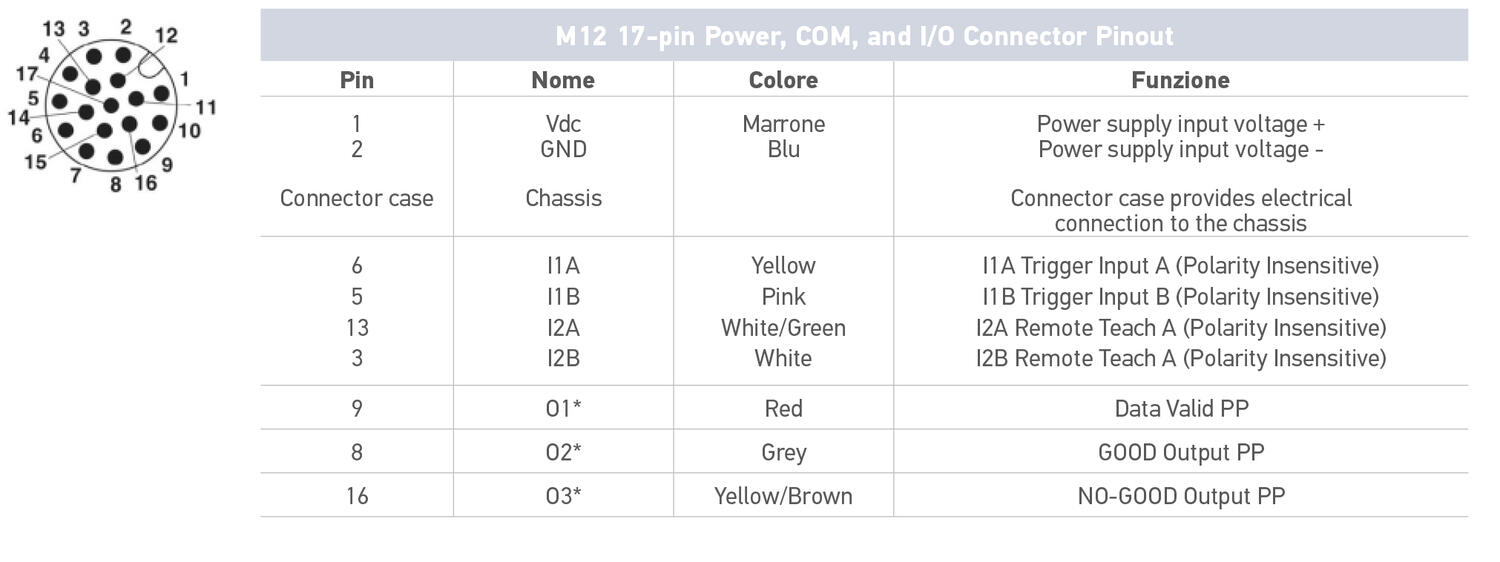

| Output | NPN, PNP, Push/Pull |
| Output Data | Data valid, Good, No good |
| Performance | 20pcs per second max |
| Power Consumption | 4.2 |
| Reading Field of View | 22mm x 16mm @50mm, 55mm x 41mm @ 150mm |
|---|---|
| Resolution | 320 x 240 pixels |
| Response time | 50 ms |
| Supply voltage | 10-30 V DC |
| Temperature range bearing, from | -20 |
| Temperature range bearing, to | 70 |
| Temperature range from | -10 |
| Temperature range to | 50 |
| Weight | 173 |
| Viewing angle | 19° |
The Smart vision sensor or Smart-VS is a new, unique and innovative product from Datalogic. Designed for automation applications, it can quickly, easily and reliably detect 'good' and 'not good' objects.
The Smart VS can easily be set up by simply pushing a button and following 3 easy steps, ease of use for all kinds of users and installers. There is no expert programming needed, no vision tool setting, and no external custom monitoring tools necessary to achieve object detection.
The Smart VS has a powerful 'System on Chip' and customised machine learning algorithms, making it reliable in response time which is deterministic in any detection condition. The features of the Smart VS make it the perfect solution for the following applications: the need to check the presence of labels and caps when filling bottles and vials; orientation of objects for proper labelling, independently by material, by color and format of the objects.
The versatility of the Smart VS makes it suitable for use in most varied sectors, such as automotive or automatic assembly of mechanical or electronic parts, but it also finds some it's greatest uses in the food and beverage, pharmaceutical and cosmetics packaging sectors.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.
We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.
Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.
Thanks to all involved and also to our amazing team for their hard work and dedication 💪
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.
.png?as=1&iar=0&hash=810B0221860A0A9A4F02213200AE093A)
Elevating Safety with RCT Cable Solutions
RCT Cable Solutions are designed with safety, efficiency, and durability at their core—ensuring reliable cable management in even the most demanding industrial environments. From cable clamps to cleats, glands, and routing systems, RCT products help protect installations from strain, damage, and fire risk. With high-quality materials and compliance with international safety standards, RCT offers smart, secure solutions that elevate the performance and longevity of electrical systems.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Max. images to handle | Performance | Response time | Price | |
|---|---|---|---|---|---|---|
Smart VS standard, M12 connector, 150m, 3 digital output
Art:
SMART-VS-MR-5-150-WH-O
Copied
|
6 images
|
20pcs per second max
|
50 ms
|
| ||
|
Smart VS PLUS, M12 connector, 150m, 3 digital output
Art:
SMARTVSPL5150WHO
Copied
|
20 images
|
Depending on application set up
|
20 ms
|
|
Select a variant in the list
