Specifications
| 3612_Pixel size (µm) | 2.74 x 2.74 |
|---|---|
| Approvals | CE, EAC, FCC, GigE Vision, RoHS, UL |

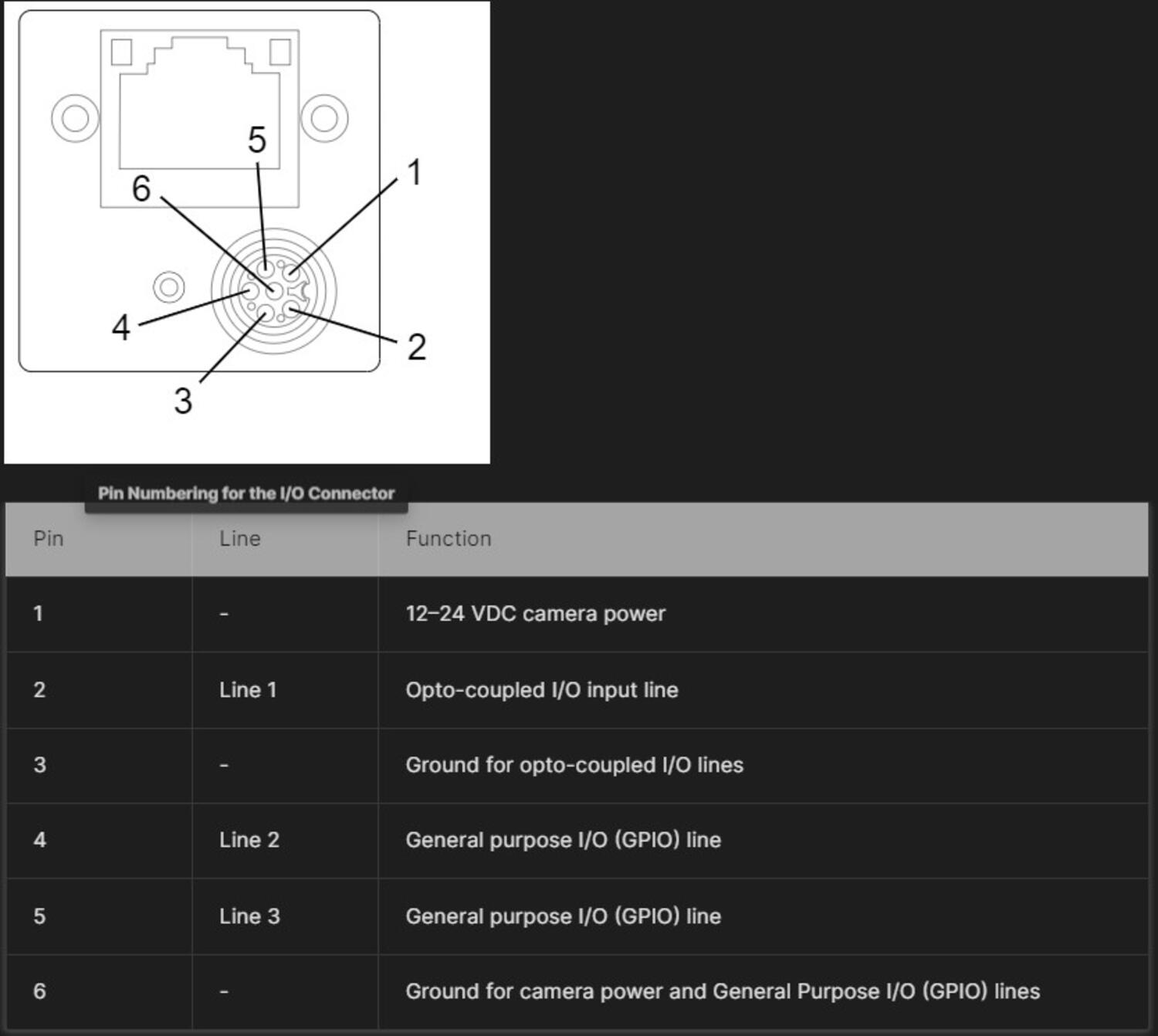

| Digital Inputs | 1 |
| FPGA | Yes |
| Frame Rate Max | 14 |

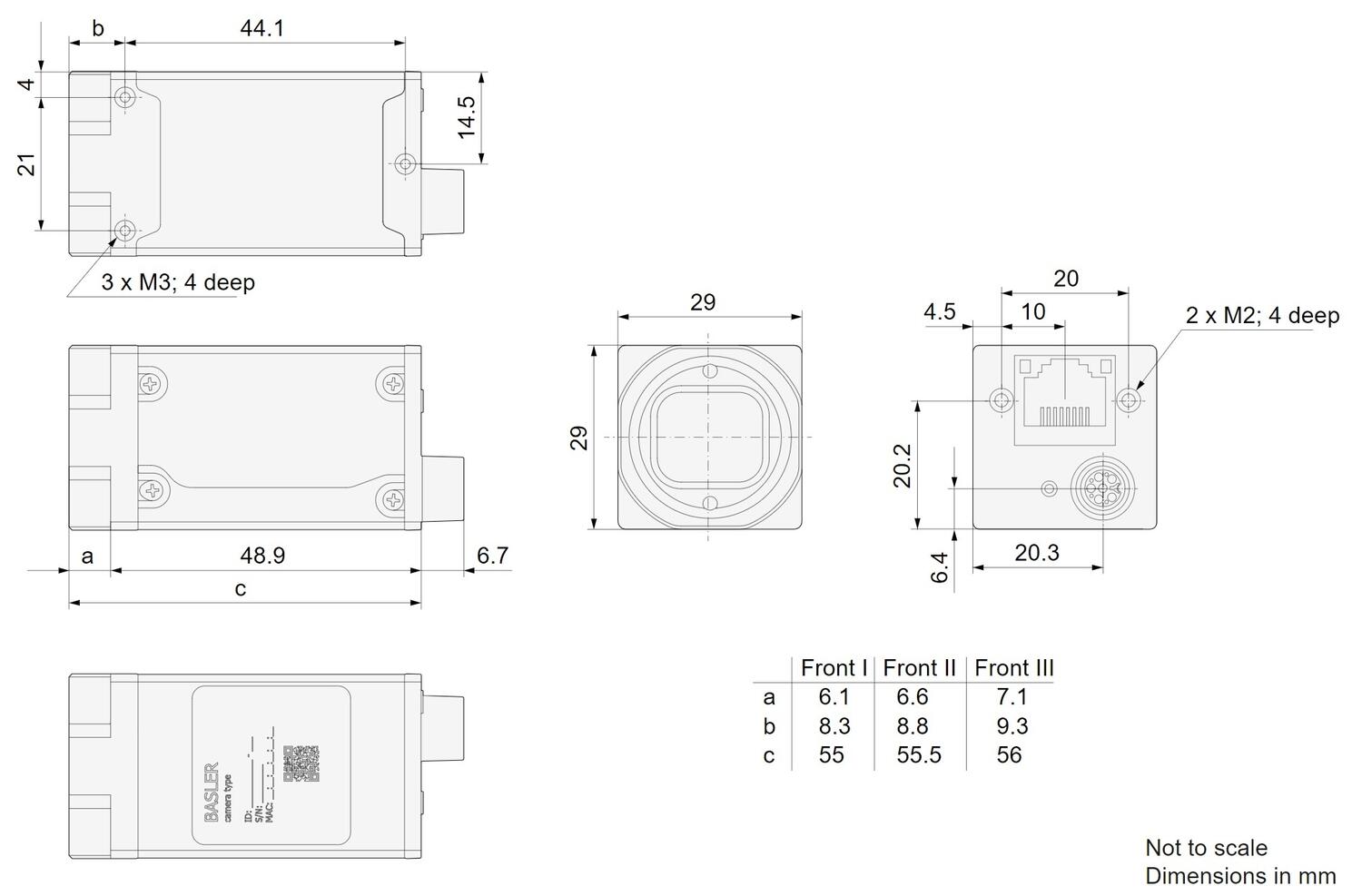

| Height | 29 |
| IP Class | IP30 |
| Length | 55.5 |
| Lens Barrel | C-Mount |
| Mono/Color | Mono |
| Operating temperature | 0°C … 50°C |
| Pixel Beyond | Yes |
|---|---|
| Power Consumption | 3.2 |
| Resolution Max | 2840 x 2840 px |

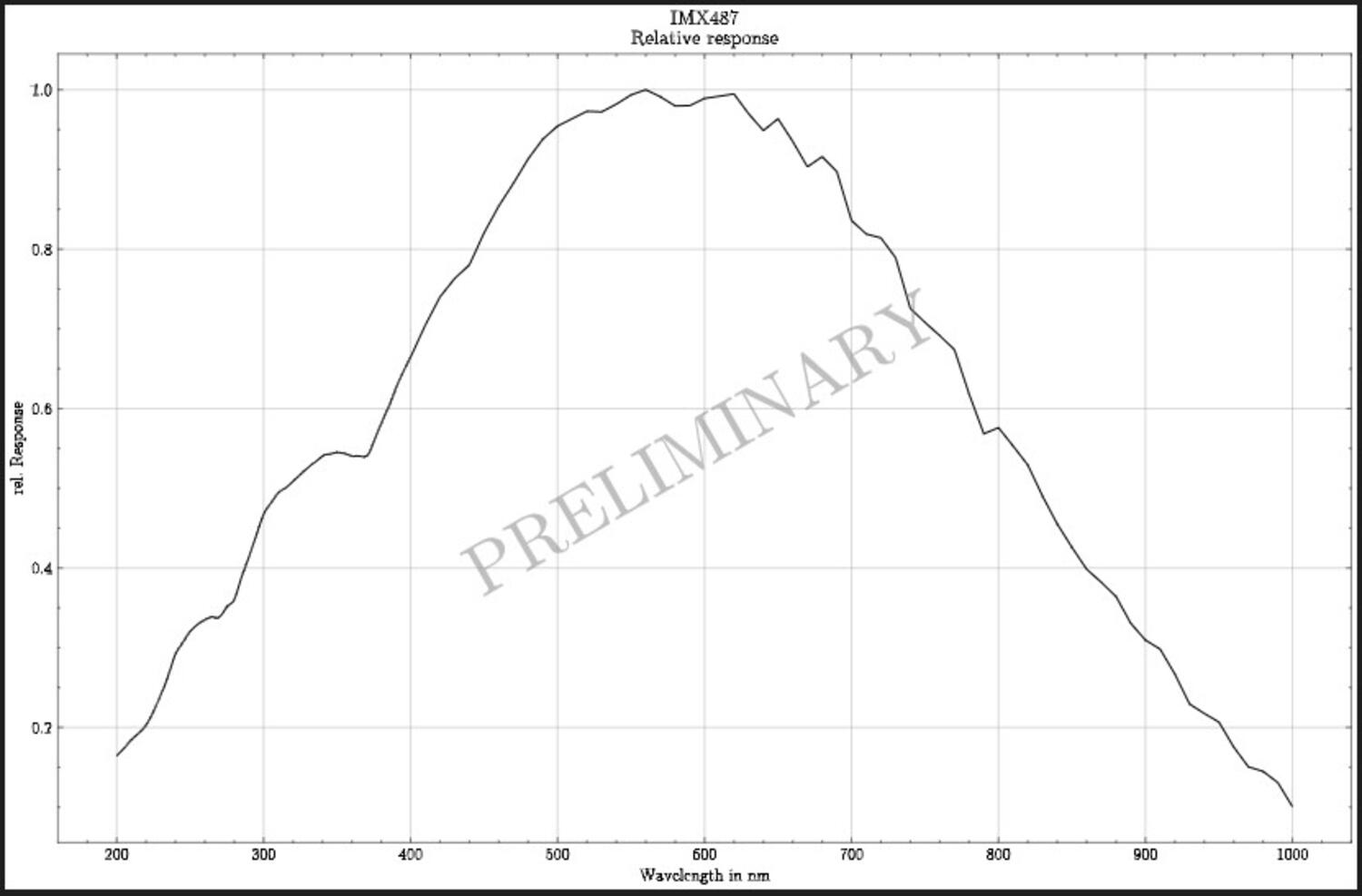

| Sensor model | IMX487 |
| Sensor size | 2/3" |
| Sensor supplier | Sony |
| Shutter type | Global |
| Wave-Length | UV |
| Weight | 100 |
| Width | 29 |
