IP ELEMENTS

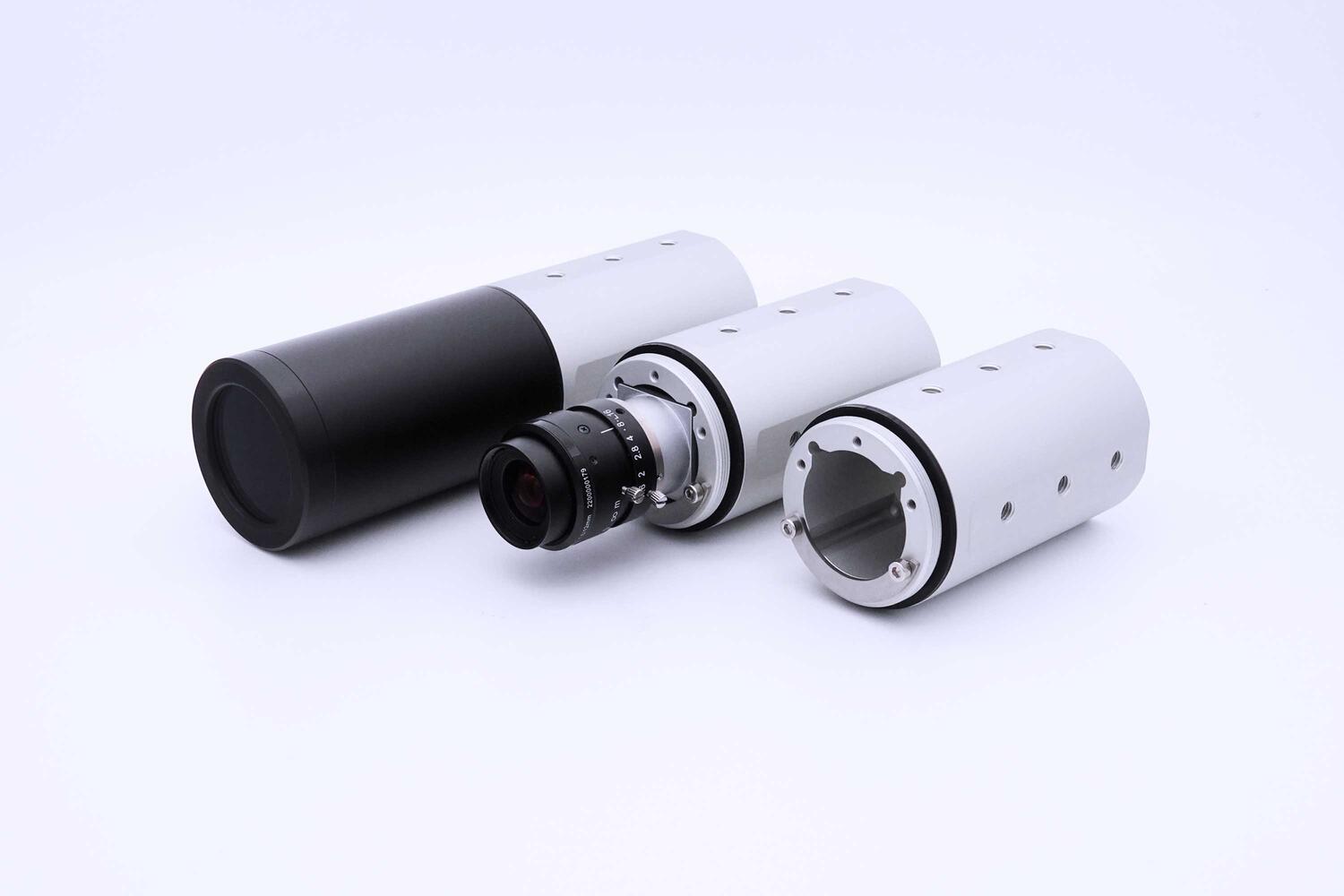

IP Elements Compact Camera Enclosures

IP Elements’ full featured all metal camera enclosure offers a highly configurable and customisable IP67 solution. The Compact enclosures are available in various internal lengths ranging from 50-80mm with custom lengths up to 300mm. All with the choice between 55mm, 75mm and 105mm lens tube diameters, ensures you never run out of space for camera systems. The Compact housing comes in a selection of full body aluminium and A316 stainless steel, offering an IP69K solution for harsh environments. The availability of a stainless-steel solution poses an FDA approved version with full material traceability for applications in food and beverage, where contact with foodstuff is possible. With a wide selection of window coating, window material, connectivity and mounting accessories you can add you your specification, IP Elements have ensured there is always highly optimised, cost effective and easy to use solution at hand.



If you require any more information, please contact us on [email protected].

  • Selectable body material, aluminium/stainless steel
  • Wide selection with internal tube lens size(50-300mm)
  • Excellent in harsh environments with IP67/68/69K rating
  • Customisable Window material/coating and connectivity options
  • Highly configurable with various connectivity and mounting accessories

Selected variant

Avaible in several variants
IP elements logo.png

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Body diameter 55
Camera compatibility Ace GigE
Clearance to glass 38.8
Conduit size Small
Drillable No
Inner clearance 31.3
IP Class IP67
Length of lens tube 50
Length Overall 150.8
Number of cables x cable diameter 2 x 6mm
Number of holes for cables 2
Splitable No

Downloads

Product description

IP Elements’ full featured all metal camera enclosure offers a highly configurable and customisable IP67 solution. The Compact enclosures are available in various internal lengths ranging from 50-80mm with custom lengths up to 300mm. All with the choice between 55mm, 75mm and 105mm lens tube diameters, ensures you never run out of space for camera systems. The Compact housing comes in a selection of full body aluminium and A316 stainless steel, offering an IP69K solution for harsh environments. The availability of a stainless-steel solution poses an FDA approved version with full material traceability for applications in food and beverage, where contact with foodstuff is possible. With a wide selection of window coating, window material, connectivity and mounting accessories you can add you your specification, IP Elements have ensured there is always highly optimised, cost effective and easy to use solution at hand.



If you require any more information, please contact us on [email protected].

Accessories

Related products

wohner
Blog

Wohner 60 Classic and Crossboard

Modular busbar systems that streamline power distribution, improve safety, and speed up panel builds.

tekox
Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

PPVK Series
Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

My favourites Articles Camera compatibility Clearance to glass Conduit size Drillable Inner clearance Length of lens tube Length Overall Number of cables x cable diameter Number of holes for cables Splitable Price
IPE Compact Aluminium Assembly.jpg
801.001.113, ACEGigE, 50mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-AG50113 Copied
Ace GigE
38.8
Small
No
31.3
50
150.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.129, ACEGigE, 50mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-AG50129 Copied
Ace GigE
38.8
Small
No
31.3
50
150.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.145, ACEGigE, 50mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-AG50145 Copied
Ace GigE
38.8
Large
No
31.3
50
150.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.161, ACEGigE, 50mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-AG50161 Copied
Ace GigE
38.8
Large
No
31.3
50
150.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.177, ACEGigE, 50mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-AG50177 Copied
Ace GigE
38.8
N/A
No
31.3
50
150.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.018, ACEGigE, 50mm, Brass, Drillable, Large
Art:
IPE-COM-AG5018 Copied
Ace GigE
38.8
Large
Yes
31.3
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.193, ACEGigE, 50mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-AG50193 Copied
Ace GigE
38.8
N/A
No
31.3
50
150.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.002, ACEGigE, 50mm, Brass, Drillable, Small
Art:
IPE-COM-AG502 Copied
Ace GigE
38.8
Small
Yes
31.3
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.209, ACEGigE, 50mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-AG50209 Copied
Ace GigE
38.8
N/A
No
31.3
50
150.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.225, ACEGigE, 50mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-AG50225 Copied
Ace GigE
38.8
N/A
No
31.3
50
150.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.241, ACEGigE, 50mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-AG50241 Copied
Ace GigE
38.8
N/A
No
31.3
50
150.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.257, ACEGigE, 50mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-AG50257 Copied
Ace GigE
38.8
N/A
No
31.3
50
150.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.273, ACEGigE, 50mm, PA, 2, Cables Ø8, Splittable
Art:
IPE-COM-AG50273 Copied
Ace GigE
38.8
N/A
No
31.3
50
150.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.289, ACEGigE, 50mm, Nylon Connector for Conduit
Art:
IPE-COM-AG50289 Copied
Ace GigE
38.8
N/A
No
31.3
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.305, ACEGigE, 50mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-AG50305 Copied
Ace GigE
38.8
N/A
No
31.3
50
150.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.321, ACEGigE, 50mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-AG50321 Copied
Ace GigE
38.8
Large
No
31.3
50
150.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.034, ACEGigE, 50mm, PA, Drillable, Splittable
Art:
IPE-COM-AG5034 Copied
Ace GigE
38.8
N/A
Yes
31.3
50
150.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.050, ACEGigE, 50mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-AG5050 Copied
Ace GigE
38.8
Small
No
31.3
50
150.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.066, ACEGigE, 50mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-AG5066 Copied
Ace GigE
38.8
Small
No
31.3
50
150.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.081, ACEGigE, 50mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-AG5081 Copied
Ace GigE
38.8
Small
No
31.3
50
150.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.097, ACEGigE, 50mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-AG5097 Copied
Ace GigE
38.8
Small
No
31.3
50
150.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.101, ACEGigE, 60mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-AG60101 Copied
Ace GigE
48.8
Small
No
41.3
60
160.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.117, ACEGigE, 60mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-AG60117 Copied
Ace GigE
48.8
Small
No
41.3
60
160.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.133, ACEGigE, 60mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-AG60133 Copied
Ace GigE
48.8
Small
No
41.3
60
160.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.149, ACEGigE, 60mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-AG60149 Copied
Ace GigE
48.8
Large
No
41.3
60
160.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.165, ACEGigE, 60mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-AG60165 Copied
Ace GigE
48.8
Large
No
41.3
60
160.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.181, ACEGigE, 60mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-AG60181 Copied
Ace GigE
48.8
N/A
No
41.3
60
160.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.197, ACEGigE, 60mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-AG60197 Copied
Ace GigE
48.8
N/A
No
41.3
60
160.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.213, ACEGigE, 60mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-AG60213 Copied
Ace GigE
48.8
N/A
No
41.3
60
160.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.022, ACEGigE, 60mm, Brass, Drillable, Large
Art:
IPE-COM-AG6022 Copied
Ace GigE
48.8
Large
Yes
41.3
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.229, ACEGigE, 60mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-AG60229 Copied
Ace GigE
48.8
N/A
No
41.3
60
160.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.245, ACEGigE, 60mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-AG60245 Copied
Ace GigE
48.8
N/A
No
41.3
60
160.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.261, ACEGigE, 60mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-AG60261 Copied
Ace GigE
48.8
N/A
No
41.3
60
160.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.277, ACEGigE, 60mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-AG60277 Copied
Ace GigE
48.8
N/A
No
41.3
60
160.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.293, ACEGigE, 60mm, Nylon Connector for Conduit
Art:
IPE-COM-AG60293 Copied
Ace GigE
48.8
N/A
No
41.3
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.309, ACEGigE, 60mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-AG60309 Copied
Ace GigE
48.8
Large
No
41.3
60
160.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.325, ACEGigE, 60mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-AG60325 Copied
Ace GigE
48.8
Large
No
41.3
60
160.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.038, ACEGigE, 60mm, PA, Drillable, Splittable
Art:
IPE-COM-AG6038 Copied
Ace GigE
48.8
N/A
Yes
41.3
60
160.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.054, ACEGigE, 60mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-AG6054 Copied
Ace GigE
48.8
Small
No
41.3
60
160.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.006, ACEGigE, 60mm, Brass, Drillable, Small
Art:
IPE-COM-AG606 Copied
Ace GigE
48.8
Small
Yes
41.3
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.070, ACEGigE, 60mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-AG6070 Copied
Ace GigE
48.8
Small
No
41.3
60
160.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.085, ACEGigE, 60mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-AG6085 Copied
Ace GigE
48.8
Small
No
41.3
60
160.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.010, ACEGigE, 70mm, Brass, Drillable, Small
Art:
IPE-COM-AG7010 Copied
Ace GigE
58.8
Small
Yes
51.3
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.105, ACEGigE, 70mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-AG70105 Copied
Ace GigE
58.8
Small
No
51.3
70
170.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.121, ACEGigE, 70mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-AG70121 Copied
Ace GigE
58.8
Small
No
51.3
70
170.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.137, ACEGigE, 70mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-AG70137 Copied
Ace GigE
58.8
Small
No
51.3
70
170.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.153, ACEGigE, 70mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-AG70153 Copied
Ace GigE
58.8
Large
No
51.3
70
170.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.169, ACEGigE, 70mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-AG70169 Copied
Ace GigE
58.8
Large
No
51.3
70
170.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.185, ACEGigE, 70mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-AG70185 Copied
Ace GigE
58.8
N/A
No
51.3
70
170.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.201, ACEGigE, 70mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-AG70201 Copied
Ace GigE
58.8
N/A
No
51.3
70
170.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.217, ACEGigE, 70mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-AG70217 Copied
Ace GigE
58.8
N/A
No
51.3
70
170.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.233, ACEGigE, 70mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-AG70233 Copied
Ace GigE
58.8
N/A
No
51.3
70
170.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.249, ACEGigE, 70mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-AG70249 Copied
Ace GigE
58.8
N/A
No
51.3
70
170.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.026, ACEGigE, 70mm, Brass, Drillable, Large
Art:
IPE-COM-AG7026 Copied
Ace GigE
58.8
Large
Yes
51.3
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.265, ACEGigE, 70mm, PA, 2 Cables Ø7 8.5, Splittable
Art:
IPE-COM-AG70265 Copied
Ace GigE
58.8
N/A
No
51.3
70
170.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.281, ACEGigE, 70mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-AG70281 Copied
Ace GigE
58.8
N/A
No
51.3
70
170.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.297, ACEGigE, 70mm, Nylon Connector for Conduit
Art:
IPE-COM-AG70297 Copied
Ace GigE
58.8
N/A
No
51.3
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.313, ACEGigE, 70mm, Brass, 1 Cable 6.5, Large
Art:
IPE-COM-AG70313 Copied
Ace GigE
58.8
Large
No
51.3
70
170.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.329, ACEGigE, 70mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-AG70329 Copied
Ace GigE
58.8
Large
No
51.3
70
170.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.042, ACEGigE, 70mm, PA, Drillable, Splittable
Art:
IPE-COM-AG7042 Copied
Ace GigE
58.8
N/A
Yes
51.3
70
170.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.058, ACEGigE, 70mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-AG7058 Copied
Ace GigE
58.8
Small
No
51.3
70
170.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.073, ACEGigE, 70mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-AG7073 Copied
Ace GigE
58.8
Small
No
51.3
70
170.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.089, ACEGigE, 70mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-AG7089 Copied
Ace GigE
58.8
Small
No
51.3
70
170.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.109, ACEGigE, 80mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-AG80109 Copied
Ace GigE
68.8
Small
No
61.3
80
180.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.125, ACEGigE, 80mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-AG80125 Copied
Ace GigE
68.8
Small
No
61.3
80
180.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.014, ACEGigE, 80mm, Brass, Drillable, Small
Art:
IPE-COM-AG8014 Copied
Ace GigE
68.8
Small
Yes
61.3
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.141, ACEGigE, 80mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-AG80141 Copied
Ace GigE
68.8
Small
No
61.3
80
180.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.157, ACEGigE, 80mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-AG80157 Copied
Ace GigE
68.8
Large
No
61.3
80
180.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.173, ACEGigE, 80mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-AG80173 Copied
Ace GigE
68.8
Large
No
61.3
80
180.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.189, ACEGigE, 80mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-AG80189 Copied
Ace GigE
68.8
N/A
No
61.3
80
180.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.205, ACEGigE, 80mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-AG80205 Copied
Ace GigE
68.8
N/A
No
61.3
80
180.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.221, ACEGigE, 80mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-AG80221 Copied
Ace GigE
68.8
N/A
No
61.3
80
180.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.237, ACEGigE, 80mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-AG80237 Copied
Ace GigE
68.8
N/A
No
61.3
80
180.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.253, ACEGigE, 80mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-AG80253 Copied
Ace GigE
68.8
N/A
No
61.3
80
180.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.269, ACEGigE, 80mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-AG80269 Copied
Ace GigE
68.8
N/A
No
61.3
80
180.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.285, ACEGigE, 80mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-AG80285 Copied
Ace GigE
68.8
N/A
No
61.3
80
180.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.030, ACEGigE, 80mm, Brass, Drillable, Large
Art:
IPE-COM-AG8030 Copied
Ace GigE
68.8
Large
Yes
61.3
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.301, ACEGigE, 80mm, Nylon Connector for Conduit
Art:
IPE-COM-AG80301 Copied
Ace GigE
68.8
N/A
No
61.3
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.317, ACEGigE, 80mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-AG80317 Copied
Ace GigE
68.8
Large
No
61.3
80
180.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.333, ACEGigE, 80mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-AG80333 Copied
Ace GigE
68.8
Large
No
61.3
80
180.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.046, ACEGigE, 80mm, PA, Drillable, Splittable
Art:
IPE-COM-AG8046 Copied
Ace GigE
68.8
N/A
Yes
61.3
80
180.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.062, ACEGigE, 80mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-AG8062 Copied
Ace GigE
68.8
Small
No
61.3
80
180.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.077, ACEGigE, 80mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-AG8077 Copied
Ace GigE
68.8
Small
No
61.3
80
180.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.093, ACEGigE, 80mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-AG8093 Copied
Ace GigE
68.8
Small
No
61.3
80
180.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.114, ACEUSB, 50mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-AU50114 Copied
Ace USB
38.8
Small
No
31.3
50
150.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.130, ACEUSB, 50mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-AU50130 Copied
Ace USB
38.8
Small
No
31.3
50
150.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.146, ACEUSB, 50mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-AU50146 Copied
Ace USB
38.8
Large
No
31.3
50
150.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.162, ACEUSB, 50mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-AU50162 Copied
Ace USB
38.8
Large
No
31.3
50
150.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.178, ACEUSB, 50mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-AU50178 Copied
Ace USB
38.8
N/A
No
31.3
50
150.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.019, ACEUSB, 50mm, Brass, Drillable, Large
Art:
IPE-COM-AU5019 Copied
Ace USB
38.8
Large
Yes
31.3
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.194, ACEUSB, 50mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-AU50194 Copied
Ace USB
38.8
N/A
No
31.3
50
150.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.210, ACEUSB, 50mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-AU50210 Copied
Ace USB
38.8
N/A
No
31.3
50
150.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.226, ACEUSB, 50mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-AU50226 Copied
Ace USB
38.8
N/A
No
31.3
50
150.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.242, ACEUSB, 50mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-AU50242 Copied
Ace USB
38.8
N/A
No
31.3
50
150.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.258, ACEUSB, 50mm, PA, 2 Cables Ø7 Ø8.5, splittable
Art:
IPE-COM-AU50258 Copied
Ace USB
38.8
N/A
No
31.3
50
150.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.274, ACEUSB, 50mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-AU50274 Copied
Ace USB
38.8
N/A
No
31.3
50
150.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.290, ACEUSB, 50mm, Nylon Connector for Conduit
Art:
IPE-COM-AU50290 Copied
Ace USB
38.8
N/A
No
31.3
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.003, ACEUSB, 50mm, Brass, Drillable, Small
Art:
IPE-COM-AU503 Copied
Ace USB
38.8
Small
Yes
31.3
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.306, ACEUSB, 50mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-AU50306 Copied
Ace USB
38.8
Large
No
31.3
50
150.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.322, ACEUSB, 50mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-AU50322 Copied
Ace USB
38.8
Large
No
31.3
50
150.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.035, ACEUSB, 50mm, PA, Drillable, Splittable
Art:
IPE-COM-AU5035 Copied
Ace USB
38.8
N/A
Yes
31.3
50
150.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.051, ACEUSB, 50mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-AU5051 Copied
Ace USB
38.8
Small
No
31.3
50
150.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.067, ACEUSB, 50mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-AU5067 Copied
Ace USB
38.8
Small
No
31.3
50
150.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.082, ACEUSB, 50mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-AU5082 Copied
Ace USB
38.8
Small
No
31.3
50
150.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.098, ACEUSB, 50mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-AU5098 Copied
Ace USB
38.8
Small
No
31.3
50
150.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.001, ACEUSB, 60mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-AU601 Copied
Ace USB
48.8
Small
No
41.3
60
160.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.102, ACEUSB, 60mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-AU60102 Copied
Ace USB
48.8
Small
No
41.3
60
160.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.118, ACEUSB, 60mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-AU60118 Copied
Ace USB
48.8
Small
No
41.3
60
160.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.134, ACEUSB, 60mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-AU60134 Copied
Ace USB
48.8
Small
No
41.3
60
160.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.150, ACEUSB, 60mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-AU60150 Copied
Ace USB
48.8
Large
No
41.3
60
160.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.166, ACEUSB, 60mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-AU60166 Copied
Ace USB
48.8
Large
No
41.3
60
160.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.182, ACEUSB, 60mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-AU60182 Copied
Ace USB
48.8
N/A
No
41.3
60
160.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.198, ACEUSB, 60mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-AU60198 Copied
Ace USB
48.8
N/A
No
41.3
60
160.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.214, ACEUSB, 60mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-AU60214 Copied
Ace USB
48.8
N/A
No
41.3
60
160.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.023, ACEUSB, 60mm, Brass, Drillable, Large
Art:
IPE-COM-AU6023 Copied
Ace USB
48.8
Large
Yes
41.3
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.230, ACEUSB, 60mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-AU60230 Copied
Ace USB
48.8
N/A
No
41.3
60
160.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.246, ACEUSB, 60mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-AU60246 Copied
Ace USB
48.8
N/A
No
41.3
60
160.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.262, ACEUSB, 60mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-AU60262 Copied
Ace USB
48.8
N/A
No
41.3
60
160.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.278, ACEUSB, 60mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-AU60278 Copied
Ace USB
48.8
N/A
No
41.3
60
160.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.294, ACEUSB, 60mm, Nylon Connector for Conduit
Art:
IPE-COM-AU60294 Copied
Ace USB
48.8
N/A
No
41.3
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.310, ACEUSB, 60mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-AU60310 Copied
Ace USB
48.8
Large
No
41.3
60
160.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.326, ACEUSB, 60mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-AU60326 Copied
Ace USB
48.8
Large
No
41.3
60
160.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.039, ACEUSB, 60mm, PA, Drillable, Splittable
Art:
IPE-COM-AU6039 Copied
Ace USB
48.8
N/A
Yes
41.3
60
160.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.055, ACEUSB, 60mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-AU6055 Copied
Ace USB
48.8
Small
No
41.3
60
160.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.007, ACEUSB, 60mm, Brass, Drillable, Small
Art:
IPE-COM-AU607 Copied
Ace USB
48.8
Small
Yes
41.3
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.086, ACEUSB, 60mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-AU6086 Copied
Ace USB
48.8
Small
No
41.3
60
160.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.106, ACEUSB, 70mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-AU70106 Copied
Ace USB
58.8
Small
No
51.3
70
170.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.011, ACEUSB, 70mm, Brass, Drillable, Small
Art:
IPE-COM-AU7011 Copied
Ace USB
58.8
Small
Yes
51.3
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.122, ACEUSB, 70mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-AU70122 Copied
Ace USB
58.8
Small
No
51.3
70
170.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.138, ACEUSB, 70mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-AU70138 Copied
Ace USB
58.8
Small
No
51.3
70
170.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.154, ACEUSB, 70mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-AU70154 Copied
Ace USB
58.8
Large
No
51.3
70
170.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.170, ACEUSB, 70mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-AU70170 Copied
Ace USB
58.8
Large
No
51.3
70
170.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.186, ACEUSB, 70mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-AU70186 Copied
Ace USB
58.8
N/A
No
51.3
70
170.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.202, ACEUSB, 70mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-AU70202 Copied
Ace USB
58.8
N/A
No
51.3
70
170.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.218, ACEUSB, 70mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-AU70218 Copied
Ace USB
58.8
N/A
No
51.3
70
170.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.234, ACEUSB, 70mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-AU70234 Copied
Ace USB
58.8
N/A
No
51.3
70
170.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.250, ACEUSB, 70mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-AU70250 Copied
Ace USB
58.8
N/A
No
51.3
70
170.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.266, ACEUSB, 70mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-AU70266 Copied
Ace USB
58.8
N/A
No
51.3
70
170.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.027, ACEUSB, 70mm, Brass, Drillable, Large
Art:
IPE-COM-AU7027 Copied
Ace USB
58.8
Large
Yes
51.3
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.282, ACEUSB, 70mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-AU70282 Copied
Ace USB
58.8
N/A
No
51.3
70
170.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.298, ACEUSB, 70mm, Nylon Connector for Conduit
Art:
IPE-COM-AU70298 Copied
Ace USB
58.8
N/A
No
51.3
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.314, ACEUSB, 70mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-AU70314 Copied
Ace USB
58.8
Large
No
51.3
70
170.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.330, ACEUSB, 70mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-AU70330 Copied
Ace USB
58.8
Large
No
51.3
70
170.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.043, ACEUSB, 70mm, PA, Drillable, Splittable
Art:
IPE-COM-AU7043 Copied
Ace USB
58.8
N/A
Yes
51.3
70
170.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.059, ACEUSB, 70mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-AU7059 Copied
Ace USB
58.8
Small
No
51.3
70
170.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.074, ACEUSB, 70mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-AU7074 Copied
Ace USB
58.8
Small
No
51.3
70
170.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.090, ACEUSB, 70mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-AU7090 Copied
Ace USB
58.8
Small
No
51.3
70
170.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.110, ACEUSB, 80mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-AU80110 Copied
Ace USB
68.8
Small
No
61.3
80
180.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.126, ACEUSB, 80mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-AU80126 Copied
Ace USB
68.8
Small
No
61.3
80
180.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.142, ACEUSB, 80mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-AU80142 Copied
Ace USB
68.8
Small
No
61.3
80
180.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.015, ACEUSB, 80mm, Brass, Drillable, Small
Art:
IPE-COM-AU8015 Copied
Ace USB
68.8
Small
Yes
61.3
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.158, ACEUSB, 80mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-AU80158 Copied
Ace USB
68.8
Large
No
61.3
80
180.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.174, ACEUSB, 80mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-AU80174 Copied
Ace USB
68.8
Large
No
61.3
80
180.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.190, ACEUSB, 80mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-AU80190 Copied
Ace USB
68.8
N/A
No
61.3
80
180.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.206, ACEUSB, 80mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-AU80206 Copied
Ace USB
68.8
N/A
No
61.3
80
180.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.222, ACEUSB, 80mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-AU80222 Copied
Ace USB
68.8
N/A
No
61.3
80
180.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.238, ACEUSB, 80mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-AU80238 Copied
Ace USB
68.8
N/A
No
61.3
80
180.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.254, ACEUSB, 80mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-AU80254 Copied
Ace USB
68.8
N/A
No
61.3
80
180.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.270, ACEUSB, 80mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-AU80270 Copied
Ace USB
68.8
N/A
No
61.3
80
180.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.286, ACEUSB, 80mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-AU80286 Copied
Ace USB
68.8
N/A
No
61.3
80
180.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.302, ACEUSB, 80mm, Nylon Connector for Conduit
Art:
IPE-COM-AU80302 Copied
Ace USB
68.8
N/A
No
61.3
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.031, ACEUSB, 80mm, Brass, Drillable, Large
Art:
IPE-COM-AU8031 Copied
Ace USB
68.8
Large
Yes
61.3
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.318, ACEUSB, 80mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-AU80318 Copied
Ace USB
68.8
Large
No
61.3
80
180.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.334, ACEUSB, 80mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-AU80334 Copied
Ace USB
68.8
Large
No
61.3
80
180.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.047, ACEUSB, 80mm, PA, Drillable, Splittable
Art:
IPE-COM-AU8047 Copied
Ace USB
68.8
N/A
Yes
61.3
80
180.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.063, ACEUSB, 80mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-AU8063 Copied
Ace USB
68.8
Small
No
61.3
80
180.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.078, ACEUSB, 80mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-AU8078 Copied
Ace USB
68.8
Small
No
61.3
80
180.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.094, ACEUSB, 80mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-AU8094 Copied
Ace USB
68.8
Small
No
61.3
80
180.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.115, ACE2GigE, 50mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-A2G50115 Copied
Ace2 GigE
44.2
Small
No
36.7
50
150.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.131, ACE2GigE, 50mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-A2G50131 Copied
Ace2 GigE
44.2
Small
No
36.7
50
150.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.147, ACE2GigE, 50mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-A2G50147 Copied
Ace2 GigE
44.2
Large
No
36.7
50
150.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.163, ACE2GigE, 50mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-A2G50163 Copied
Ace2 GigE
44.2
Large
No
36.7
50
150.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.179, ACE2GigE, 50mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-A2G50179 Copied
Ace2 GigE
44.2
N/A
No
36.7
50
150.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.195, ACE2GigE, 50mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-A2G50195 Copied
Ace2 GigE
44.2
N/A
No
36.7
50
150.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.020, ACE2GigE, 50mm, Brass, Drillable, Large
Art:
IPE-COM-A2G5020 Copied
Ace2 GigE
44.2
Large
Yes
36.7
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.211, ACE2GigE, 50mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-A2G50211 Copied
Ace2 GigE
44.2
N/A
No
36.7
50
150.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.227, ACE2GigE, 50mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-A2G50227 Copied
Ace2 GigE
44.2
N/A
No
36.7
50
150.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.243, ACE2GigE, 50mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-A2G50243 Copied
Ace2 GigE
44.2
N/A
No
36.7
50
150.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.259, ACE2GigE, 50mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-A2G50259 Copied
Ace2 GigE
44.2
N/A
No
36.7
50
150.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.275, ACE2GigE, 50mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-A2G50275 Copied
Ace2 GigE
44.2
N/A
No
36.7
50
150.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.291, ACE2GigE, 50mm, Nylon Connector for Conduit
Art:
IPE-COM-A2G50291 Copied
Ace2 GigE
44.2
N/A
No
36.7
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.307, ACE2GigE, 50mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-A2G50307 Copied
Ace2 GigE
44.2
Large
No
36.7
50
150.8
1 x 6.5mm
0
No
IPE Compact Aluminium Assembly.jpg
801.001.323, ACE2GigE, 50mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-A2G50323 Copied
Ace2 GigE
44.2
Large
No
36.7
50
150.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.036, ACE2GigE, 50mm, PA, Drillable, Splittable
Art:
IPE-COM-A2G5036 Copied
Ace2 GigE
44.2
N/A
Yes
36.7
50
150.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.004, ACE2GigE, 50mm, Brass, Drillable, Small
Art:
IPE-COM-A2G504 Copied
Ace2 GigE
44.2
Small
Yes
36.7
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.052, ACE2GigE, 50mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-A2G5052 Copied
Ace2 GigE
44.2
Small
No
36.7
50
150.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.068, ACE2GigE, 50mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-A2G5068 Copied
Ace2 GigE
44.2
Small
No
36.7
50
150.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.083, ACE2GigE, 50mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-A2G5083 Copied
Ace2 GigE
44.2
Small
No
36.7
50
150.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.099, ACE2GigE, 50mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-A2G5099 Copied
Ace2 GigE
44.2
Small
No
36.7
50
150.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.103, ACE2GigE, 60mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-A2G60103 Copied
Ace2 GigE
54.2
Small
No
46.7
60
160.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.119, ACE2GigE, 60mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-A2G60119 Copied
Ace2 GigE
54.2
Small
No
46.7
60
160.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.135, ACE2GigE, 60mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-A2G60135 Copied
Ace2 GigE
54.2
Small
No
46.7
60
160.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.151, ACE2GigE, 60mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-A2G60151 Copied
Ace2 GigE
54.2
Large
No
46.7
60
160.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.167, ACE2GigE, 60mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-A2G60167 Copied
Ace2 GigE
54.2
Large
No
46.7
60
160.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.183, ACE2GigE, 60mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-A2G60183 Copied
Ace2 GigE
54.2
N/A
No
46.7
60
160.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.199, ACE2GigE, 60mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-A2G60199 Copied
Ace2 GigE
54.2
N/A
No
46.7
60
160.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.215, ACE2GigE, 60mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-A2G60215 Copied
Ace2 GigE
54.2
N/A
No
46.7
60
160.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.231, ACE2GigE, 60mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-A2G60231 Copied
Ace2 GigE
54.2
N/A
No
46.7
60
160.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.024, ACE2GigE, 60mm, Brass, Drillable, Large
Art:
IPE-COM-A2G6024 Copied
Ace2 GigE
54.2
Large
Yes
46.7
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.247, ACE2GigE, 60mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-A2G60247 Copied
Ace2 GigE
54.2
N/A
No
46.7
60
160.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.263, ACE2GigE, 60mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-A2G60263 Copied
Ace2 GigE
54.2
N/A
No
46.7
60
160.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.279, ACE2GigE, 60mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-A2G60279 Copied
Ace2 GigE
54.2
N/A
No
46.7
60
160.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.295, ACE2GigE, 60mm, Nylon Connector for Conduit
Art:
IPE-COM-A2G60295 Copied
Ace2 GigE
54.2
N/A
No
46.7
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.311, ACE2GigE, 60mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-A2G60311 Copied
Ace2 GigE
54.2
Large
No
46.7
60
160.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.327, ACE2GigE, 60mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-A2G60327 Copied
Ace2 GigE
54.2
Large
No
46.7
60
160.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.040, ACE2GigE, 60mm, PA, Drillable, Splittable
Art:
IPE-COM-A2G6040 Copied
Ace2 GigE
54.2
N/A
Yes
46.7
60
160.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.056, ACE2GigE, 60mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-A2G6056 Copied
Ace2 GigE
54.2
Small
No
46.7
60
160.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.071, ACE2GigE, 60mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-A2G6071 Copied
Ace2 GigE
54.2
Small
No
46.7
60
160.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.008, ACE2GigE, 60mm, Brass, Drillable, Small
Art:
IPE-COM-A2G608 Copied
Ace2 GigE
54.2
Small
Yes
46.7
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.087, ACE2GigE, 60mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-A2G6087 Copied
Ace2 GigE
54.2
Small
No
46.7
60
160.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.107, ACE2GigE, 70mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-A2G70107 Copied
Ace2 GigE
64.2
Small
No
56.7
70
170.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.012, ACE2GigE, 70mm, Brass, Drillable, Small
Art:
IPE-COM-A2G7012 Copied
Ace2 GigE
64.2
Small
Yes
56.7
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.123, ACE2GigE, 70mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-A2G70123 Copied
Ace2 GigE
64.2
Small
No
56.7
70
170.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.139, ACE2GigE, 70mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-A2G70139 Copied
Ace2 GigE
64.2
Small
No
56.7
70
170.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.155, ACE2GigE, 70mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-A2G70155 Copied
Ace2 GigE
64.2
Large
No
56.7
70
170.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.171, ACE2GigE, 70mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-A2G70171 Copied
Ace2 GigE
64.2
Large
No
56.7
70
170.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.187, ACE2GigE, 70mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-A2G70187 Copied
Ace2 GigE
64.2
N/A
No
56.7
70
170.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.203, ACE2GigE, 70mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-A2G70203 Copied
Ace2 GigE
64.2
N/A
No
56.7
70
170.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.219, ACE2GigE, 70mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-A2G70219 Copied
Ace2 GigE
64.2
N/A
No
56.7
70
170.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.235, ACE2GigE, 70mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-A2G70235 Copied
Ace2 GigE
64.2
N/A
No
56.7
70
170.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.251, ACE2GigE, 70mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-A2G70251 Copied
Ace2 GigE
64.2
N/A
No
56.7
70
170.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.267, ACE2GigE, 70mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-A2G70267 Copied
Ace2 GigE
64.2
N/A
No
56.7
70
170.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.028, ACE2GigE, 70mm, Brass, Drillable, Large
Art:
IPE-COM-A2G7028 Copied
Ace2 GigE
64.2
Large
Yes
56.7
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.283, ACE2GigE, 70mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-A2G70283 Copied
Ace2 GigE
64.2
N/A
No
56.7
70
170.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.299, ACE2GigE, 70mm, Nylon Connector for Conduit
Art:
IPE-COM-A2G70299 Copied
Ace2 GigE
64.2
N/A
No
56.7
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.315, ACE2GigE, 70mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-A2G70315 Copied
Ace2 GigE
64.2
Large
No
56.7
70
170.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.331, ACE2GigE, 70mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-A2G70331 Copied
Ace2 GigE
64.2
Large
No
56.7
70
170.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.044, ACE2GigE, 70mm, PA, Drillable, Splittable
Art:
IPE-COM-A2G7044 Copied
Ace2 GigE
64.2
N/A
Yes
56.7
70
170.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.060, ACE2GigE, 70mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-A2G7060 Copied
Ace2 GigE
64.2
Small
No
56.7
70
170.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.075, ACE2GigE, 70mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-A2G7075 Copied
Ace2 GigE
64.2
Small
No
56.7
70
170.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.091, ACE2GigE, 70mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-A2G7091 Copied
Ace2 GigE
64.2
Small
No
56.7
70
170.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.111, ACE2GigE, 80mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-A2G80111 Copied
Ace2 GigE
74.2
Small
No
66.7
80
180.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.127, ACE2GigE, 80mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-A2G80127 Copied
Ace2 GigE
74.2
Small
No
66.7
80
180.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.143, ACE2GigE, 80mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-A2G80143 Copied
Ace2 GigE
74.2
Small
No
66.7
80
180.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.159, ACE2GigE, 80mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-A2G80159 Copied
Ace2 GigE
74.2
Large
No
66.7
80
180.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.016, ACE2GigE, 80mm, Brass, Drillable, Small
Art:
IPE-COM-A2G8016 Copied
Ace2 GigE
74.2
Small
Yes
66.7
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.175, ACE2GigE, 80mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-A2G80175 Copied
Ace2 GigE
74.2
Large
No
66.7
80
180.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.191, ACE2GigE, 80mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-A2G80191 Copied
Ace2 GigE
74.2
N/A
No
66.7
80
180.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.207, ACE2GigE, 80mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-A2G80207 Copied
Ace2 GigE
74.2
N/A
No
66.7
80
180.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.223, ACE2GigE, 80mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-A2G80223 Copied
Ace2 GigE
74.2
N/A
No
66.7
80
180.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.239, ACE2GigE, 80mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-A2G80239 Copied
Ace2 GigE
74.2
N/A
No
66.7
80
180.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.255, ACE2GigE, 80mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-A2G80255 Copied
Ace2 GigE
74.2
N/A
No
66.7
80
180.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.271, ACE2GigE, 80mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-A2G80271 Copied
Ace2 GigE
74.2
N/A
No
66.7
80
180.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.287, ACE2GigE, 80mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-A2G80287 Copied
Ace2 GigE
74.2
N/A
No
66.7
80
180.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.303, ACE2GigE, 80mm, Nylon Connector for Conduit
Art:
IPE-COM-A2G80303 Copied
Ace2 GigE
74.2
N/A
No
66.7
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.319, ACE2GigE, 80mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-A2G80319 Copied
Ace2 GigE
74.2
Large
No
66.7
80
180.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.032, ACE2GigE, 80mm, Brass, Drillable, Large
Art:
IPE-COM-A2G8032 Copied
Ace2 GigE
74.2
Large
Yes
66.7
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.335, ACE2GigE, 80mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-A2G80335 Copied
Ace2 GigE
74.2
Large
No
66.7
80
180.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.048, ACE2GigE, 80mm, PA, Drillable, Splittable
Art:
IPE-COM-A2G8048 Copied
Ace2 GigE
74.2
N/A
Yes
66.7
80
180.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.064, ACE2GigE, 80mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-A2G8064 Copied
Ace2 GigE
74.2
Small
No
66.7
80
180.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.079, ACE2GigE, 80mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-A2G8079 Copied
Ace2 GigE
74.2
Small
No
66.7
80
180.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.095, ACE2GigE, 80mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-A2G8095 Copied
Ace2 GigE
74.2
Small
No
66.7
80
180.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.100, ACE2USB, 50mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-A2U50100 Copied
Ace2 USB
44.2
Small
No
36.7
50
150.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.116, ACE2USB, 50mm, Brass, 2 Cables Ø6 Ø6, Small
Art:
IPE-COM-A2U50116 Copied
Ace2 USB
44.2
Small
No
36.7
50
150.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.132, ACE2USB, 50mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-A2U50132 Copied
Ace2 USB
44.2
Small
No
36.7
50
150.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.148, ACE2USB, 50mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-A2U50148 Copied
Ace2 USB
44.2
Large
No
36.7
50
150.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.164, ACE2USB, 50mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-A2U50164 Copied
Ace2 USB
44.2
Large
No
36.7
50
150.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.180, ACE2USB, 50mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-A2U50180 Copied
Ace2 USB
44.2
N/A
No
36.7
50
150.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.196, ACE2USB, 50mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-A2U50196 Copied
Ace2 USB
44.2
N/A
No
36.7
50
150.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.021, ACE2USB, 50mm, Brass, Drillable, Large
Art:
IPE-COM-A2U5021 Copied
Ace2 USB
44.2
Large
Yes
36.7
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.212, ACE2USB, 50mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-A2U50212 Copied
Ace2 USB
44.2
N/A
No
36.7
50
150.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.228, ACE2USB, 50mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-A2U50228 Copied
Ace2 USB
44.2
N/A
No
36.7
50
150.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.244, ACE2USB, 50mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-A2U50244 Copied
Ace2 USB
44.2
N/A
No
36.7
50
150.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.260, ACE2USB, 50mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-A2U50260 Copied
Ace2 USB
44.2
N/A
No
36.7
50
150.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.276, ACE2USB, 50mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-A2U50276 Copied
Ace2 USB
44.2
N/A
No
36.7
50
150.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.292, ACE2USB, 50mm, Nylon Connector for Conduit
Art:
IPE-COM-A2U50292 Copied
Ace2 USB
44.2
N/A
No
36.7
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.308, ACE2USB, 50mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-A2U50308 Copied
Ace2 USB
44.2
Large
No
36.7
50
150.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.324, ACE2USB, 50mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-A2U50324 Copied
Ace2 USB
44.2
Large
No
36.7
50
150.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.037, ACE2USB, 50mm, PA, Drillable, Splittable
Art:
IPE-COM-A2U5037 Copied
Ace2 USB
44.2
N/A
Yes
36.7
50
150.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.005, ACE2USB, 50mm, Brass, Drillable, Small
Art:
IPE-COM-A2U505 Copied
Ace2 USB
44.2
Small
Yes
36.7
50
150.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.053, ACE2USB, 50mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-A2U5053 Copied
Ace2 USB
44.2
Small
No
36.7
50
150.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.069, ACE2USB, 50mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-A2U5069 Copied
Ace2 USB
44.2
Small
No
36.7
50
150.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.084, ACE2USB, 50mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-A2U5084 Copied
Ace2 USB
44.2
Small
No
36.7
50
150.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.104, ACE2USB, 60mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-A2U60104 Copied
Ace2 USB
54.2
Small
No
46.7
60
160.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.120, ACE2USB, 60mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-A2U60120 Copied
Ace2 USB
54.2
Small
No
46.7
60
160.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.136, ACE2USB, 60mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-A2U60136 Copied
Ace2 USB
54.2
Small
No
46.7
60
160.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.152, ACE2USB, 60mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-A2U60152 Copied
Ace2 USB
54.2
Large
No
46.7
60
160.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.168, ACE2USB, 60mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-A2U60168 Copied
Ace2 USB
54.2
Large
No
46.7
60
160.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.184, ACE2USB, 60mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-A2U60184 Copied
Ace2 USB
54.2
N/A
No
46.7
60
160.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.200, ACE2USB, 60mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-A2U60200 Copied
Ace2 USB
54.2
N/A
No
46.7
60
160.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.216, ACE2USB, 60mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-A2U60216 Copied
Ace2 USB
54.2
N/A
No
46.7
60
160.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.232, ACE2USB, 60mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-A2U60232 Copied
Ace2 USB
54.2
N/A
No
46.7
60
160.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.248, ACE2USB, 60mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-A2U60248 Copied
Ace2 USB
54.2
N/A
No
46.7
60
160.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.025, ACE2USB, 60mm, Brass, Drillable, Large
Art:
IPE-COM-A2U6025 Copied
Ace2 USB
54.2
Large
Yes
46.7
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.264, ACE2USB, 60mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-A2U60264 Copied
Ace2 USB
54.2
N/A
No
46.7
60
160.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.280, ACE2USB, 60mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-A2U60280 Copied
Ace2 USB
54.2
N/A
No
46.7
60
160.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.296, ACE2USB, 60mm, Nylon Connector for Conduit
Art:
IPE-COM-A2U60296 Copied
Ace2 USB
54.2
N/A
No
46.7
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.312, ACE2USB, 60mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-A2U60312 Copied
Ace2 USB
54.2
Large
No
46.7
60
160.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.328, ACE2USB, 60mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-A2U60328 Copied
Ace2 USB
54.2
Large
No
46.7
60
160.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.041, ACE2USB, 60mm, PA, Drillable, Splittable
Art:
IPE-COM-A2U6041 Copied
Ace2 USB
54.2
N/A
Yes
46.7
60
160.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.057, ACE2USB, 60mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-A2U6057 Copied
Ace2 USB
54.2
Small
No
46.7
60
160.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.072, ACE2USB, 60mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-A2U6072 Copied
Ace2 USB
54.2
Small
No
46.7
60
160.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.088, ACE2USB, 60mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-A2U6088 Copied
Ace2 USB
54.2
Small
No
46.7
60
160.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.009, ACE2USB, 60mm, Brass, Drillable, Small
Art:
IPE-COM-A2U609 Copied
Ace2 USB
54.2
Small
Yes
46.7
60
160.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.108, ACE2USB, 70mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-A2U70108 Copied
Ace2 USB
64.2
Small
No
56.7
70
170.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.124, ACE2USB, 70mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-A2U70124 Copied
Ace2 USB
64.2
Small
No
56.7
70
170.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.013, ACE2USB, 70mm, Brass, Drillable, Small
Art:
IPE-COM-A2U7013 Copied
Ace2 USB
64.2
Small
Yes
56.7
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.140, ACE2USB, 70mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-A2U70140 Copied
Ace2 USB
64.2
Small
No
56.7
70
170.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.156, ACE2USB, 70mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-A2U70156 Copied
Ace2 USB
64.2
Large
No
56.7
70
170.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.172, ACE2USB, 70mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-A2U70172 Copied
Ace2 USB
64.2
Large
No
56.7
70
170.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.188, ACE2USB, 70mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-A2U70188 Copied
Ace2 USB
64.2
N/A
No
56.7
70
170.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.204, ACE2USB, 70mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-A2U70204 Copied
Ace2 USB
64.2
N/A
No
56.7
70
170.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.220, ACE2USB, 70mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-A2U70220 Copied
Ace2 USB
64.2
N/A
No
56.7
70
170.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.236, ACE2USB, 70mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-A2U70236 Copied
Ace2 USB
64.2
N/A
No
56.7
70
170.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.252, ACE2USB, 70mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-A2U70252 Copied
Ace2 USB
64.2
N/A
No
56.7
70
170.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.268, ACE2USB, 70mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-A2U70268 Copied
Ace2 USB
64.2
N/A
No
56.7
70
170.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.284, ACE2USB, 70mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-A2U70284 Copied
Ace2 USB
64.2
N/A
No
56.7
70
170.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.029, ACE2USB, 70mm, Brass, Drillable, Large
Art:
IPE-COM-A2U7029 Copied
Ace2 USB
64.2
Large
Yes
56.7
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.300, ACE2USB, 70mm, Nylon Connector for Conduit
Art:
IPE-COM-A2U70300 Copied
Ace2 USB
64.2
N/A
No
56.7
70
170.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.316, ACE2USB, 70mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-A2U70316 Copied
Ace2 USB
64.2
Large
No
56.7
70
170.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.332, ACE2USB, 70mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-A2U70332 Copied
Ace2 USB
64.2
Large
No
56.7
70
170.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.045, ACE2USB, 70mm, PA, Drillable, Splittable
Art:
IPE-COM-A2U7045 Copied
Ace2 USB
64.2
N/A
Yes
56.7
70
170.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.061, ACE2USB, 70mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-A2U7061 Copied
Ace2 USB
64.2
Small
No
56.7
70
170.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.076, ACE2USB, 70mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-A2U7076 Copied
Ace2 USB
64.2
Small
No
56.7
70
170.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.092, ACE2USB, 70mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-A2U7092 Copied
Ace2 USB
64.2
Small
No
56.7
70
170.8
1 x 4mm, 1 x 5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.112, ACE2USB, 80mm, Brass, 2 Cables Ø5 Ø6, Small
Art:
IPE-COM-A2U80112 Copied
Ace2 USB
74.2
Small
No
66.7
80
180.8
1 x 5mm, 1 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.128, ACE2USB, 80mm, Brass, 2 Cables Ø6, Small
Art:
IPE-COM-A2U80128 Copied
Ace2 USB
74.2
Small
No
66.7
80
180.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.144, ACE2USB, 80mm, Brass, 2 Cables Ø7, Small
Art:
IPE-COM-A2U80144 Copied
Ace2 USB
74.2
Small
No
66.7
80
180.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.160, ACE2USB, 80mm, Brass, 2 Cables Ø6, Large
Art:
IPE-COM-A2U80160 Copied
Ace2 USB
74.2
Large
No
66.7
80
180.8
2 x 6mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.017, ACE2USB, 80mm, Brass, Drillable, Small
Art:
IPE-COM-A2U8017 Copied
Ace2 USB
74.2
Small
Yes
66.7
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.176, ACE2USB, 80mm, Brass, 2 Cables Ø7, Large
Art:
IPE-COM-A2U80176 Copied
Ace2 USB
74.2
Large
No
66.7
80
180.8
2 x 7mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.192, ACE2USB, 80mm, PA, 1 Cable Ø7, Splittable
Art:
IPE-COM-A2U80192 Copied
Ace2 USB
74.2
N/A
No
66.7
80
180.8
1 x 7mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.208, ACE2USB, 80mm, PA, 1 Cable Ø7-10.5, Splittable
Art:
IPE-COM-A2U80208 Copied
Ace2 USB
74.2
N/A
No
66.7
80
180.8
1 x 7-10.5mm
1
Yes
IPE Compact Aluminium Assembly.jpg
801.001.224, ACE2USB, 80mm, PA, 2 Cables Ø6, Splittable
Art:
IPE-COM-A2U80224 Copied
Ace2 USB
74.2
N/A
No
66.7
80
180.8
2 x 6mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.240, ACE2USB, 80mm, PA, 2 Cables Ø6 Ø8, Splittable
Art:
IPE-COM-A2U80240 Copied
Ace2 USB
74.2
N/A
No
66.7
80
180.8
1 x 6mm, 1 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.256, ACE2USB, 80mm, PA, 2 Cables Ø7, Splittable
Art:
IPE-COM-A2U80256 Copied
Ace2 USB
74.2
N/A
No
66.7
80
180.8
2 x 7mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.272, ACE2USB, 80mm, PA, 2 Cables Ø7 Ø8.5, Splittable
Art:
IPE-COM-A2U80272 Copied
Ace2 USB
74.2
N/A
No
66.7
80
180.8
1 x 7mm, 1 x 8.5mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.288, ACE2USB, 80mm, PA, 2 Cables Ø8, Splittable
Art:
IPE-COM-A2U80288 Copied
Ace2 USB
74.2
N/A
No
66.7
80
180.8
2 x 8mm
2
Yes
IPE Compact Aluminium Assembly.jpg
801.001.304, ACE2USB, 80mm, Nylon Connector for Conduit
Art:
IPE-COM-A2U80304 Copied
Ace2 USB
74.2
N/A
No
66.7
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.320, ACE2USB, 80mm, Brass, 1 Cable Ø6.5, Large
Art:
IPE-COM-A2U80320 Copied
Ace2 USB
74.2
Large
No
66.7
80
180.8
1 x 6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.033, ACE2USB, 80mm, Brass, Drillable, Large
Art:
IPE-COM-A2U8033 Copied
Ace2 USB
74.2
Large
Yes
66.7
80
180.8
-
0
No
IPE Compact Aluminium Assembly.jpg
801.001.336, ACE2USB, 80mm, Brass, 2 Cables Ø6.5 Ø5.5, Large
Art:
IPE-COM-A2U80336 Copied
Ace2 USB
74.2
Large
No
66.7
80
180.8
1 x 6.5mm, 1 x 5.5mm
2
No
IPE Compact Aluminium Assembly.jpg
801.001.049, ACE2USB, 80mm, PA, Drillable, Splittable
Art:
IPE-COM-A2U8049 Copied
Ace2 USB
74.2
N/A
Yes
66.7
80
180.8
-
0
Yes
IPE Compact Aluminium Assembly.jpg
801.001.065, ACE2USB, 80mm, Brass, 1 Cable Ø4, Small
Art:
IPE-COM-A2U8065 Copied
Ace2 USB
74.2
Small
No
66.7
80
180.8
1 x 4mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.080, ACE2USB, 80mm, Brass, 1 Cable Ø4-6.5, Small
Art:
IPE-COM-A2U8080 Copied
Ace2 USB
74.2
Small
No
66.7
80
180.8
1 x 4-6.5mm
1
No
IPE Compact Aluminium Assembly.jpg
801.001.096, ACE2USB, 80mm, Brass, 2 Cables Ø4 Ø5, Small
Art:
IPE-COM-A2U8096 Copied
Ace2 USB
74.2
Small
No
66.7
80
180.8
1 x 4mm, 1 x 5mm
2
No

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
