BASLER

Basler 1.1 premium fixed focal lenses

1.1", 12MP

  • Sensor size up to 1.1"
  • Focal lengths up to 50mm
  • 12MP resolution
  • C-Mount lenses

Selected variant

Avaible in several variants
basler.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Aperture Range Max 2.4
Aperture Range Min 16
Focal Length 8.5
Focus distance min 100
Iris Manual iris
Lens Barrel C-Mount
Pixel size min 3.45
Resolution Max 12 MP
Sensor size max 1.1"
Type of lens Fixed
Weight 264.4

Downloads

Accessories

My favourites Articles Aperture Range Max Focal Length Focus distance min Weight Price

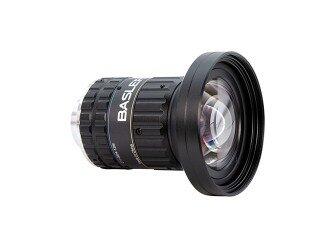

C11-0824-12M, 8mm, 1.1", C-Mount, 12MP
Art:
2200000574 Copied
2.4
8.5
100
264.4

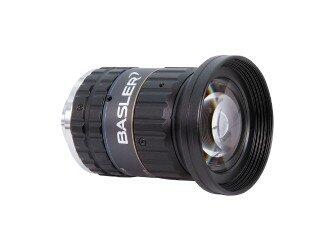

C11-1220-12M, 12mm, 1.1", C-Mount, 12MP
Art:
2200000575 Copied
2
12
100
211.2
C11-1620-12M, 16mm, 1.1", C-Mount, 12MP
Art:
2200000576 Copied
2
16
100
200.4
C11-2520-12M, 25mm, 1.1", C-Mount, 12MP
Art:
2200000577 Copied
2
25
100
215

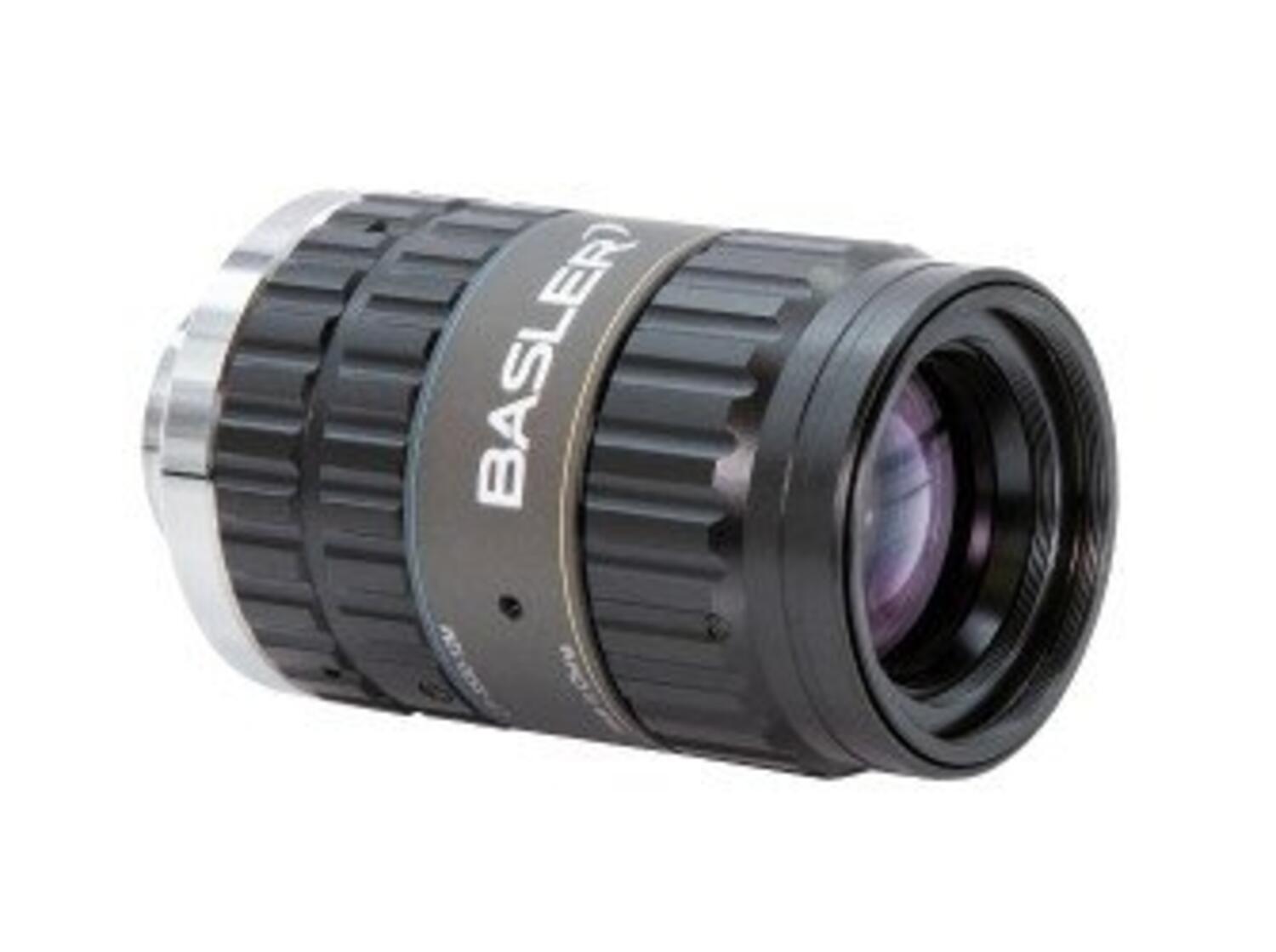

C11-3520-12M, 35mm, 1.1", C-Mount, 12MP
Art:
2200000578 Copied
2
35
150
240

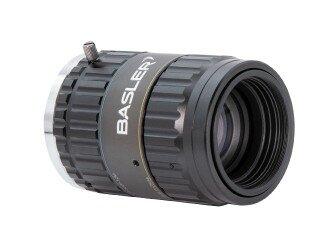

C11-5020-12M, 50mm, 1.1", C-Mount, 12MP
Art:
2200000579 Copied
2
50
200
277.5

Selected variant

Select a variant in the list
