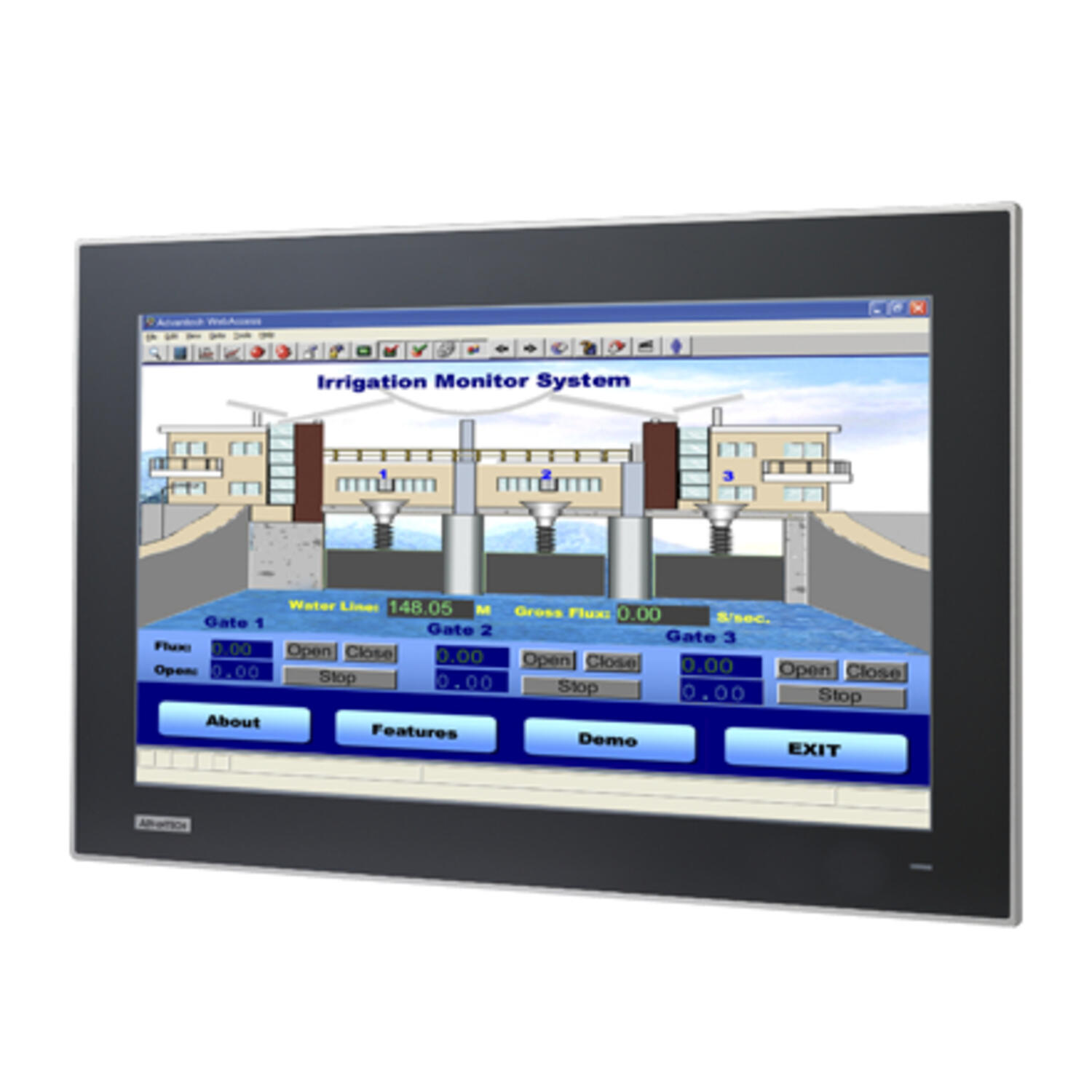

Advantech - FPM-7181W
The FPM-7000 Series is the most robust and industry-screened screen in our range. With a full-length glass on the front, this monitor becomes IP66 classed and robust, which means that the frame comes in and will have a much better overall impression than other series and models on the market. .
With viewing angles and high brightness, this monitor is suitable for all types of applications
- 10 finger multitouch
- SECC Chassi with IP66 in front
- 16:9 Wide screen format
- 18,5"
- Panel mounted or welded
Selected variant
18.5" Industrial Monitor, Touchscreen, VGA/DVI/VGA/HDMI
Art:
Selected variant
Specifications
| Approvals | CCC, CE, FCC, UL, BSMI |
|---|---|
| Backlight | LED LCD |
| Contrast | 1000:1 |
| Depth | 47.7 |
| Display format | 16:9 |
| Display Resolution | 1366x768 |
| Display Size | 18.5 |
| Front panel thickness | 7 |
| Height | 309 |
| IP Class | IP66 |
| Luminance | 300 |
| Number Of Colors Display | 16.7 |
| Power Consumption | 20 |
|---|---|
| Power Supply V DC | 24 |

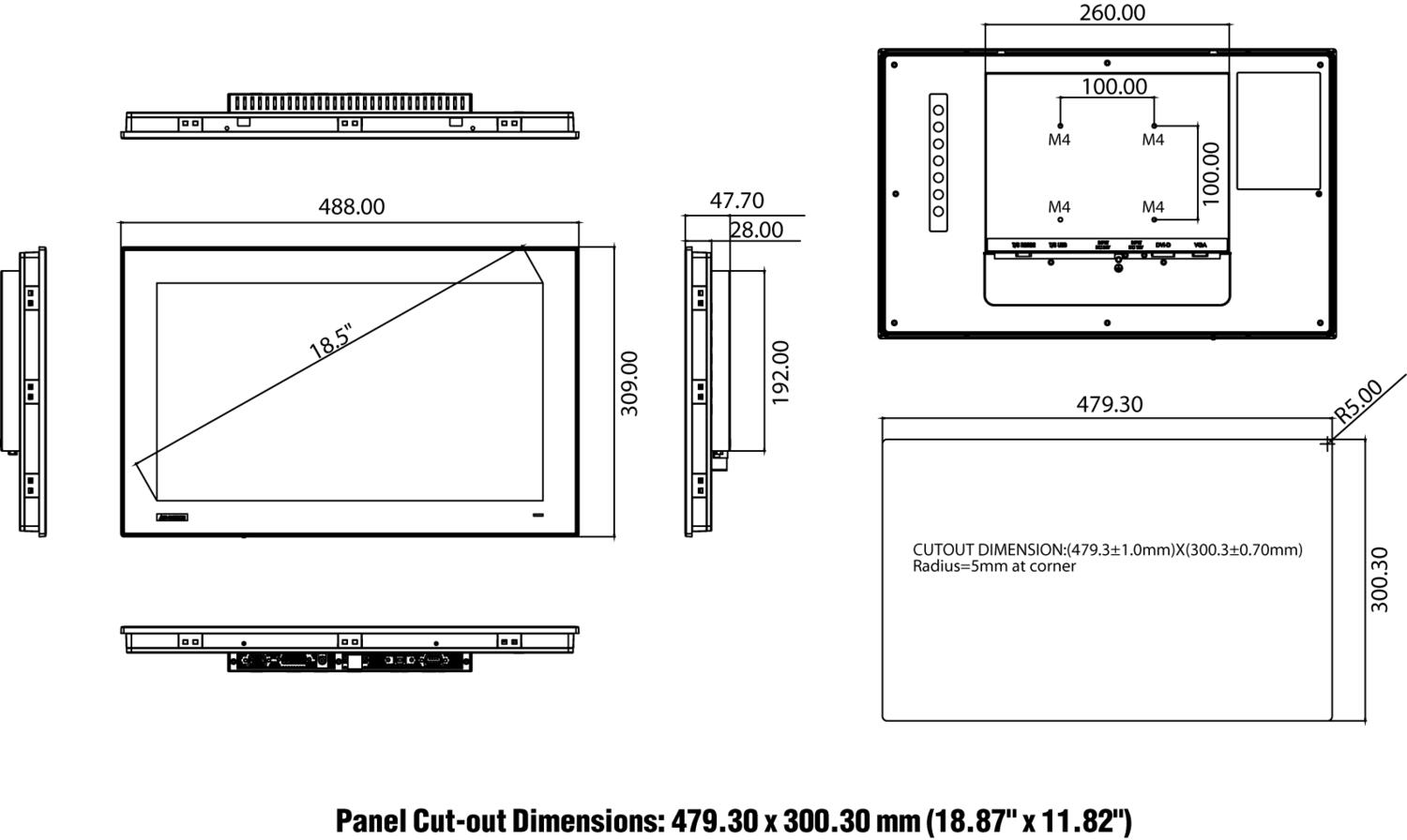

| Punching | 479,3x300,3 |
| Temperature range bearing, from | -20 |
| Temperature range bearing, to | 60 |
| Temperature range from | 0 |
| Temperature range to | 55 |
| Weight | 6 |
| Width | 488 |
| Viewing Angle | 170/160 |
Product description
The FPM-7000 Series is the most robust and industry-screened screen in our range. With a full-length glass on the front, this monitor becomes IP66 classed and robust, which means that the frame comes in and will have a much better overall impression than other series and models on the market. .
With viewing angles and high brightness, this monitor is suitable for all types of applications
