BASLER

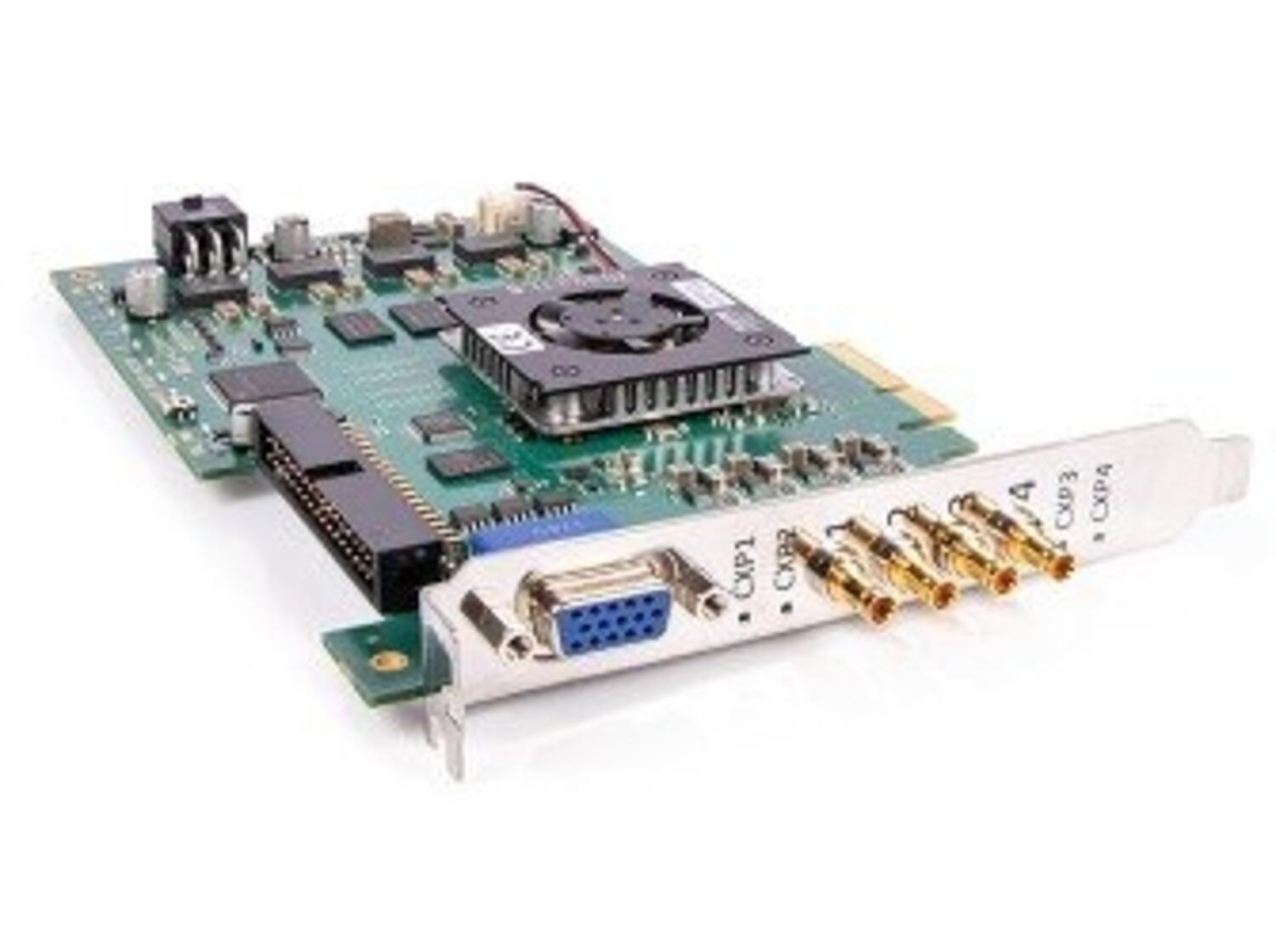

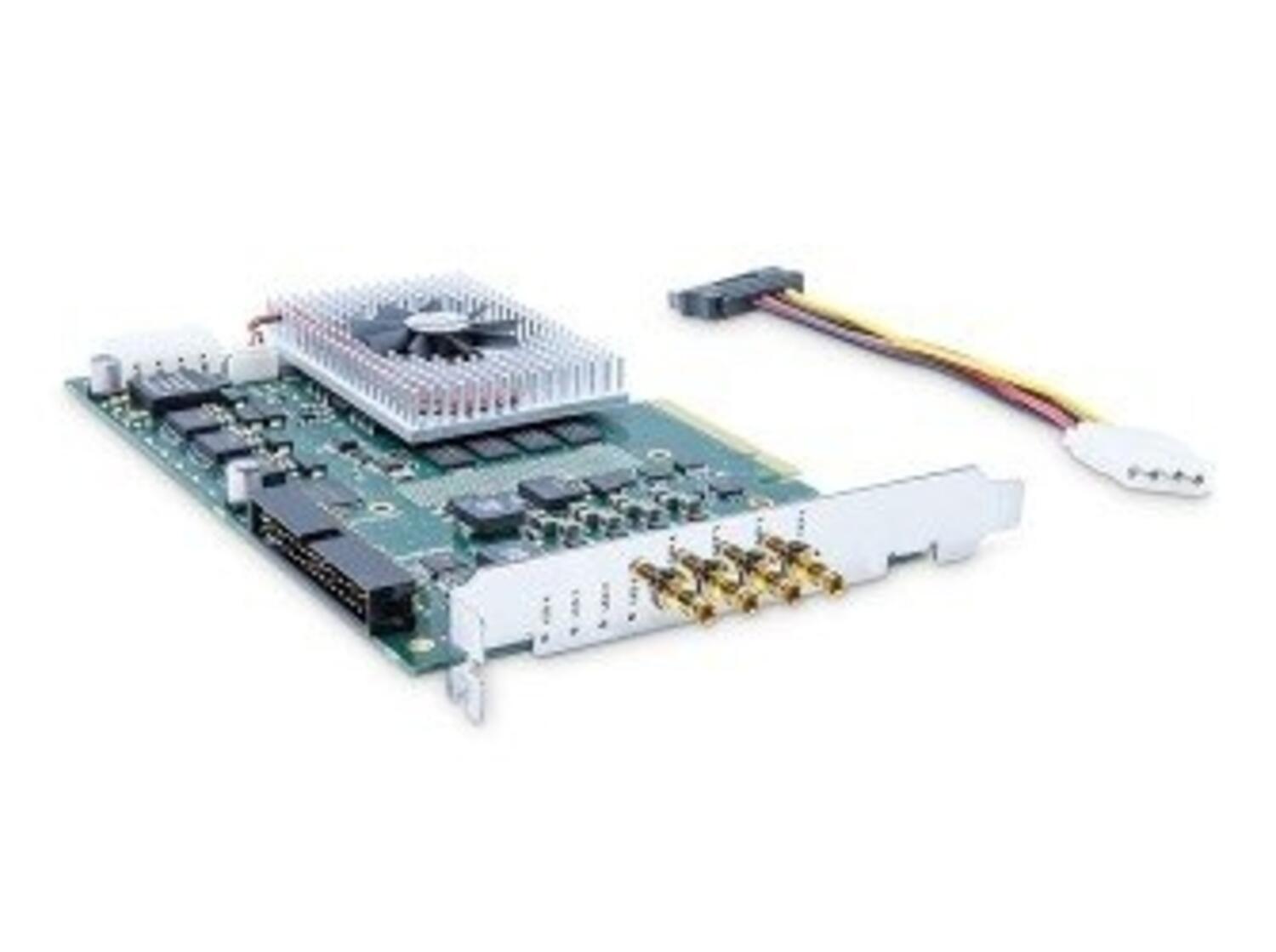

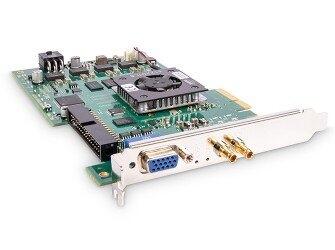

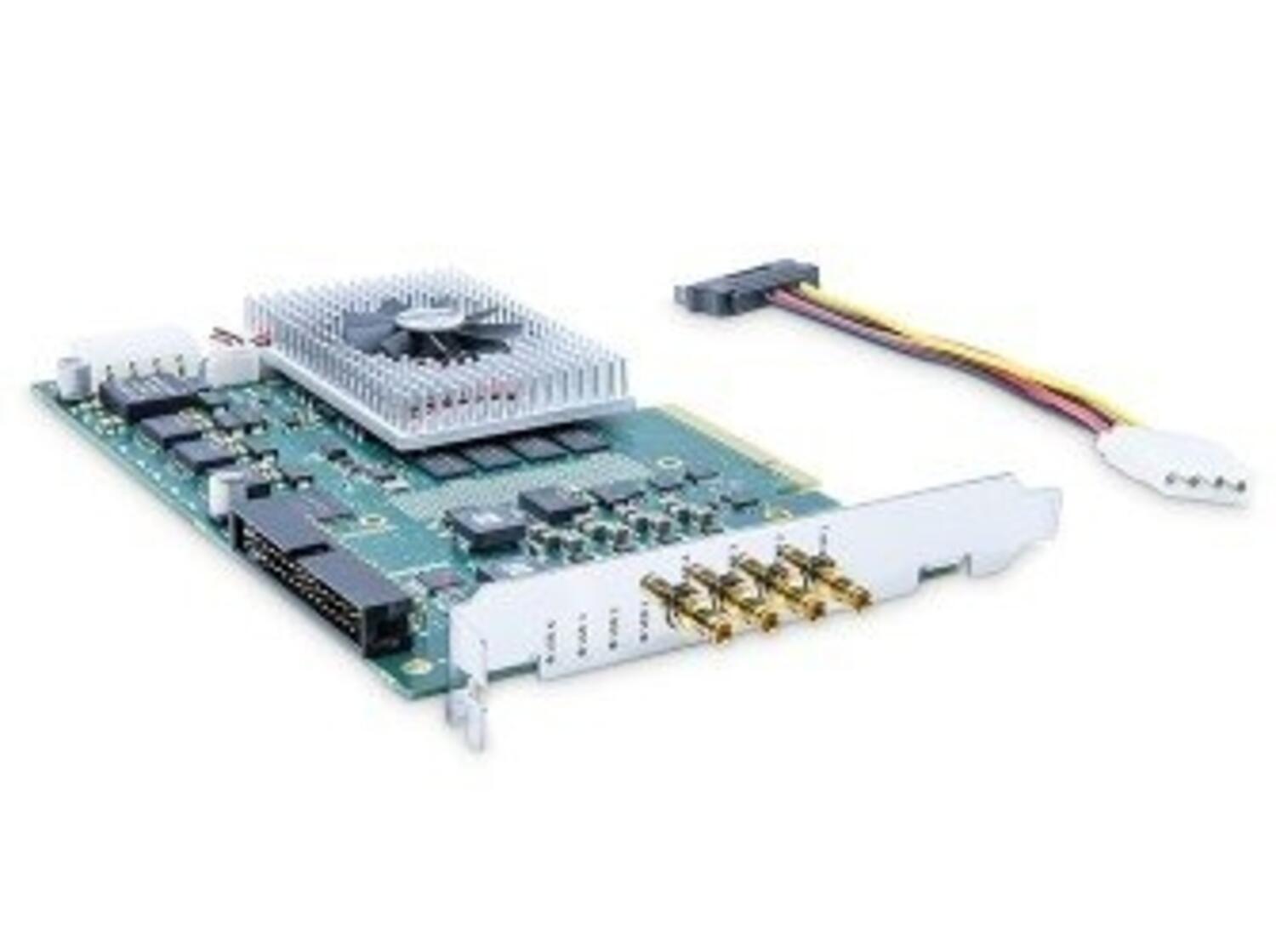

Basler - CoaXPress 1.0/1.1 PCI Express frame grabber cards
A- & V-Series
Basler's CoaXpress frame grabbers focus on high-speed image processing and acquisition with up to 1, 2 or 4 x CoaXpress cameras. All frame grabbers offer DMA1800 or DMA3600 technology and up to 1800 MB/s or 3.6 GB/s respectively.
Providing a seamless interface between camera(s) and computer these CoaXpress frame grabbers support the fastest CoaXpress cameras with easy-to-use configuration software and the highest performance in image acquisition. Including broad support of third party software interfaces and Power over CoaXpress.
- Power over CoaXPress
- DMA 1800 - up to 1800 MB/s, DMA3600 - up to 3.6 GB/s
- High performance image processing and acquisition
- Industrial multi-device, multi-camera support
Selected variant
Selected variant
Specifications
| API Configuration | .net interface, Framegrabber SDK |
|---|---|
| Approvals | CE, RoHS, FCC, UKCA |
| Camera interface | CoaXPress 1.0/1.1 |
| Connector | DIN 1.0/2.3 |
| Dimensions | 167.64mm (L) x 111.15mm (H) |
| Fan | Yes |
| FPGA | Yes |
| Memory | 2 GByte DDR3-RAM |
| Number Of Ports | 4 |
| Operating temperature | 0°C … +85°C |
|---|---|
| PC Bus Interface | PCI Express x4 |
| Processor | Xilinx Kintex7 XC7K160T |
| Resolution Max | 16k (-32k)*65k (area scan sensor, depends on applet),16k - 32k (line scan sensor, depends on applet) |
| Storage temperature | -50°C … +80°C |
| User interface | CoaXPress |
| Weight | 168 |
Product description
Basler's CoaXpress frame grabbers focus on high-speed image processing and acquisition with up to 1, 2 or 4 x CoaXpress cameras. All frame grabbers offer DMA1800 or DMA3600 technology and up to 1800 MB/s or 3.6 GB/s respectively.
Providing a seamless interface between camera(s) and computer these CoaXpress frame grabbers support the fastest CoaXpress cameras with easy-to-use configuration software and the highest performance in image acquisition. Including broad support of third party software interfaces and Power over CoaXpress.
