ADVANTECH
Advantech - TPC-1051WP
Advantech's TPC series is suitable for all types of applications. As it's IP66 classified in the front it means it can handle everything from heavy industries to clean cabinet applications.
The TPC-1051WP comes with a lighter hardware suitable for client applications or web-based services.
The panel is designed with "truffle" technology, making the frame edge completely non-existent and perceived as a good overall impression.
Besides the standard ports, there is also the possibility of extra expansion thanks to the iDoor modules, these modules allow extra expansion for eg USB, Wifi, Profinet or TCP / IP. There are 35 different modules today supporting more than 450 different protocols.
- 10.1 "screen
- 16: 9 wide multi touch
- IP66 in front
- For recessed mounting
Selected variant
Selected variant
Specifications
| Approvals | CCC, CE, FCC, UL, BSMI |
|---|---|
| Backlight | LED |
| Clock Speed | 1.75 |
| Contrast | 1300:1 |
| CPU | Atom E3827 |
| Depth | 61.4 |
| Display format | 16:9 |
| Display Resolution | 1280x800 |
| Display Size | 10.1 |
| Front panel thickness | 7 |
| Height | 202.3 |
| IP Class | IP66 |
| Luminance | 300 |
| Material Protection | Zinc plated steel |
| Materials Front Frame | Aluminium |
|---|---|
| Memory RAM | 4 |
| Number of cores CPU | 2 |
| Power Consumption | 36 |
| Power Supply V DC | 24 |

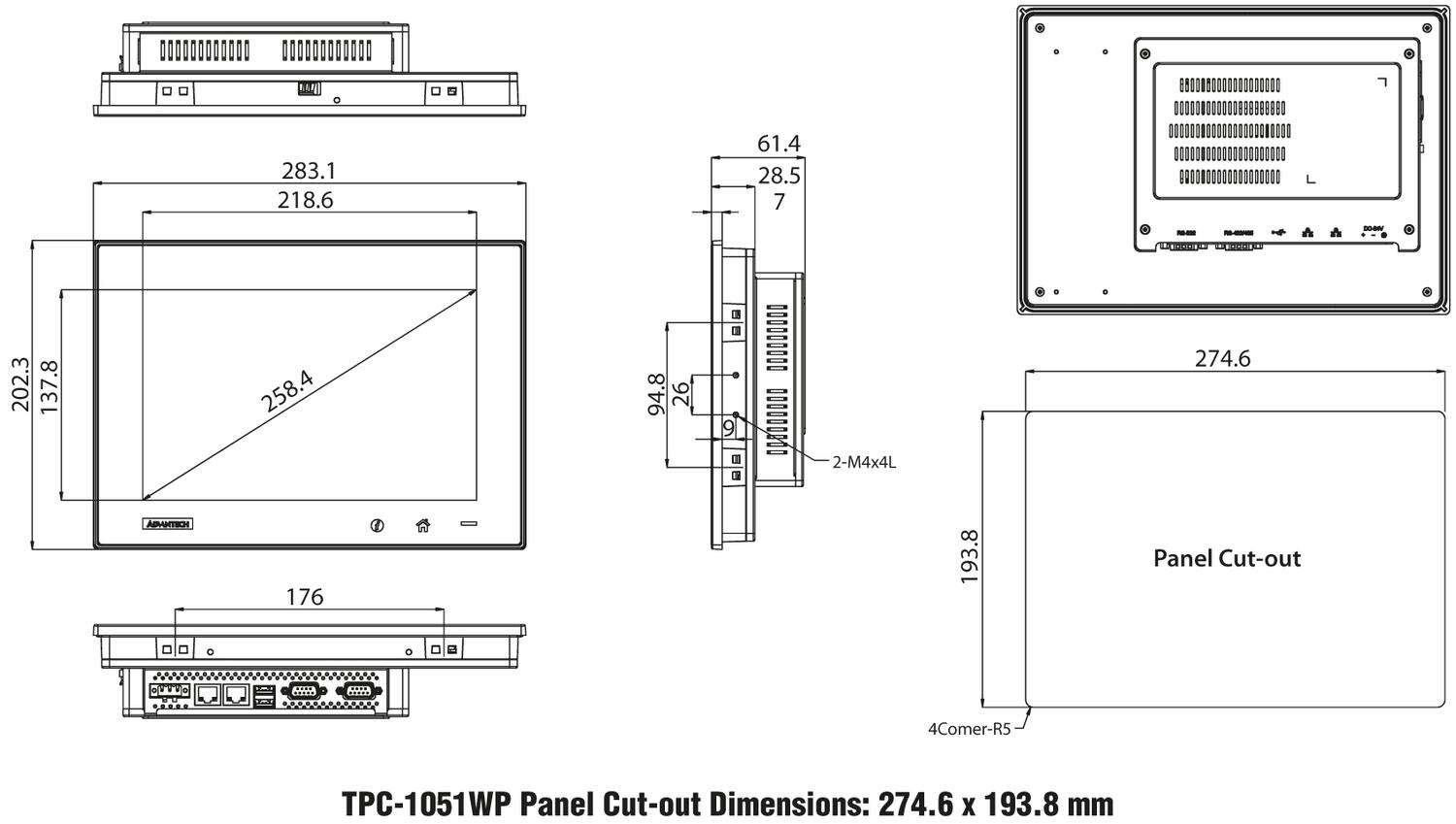

| Punching | 274,6x193,8 |
| Temperature range bearing, from | -30 |
| Temperature range bearing, to | 70 |
| Temperature range from | -20 |
| Temperature range to | 55 |
| Weight | 2.56 |
| Width | 283.1 |
| Viewing Angle | 170/170 |
Downloads
Product description
Advantech's TPC series is suitable for all types of applications. As it's IP66 classified in the front it means it can handle everything from heavy industries to clean cabinet applications.
The TPC-1051WP comes with a lighter hardware suitable for client applications or web-based services.
The panel is designed with "truffle" technology, making the frame edge completely non-existent and perceived as a good overall impression.
Besides the standard ports, there is also the possibility of extra expansion thanks to the iDoor modules, these modules allow extra expansion for eg USB, Wifi, Profinet or TCP / IP. There are 35 different modules today supporting more than 450 different protocols.
