ADVANTECH

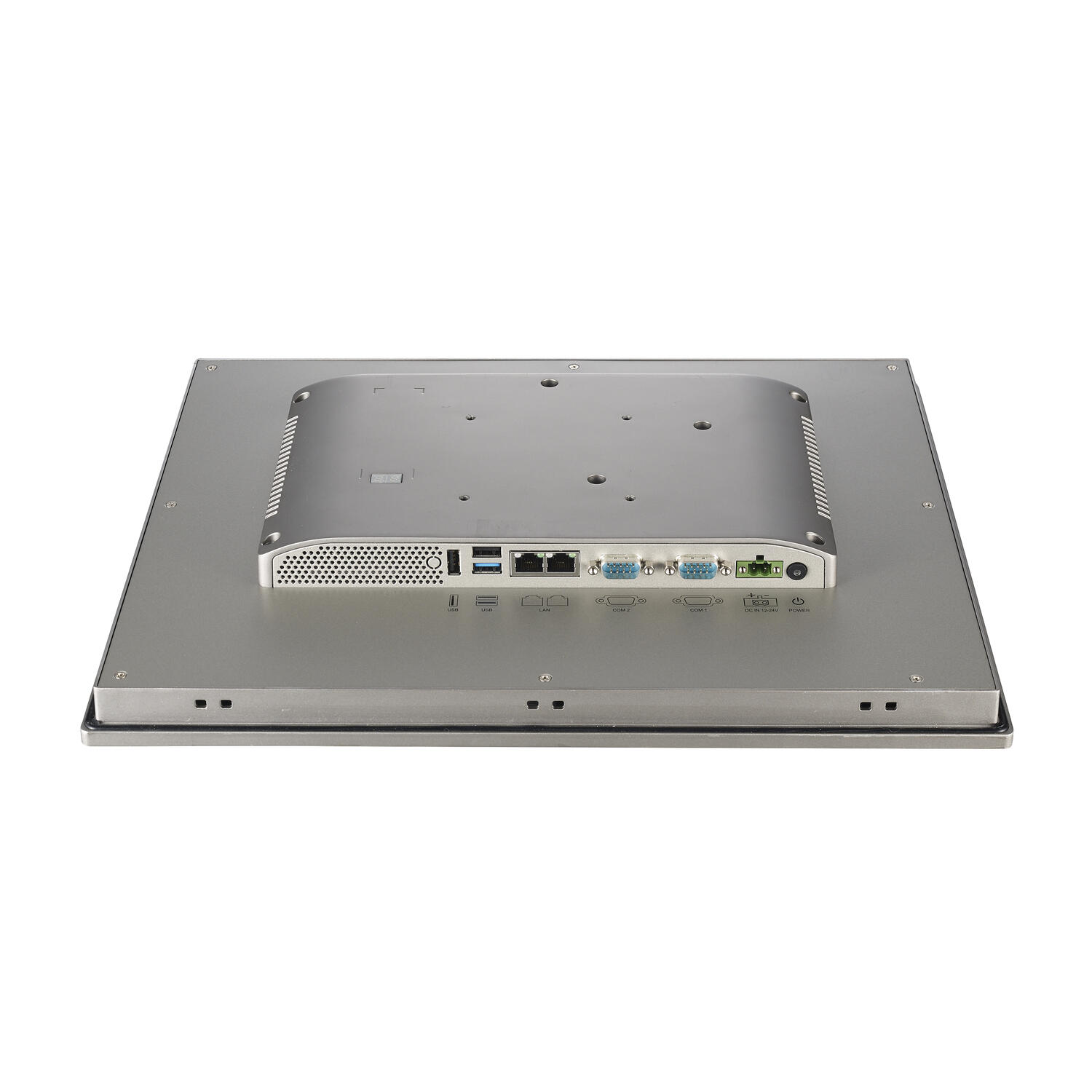

Advantech - PPC-3150S
Advantech's PPC Series is a versatile series with many connections for USB, Ethernet and COM ports.
The fanless design, low power consumption and compact size make this series optimal for visualizing your application.
- 15" screen
- 4:3 format
- IP65 in front
- For recessed and VESA mounting
Selected variant
15" Fanless Panel PC with Intel® Celeron® N2930 Processor
Art:
Selected variant
Specifications
| Approvals | BSMI, CB, CCC, CE, FCC, UL |
|---|---|
| Backlight | LED |
| Clock Speed | 1.83 |
| Contrast | 700:1 |
| CPU | Celeron N2930 |
| Depth | 51.5 |
| Display format | 4:3 |
| Display Resolution | 1024X768 |
| Display Size | 15 |
| Front panel thickness | 6 |
| Height | 312.46 |
| IP Class | IP65 |
| Luminance | 400 |
| Material Protection | Zinc plated steel |
| Materials Front Frame | Aluminium |
| Memory RAM | 4 |
|---|---|
| Number Of Colors Display | 16.2 |
| Number of cores CPU | 4 |
| Power Consumption | 20 |
| Power Supply DC max | 24 |
| Power Supply DC min | 12 |
| Punching | 382x303 |
| Temperature range bearing, from | -40 |
| Temperature range bearing, to | 60 |
| Temperature range from | 0 |
| Temperature range to | 50 |
| Weight | 4 |
| Width | 391.36 |
| Viewing Angle | 80/70 |
Downloads
Product description
Advantech's PPC Series is a versatile series with many connections for USB, Ethernet and COM ports.
The fanless design, low power consumption and compact size make this series optimal for visualizing your application.
