ADVANTECH
Advantech - PPC-3060S

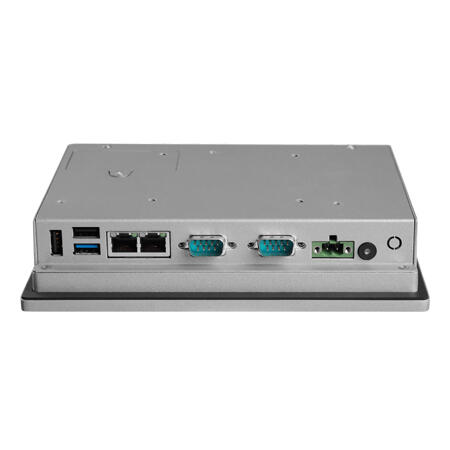

Advantech's PPC Series is a versatile series with many connections for USB, Ethernet and COM ports.
The fanless design, low power consumption and compact size make this series optimal for visualizing your application.
- 6,5" screen
- 4:3 format
- IP65 in front
- For recessed and VESA mounting
Selected variant
6.5" Fanless Panel PC with Intel® Celeron® N2807 Processor
Art:
Selected variant
Specifications
| Approvals | BSMI, CB, CCC, CE, FCC, UL |
|---|---|
| Backlight | LED |
| Clock Speed | 1.58 |
| Contrast | 600:1 |
| CPU | Celeron N2807 |
| Depth | 41 |
| Display format | 4:3 |
| Display Resolution | 640x480 |
| Display Size | 6.5 |
| Front panel thickness | 6 |
| Height | 150.6 |
| IP Class | IP65 |
| Luminance | 800 |
| Memory RAM | 4 |
| Number of cores CPU | 2 |
|---|---|
| Power Consumption | 11 |
| Power Supply DC max | 24 |
| Power Supply DC min | 12 |
| Punching | 189x136,5 |
| Temperature range bearing, from | -40 |
| Temperature range bearing, to | 60 |
| Temperature range from | 0 |
| Temperature range to | 50 |
| Weight | 1.5 |
| Width | 197.6 |
| Viewing Angle | 80/70 |
Downloads
Product description
Advantech's PPC Series is a versatile series with many connections for USB, Ethernet and COM ports.
The fanless design, low power consumption and compact size make this series optimal for visualizing your application.
