STEGO

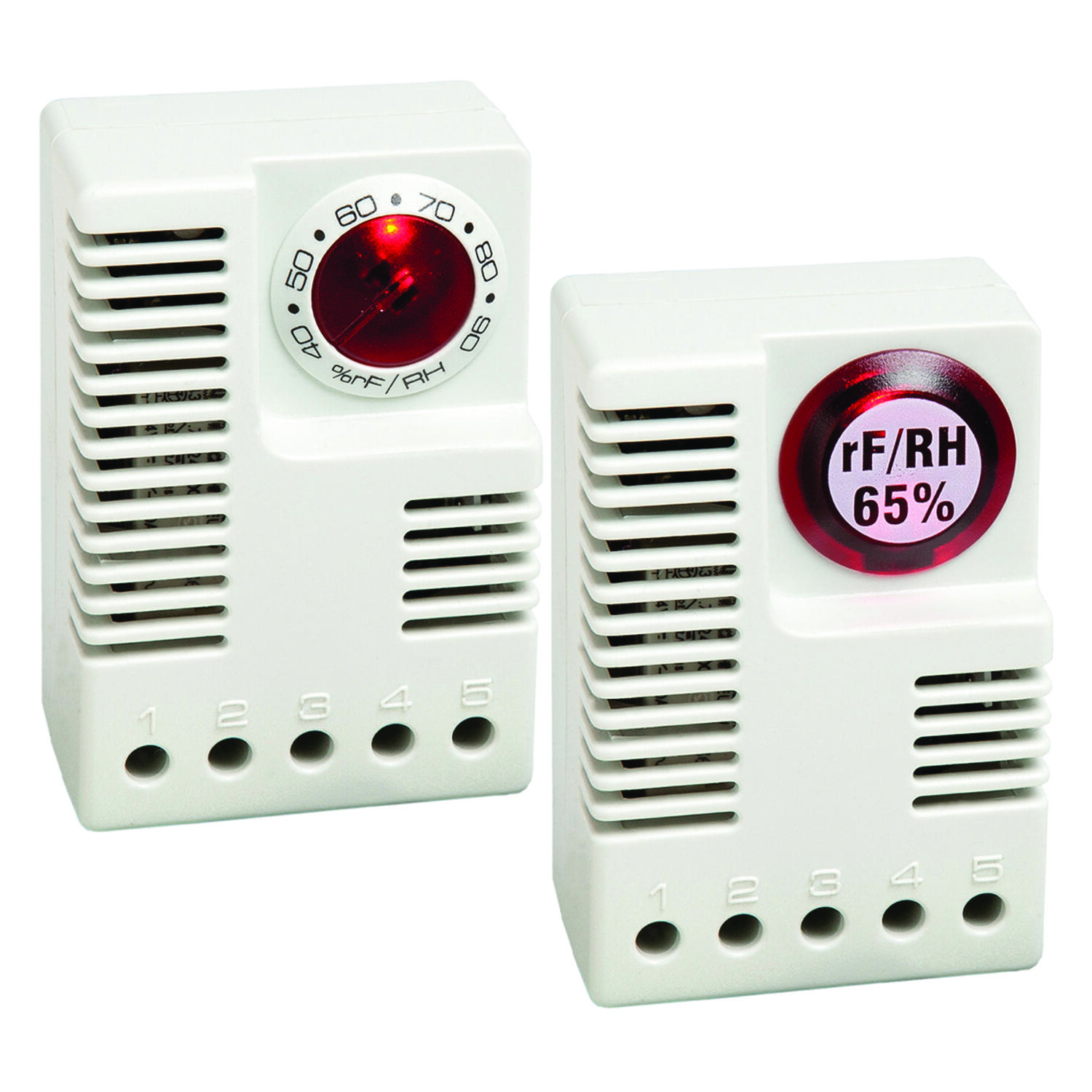

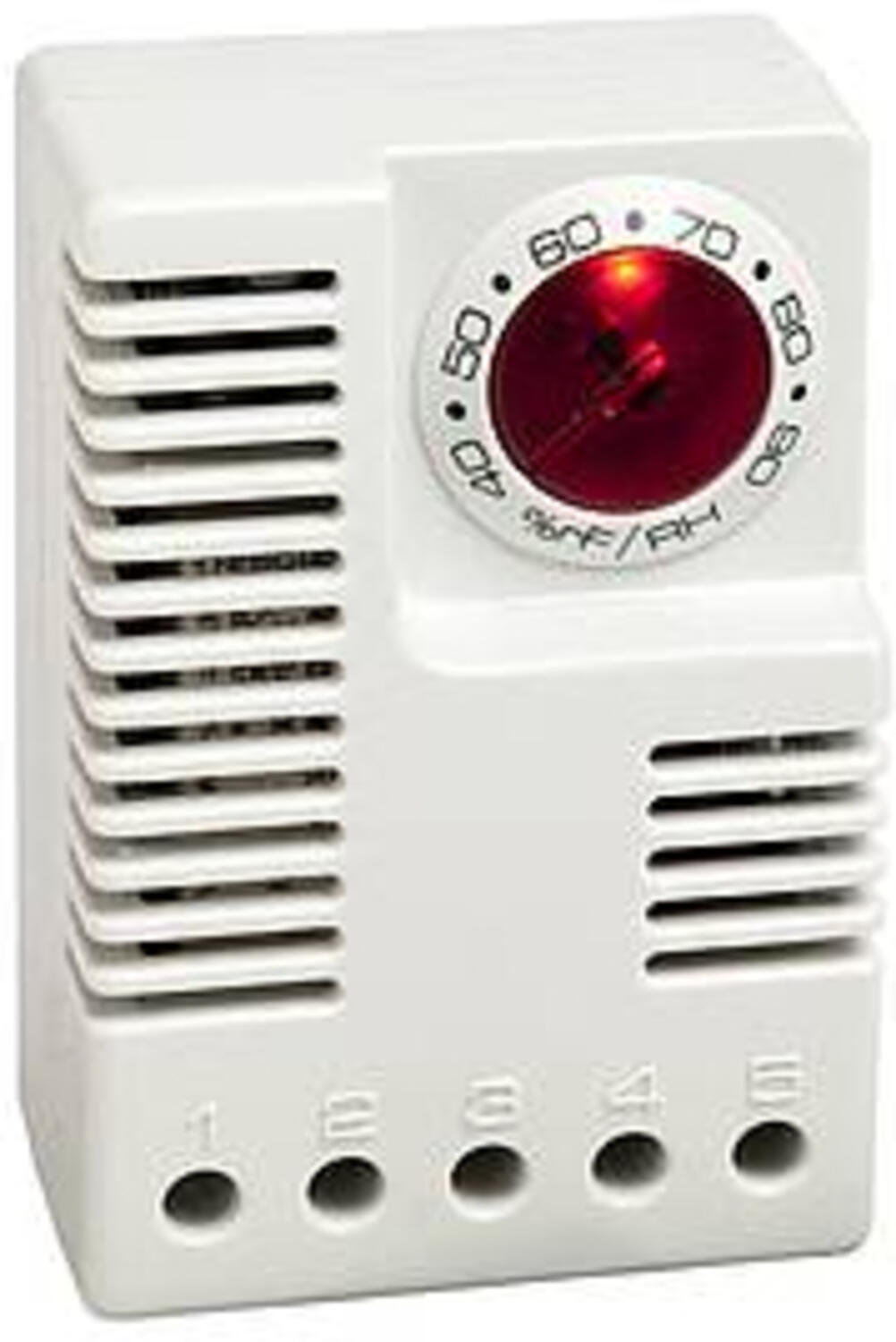

Electronic hygrostat - EFR 012
EFR
- Adjustable and pre-set relative humidity
- Status indicator (LED)
- High switching capacity
- Clip fixing
- Temperature-compensated
Selected variant
Selected variant
Specifications
| Approvals | CE, cULus, EAC, RoHS, UL, UL E164102, VDE |
|---|---|
| Breaking capacity | AC 240 V / AC 120 V 8 (1,6) A |
| Color | Light grey |

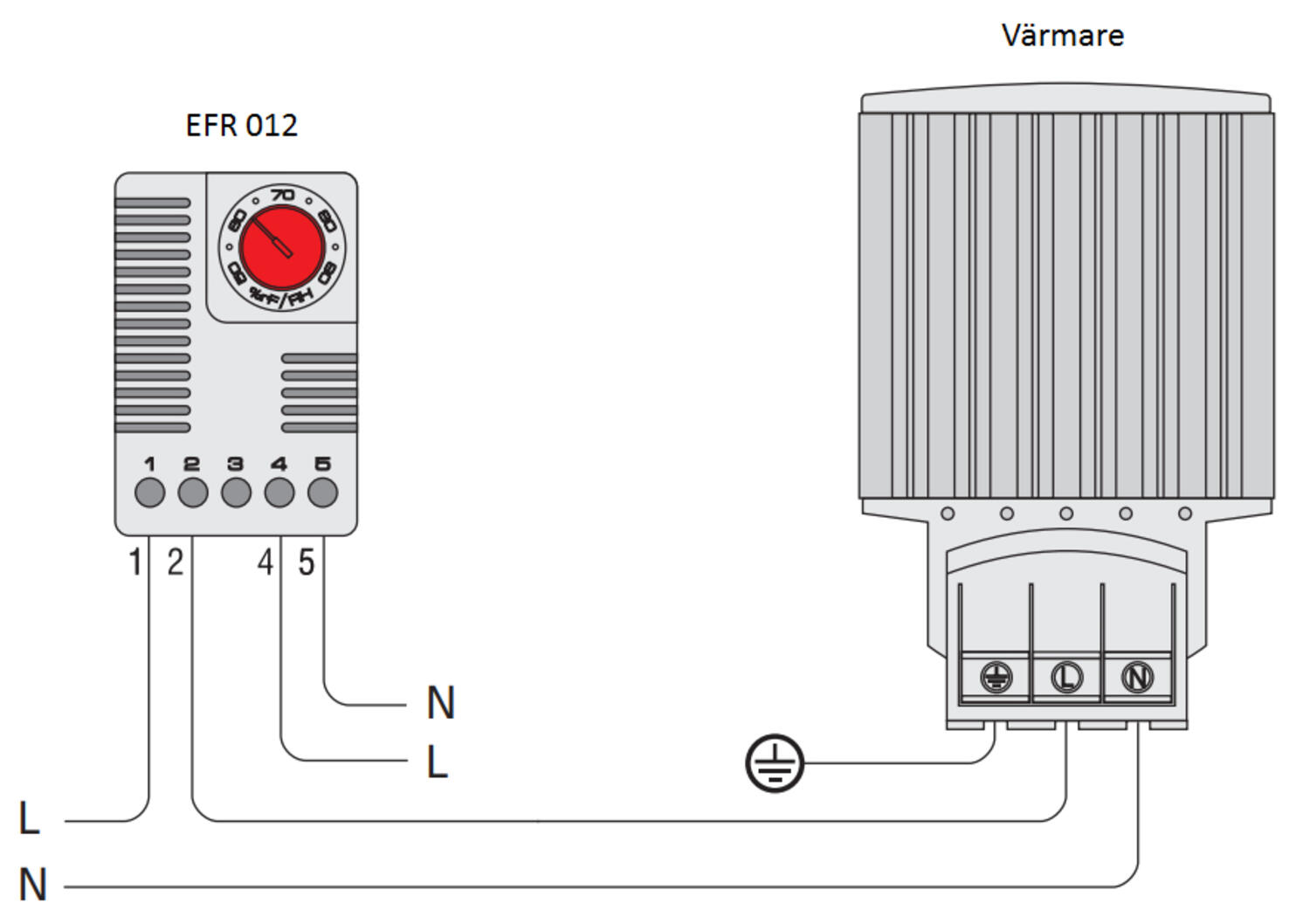

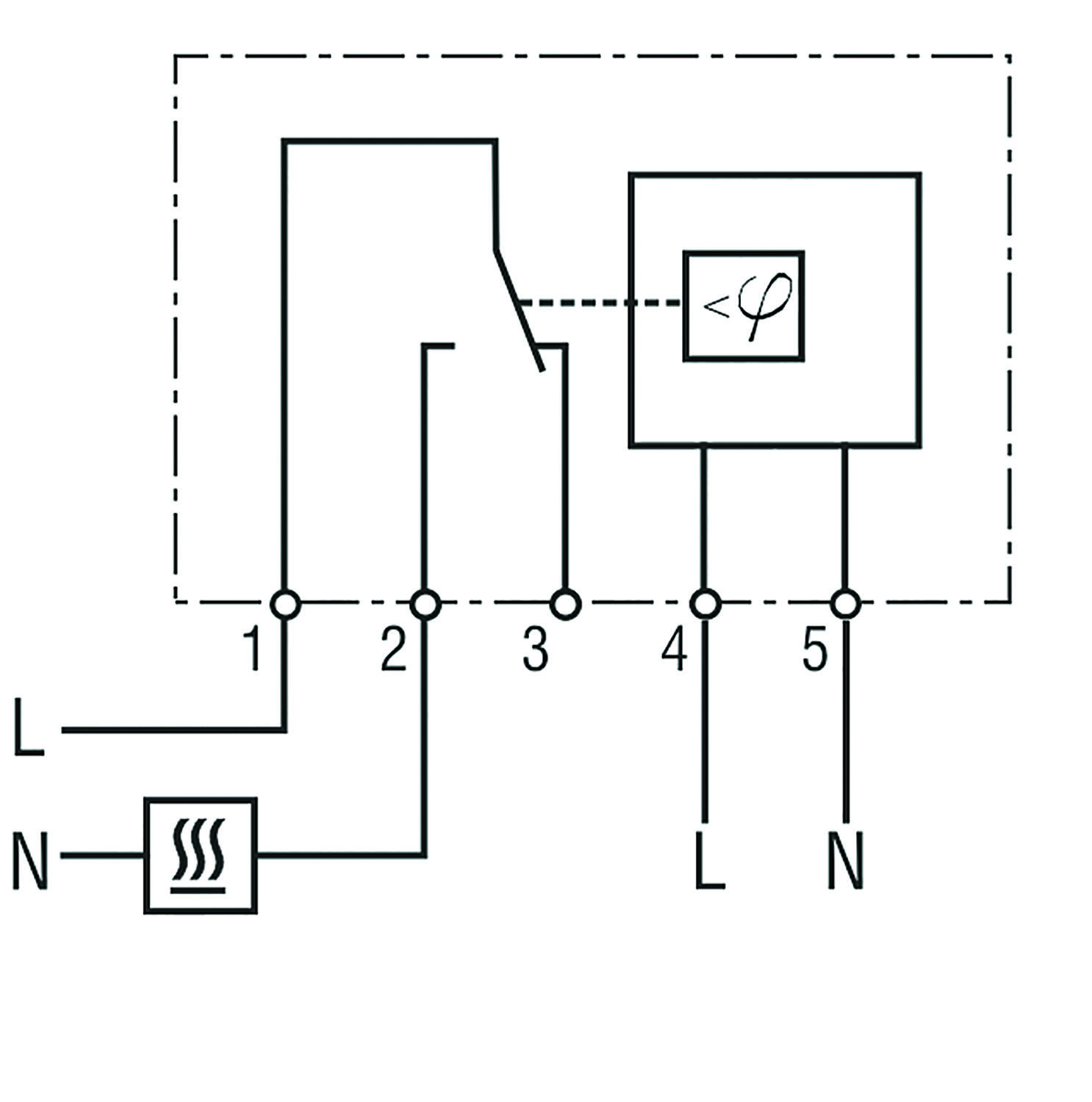

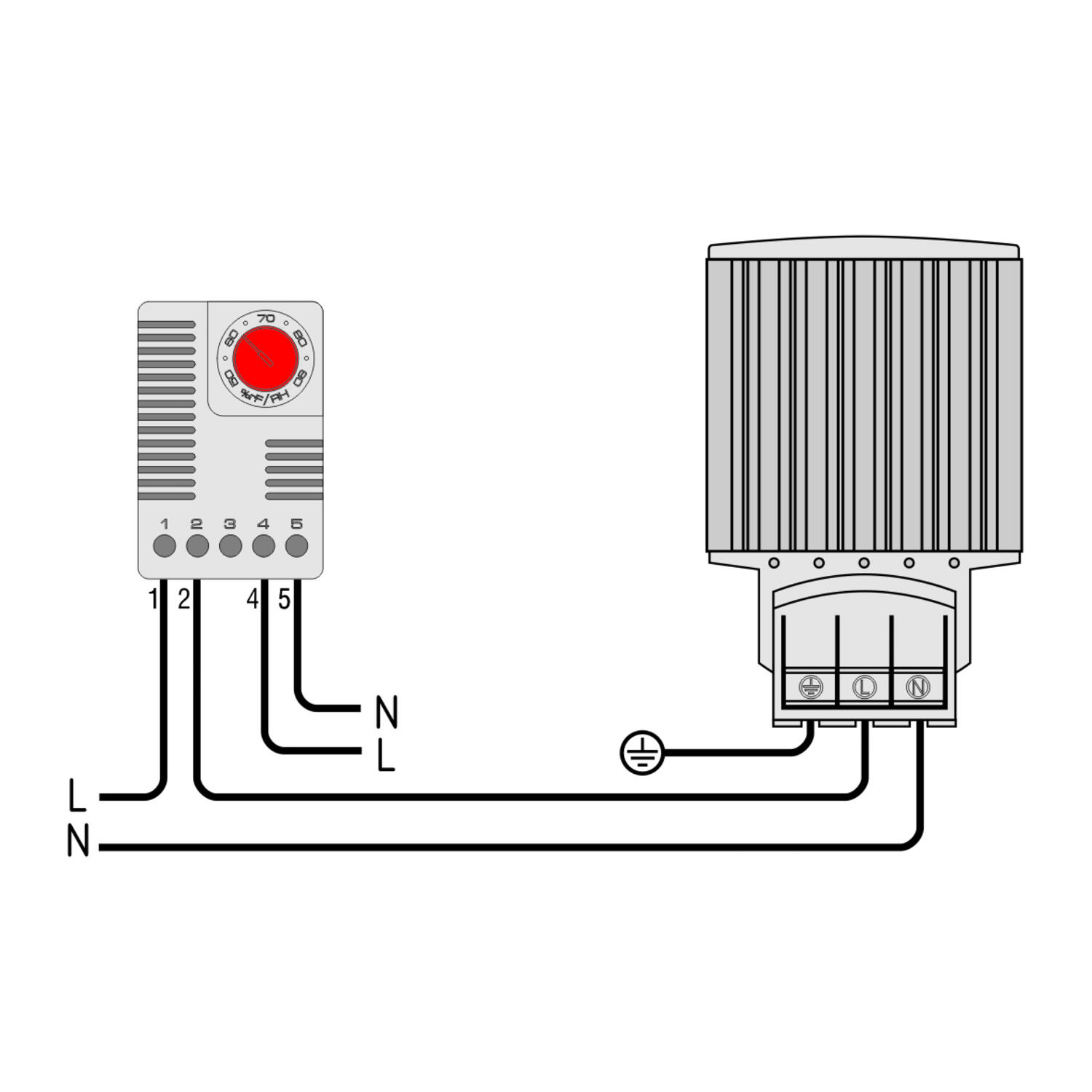

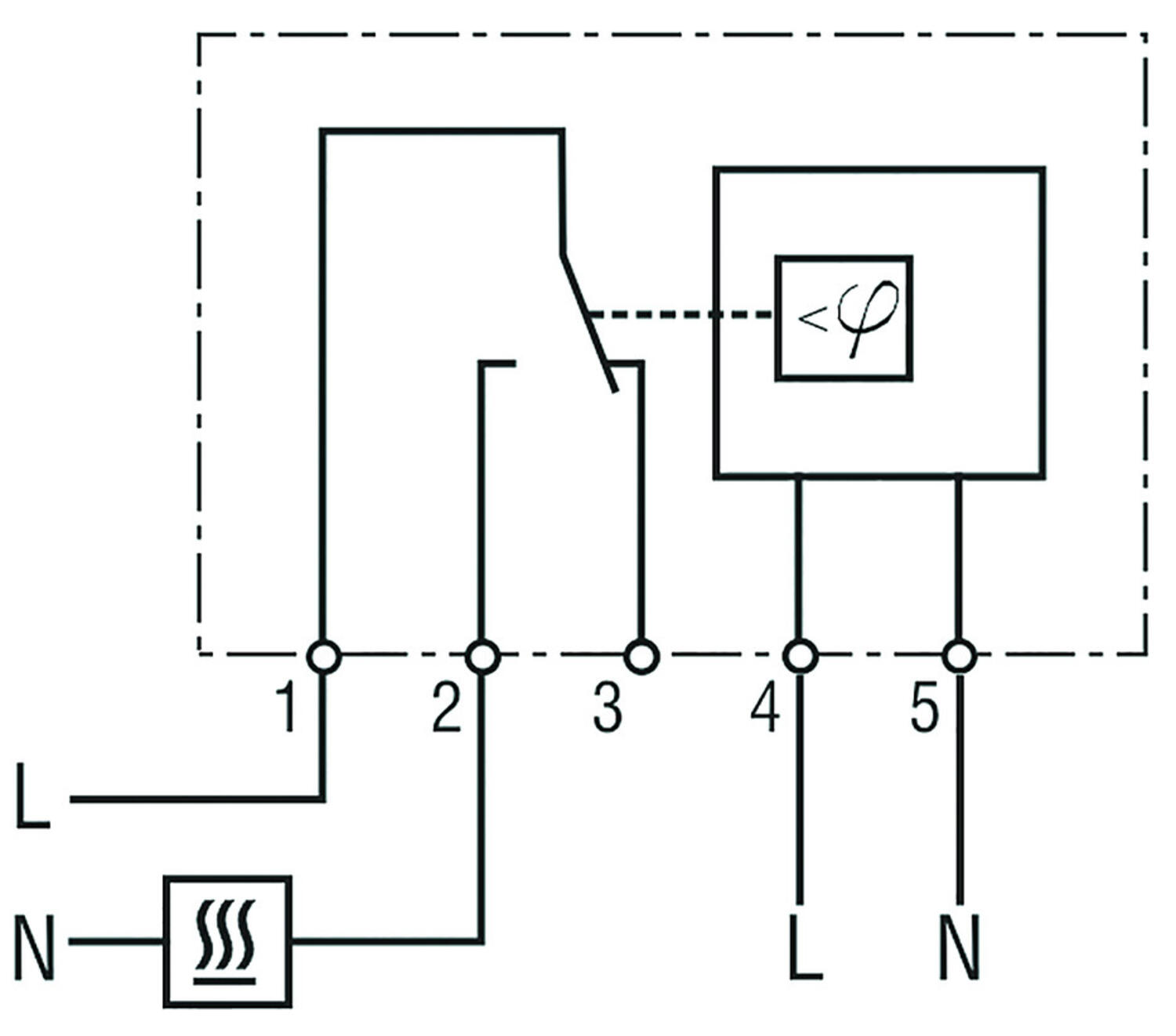

| Connection | 5-pole terminal |
| Control range humidity from | 40 |
| Control range humidity to | 90 |

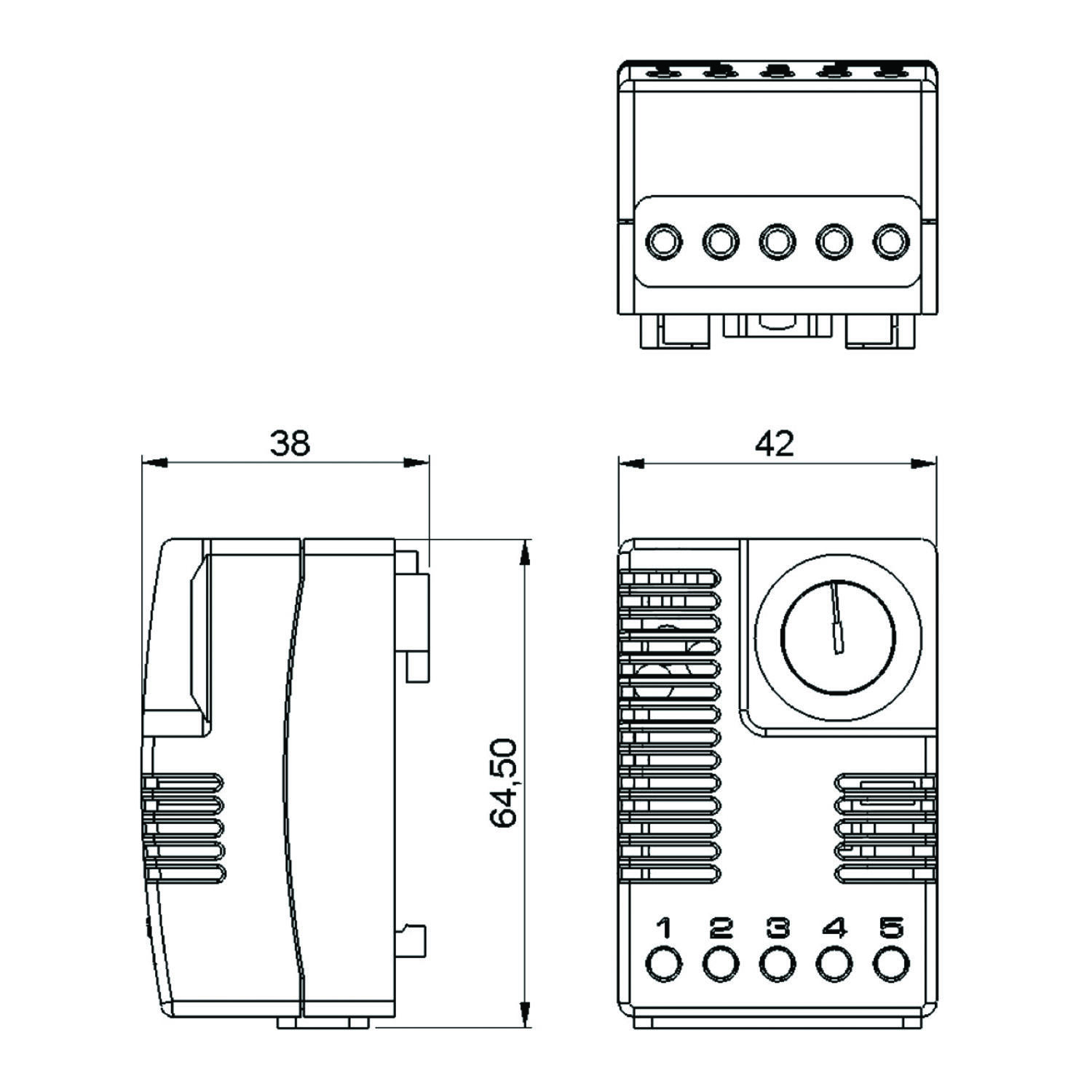

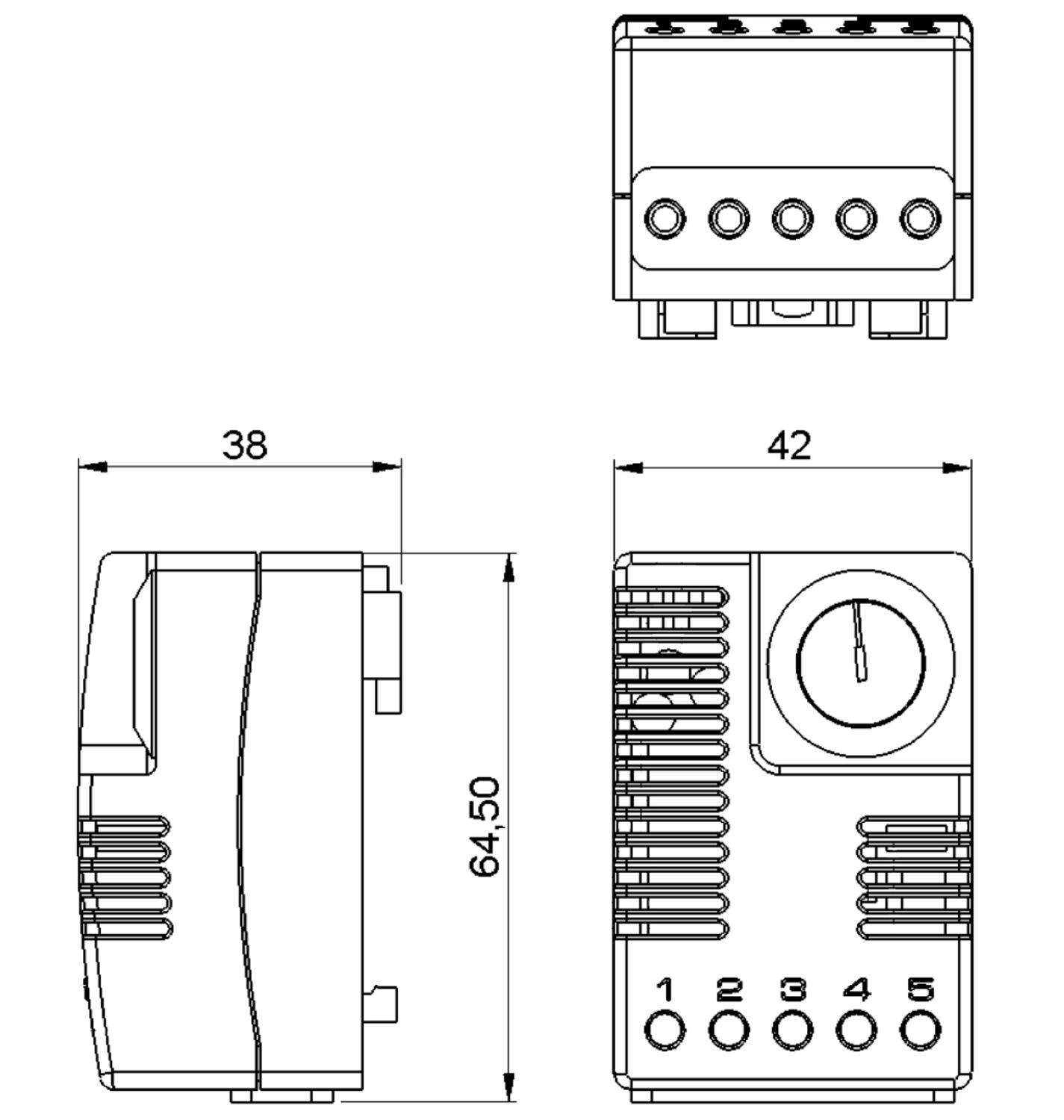

| Depth | 38 |
| Flamklass | UL94-V0 |
| Frequenze | 50/60 Hz |
| Height | 64.5 |
| Humidity Storage | <90% RH |
| Hysteresis Humidity | 5% RH @ 25°C @ 50% RH |
| Inrush Max | 16 |
|---|---|
| IP Class | IP20 |
| Life span | > 50,000 cycles |
| Operating Humidity | < 90% RH |
| Operational Temperature | 0 °C ... +60°C |
| Storage temperature | -20°C ... +70°C |
| Weight | 0.07 |
| Width | 42 |
| Voltage max | 230 V ac |
| Voltage min | 230 V ac |
