CROUZET AUTOMATION

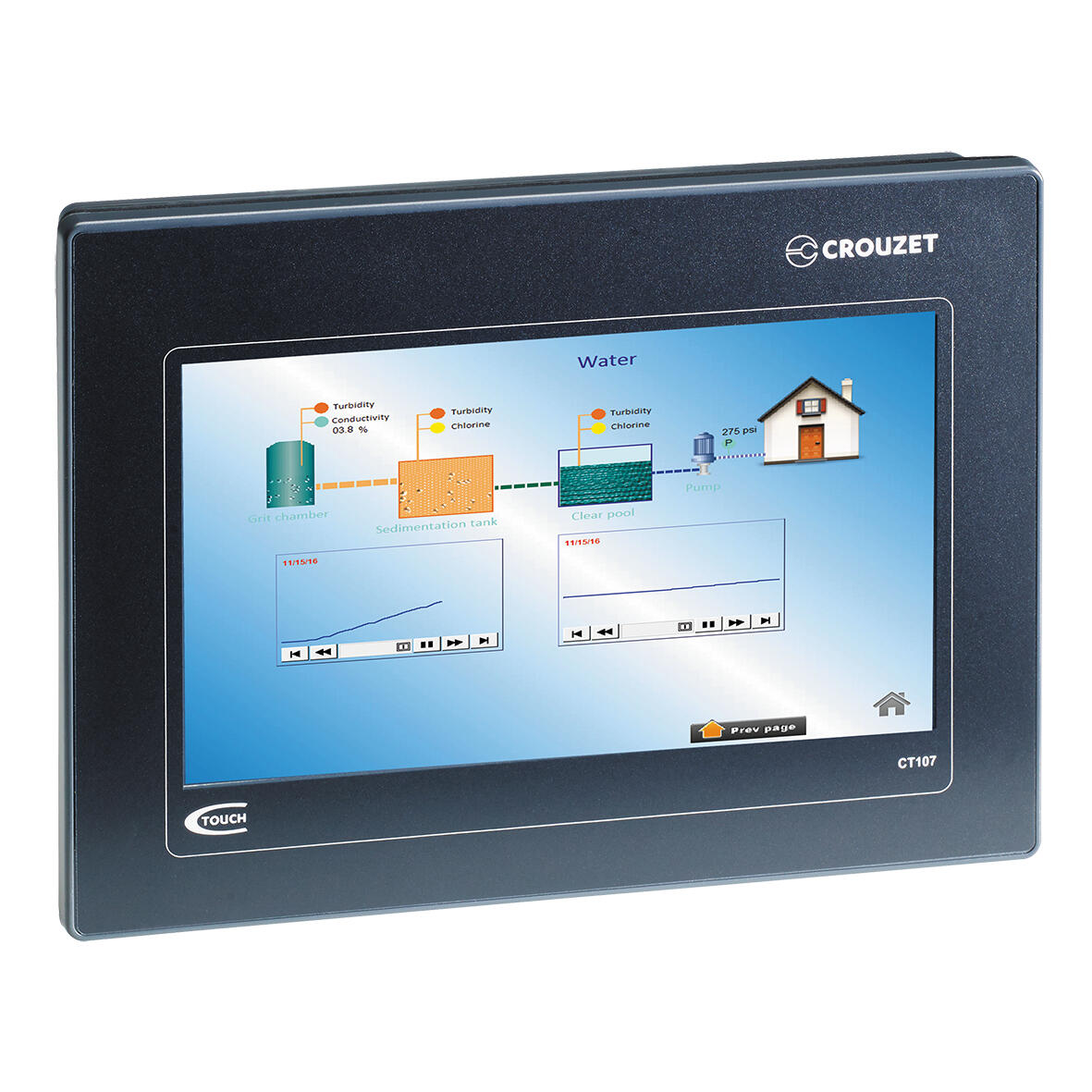

Touch HMI

Performance and Essential

Crouzet touch screen HMIs for intuitive control and monitoring of automation systems.
  • 4.3", 7" and 9.7" Resistive touch screens
  • Direct connection to Crouzet Logic Controller
  • RS232/485 & TCP/IP Ethernet Communications
  • Seamless PLC integration

Selected variant

Avaible in several variants

Product description

The Crouzet Touch range of HMI offers a high quality, high performance HMI but at a highly competative price.

We see more and more panels and system controlled and monitored by an HMI as opposed to traditional gauges, pilot light and meters. Modernising a panel with an HMI used to be an expensive and difficult task. Now, with the new range of Crouzet Touch HMI you can modernise and improve your application at a fraction of the historical costs.



The Crouzet Touch range consists of two versions,



Essential

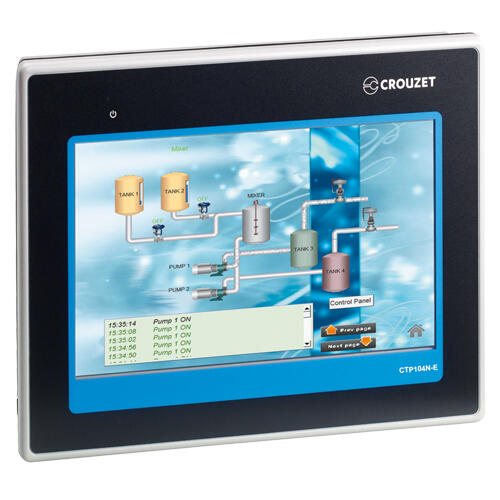

Performance

  • TFT-LCD resistive touch screen
  • Fan less cooling system
  • 32 bit 600 Mhz Cortex-A8 processor
  • Built-in RTC
  • Direct communication with Millenium 3 logic controller
  • MODBUS RS232/485 protocol
  • CE Mark
  • TFT-LCD resistive touch screen
  • Fan less cooling system
  • 32 bit 600Mhz or 1 Ghz Cortex-A8 processor
  • Built-in RTC
  • Direct communcation with Millenium 3 logic controller
  • MODBUS RS232/485 protocol
  • MODBUS TCP/IP protocol
  • Integrated VNC server
  • Additional function provided;
  • Emails, recipe database, enhanced security and many more
  • CE mark, cULus listed





Accessories

Related products

tekox
Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

PPVK Series
Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

My favourites Articles Approvals Backlight Depth Display Height I / O Ports - COM Port RS-232 I / O Ports - COM Port RS-485 I / O Ports - Ethernet Port I/O Ports - USB Host IP Class Front Memory for data Power consumption Processor Punching Supply voltage Temperature range from Temperature range to Vibration resistance Width Price
UL, CE
LED > 30.000 h
34
7" TFT LCD
146.3
COM1 male
COM1 2/4 wires male, COM3 2 wires male
1 x RJ45, 10/100 Mbit/s, MDI/MDIX
2.0
IP65
128 MB
450 mA @24V
32 bit RISC Cortex-A8, 600 MHz
192 x 139 mm
24 V DC
0
50
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
200.4
CE
LED > 30.000 h
32
4,3" TFT LCD
102
COM1 male
COM1 2/4 wires male, COM3 2 wires male
1 x RJ45, 10/100 Mbit/s, MDI/MDIX
2.0
IP65
128 MB
300 mA @24V
32 bit RISC Cortex-A8, 600 MHz
119 x 93 mm
24 V DC
0
50
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
128
CE
LED > 30.000 h
34
7" TFT LCD
146.5
COM1 male
COM2 2/4 wires male
N/A
2.0
IP65
128 MB
500 mA @24V
32 bit RISC Cortex-A8, 600 MHz
192 x 138 mm
24 V DC
0
50
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
200.4
CE
LED > 30.000 h
34
7" TFT LCD
146.5
COM1 male
COM2 2/4 wires male
N/A
2.0
IP65
128 MB
500 mA @24V
32 bit RISC Cortex-A8, 600 MHz
192 x 138 mm
24 V DC
0
50
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
200.4
