Selected variant
Selected variant
Specifications
| 1472_Immunity From Micro-Interruptions (ms) | 1 |
|---|---|
| Approvals | CE, CSA, RoHS, UL |

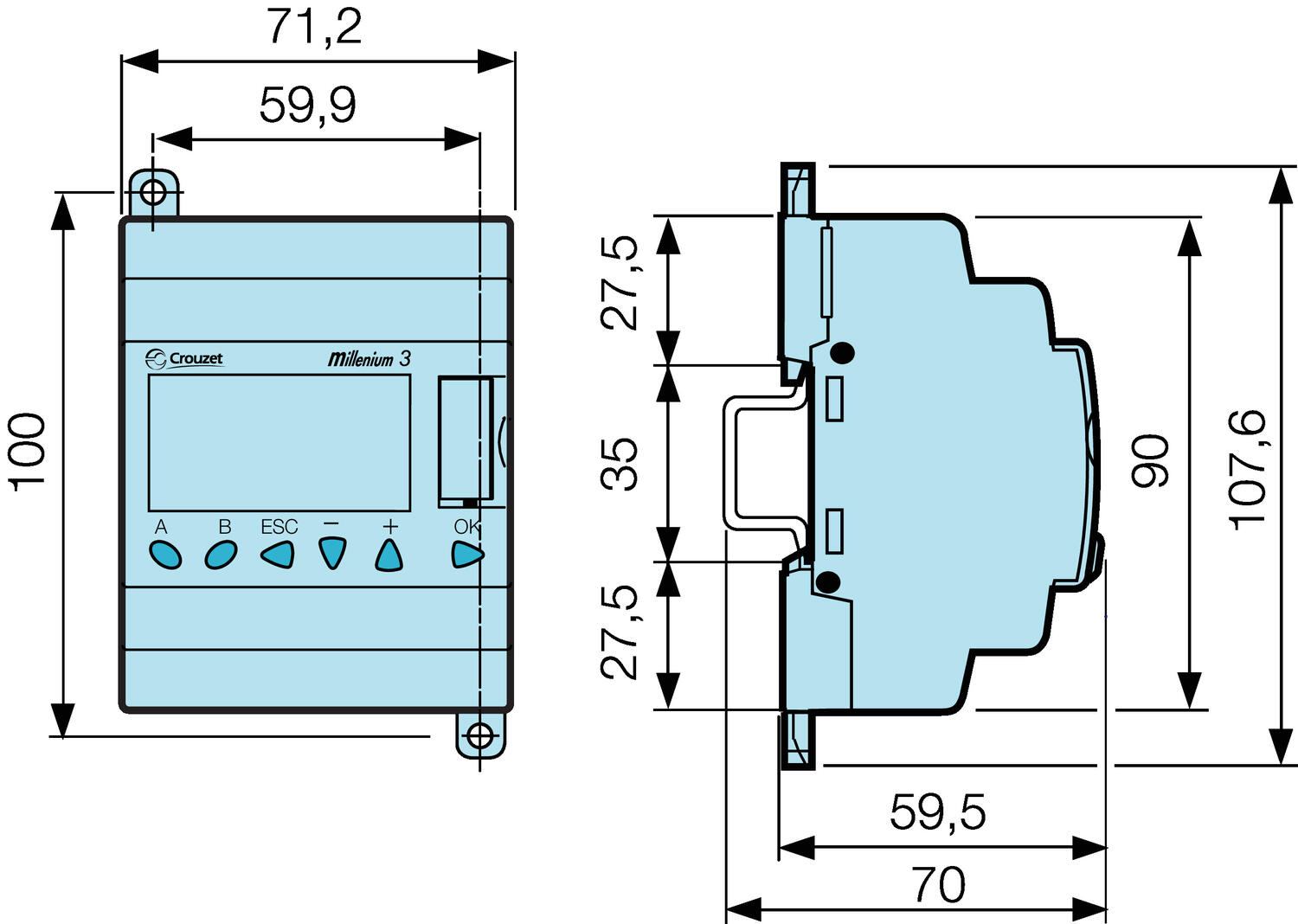

| Depth | 59.5 |
| Display | Yes |
| Expandable | No |
| Height | 90 |
| Lifespan Mechanical | 10 Million operations |
| Load Current Min | 10 |
| Measuring Range Analog Input ID IG | 0-10 V DC, 0-12 V DC |
| Memory for data | 368 bits / 200 words, stored for 10 years |
| Number of inputs | 8 |
| Number of outputs | 4 |
| OFF-Voltage Logic 0 Mode Input I5 IC | 3 |
| Output type | Relay |
|---|---|
| Program Memory | Flash EEPROM |
| Program Size | FBD 700 blocks, Ladder 120 rows normally |
| Programming Methodology | Functionblocks / SFC or Ladder |
| Real Time Clock | Yes |
| Release Time | 5 |
| Supply voltage | 12 V DC |
| Switching Voltage Logic 1 Mode Input I5-IG | 7 |
| Switching Voltage Max | 250 |
| Temperature range from | -20 |
| Temperature range to | 70 |
| Width | 71.2 |
Downloads
Product description

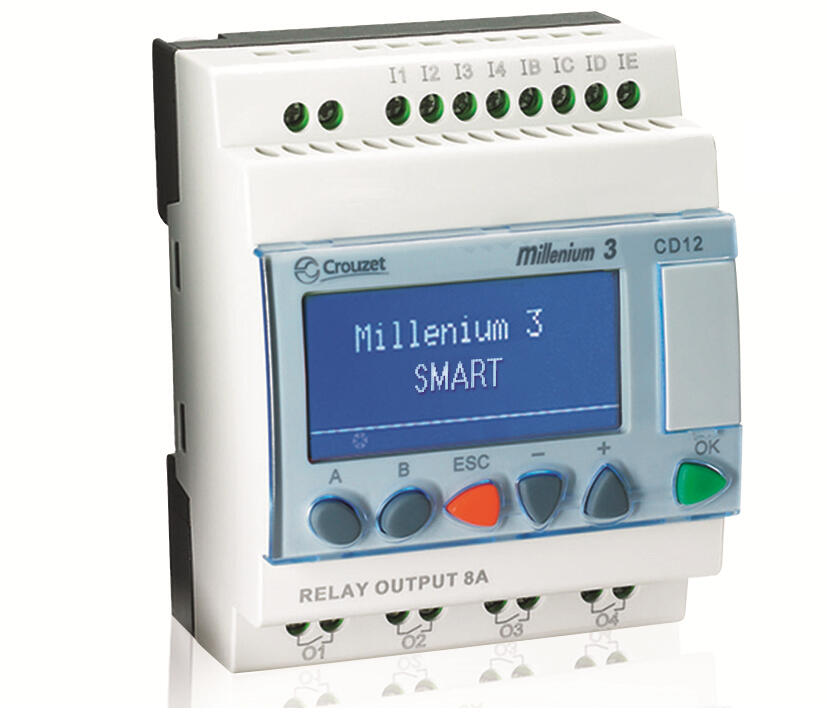

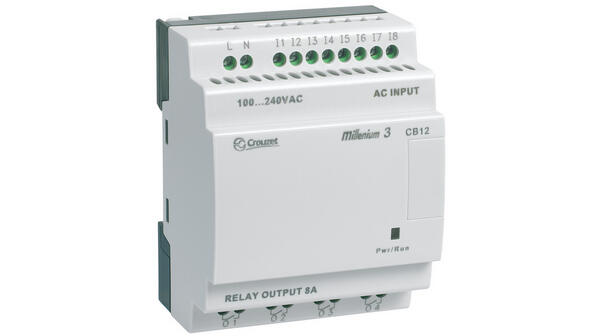

Millenium 3 is a compact control unit with powerful functions that provides the capability to build both simple and more complex control and monitoring functions. A few examples of fields of application are air conditioning and heating systems, authorisation controls, vending machines, packaging, pump control and advertising signs. Millenium 3 has the most extensive function library on the market and can even be programmed in Ladder. Function block examples: Time functions, counters, connection timers, mathematical blocks or blocks for analogue signals, logic functions, control of motors, pump control and PID regulation. Millenium 3 also includes “SFC blocks”, which are very useful for sequence programming. Models CB12 and CB20 are budget models without displays and settings buttons.There are a few different start kits for quickly getting started with Millenium. These start kits include, besides a Millenium, cable and software, with everything delivered attractively packaged in a special box.
