CONTA-CLIP

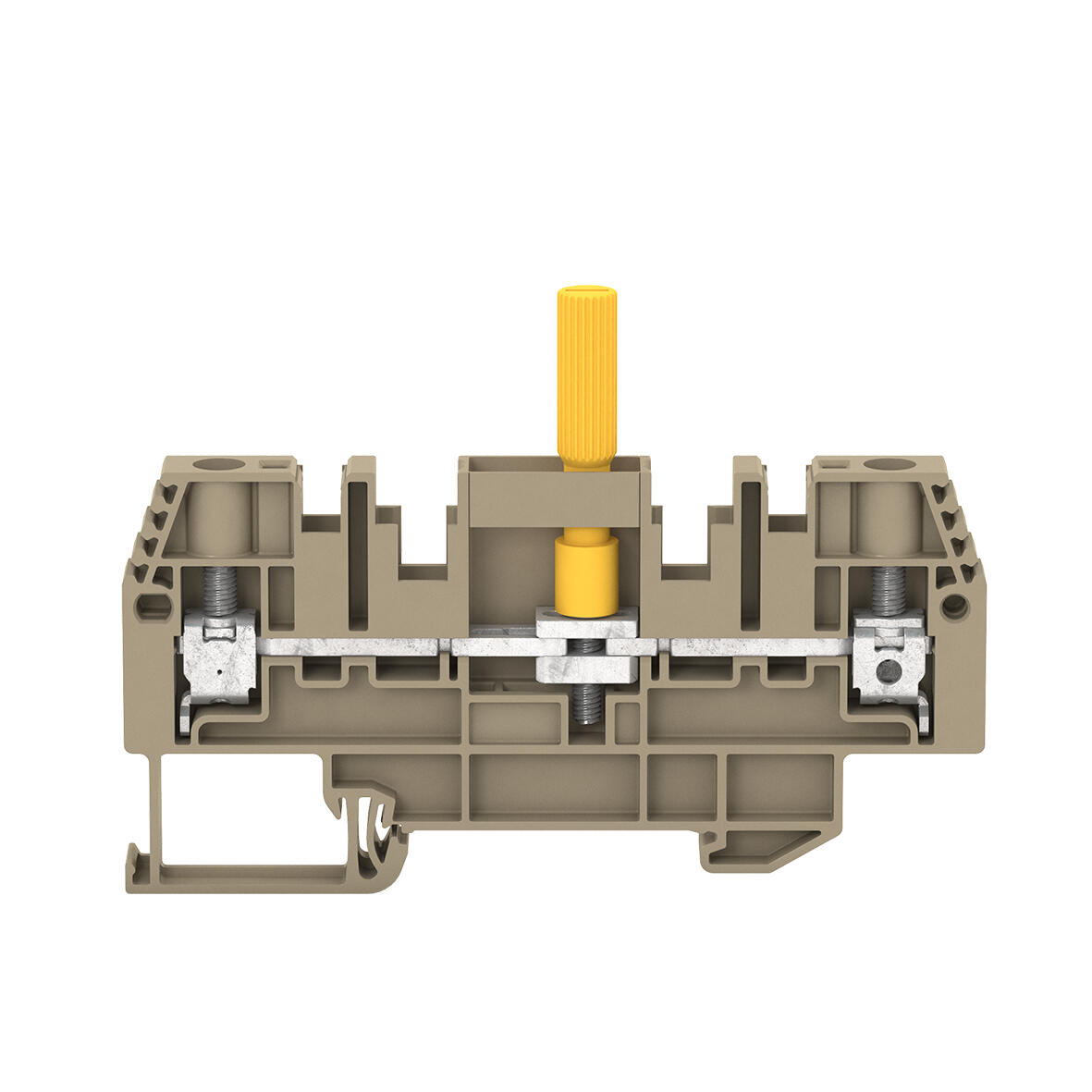

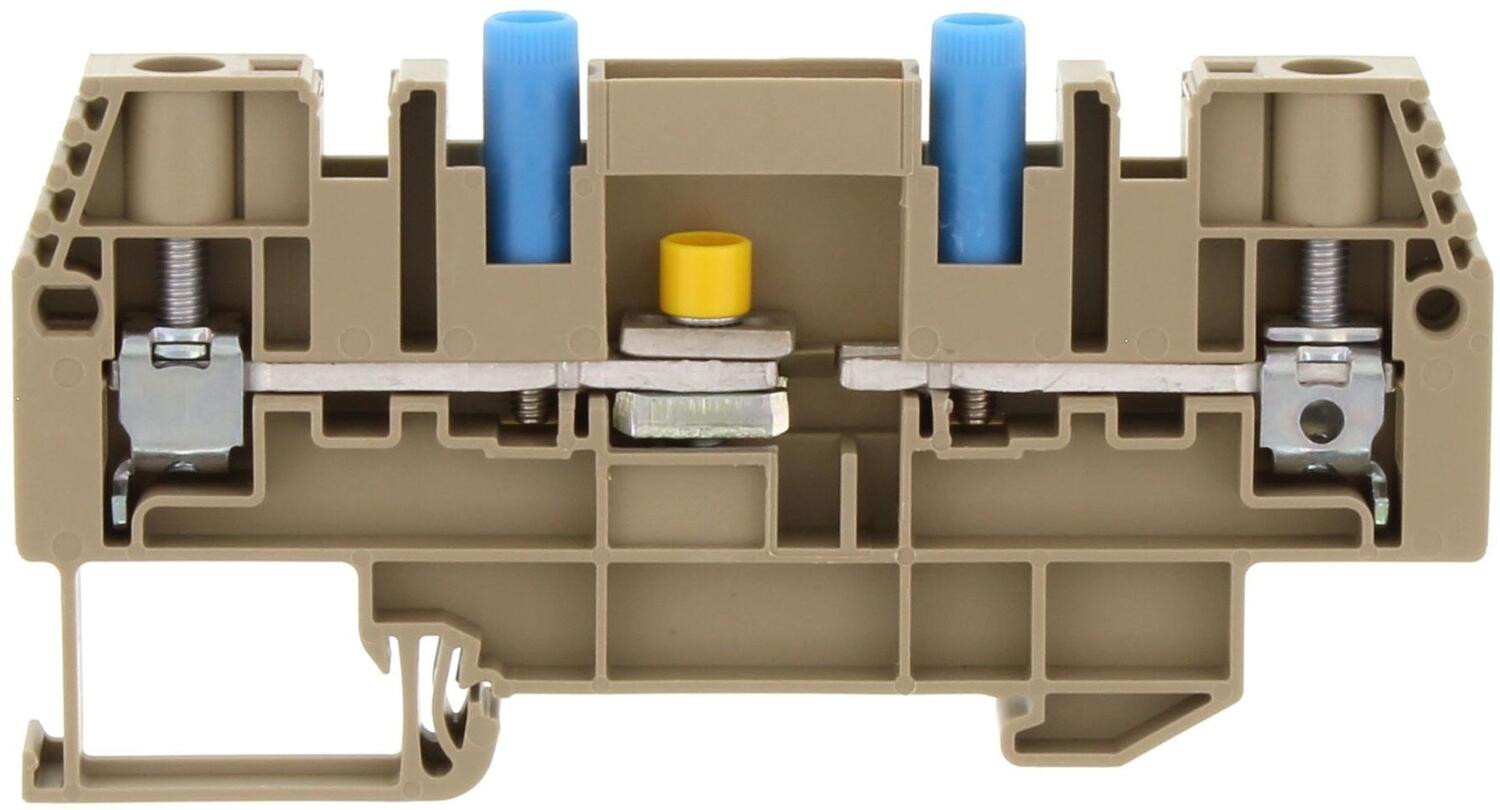

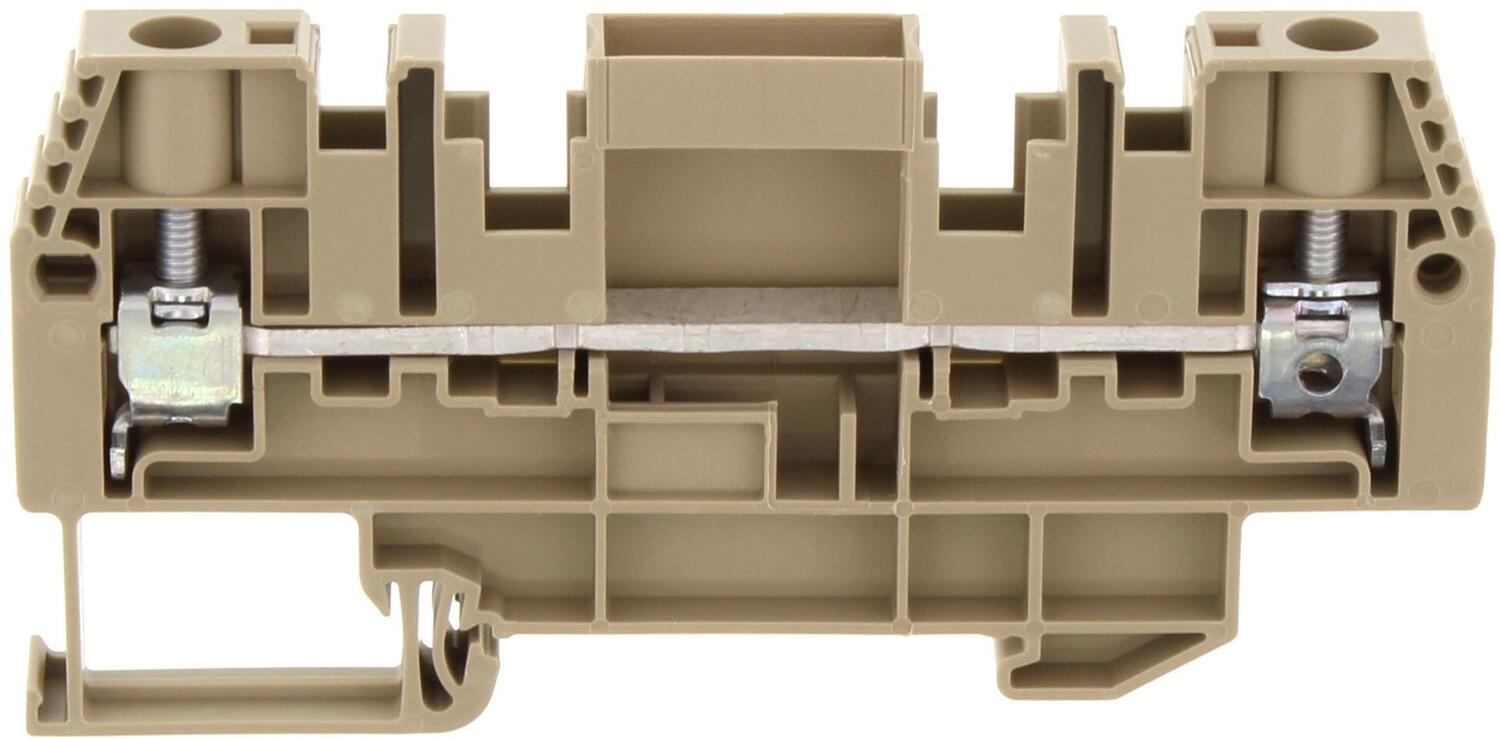

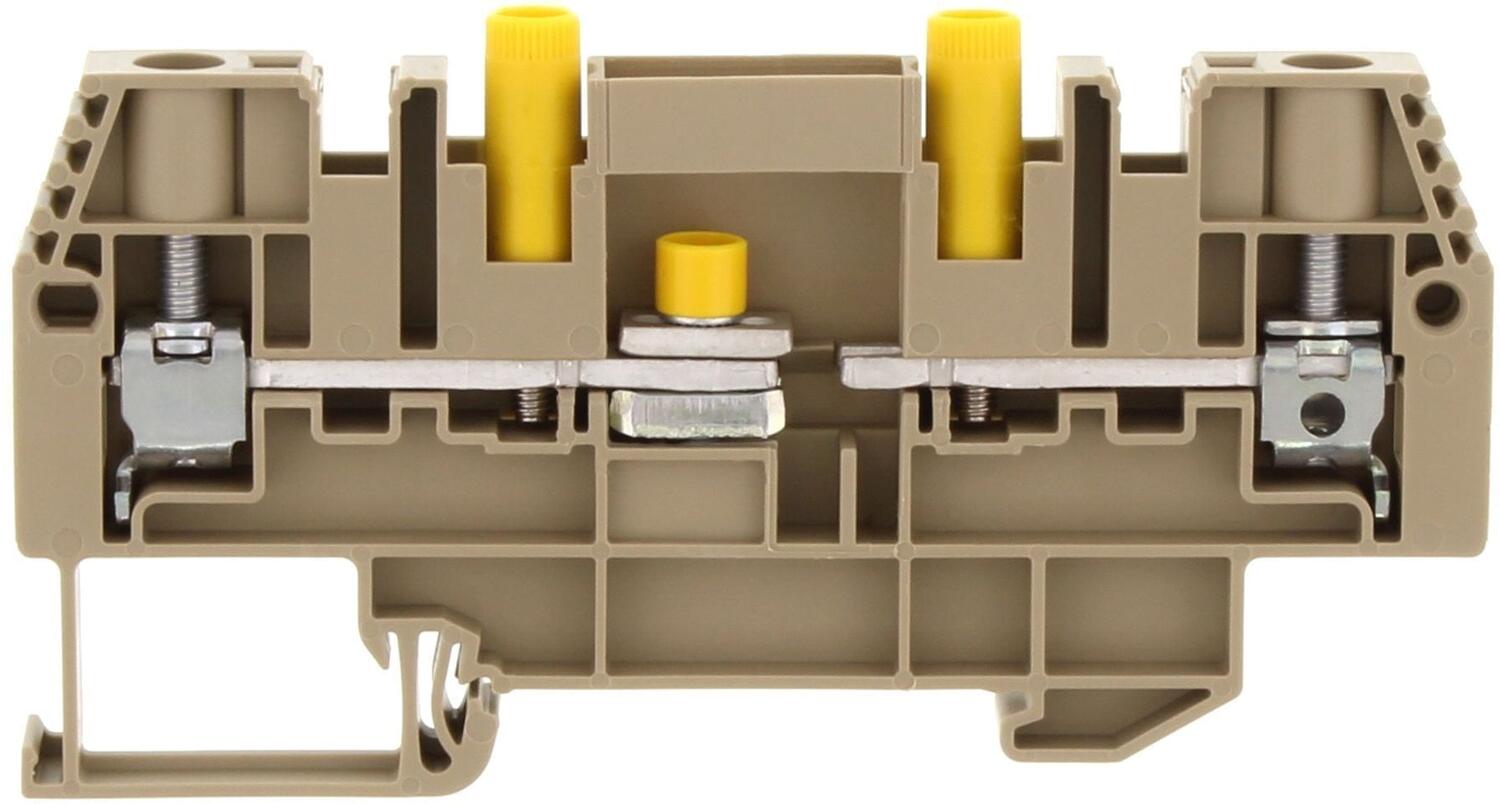

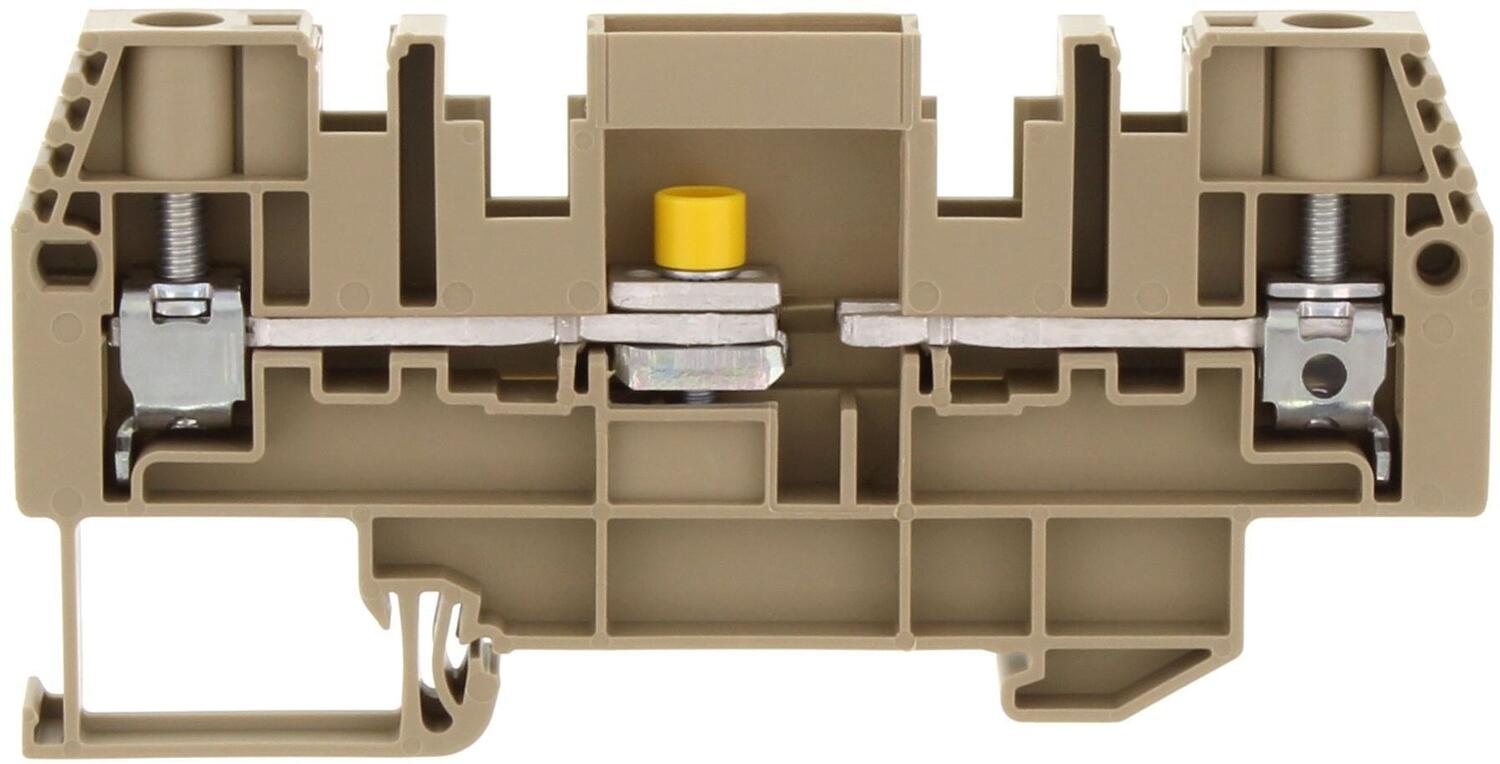

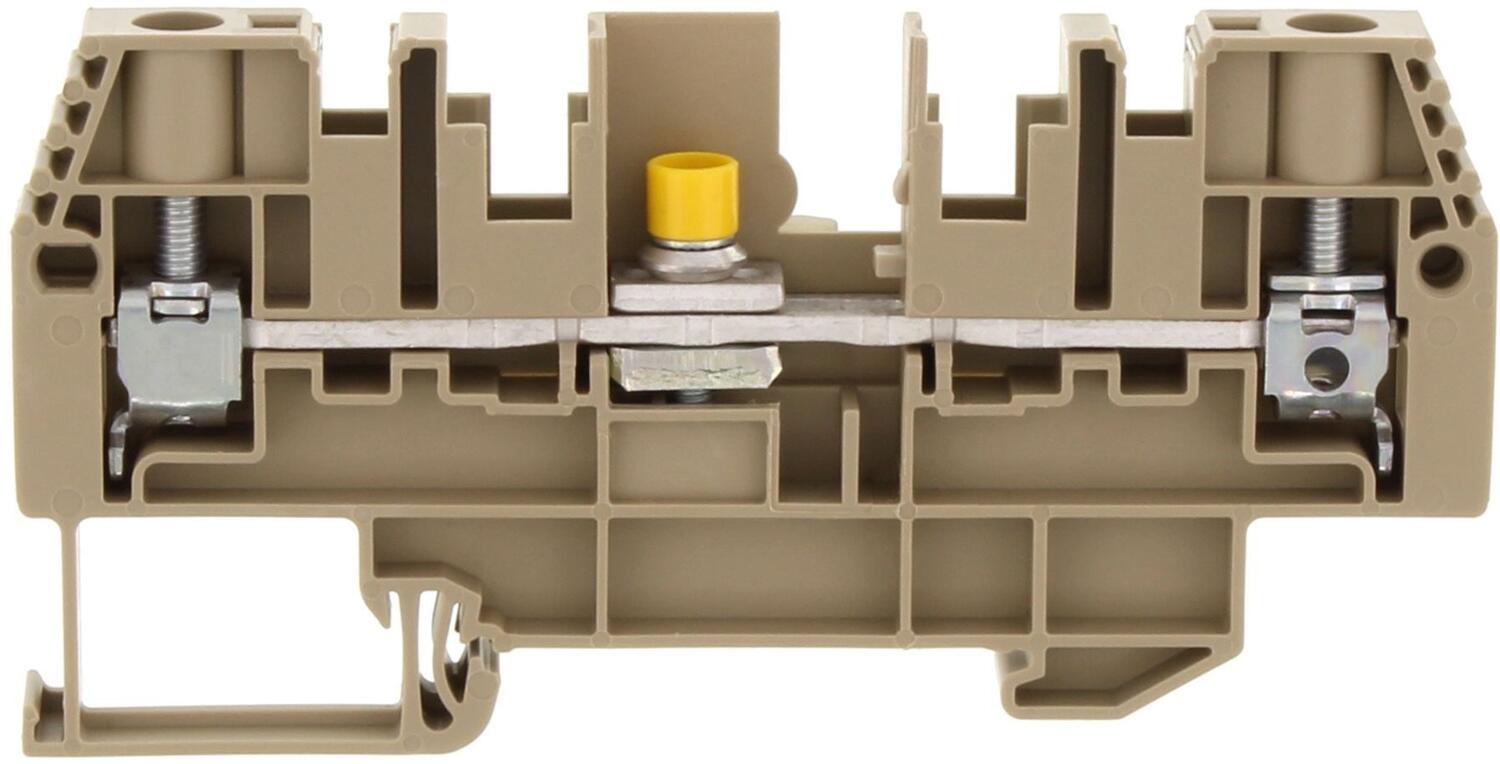

Test disconnect terminals SPTK 6
Test-disconnect terminals are mainly used for power network, electricity generation and supply applications.
They are perfect for the wide variety of switching demands in the current-transformer secondary circuits that are common in these types of applications.
Current transformers must always have a closed secondary circuit, for use when electricity meters and measuring instruments are being replaced, or when making comparative measurements.
All versions provide touch-safe protection in compliance with DGUV-3.
A captive, screw-on sliding partition is used to separate the current and voltage paths.
The switch position is always easy to detect since the disconnect screw has a yellow insulating sleeve.
In all versions, the STBI 19/4 socket plugs can be used for a test pick-off for measuring values using the PS 4 test plug or the conventional (4 mm) insulated test plugs.
Cross-switches QVSI
The VH 19 connecting sleeves and the BS 25 screws or STB 19/4 L socket plugs are required for fastening the QVSI cross-switches above the terminal block. The cross-switches are available from 2 to 10 poles.
Cross-switches QSBI
The QSBI internal cross-switches are positioned within the terminal block and make contact over the sliding contact on the LT- or QT-terminals. The cross-switches are available from 2 to 4 poles.
Mounting screw BS 25
The BS 25 mounting screws are used together with the VH 19 connecting sleeves to establish contact with the QVSI cross-switches.
Switch lock PTK-SP
The PTK-SP switch lock is mounted over the slider on the SPTK terminals. It keeps the partition screws from being accidentally touched by a screwdriver.
Insulated socket plugs STBI 19/4 L
The STBI 19/4 L socket plugs can be screwed into the inside cross-connection channels. They are used together with the VH 19 connecting sleeves to establish contact with the QVSI cross-switches. They are also used to hold the PS 4 test plugs or conventional (4 mm) insulated test plugs.
Short-circuit plug KS-SQI
The KS-SQI short-circuit plugs are used to make pluggable cross-connections between the SPTK terminals in the outer cross-connection channels. The plugs can also be put in the built-in park position of the SPTK terminals when not in use. The short-circuit plugs are available from 2 to 5 poles.
Cross-connector SQI 6
The SQI cross-connector is used to make a pluggable cross-connection between the SPTK terminals in the outer cross-connection channels. The cross-connectors can also be put in the built-in park position of the SPTK terminals when not in use. The cross-connectors are available from 2 to 30 poles.
- Up to four channels: used for potential distribution or test purposes
- Lengthwise partition operated with screw to ensure deliberate switching operations
- Touch safe BGV A3 compliant
- Polyamide 6.6 UL 94-V0
Selected variant
Selected variant
Specifications
| Approvals | UL, cUL, KEMA KUR |
|---|---|
| Color | Beige |
| Connections | 2 |
| Contamination degree | 3 |
| Country of origin | CZ |
| Cross connect channels | 4 |
| Cross section single wire from | 0.2 |
| Cross section single wire to | 10 |
| Cross section stranded wire from | 0.2 |
| Cross section stranded wire to | 10 |
| Cross section stranded with ferrule from | 0.2 |
| Cross section stranded with ferrule to | 6 |
| Cross-Section | 6 |
| cUL test standard | C22.2 No 158 |
| Flamklass | UL94-V0 |
| Height TS 35/7.5 | 47 |
| Insulation Material | Polyamide 6.6 |
| KEMA KEUR test standard | EN 60947-7-1:2009 |
| Length | 93 |
| Mounting | TS 35 |
| Number of levels | 1 |
| Operating temperature from | -40 |
| Operating temperature to | 120 |
| Overvoltage category | III |
|---|---|
| Pack Size | 50 |
| Plug gauge acc. EN 60 947-1 | A5 |
| Rated current cUL | 33 |
| Rated Current IEC | 41 |
| Rated Current To UL | 33 |
| Rated impulse voltage | 8 |
| Rated wire cross section from (AWG) | 22 |
| Rated wire cross section to (AWG) | 8 |
| Rated voltage cUL | 300 |
| Rated Voltage IEC | 800 |
| Rated Voltage To UL | 300 |
| Screw size | M 3,5 |
| Screw type | Slotted |
| Stripping Length | 10 |
| Tariff code | 85369010 |
| Torque max | 2.4 |
| Torque Min | 1.2 |
| UL test standard | UL 1059 |
| Weight | 26.084 |
| Width | 8.1 |
Product description
Test-disconnect terminals are mainly used for power network, electricity generation and supply applications.
They are perfect for the wide variety of switching demands in the current-transformer secondary circuits that are common in these types of applications.
Current transformers must always have a closed secondary circuit, for use when electricity meters and measuring instruments are being replaced, or when making comparative measurements.
All versions provide touch-safe protection in compliance with DGUV-3.
A captive, screw-on sliding partition is used to separate the current and voltage paths.
The switch position is always easy to detect since the disconnect screw has a yellow insulating sleeve.
In all versions, the STBI 19/4 socket plugs can be used for a test pick-off for measuring values using the PS 4 test plug or the conventional (4 mm) insulated test plugs.
Cross-switches QVSI
The VH 19 connecting sleeves and the BS 25 screws or STB 19/4 L socket plugs are required for fastening the QVSI cross-switches above the terminal block. The cross-switches are available from 2 to 10 poles.
Cross-switches QSBI
The QSBI internal cross-switches are positioned within the terminal block and make contact over the sliding contact on the LT- or QT-terminals. The cross-switches are available from 2 to 4 poles.
Mounting screw BS 25
The BS 25 mounting screws are used together with the VH 19 connecting sleeves to establish contact with the QVSI cross-switches.
Switch lock PTK-SP
The PTK-SP switch lock is mounted over the slider on the SPTK terminals. It keeps the partition screws from being accidentally touched by a screwdriver.
Insulated socket plugs STBI 19/4 L
The STBI 19/4 L socket plugs can be screwed into the inside cross-connection channels. They are used together with the VH 19 connecting sleeves to establish contact with the QVSI cross-switches. They are also used to hold the PS 4 test plugs or conventional (4 mm) insulated test plugs.
Short-circuit plug KS-SQI
The KS-SQI short-circuit plugs are used to make pluggable cross-connections between the SPTK terminals in the outer cross-connection channels. The plugs can also be put in the built-in park position of the SPTK terminals when not in use. The short-circuit plugs are available from 2 to 5 poles.
Cross-connector SQI 6
The SQI cross-connector is used to make a pluggable cross-connection between the SPTK terminals in the outer cross-connection channels. The cross-connectors can also be put in the built-in park position of the SPTK terminals when not in use. The cross-connectors are available from 2 to 30 poles.
