KLAUKE
R series Cable Lug
R Series Cable Lug – High-Temperature, Tin-Plated, IEC Certified
The R Series Cable Lug is engineered for secure, high-performance connections in demanding electrical environments. Designed specifically for use with tin-plated fine-stranded conductors, it supports high-temperature cables rated up to 180°C, in accordance with IEC 61238-1-1 testing standards.
Key Features:
IEC 61238-1-1 Certified: Tested and approved for reliable performance with 180°C high-temperature cables.
Versatile Compatibility:
Suitable for multi-stranded round conductors (e.g., EN 60228 Class 2)
Ideal for pre-rounded multi-stranded sector-shaped conductors
Approved for use with Class 5 fine-stranded tin-plated conductors
Control Cabinet Ready: A perfect choice for compact and efficient control cabinet construction.
Tool Compatibility: Fully compatible with EKM 60 ID and EK 30 ID crimping tools for seamless installation on fine-stranded conductors.
Tin-Plated Finish: Enhances corrosion resistance and ensures excellent electrical conductivity.
Whether you’re working on industrial installations or sensitive control systems, the R Series Cable Lug offers a dependable solution for high-temperature and high-performance electrical connections.
- IEC 61238-1-1 certified
- Supports 180°C high-temp cables
- Ideal for control cabinet use
- Compatible with fine-stranded conductors
- Works with EKM 60 ID & EK 30 ID tools
Selected variant
Selected variant

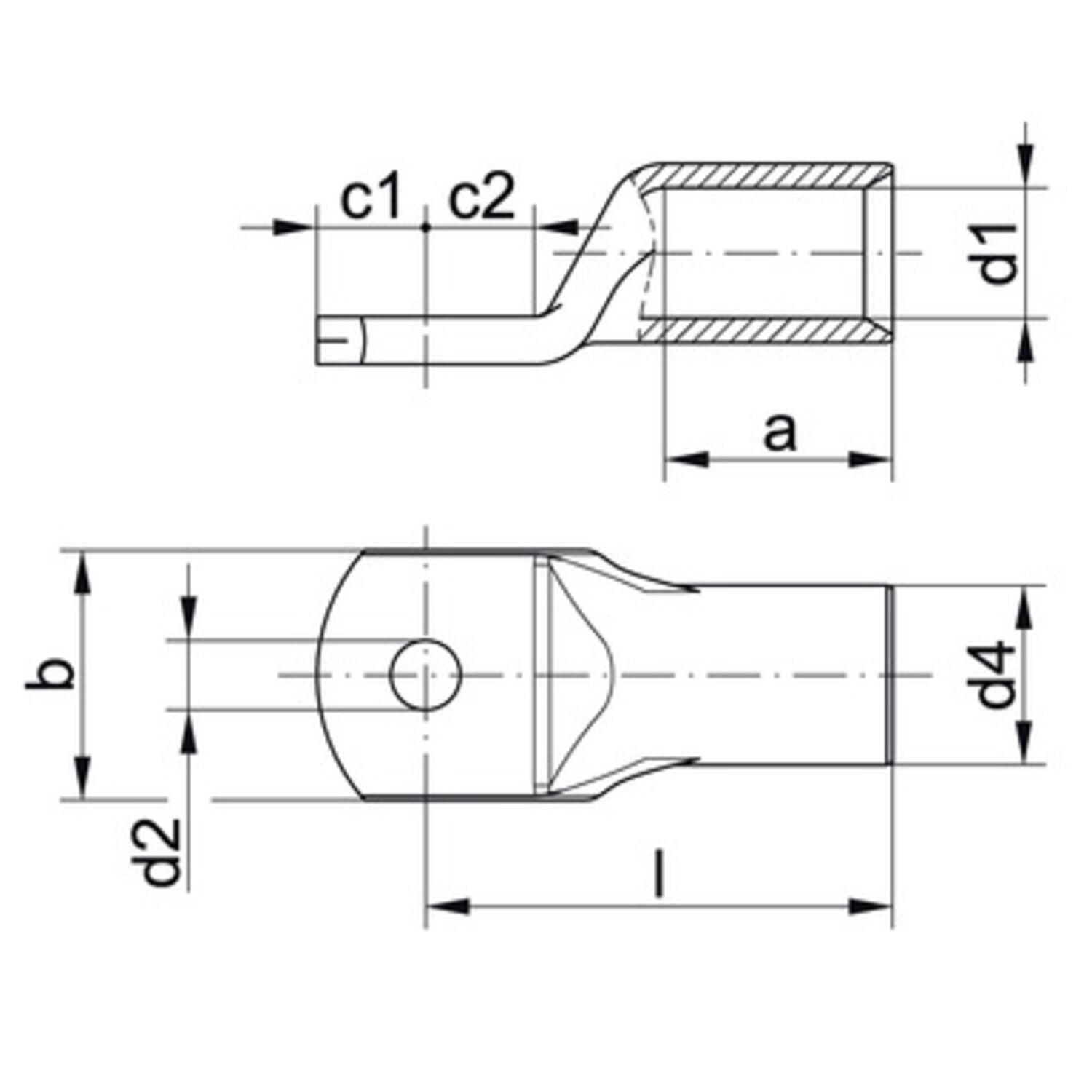

Specifications
| 1693_Number of crimps (mm² Cu) | 1 |
|---|---|
| 2327_Crimping cycle (s) | Tool-dependent |
| 5792_Crimping range (mm²) | 150 |
| Cable Size | 6 |
| Conductor shape | Round or sector-shaped, fine-stranded |
| Country of origin | Germany |
| Cross Section Max | 150 |
| DIN approvals | Compliant with IEC 61238-1-1 |
|---|---|
| Hole size (mm) | 6 |
| Pack Size | 10 |
| Rated wire cross section to (AWG) | Up to AWG 4 |
| Soldered | No |
| Tariff code | 85369010 |
Downloads
Product description
R Series Cable Lug – High-Temperature, Tin-Plated, IEC Certified
The R Series Cable Lug is engineered for secure, high-performance connections in demanding electrical environments. Designed specifically for use with tin-plated fine-stranded conductors, it supports high-temperature cables rated up to 180°C, in accordance with IEC 61238-1-1 testing standards.
Key Features:
IEC 61238-1-1 Certified: Tested and approved for reliable performance with 180°C high-temperature cables.
Versatile Compatibility:
Suitable for multi-stranded round conductors (e.g., EN 60228 Class 2)
Ideal for pre-rounded multi-stranded sector-shaped conductors
Approved for use with Class 5 fine-stranded tin-plated conductors
Control Cabinet Ready: A perfect choice for compact and efficient control cabinet construction.
Tool Compatibility: Fully compatible with EKM 60 ID and EK 30 ID crimping tools for seamless installation on fine-stranded conductors.
Tin-Plated Finish: Enhances corrosion resistance and ensures excellent electrical conductivity.
Whether you’re working on industrial installations or sensitive control systems, the R Series Cable Lug offers a dependable solution for high-temperature and high-performance electrical connections.
