KLAUKE

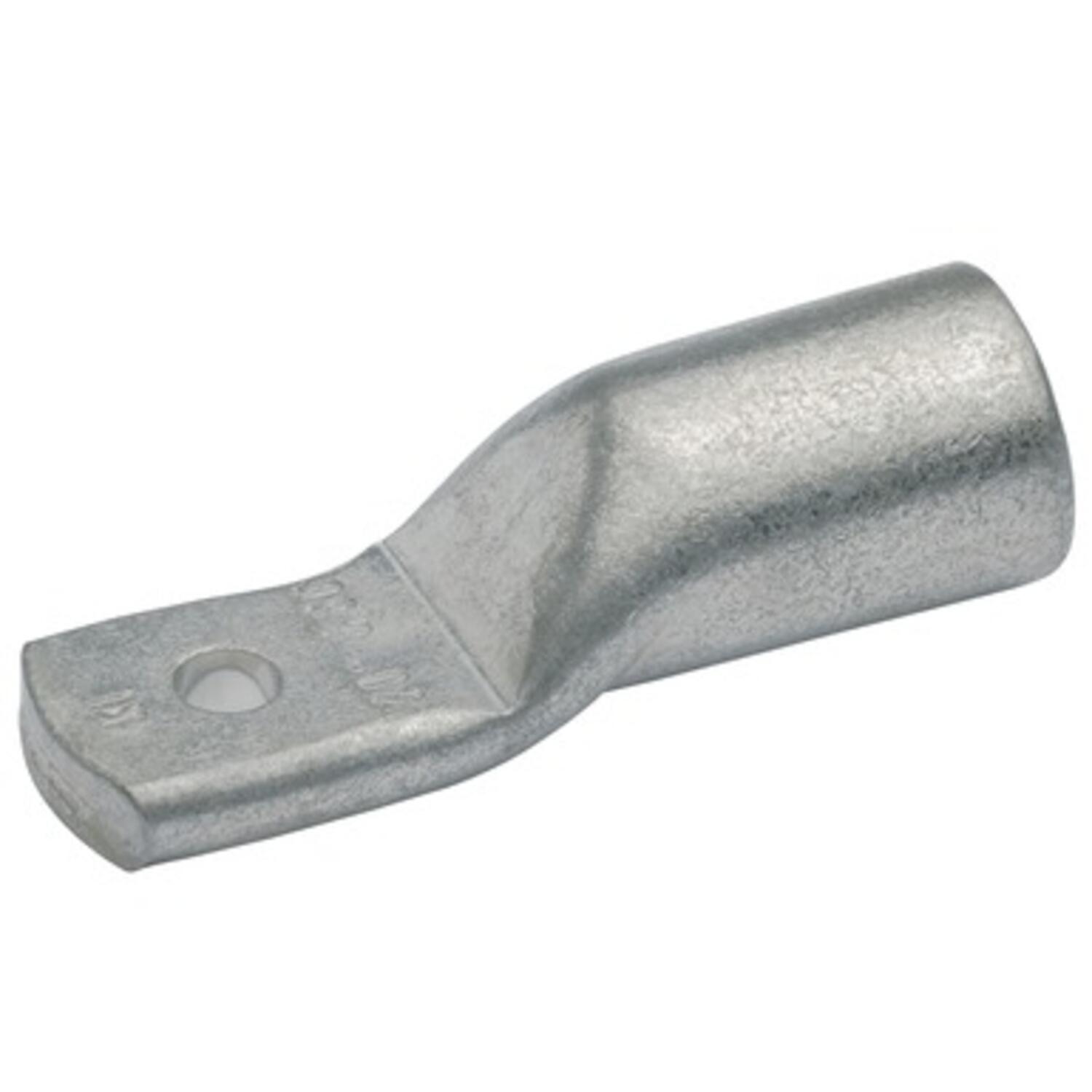

Narrow Palm Cable Lug
Klauke's Narrow Palm cable lugs are precision-engineered to deliver secure, low-resistance connections in compact installations. Designed for easy crimping of solid, stranded, or fine-stranded copper conductors, they’re ideal for tight spaces without compromising electrical integrity.
Key Features:
High-conductivity copper construction for top-tier performance
Tin-plated surface resists corrosion and enhances durability
Slim “palm” design supports tight terminal layouts
Compatible with standard crimping tools
Available in a range of sizes, from small gauge up to medium-high cross-sections
Built to meet international safety standards
Ideal For:
Electrical panel interiors with space constraints
Machine control cabinets and industrial automation
Renewable energy systems and power distribution units
Any installation requiring reliable connections in compact configurations
src="https://www.youtube.com/embed/agio2dpzDFE"
title="YouTube video player"
frameborder="0"
allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share"
allowfullscreen>
- High-conductivity copper for reliable power transfer
- Tin-plated for enhanced corrosion resistance
- Narrow palm design ideal for confined spaces
- Easy, secure crimping with internal chamfer
- Perfect for switchgear and control cabinet use
Selected variant
Selected variant
Specifications
| 1693_Number of crimps (mm² Cu) | Typically 1–2 (depending on cross-section and tool) |
|---|---|
| 3937_Stripping range (mm²) | Depends on cable spec; DIN EN 60228 Class 2 |
| 5792_Crimping range (mm²) | 10–400 mm² |
| Cable Size | 35 |
| Conductor shape | Round multi-stranded (DIN EN 60228 Class 2) |
| Connection bolts Ø | Typically M6, M8, M10, M12 (varies by size) |
| Country of origin | Germany |
| Cross Section Max | 400 |
|---|---|
| DIN approvals | DIN 46235 |
| Hole size (mm) | 6 |
| Pack Size | 10 |
| Rated wire cross section to (AWG) | Up to 500 MCM (varies by type) |
| Tariff code | 85369010 (Electrical apparatus for switching/protecting circuits) |
