BIMED

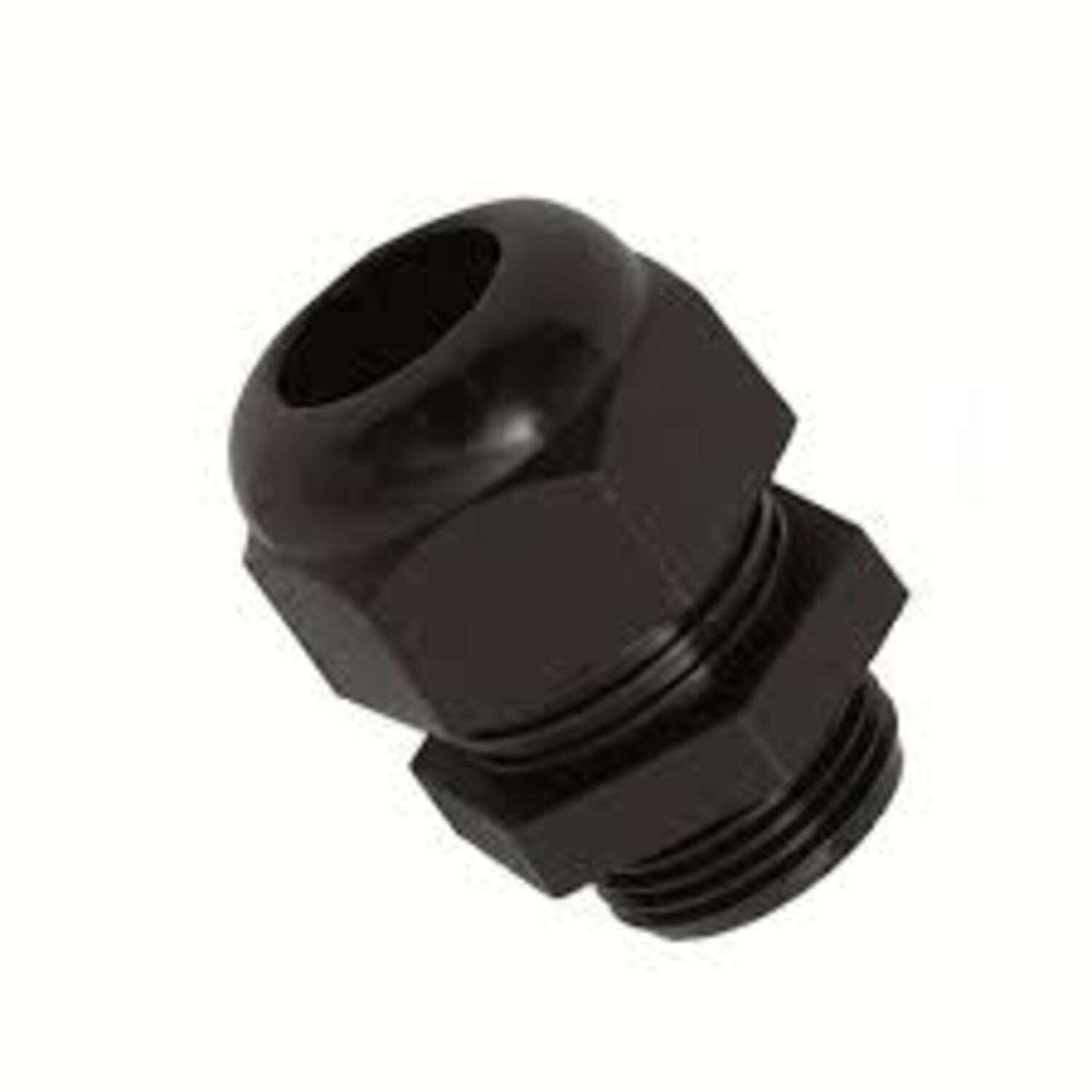

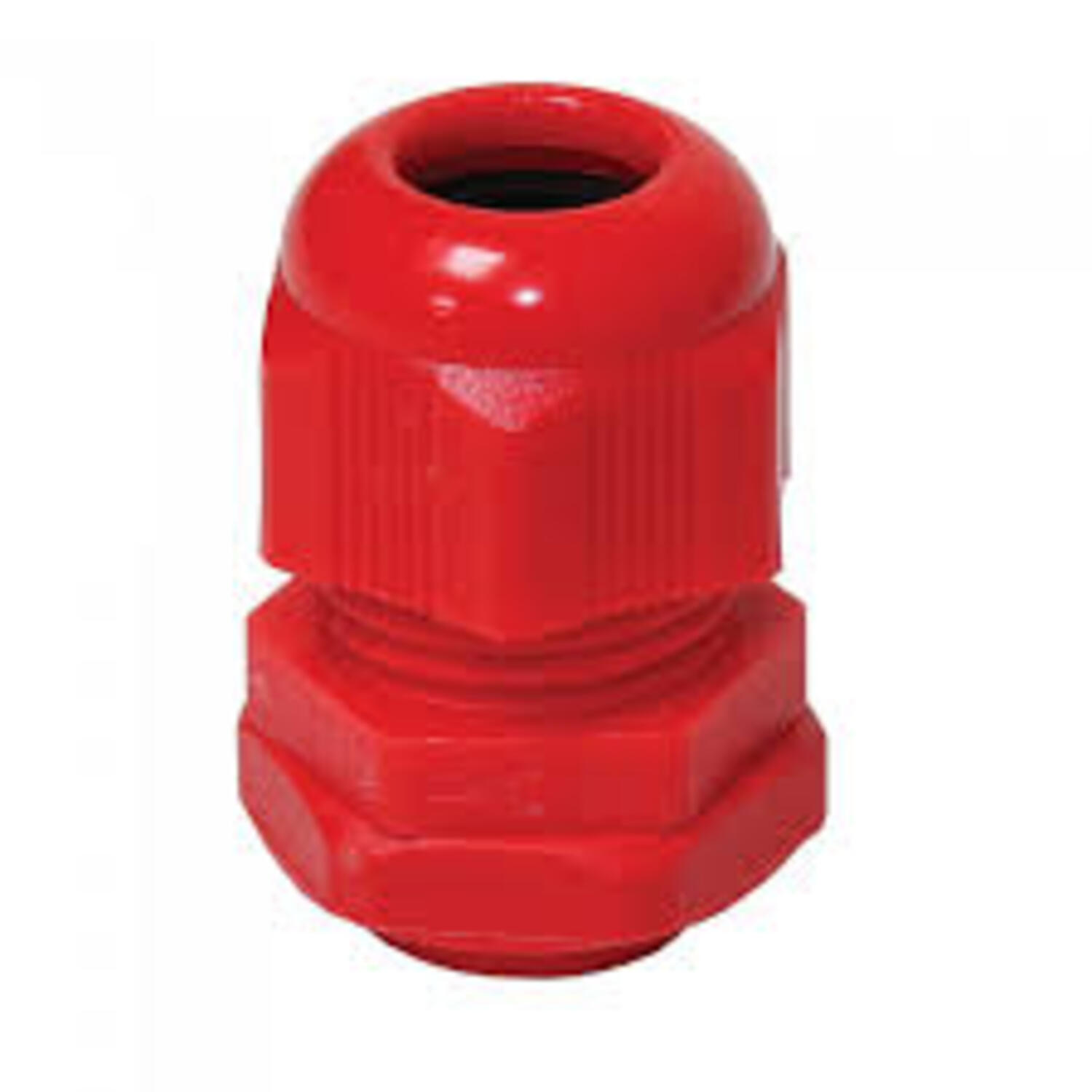

Large Nylon Cable Glands C/W Locknut IP68
These Bimed large nylon cable glands with locknut are designed for secure and reliable cable entry in electrical enclosures, junction boxes, and control panels. Manufactured from high-quality polyamide (PA6), they provide excellent mechanical strength, resistance to chemicals, UV, and impact, while maintaining an IP68 protection rating.
Each gland comes complete with a locknut for quick installation and strain relief, ensuring cables remain protected against dust, dirt, and water ingress, even in demanding environments.
- Material: Polyamide 6 (PA6), UL 94 V-2 flame-retardant
- Seal Material: NBR (Nitrile Rubber) for secure sealing
- Thread Type: PG (DIN 40430 standard)
- Ingress Protection: IP68 (up to 5 bar, 30 min) / IP69K optional for high-pressure washdown
- Operating Temperature: Continuous: -40°C to +100°C Short-term: up to +120°C
Selected variant
Selected variant
Specifications
Product description
These Bimed large nylon cable glands with locknut are designed for secure and reliable cable entry in electrical enclosures, junction boxes, and control panels. Manufactured from high-quality polyamide (PA6), they provide excellent mechanical strength, resistance to chemicals, UV, and impact, while maintaining an IP68 protection rating.
Each gland comes complete with a locknut for quick installation and strain relief, ensuring cables remain protected against dust, dirt, and water ingress, even in demanding environments.
