CONTA-CLIP
KDS-FB Flat Cable Frames
KDS-FB

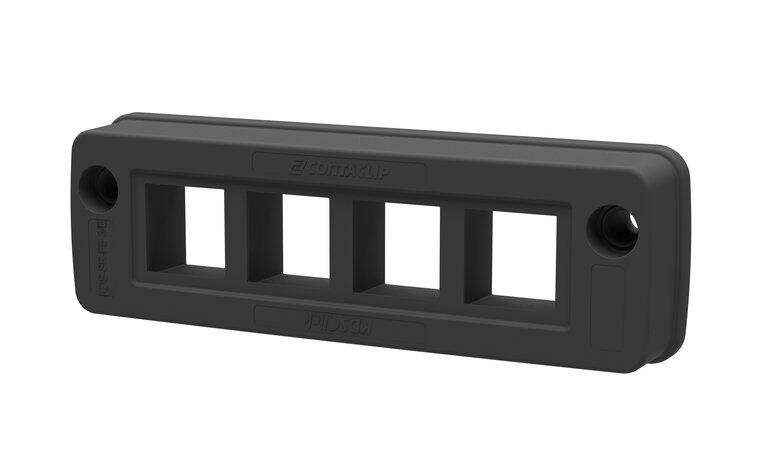

The KDS-FB cable entry system is designed to be used with flat cables commonly used in the forklift, crane and elevator industry.
The compact system provides a highly versatility and time saving solution for managing flat cables which can be tricky to handle.
The "fish skin" on the seals mechanically surrounds the inserted flat cable and they ensure optimum tolerance compensation and IP66 protection.
There is a wide selection of frames which can also take a number of round cables up to 16mm ø from the standard KDS range.
- Flat & Round Cable Solution
- Compact UL 94-V0, glass-fibre reinforced frame
- Ideal for the Lift, Crane & Forklift Industry
- Large range of Ecolab approved seals
- IP66
Selected variant
Selected variant
Specifications
| Approvals | cUL, UL |
|---|---|
| Color | Black |
| Country of origin | DE |
| cUL test standard | C22.2 No. 14-95 |
| Diameter of the screw holes | 5.5 |
| Fixing screws | M5 |
| Flamklass | V-0 |
| Glass-fibre reinforced | Yes |
| Halogen free | Yes |

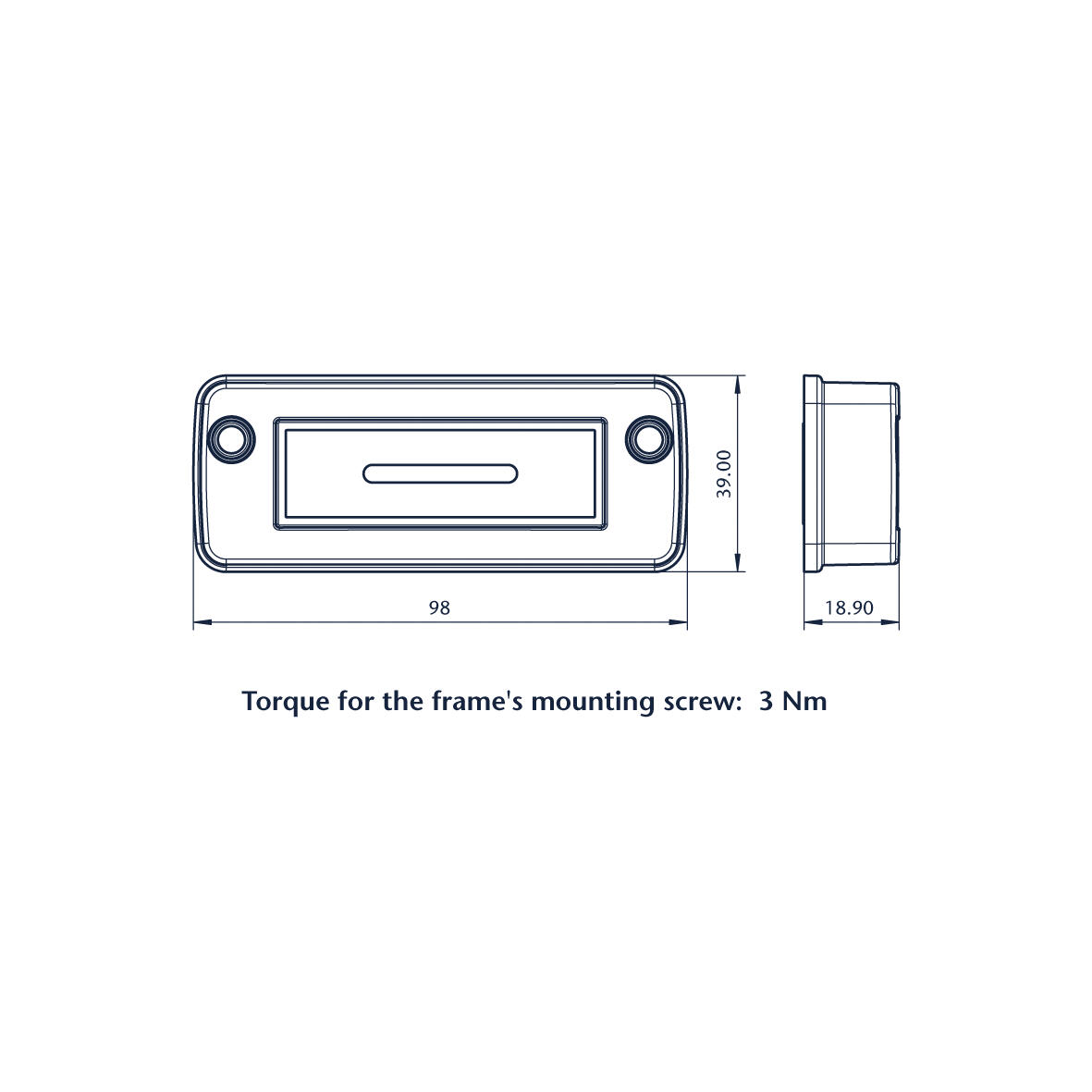

| Height | 18.9 |
| IP Class | IP66 |
| Length | 98 |

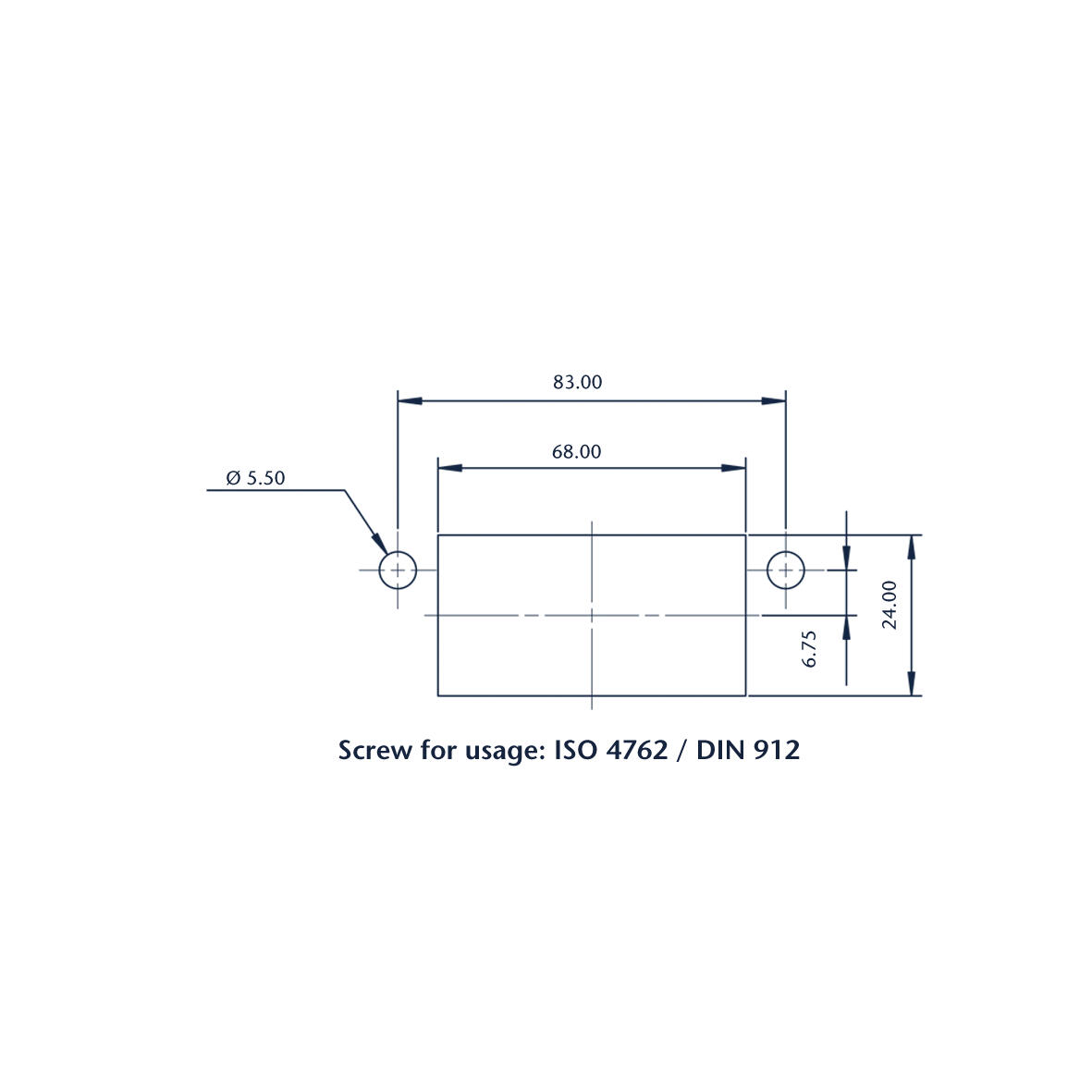

| Length of cutout | 68 |
| NEMA class | 4x |
|---|---|
| Number of screw holes | 2 |
| Operating temperature from | -40 |
| Operating temperature to | 120 |
| Pack Size | 1 |
| Silicone-free | Yes |
| Tariff code | 39259020 |
| Torque of the fixing screws | 3 |
| UL test standard | UL 508 |
| Weight | 38.5 |
| Width | 39 |
| Width of cutout | 24 |
Product description
The KDS-FB cable entry system is designed to be used with flat cables commonly used in the forklift, crane and elevator industry.
The compact system provides a highly versatility and time saving solution for managing flat cables which can be tricky to handle.
The "fish skin" on the seals mechanically surrounds the inserted flat cable and they ensure optimum tolerance compensation and IP66 protection.
There is a wide selection of frames which can also take a number of round cables up to 16mm ø from the standard KDS range.
