KÜBLER

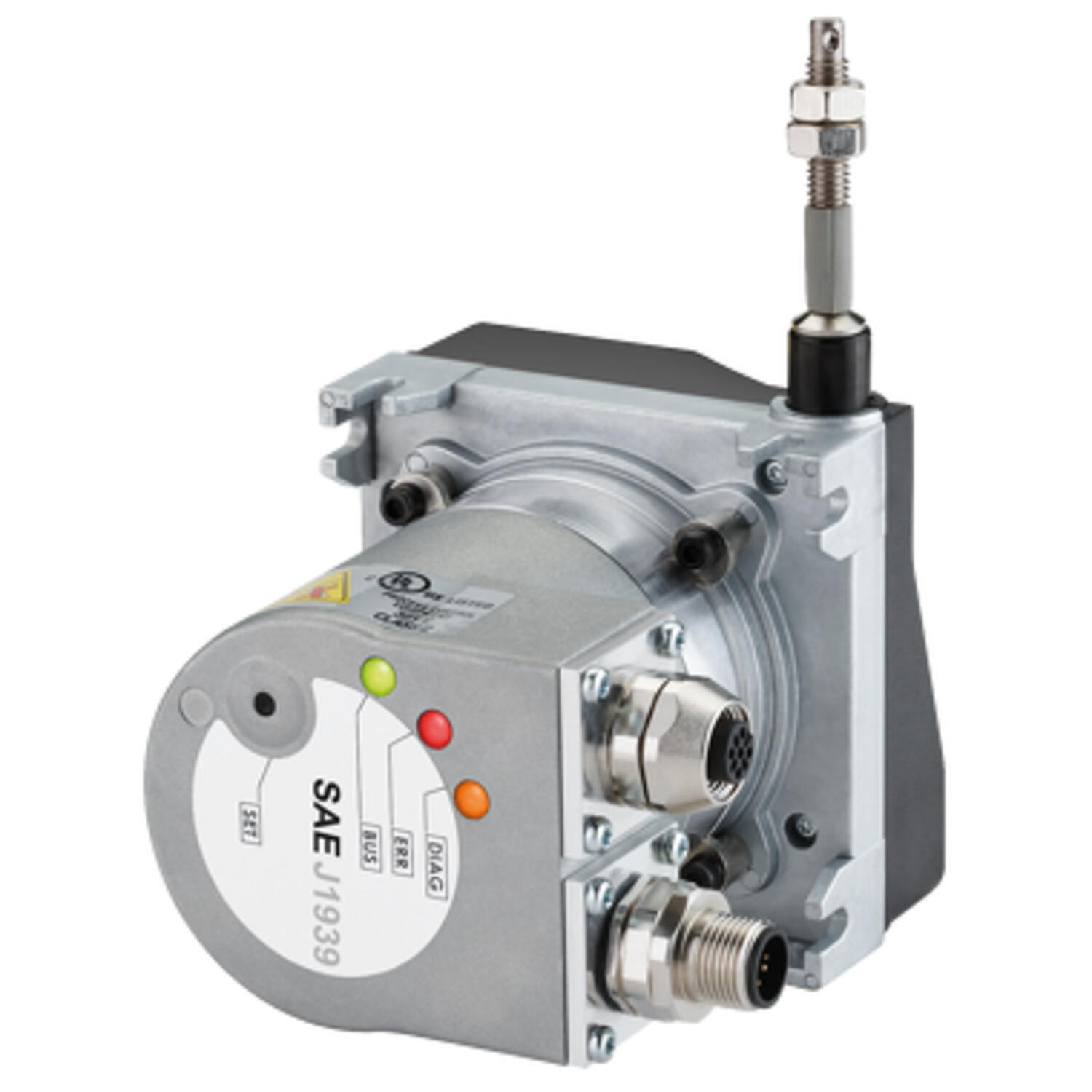

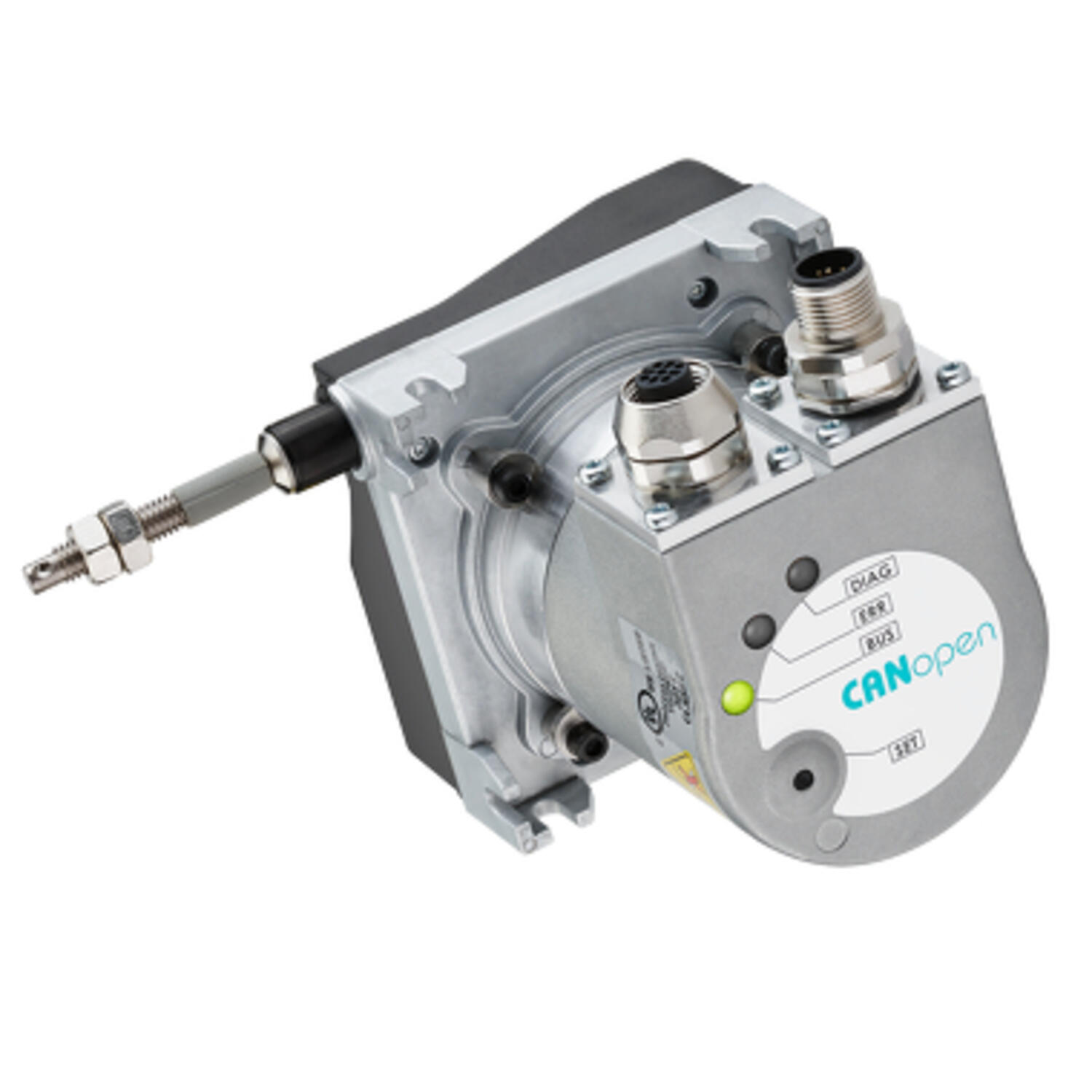

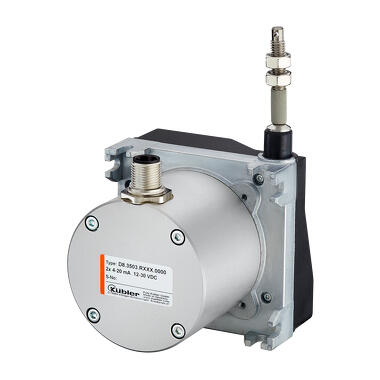

Draw-wire encoder series B75
The B75 draw-wire encoder can be used up to a measuring length of 3 meters.
These draw-wire mechanics may be combined with the proven Kübler Sendix encoders with incremental or absolute interface, as well as with analog sensors, which are also available in redundant version.
- Maximum linearity ±0,35%
- Working temperature -40°C to +85°C
- Protection level IP65
- Mechanical speed 0,8 m/s
Selected variant
Art:
Selected variant
Specifications
Downloads
Product description
The B75 draw-wire encoder can be used up to a measuring length of 3 meters.
These draw-wire mechanics may be combined with the proven Kübler Sendix encoders with incremental or absolute interface, as well as with analog sensors, which are also available in redundant version.
