KÜBLER
Kuebler - Absolute-coded Angular Transmitter Sendix 5868/5888, optical, CANopen, Ø58 mm
Sendix 5868/5888 is a multivariate fieldbus transmitter with profibus in robust design. Thanks to the construction of Safety-Lock ™ as well as the fully cast housing, the sensor is able to handle even the more demanding applications where there are high demands on the sensor. The wide temperature range combined with the high enclosure class allows the sensor to be used outdoors as well as applications where large temperature changes occur. Sendix 5868/5888 has LED indication which facilitates diagnosis of the sensor and a set button that facilitates calibration.
- Housing diameter Ø58 mm
- CANopen / CANopenLift
- High shock resistance
- High enclosure class
Selected variant
Selected variant
Specifications
| Housing diametre | 58 |
|---|---|
| IP Class | IP65, IP67 |
| Resolution Envarv | 16 bit (default: 13 bit) |
| Resolution More Yards | Max. 12 bit |
| Resolution Overall | 28 bit (default: 25 bit) |
| Shaft Diameter max | 10 |
| Shaft Diameter min | 6 |
| Supply Voltage DC Max | 30 |
| Supply Voltage DC Min | 10 |
| Temperature range from | -40 |
| Temperature range to | 80 |
Downloads
Product description
Sendix 5868/5888 is a multivariate fieldbus transmitter with profibus in robust design. Thanks to the construction of Safety-Lock ™ as well as the fully cast housing, the sensor is able to handle even the more demanding applications where there are high demands on the sensor. The wide temperature range combined with the high enclosure class allows the sensor to be used outdoors as well as applications where large temperature changes occur. Sendix 5868/5888 has LED indication which facilitates diagnosis of the sensor and a set button that facilitates calibration.

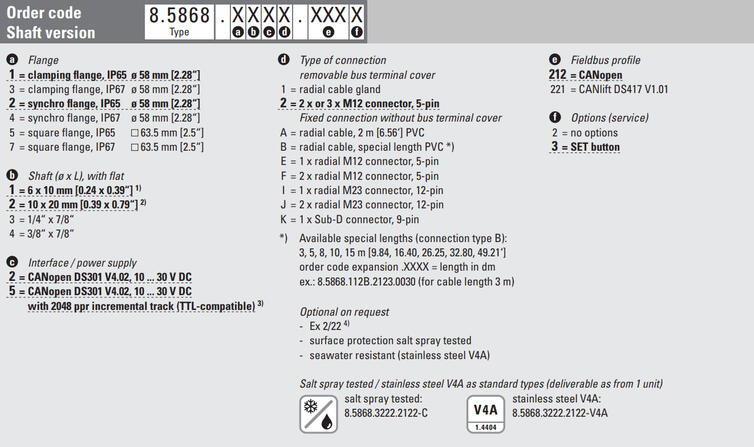

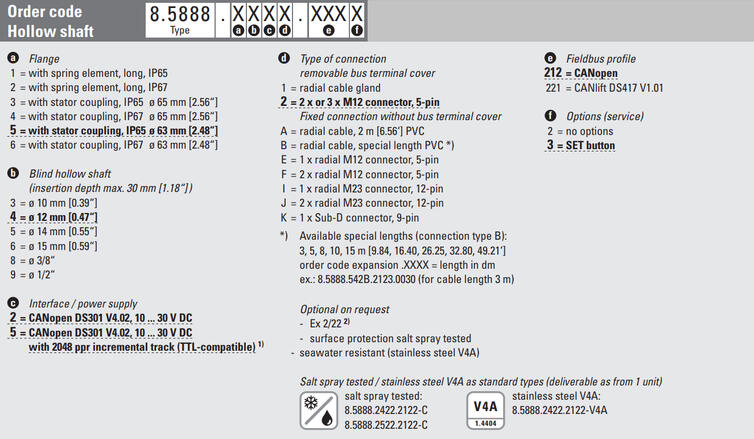

Ordering information
Please refer to the image below for ordering information.
