ASCO

ASCO - 356 Series Direct Operated

3/2 Valve Block

  • Normally closed/open or universal
  • Save space and installation time
  • Working pressure 0 bar to 10 bar
  • Block in brass or stainless

Selected variant

Avaible in several variants
ASCO_produktniva.tif

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Approvals CSA, UL
Connection Port 1-2 G1/8
Connection Port 3 M5
Differential Pressure Air Max 10
Differential Pressure Min 0
Differential Pressure Oil Max 10
Differential Pressure Water Max 10
Flow Factor / Flow Coefficient 0,08
Flow Max l/min Double 1.33
Function 3/2, Normally Closed
IP Class IP65
Material Body Brass
Material of seals FPM
Material Plunger Stainless steel
Material Short Call Copper
Materials Seat Brass
Materials Seat Seal FPM
Materials Spring Stainless steel
No. Valves 2
Power Consumption 4
Response Closing 5
Response From Stroke 10
Temperature range from -10
Temperature range of media from -10
Temperature range of media to 100
Temperature range to 60
Throughput 1.6
Weight 0.321
Viscosity Max 40
Voltage AC max 230

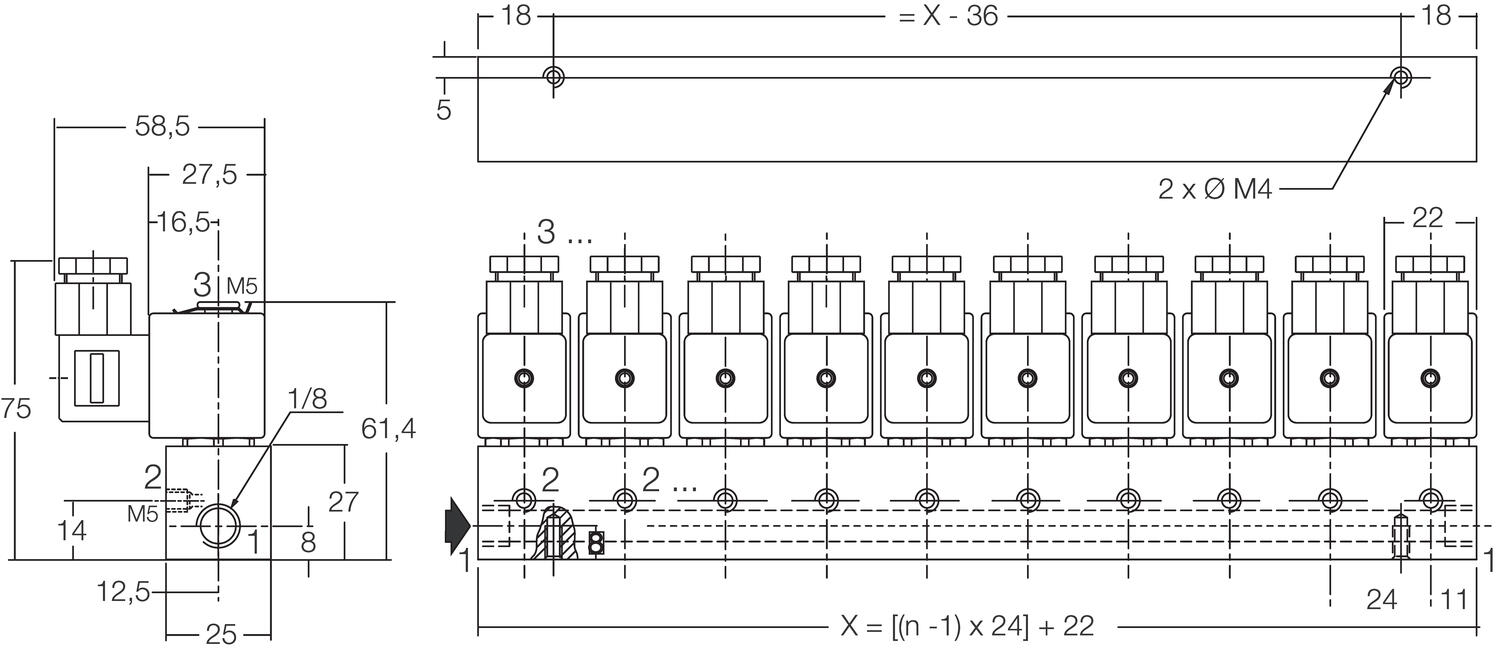

Measurements and connections

Accessories

My favourites Articles Differential Pressure Air Max Differential Pressure Min Differential Pressure Oil Max Differential Pressure Water Max Flow Factor / Flow Coefficient Flow Max l/min Double No. Valves Throughput Weight Price
356_manifold.tif
2 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A819V Copied
10
0
10
10
0,08
1.33
2
1.6
0.321
356_manifold.tif
3 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A820V Copied
10
0
10
10
0,08
1.33
3
1.6
0.426
356_manifold.tif
4 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A821V Copied
10
0
10
10
0,08
1.33
4
1.6
0.531
356_manifold.tif
5 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A822V Copied
10
0
10
10
0,08
1.33
5
1.6
0.636
356_manifold.tif
6 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A823V Copied
10
0
10
10
0,08
1.33
6
1.6
0.741
356_manifold.tif
7 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A824V Copied
10
0
10
10
0,08
1.33
7
1.6
0.846
356_manifold.tif
8 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A825V Copied
10
10
10
0,08
1.33
8
1.6
0.951
356_manifold.tif
9 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A826V Copied
10
10
10
0,08
1.33
9
1.6
1.056
356_manifold.tif
10 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A827V Copied
10
10
10
0,08
1.33
10
1.6
1.161
356_manifold.tif
2 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A855V Copied
4
0
4
4
0,13
2.16
2
2.4
0.321
356_manifold.tif
3 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A856V Copied
4
0
4
4
0,13
2.16
3
2.4
0.426
356_manifold.tif
4 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A857V Copied
4
0
4
4
0,13
2.16
4
2.4
0.531
356_manifold.tif
5 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A858V Copied
4
0
4
4
0,13
2.16
5
2.4
0.636
356_manifold.tif
6 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A859V Copied
4
0
4
4
0,13
2.16
6
2.4
0.741
356_manifold.tif
7 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A860V Copied
4
0
4
4
0,13
2.16
7
2.4
0.846
356_manifold.tif
8 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A861V Copied
4
0
4
4
0,13
2.16
8
2.4
0.951
356_manifold.tif
9 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A862V Copied
4
0
4
4
0,13
2.16
9
2.4
1.056
356_manifold.tif
10 valve manifold, N/C, 3/2, 1/8", 230VAC
Art:
SCG356A863V Copied
4
0
4
4
0,13
2.16
10
2.4
1.161
