JUNG PROCESS SYSTEMS
Jung HYGHSPIN series pump

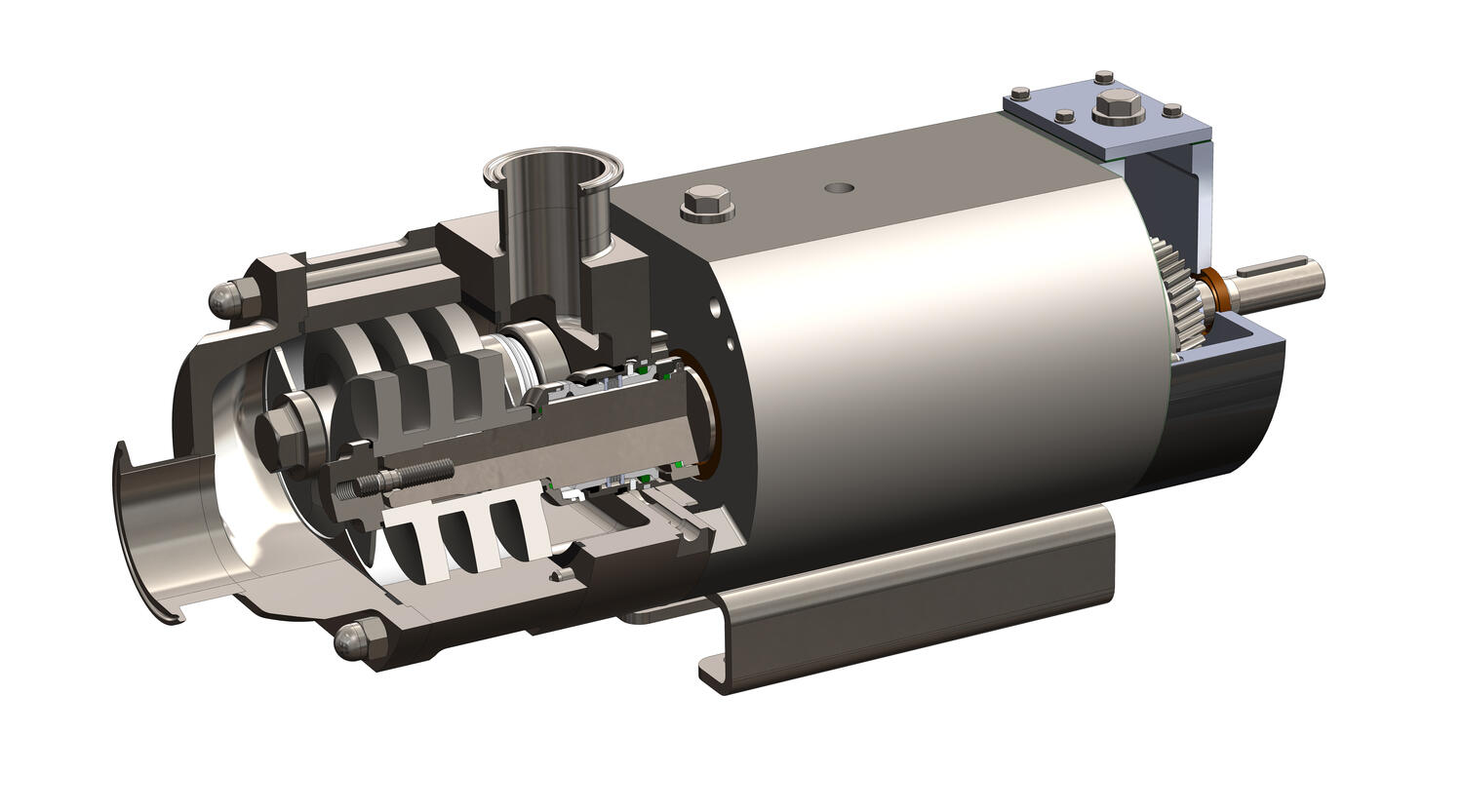

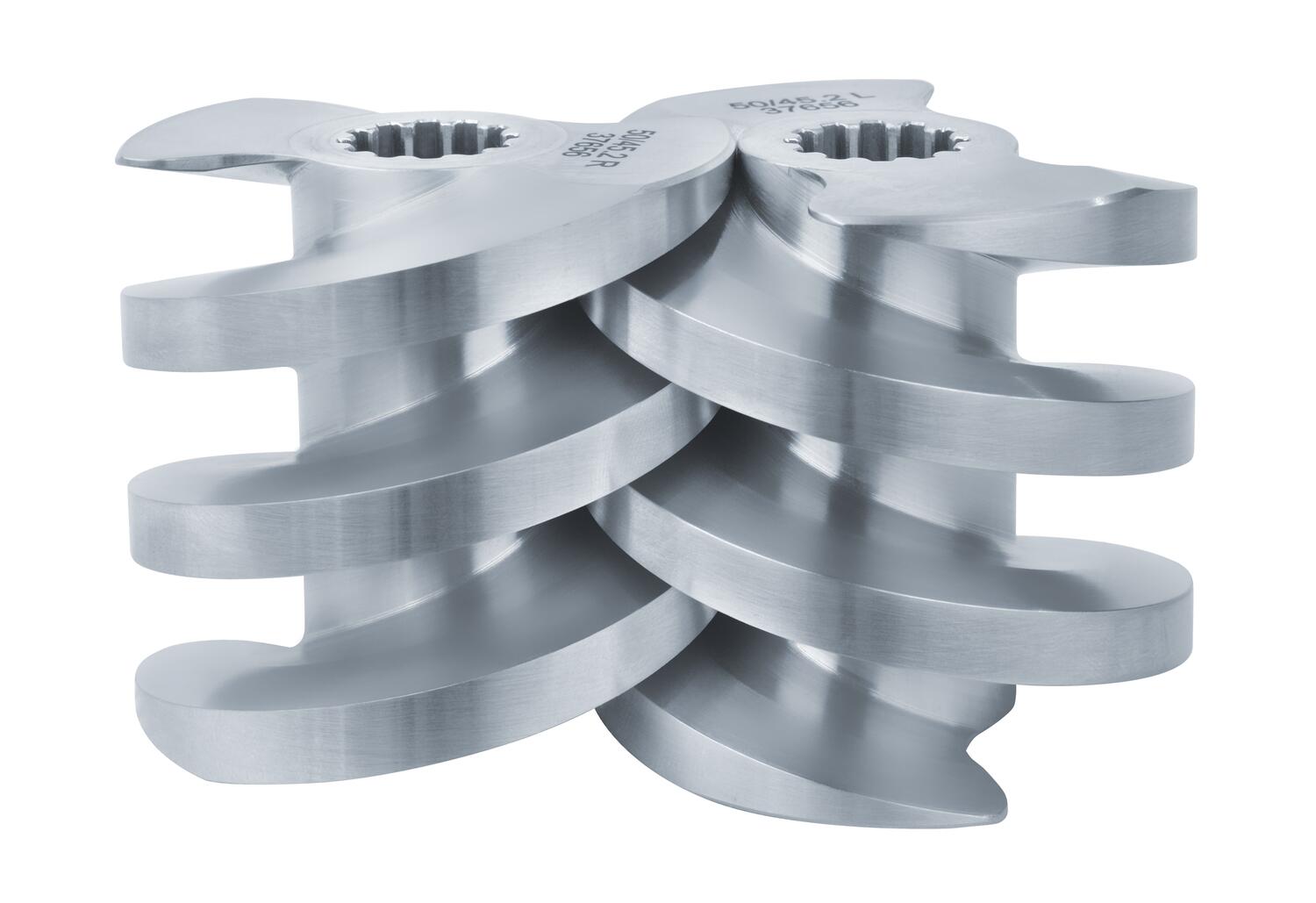

Hygienic twin scew pump
The HYGHSPIN is the Standard model from the worldwide tried and tested HYGHSPIN pump series made of high-quality stainless steel. Whether aqueous, highly viscous, lumpy, fibrous or gas loaded - the HYGHSPIN is suitable for products of virtually any consistency and is characterised by its high efficiency. The particularly service-friendly twin screw pump impresses with a very high suction power and gently transports all flow capable products in volumes of up to 300 m³/h. An additional pump for CIP cleaning is not necessary: A considerable time and cost saving due to reduced investment and maintenance costs is thereby guaranteed.
- Flow 30l/h to 300 m³/h
- Pressure up to 35 bar
- Viscosity up to 1,000,000 cSt
- Temperature -10°C to +130°C (180°C)
- Max. particle size 45mm
Selected variant
Selected variant
Specifications
| Connection | Different sizes and connector standards by arrangement |
|---|---|
| Differential Pressure | 20 bar |
| Flow max m3/h Double | 20 |
| Material of elastomers | EPDM, FPM, HNBR (Nitrile rubber), FFPM |
| Materials Wetted Parts | Stainless steel 316/316L (1.4401/1.4404), Stainless steel 1.4462, 1.4404, Stainless Steel 1.4539 |
| Maximum diameter of solid material | 16 |
| Pump orientation | Horizontal, vertical or lateral |
| Temperature range from | -10 |
| Temperature range to | 180 |
| Viscosity | 0.5 - 1,000,000 mPas |
Product description
The HYGHSPIN is the Standard model from the worldwide tried and tested HYGHSPIN pump series made of high-quality stainless steel. Whether aqueous, highly viscous, lumpy, fibrous or gas loaded - the HYGHSPIN is suitable for products of virtually any consistency and is characterised by its high efficiency. The particularly service-friendly twin screw pump impresses with a very high suction power and gently transports all flow capable products in volumes of up to 300 m³/h. An additional pump for CIP cleaning is not necessary: A considerable time and cost saving due to reduced investment and maintenance costs is thereby guaranteed.
