APLISENS
Aplisens - PEM-1000 Series Flow Meter
Electromagnetic (Magflow)
The Aplisens PEM-1000 'Mag flow meter' is a very robust flowmeter for a wide range of applications at a competitive price.
The magnetic flowmeter is for bidirectional measurement of liquids with a minimum conductivity 5μS/cm such as acid/alkalis, paints, pastes and water/wastewater.

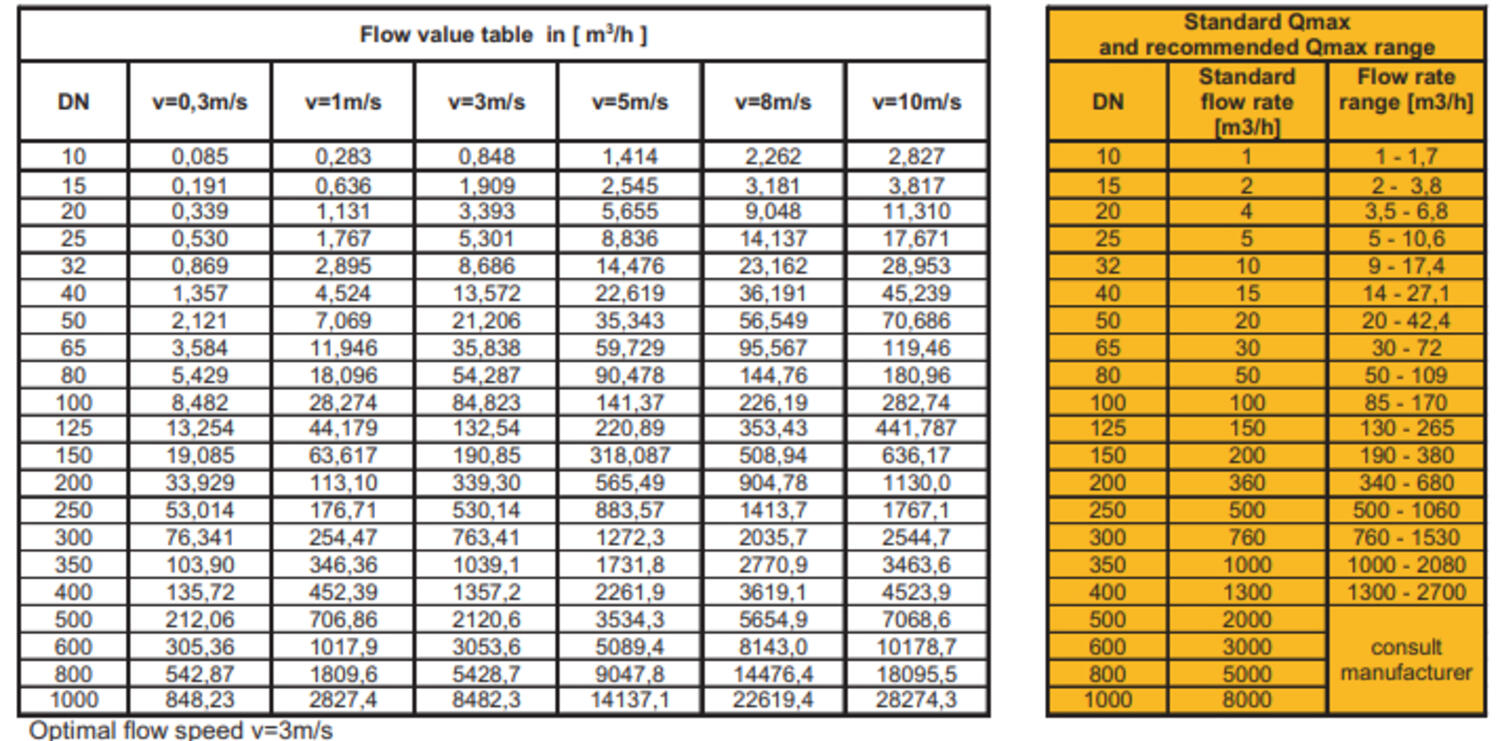

The PEM-1000 is available in two versions, one with a direct mounted display/sensor and the other with a separate display/sensor.The pipe size starts at 3/8" (DN10) which gives 1m3/h all the way up to 40" (DN1000) which offers 8000m3/h with a total of twenty one different pipe size/m3/h options inbetween. There is a choice of lining from soft or hard rubber to teflon and a choice of elctrode materials which are 316Ti, Platinium Hastelloy, Tantalum and Titanium.
Application examples:
- Utility, water and wastewater processing
- 0,085..28,274,3 m3/h
- 3/8" up to 40" pipe size
- 1,6 MPa
- Acids, alkalis, paints, pastes, water etc
- 4-20mA or Pulse/frequency
Selected variant
Art:
Selected variant
Specifications
| Approvals | CE |
|---|---|
| Classification accuracy | ± 0.5% of scale value according to EN837-1 |
| Connection Thread | DN50 PN16 |
| IP Class | IP67 |
| Material of body | Carbon steel |
| Materials Wetted Parts | PTFE |
| Mounting | Flange |
| Operating Voltage AC Max | 260 |
| Operating Voltage AC Min | 90 |
|---|---|
| Signal type | 4-20 mA |
| Temperature ambient from | -20 |
| Temperature ambient to | 60 |
| Temperature range of media from | -25 |
| Temperature range of media to | 130 |
| Trykmodstand max | 16 |
Product description
The Aplisens PEM-1000 'Mag flow meter' is a very robust flowmeter for a wide range of applications at a competitive price.
The magnetic flowmeter is for bidirectional measurement of liquids with a minimum conductivity 5μS/cm such as acid/alkalis, paints, pastes and water/wastewater.

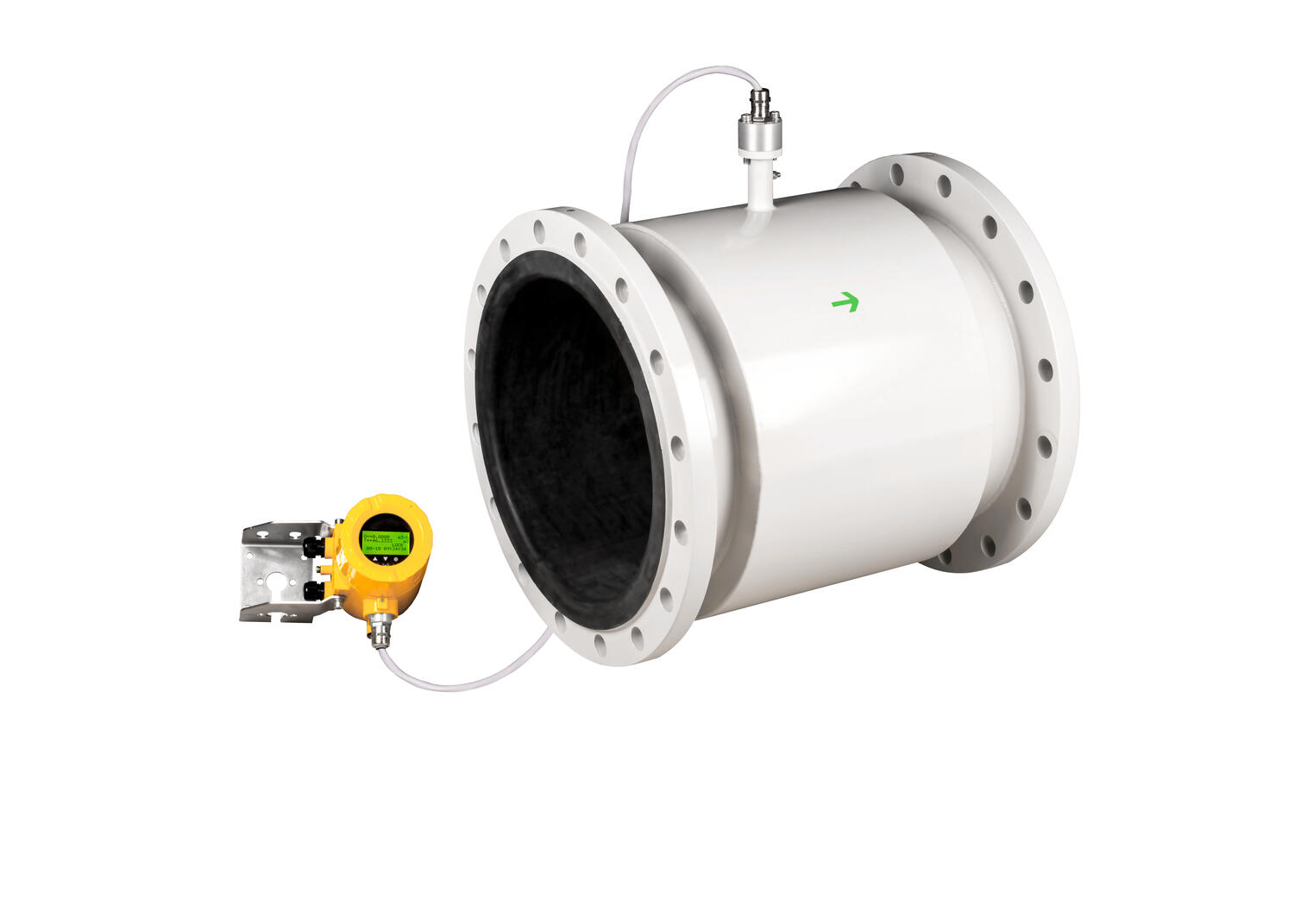

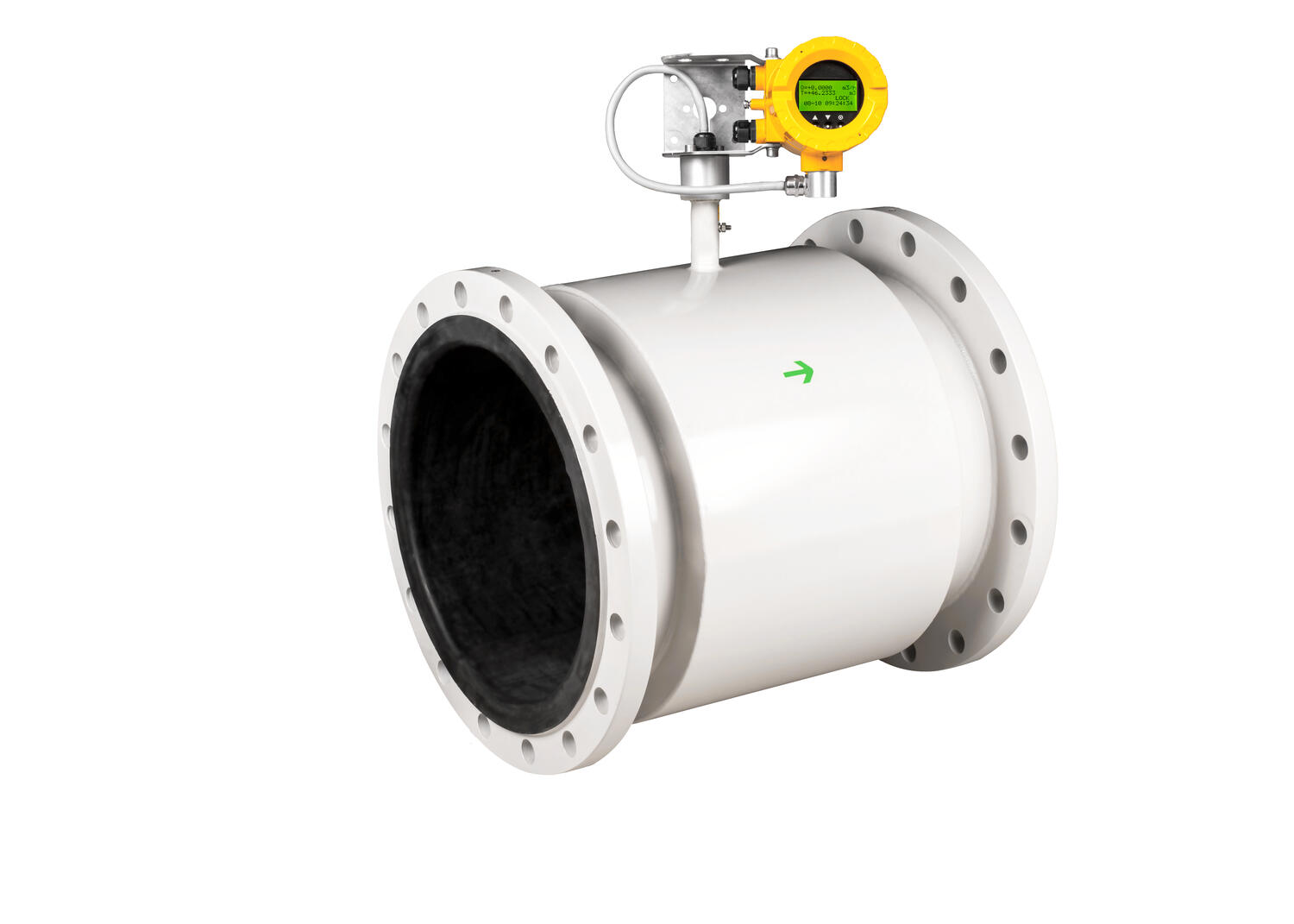

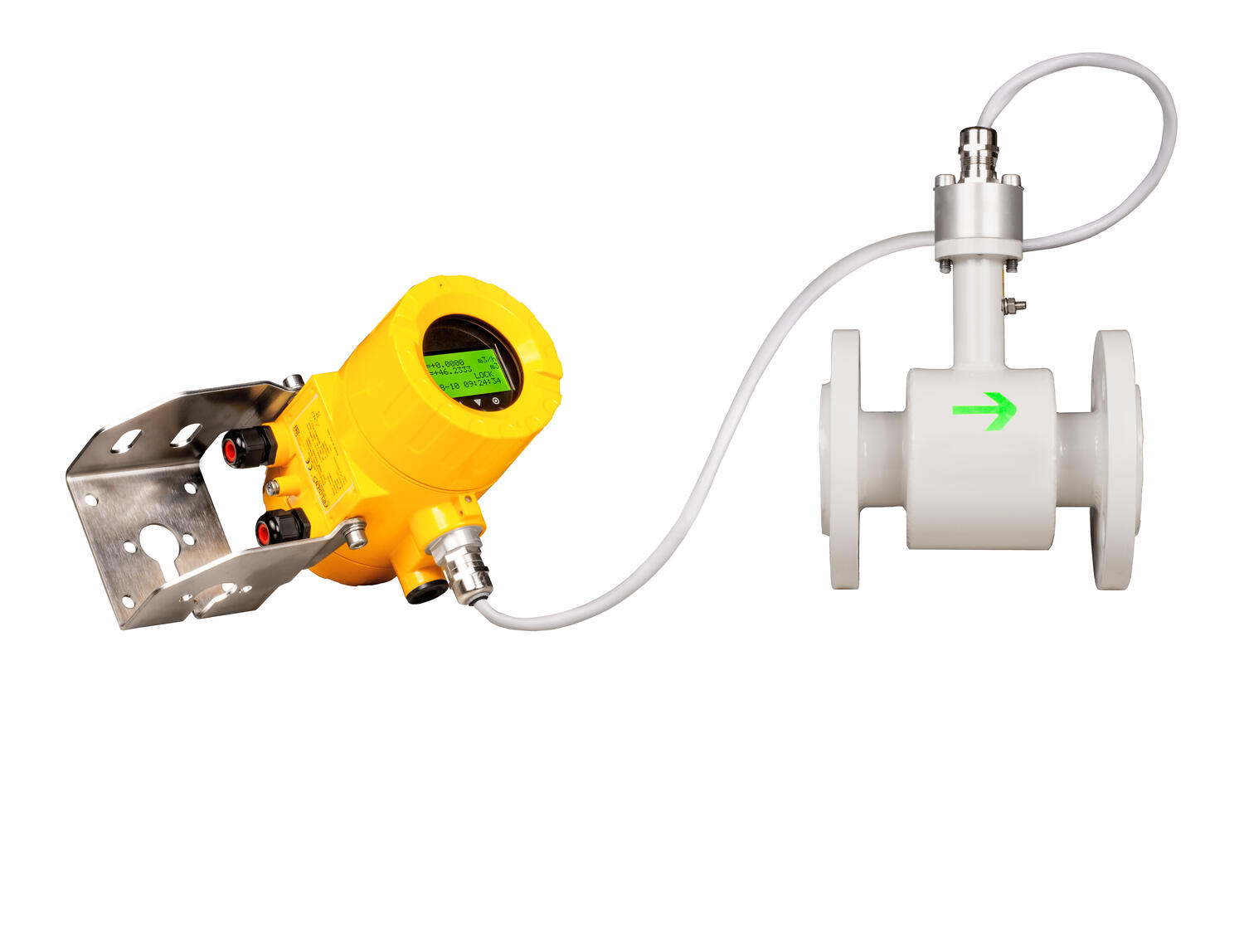

The PEM-1000 is available in two versions, one with a direct mounted display/sensor and the other with a separate display/sensor.The pipe size starts at 3/8" (DN10) which gives 1m3/h all the way up to 40" (DN1000) which offers 8000m3/h with a total of twenty one different pipe size/m3/h options inbetween. There is a choice of lining from soft or hard rubber to teflon and a choice of elctrode materials which are 316Ti, Platinium Hastelloy, Tantalum and Titanium.
Application examples:
- Utility, water and wastewater processing
Ordering information
Please refer to the datasheet further down the page under Downloads.
