STEGO
Door switch DS 013
DS 013
Door switch (DS013) monitors the position of cabinet doors, and is available in three versions, NC, NO, NC / NO.
For example, it can be used for switching a light on when a door is open (NC), or to activate a fan when the door is closed (NO).
- Adjustable positioning without tools
- High switching capacity (10A)
- Double strain relief
- Suitable for LED025 lamps
- N/O, N/C and change over options
Selected variant
DS013 Door Switch Change-over 110-240v ac
Art:
Selected variant
Specifications
| Approvals | CE, EAC, RoHS, VDE |
|---|---|
| Color | Grey, Black |

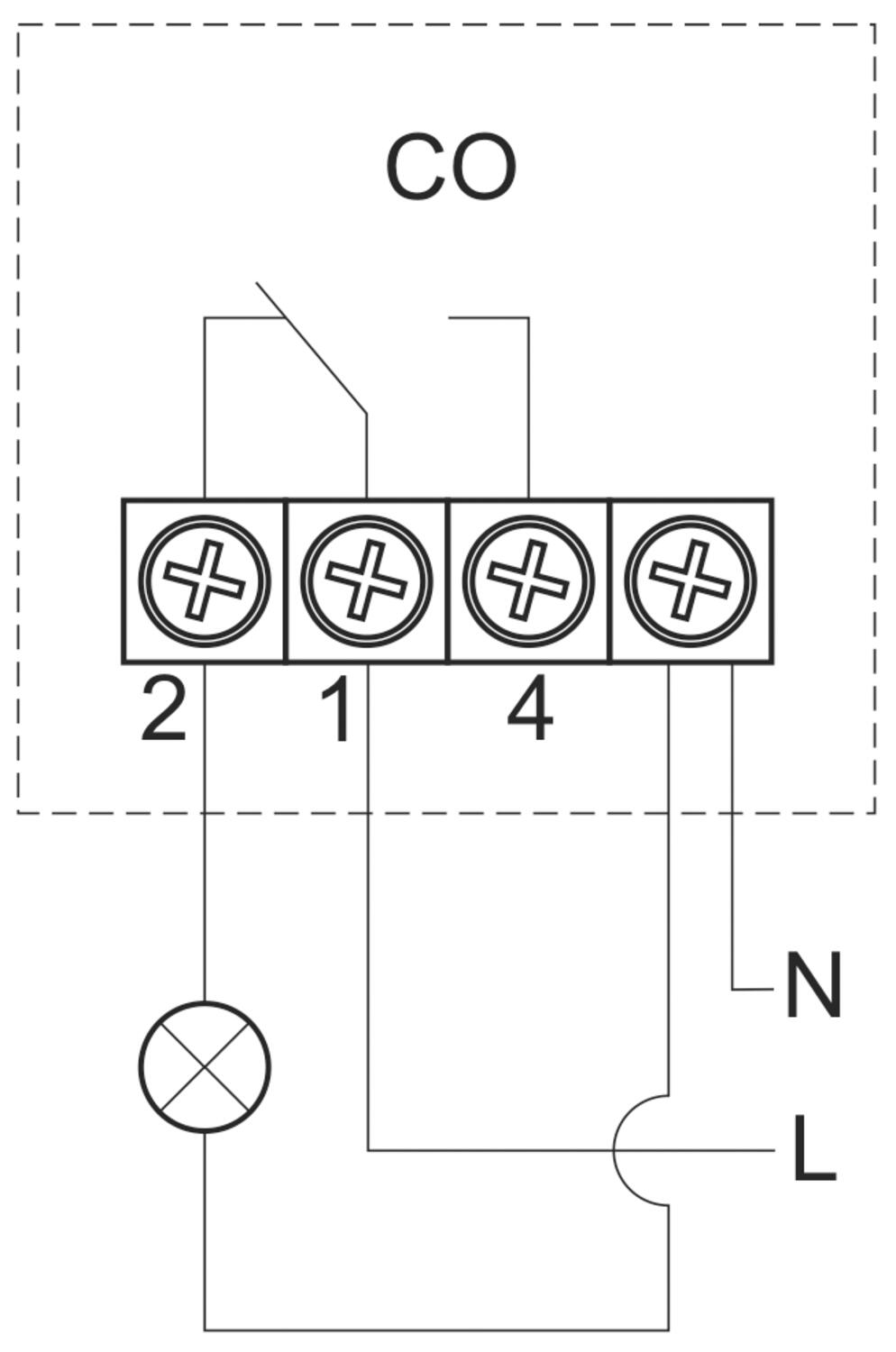

| Connection | 4-pole clamp |
| Flamklass | UL94-V0 |
| Height | 29.5 |
| Humidity Storage | <90% RH |
| IP Class | IP20 |
| Length | 87 |
| Life span | 10,000 cycles |
|---|---|
| Operating Humidity | < 90% RH |
| Operational Temperature | -20°C ... +85°C |
| Storage temperature | -20°C ... +85°C |
| Weight | 0.05 |
| Width | 64 |
Product description

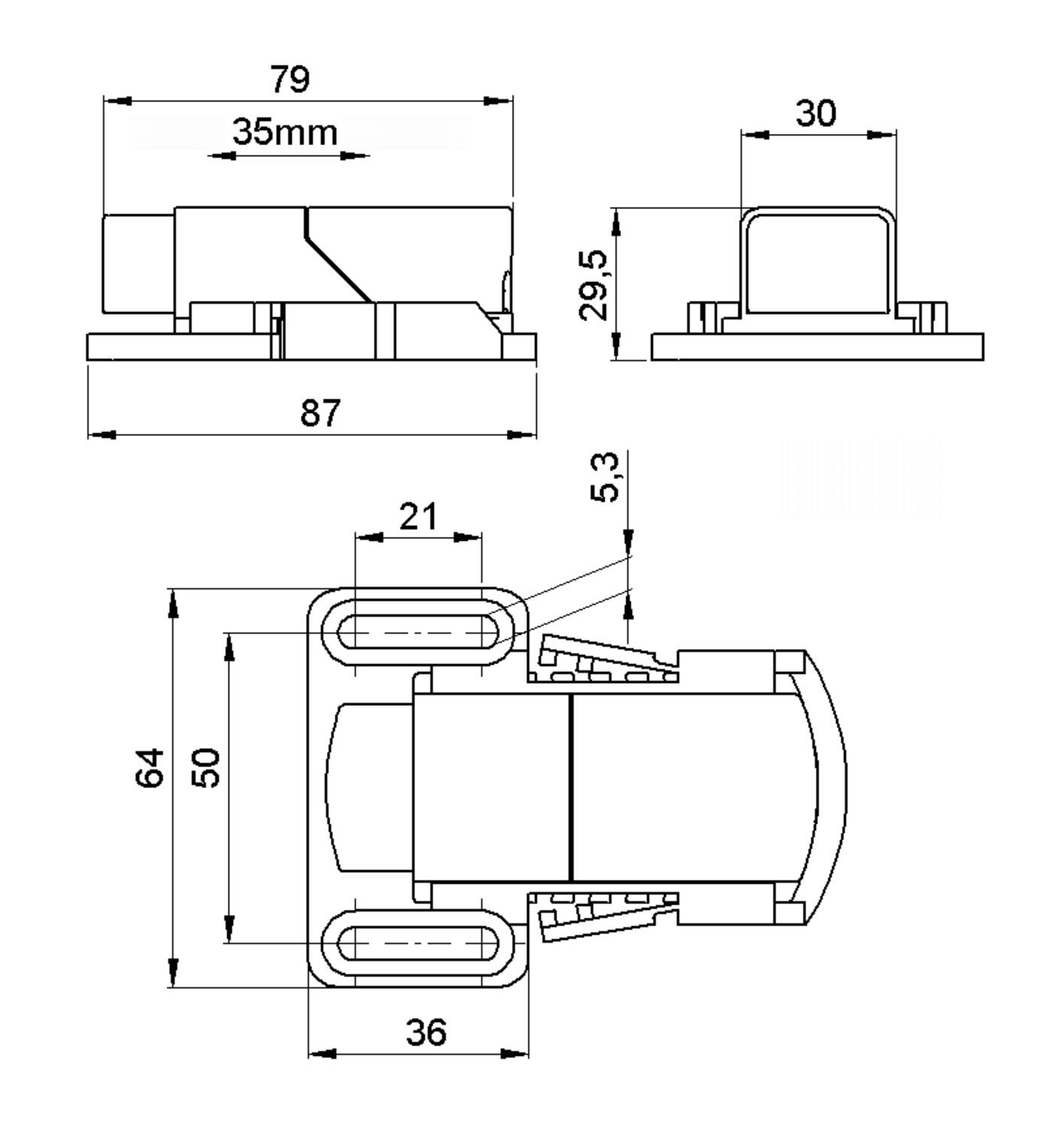

The wide adjustment range of mechanical door switch DS 013 offers versatile uses. The housing is adjustable within a range of 35 mm, while the screw flange with a slotted hole provides an additional 21 mm.
