Panel Door Switch

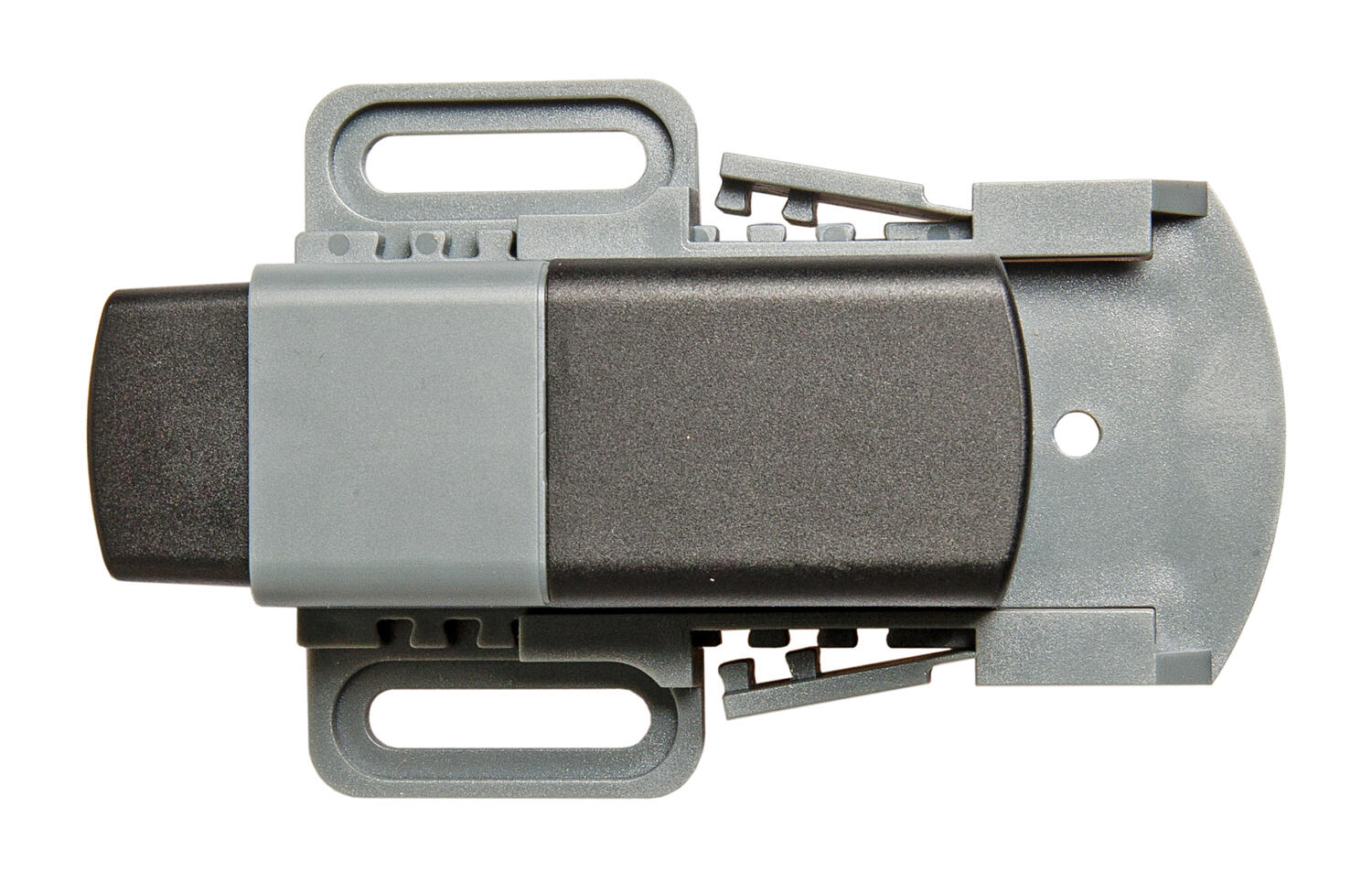

The 01350.0-00 is a single-pole double-throw (SPDT) Safety Interlock Switch monitors the position of cabinet doors. The version with change-over contact (CO) can be used as a normally closed and/or normally open contact. The wide mechanical adjustment range of the door switch DS 013 offers versatile application areas.
The housing is adjustable within a 35mm range, while the screw flange with a slotted hole offers an additional 21mm. The switching travel of the switch itself is another 8mm.
