IDEM - Non-contact RFID switches WPF

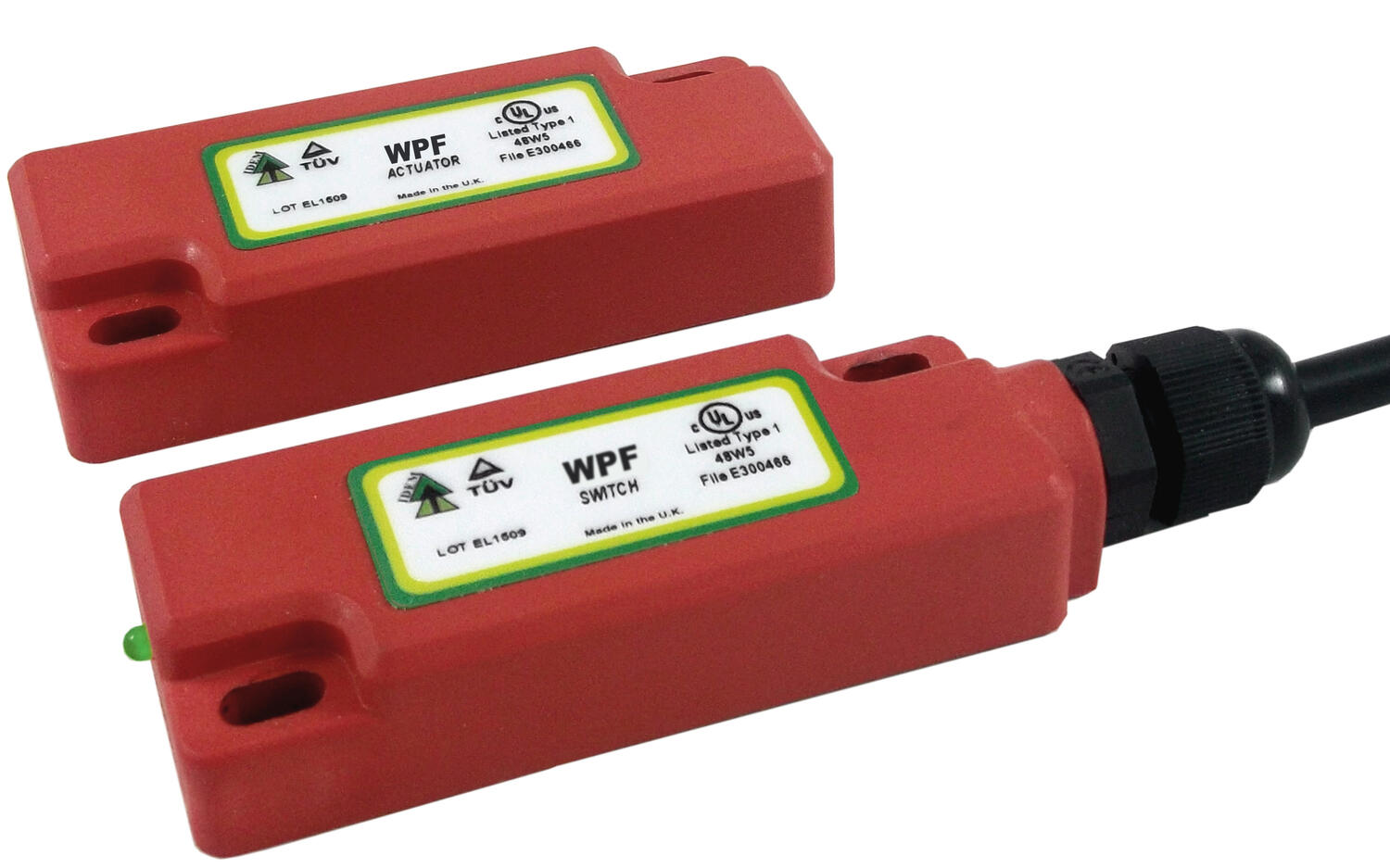

Non-contact switch WPF with RFID made of plastic (polyester) with high tolerance, which is suitable for all industrial applications. The switch has a robust housing with dimensions of 29 mm x 79 mm. WPF with RFID has IP69K protection.
The WPF switch with RFID has 2NC 1NO semiconductor outputs.
- Switching range - 14 mm
- RFID - coding
- No dedicated controller
- LED indicator

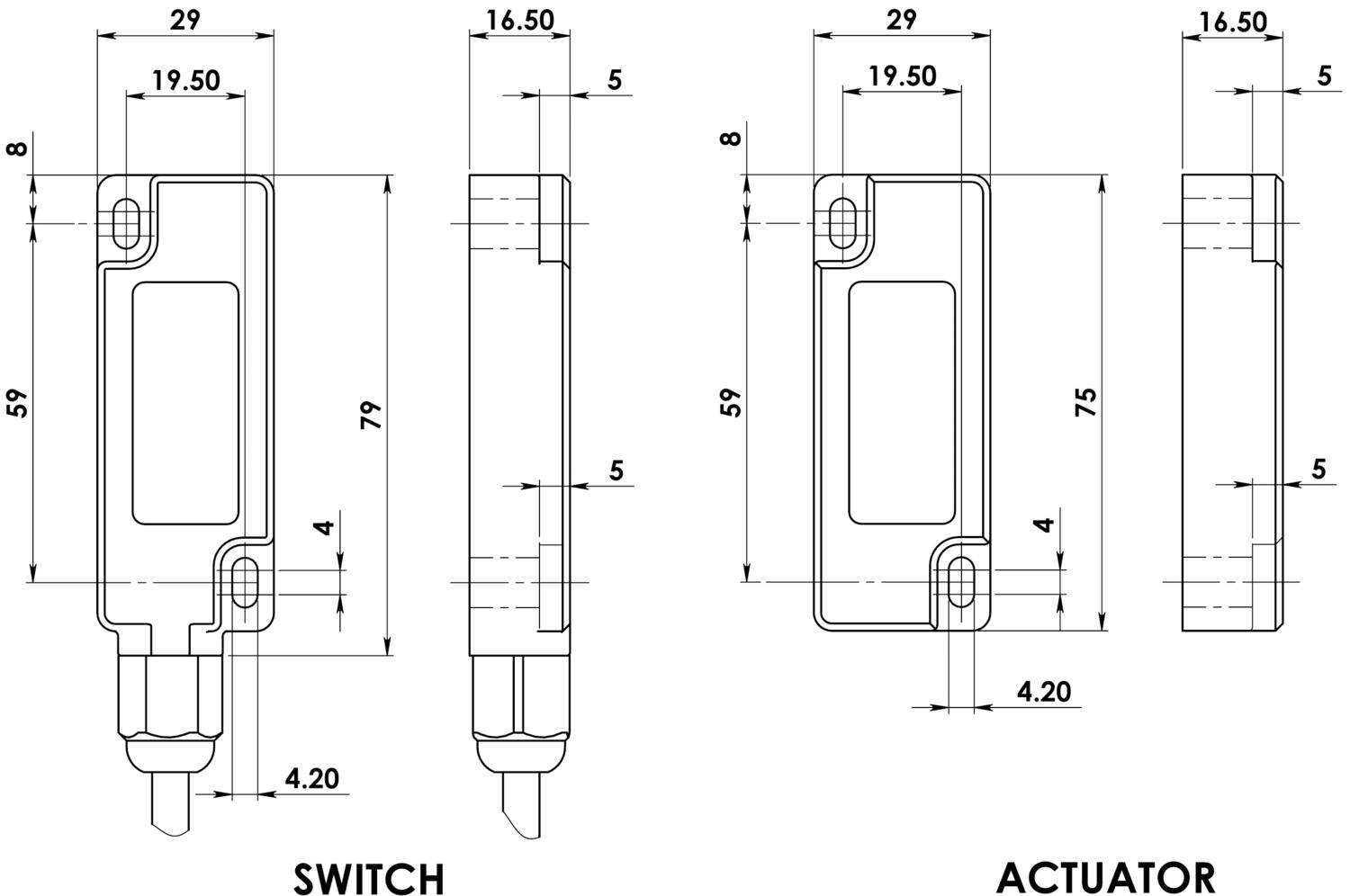

- Dimensions 29 mm x 79 mm
Selected variant
Selected variant
Specifications
| Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-3, UL 508 |
|---|---|
| Cable length | 5 m |
| Cable type | PVC 6 or 8 core 6mm OD conductors 0.25mm² |
| Coding | Uniquely coded |
| Conductor size | 0.25 |
| Contact rating max | 24Vdc 0.2A |
| Contact Type | 2NC 1NO contacts - high switching life - no moving parts |
| Contacts | 2NC 1NO |
| Integrated LED indication | Yes |
| IP Class | IP67, IP69K |
| Mechanical reliability B10d | No mechanical parts implemented |
| Mounting | 2 x M4 |
|---|---|
| MTTFd | 1100a |
| Operating temperature | -25°C ... +55°C |
| PL | e acc. ISO13849-1 |
| Recommended mounting gap | 5 |
| Safety category | 4 |
| SIL | 3 acc. IEC62061 |
| Switching current min | 10Vdc 1mA |
| Switching distance | Sao 8mm close, Sar 20mm open |
| Switching frequency max | 1.0Hz maximum |
Downloads
Product description
Non-contact switch WPF with RFID made of plastic (polyester) with high tolerance, which is suitable for all industrial applications. The switch has a robust housing with dimensions of 29 mm x 79 mm. WPF with RFID has IP69K protection.
The WPF switch with RFID has 2NC 1NO semiconductor outputs.
