Datalogic Matrix 220 Imager

The Matrix 220 compact barcode imager offers outstanding performace on standard and DPM codes in a compact and lightweight body. Offering higher performace than a MATRIX120 and still in a compact body the MATRIX220 is ideal for more demanding applications.

Superior performance is provided thanks to a new multi core image processing platform and high resolution 1.2MP sensor, embedded fieldbus and PoE capabilities it is an ideal choice for high speed scanning in compact applications.

The Matrix 220 is excellent for DPM and highly reflective surface scanning with its diffuse multi LED polarised version or it can be used with the standard white LEDs for easier to read applications.

As with all of the Matrix series its fully compatible with the easy to use DL.CODE software suite.

Also the MATRIX220 is uniquely designed to be placed on the end of a robot arm due to its size, performance on DPM codes and PoE capabilities.

1.2 MP resolution
Detects 1D and 2D code types
Up to 45 fps
Integrated communication via Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA

Selected variant

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Colour LED	White
Connection	M12 17P + ETH
Digital Inputs	2
Digital Outputs	3
Dimension (mm)	78 x 47 x 38
Distance Max	400
Distance Min	40
Frame Rate Max	45
Integrated Communication Interface	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA
IP Class	IP67, IP65
Multi Label Reading	Yes
Power Consumption	4.2

Programming Options	DL.CODE, Host Mode programming, X-PRESS
Sensor size	1/3"
Shutter type	Global
Supply voltage	10-30 V DC
Temperature range bearing, from	-20
Temperature range bearing, to	70
Temperature range from	-10
Temperature range to	50
Viewing angle	7mm
Weight	173

Downloads

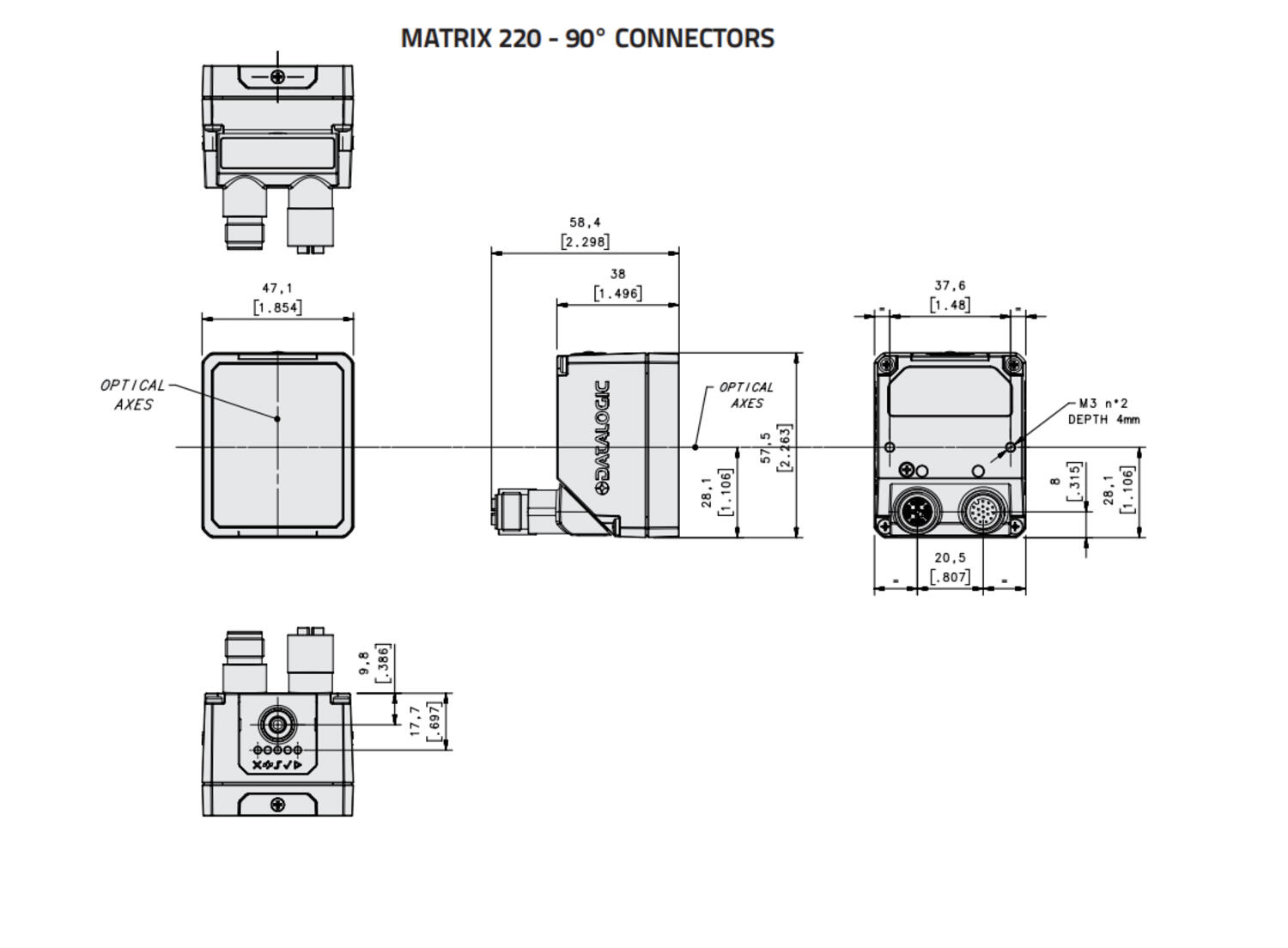

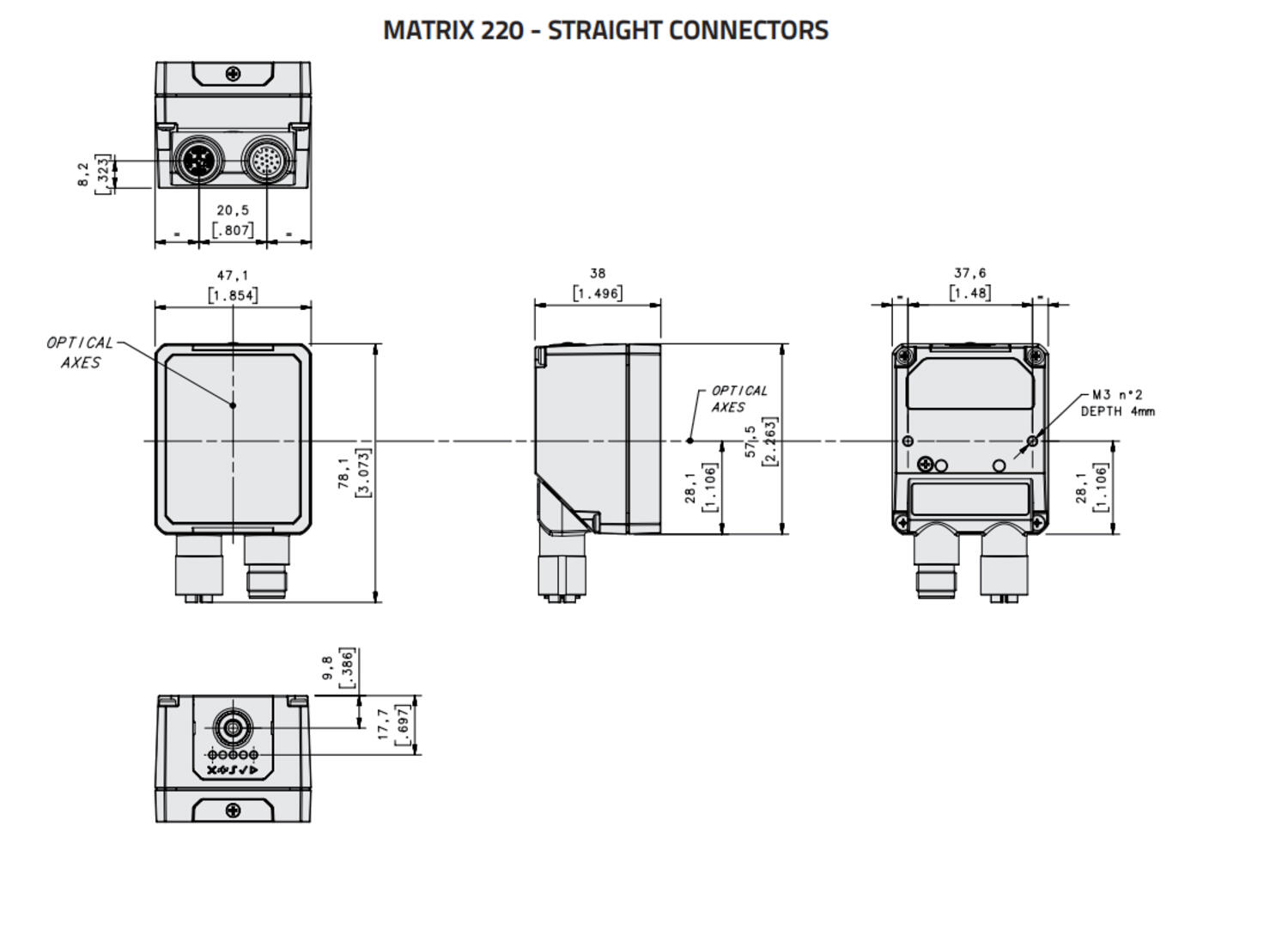

Measurements and connections

Product description

The Matrix 220 is excellent for DPM and highly reflective surface scanning with its diffuse multi LED polarised version or it can be used with the standard white LEDs for easier to read applications.

As with all of the Matrix series its fully compatible with the easy to use DL.CODE software suite.

Also the MATRIX220 is uniquely designed to be placed on the end of a robot arm due to its size, performance on DPM codes and PoE capabilities.

Accessories

Articles	Colour LED	Connection	Digital Inputs	Digital Outputs	Distance Max	Integrated Communication Interface	Power Consumption	Supply voltage	Temperature range from	Viewing angle
937900000, 1.2MP, White LED, 7mm Lens Art: MATRIX220352-010 Copied	White	M12 17P + ETH	2	3	400	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	7mm
937900001, 1.2MP, White LED, 12mm Lens Art: MATRIX220355-010 Copied	White	M12 17P + ETH	2	3	600	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	12mm
937900002, 1.2MP, White LED, 7mm Lens, PoE Art: MATRIX220352-040 Copied	White	M15 5P + ETH POE	1		400	Ethernet 10/100 Mbit/s PoE Mode A and Mode B: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial Aux RS-232, OPC UA	4.8	48 V DC	-10	7mm
937900003, 1.2MP, White LED, 12mm Lens, PoE Art: MATRIX220355-040 Copied	White	M15 5P + ETH POE	1		600	Ethernet 10/100 Mbit/s PoE Mode A and Mode B: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial Aux RS-232, OPC UA	4.8	48 V DC	-10	12mm
937900004, 1.2MP, DPM RED LED, 7mm Lens Art: MATRIX220382-010 Copied	Red	M12 17P + ETH	2	3	300	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	7mm
937900005, 1.2MP, DPM RED LED, 12mm Lens Art: MATRIX220385-010 Copied	Red	M12 17P + ETH	2	3	300	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	12mm
937900006, 1.2MP, DPM RED LED, 7mm Lens, PoE Art: MATRIX220382-040 Copied	Red	M15 5P + ETH POE	1		300	Ethernet 10/100 Mbit/s PoE Mode A and Mode B: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial Aux RS-232, OPC UA	4.8	48 V DC	-10	7mm
937900007, 1.2MP, DPM RED LED, 12mm Lens, PoE Art: MATRIX220385-040 Copied	Red	M15 5P + ETH POE	1		300	Ethernet 10/100 Mbit/s PoE Mode A and Mode B: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial Aux RS-232, OPC UA	4.8	48 V DC	-10	12mm
937900008, 1.2MP, High Power White LED, 12mm Lens Art: MATRIX220345-010 Copied	White	M12 17P + ETH	2	3	600	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	12mm
937900009, 1.2MP, High Power DPM RED LED, 12mm Lens Art: MATRIX220305-010 Copied	Red	M12 17P + ETH	2	3	600	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	12mm
937900010, 1.2MP, High Power DPM RED LED, 7mm Lens Art: MATRIX220302-010 Copied	Red	M12 17P + ETH	2	3	400	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	7mm
937900011, 1.2MP, DPM BLUE LED, 7mm Lens Art: MATRIX220392-010 Copied	Blue	M12 17P + ETH	2	3	300	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	7mm
937900012, 1.2MP, DPM BLUE LED, 12mm Lens Art: MATRIX220395-010 Copied	Blue	M12 17P + ETH	2	3	300	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	12mm
937900013, 1.2MP, DPM BLUE LED, 7mm Lens, POE Art: MATRIX220392-040 Copied	Blue	M15 5P + ETH POE	1		300	Ethernet 10/100 Mbit/s PoE Mode A and Mode B: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial Aux RS-232, OPC UA	4.8	48 V DC	-10	7mm
937900014, 1.2MP, DPM BLUE LED, 12mm Lens, POE Art: MATRIX220395-040 Copied	Blue	M15 5P + ETH POE	1		300	Ethernet 10/100 Mbit/s PoE Mode A and Mode B: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial Aux RS-232, OPC UA	4.8	48 V DC	-10	12mm
937900017, 1.2MP, High power red LED, 7mm lens, digimarc Art: MATRIX220322-01A Copied	Red	M12 17P + ETH	2	3	400	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	7mm
937900018, 1.2MP, High power red LED, 7mm lens, digimarc Art: MATRIX220325-01A Copied	Red	M12 17P + ETH	2	3	400	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	7mm
937900023, 1.2MP, High power UV, 7mm lens, anti UV filter Art: MATRIX2203U2-01U Copied	Ultraviolet	M12 17P + ETH	2	3	400	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	-10	7mm
937900034, 1.2MP, White LED, 7mm Lens, X Art: MATRIX220352-010X Copied	White	M12 17P + ETH	2	3	400	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	7mm
937900060, 1.2MP, White LED, 7mm Lens, XP Art: MATRIX220352-010XP Copied	White	M12 17P + ETH	2	3	400	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	7mm
937900035, 1.2MP, White LED, 12mm Lens, PoE, X Art: MATRIX220355-010X Copied	White	M12 17P + ETH	2	3	600	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	12mm
937900059, 1.2MP, White LED, 12mm Lens, PoE, XP Art: MATRIX220355-010XP Copied	White	M12 17P + ETH	2	3	600	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	12mm
937900036, 1.2MP, DPM RED LED, 7mm Lens, X Art: MATRIX220382-010X Copied	Red	M12 17P + ETH	2	3	300	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	7mm
937900058, 1.2MP, DPM RED LED, 7mm Lens, XP Art: MATRIX220382-010XP Copied	Red	M12 17P + ETH	2	3	300	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	7mm
937900037, 1.2MP, DPM RED LED, 12mm Lens, X Art: MATRIX220385-010X Copied	Red	M12 17P + ETH	2	3	300	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	12mm
937900057, 1.2MP, DPM RED LED, 12mm Lens, XP Art: MATRIX220385-010XP Copied	Red	M12 17P + ETH	2	3	300	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	12mm
937900038, 1.2MP, High Power White LED, 12mm Lens, X Art: MATRIX220345-010X Copied	White	M12 17P + ETH	2	3	600	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	12mm
937900039, 1.2MP, High Power DPM RED LED, 12mm Lens, X Art: MATRIX220305-010X Copied	Red	M12 17P + ETH	2	3	600	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	12mm
937900040, 1.2MP, High Power DPM RED LED, 7mm Lens, X Art: MATRIX220302-010X Copied	Red	M12 17P + ETH	2	3	400	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	7mm
937900041, 1.2MP, DPM BLUE LED, 7mm Lens, X Art: MATRIX220392-010X Copied	Blue	M12 17P + ETH	2	3	300	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	7mm
937900042, 1.2MP, DPM BLUE LED, 12mm Lens, X Art: MATRIX220395-010X Copied	Blue	M12 17P + ETH	2	3	300	Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA	4.2	10-30 V DC	0	12mm
