Molex - mPm DIN Form C Industrial / DIN Form C

IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the internal thread connector cable range. Conforms to EN 175301-803.

  • With or without LED and transient protection
  • Fibreglass-reinforced housing
  • Turnable insert
  • 9.4 mm or 8 mm contact distance EN175301-803 (DIN43650-C Industrial/-C)

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cable Diameter Max 6
Cable Diameter Min 4
Cable entry CVL PG7
Central Material Polyamide
Circuit No circuit
Color House Black
Colour LED No
Connector DIN C micro 94mm
Cross-Section Max 0.75
Current max 10
IP Class IP65
LED indicator No
Manufacturer Part No 1210230438
Number of poles 2 + earth
Packing Materials NBR
Rated voltage 250 V AC/300 V DC
Screw size M3x25
Temperature range from -40
Temperature range to 90

Downloads

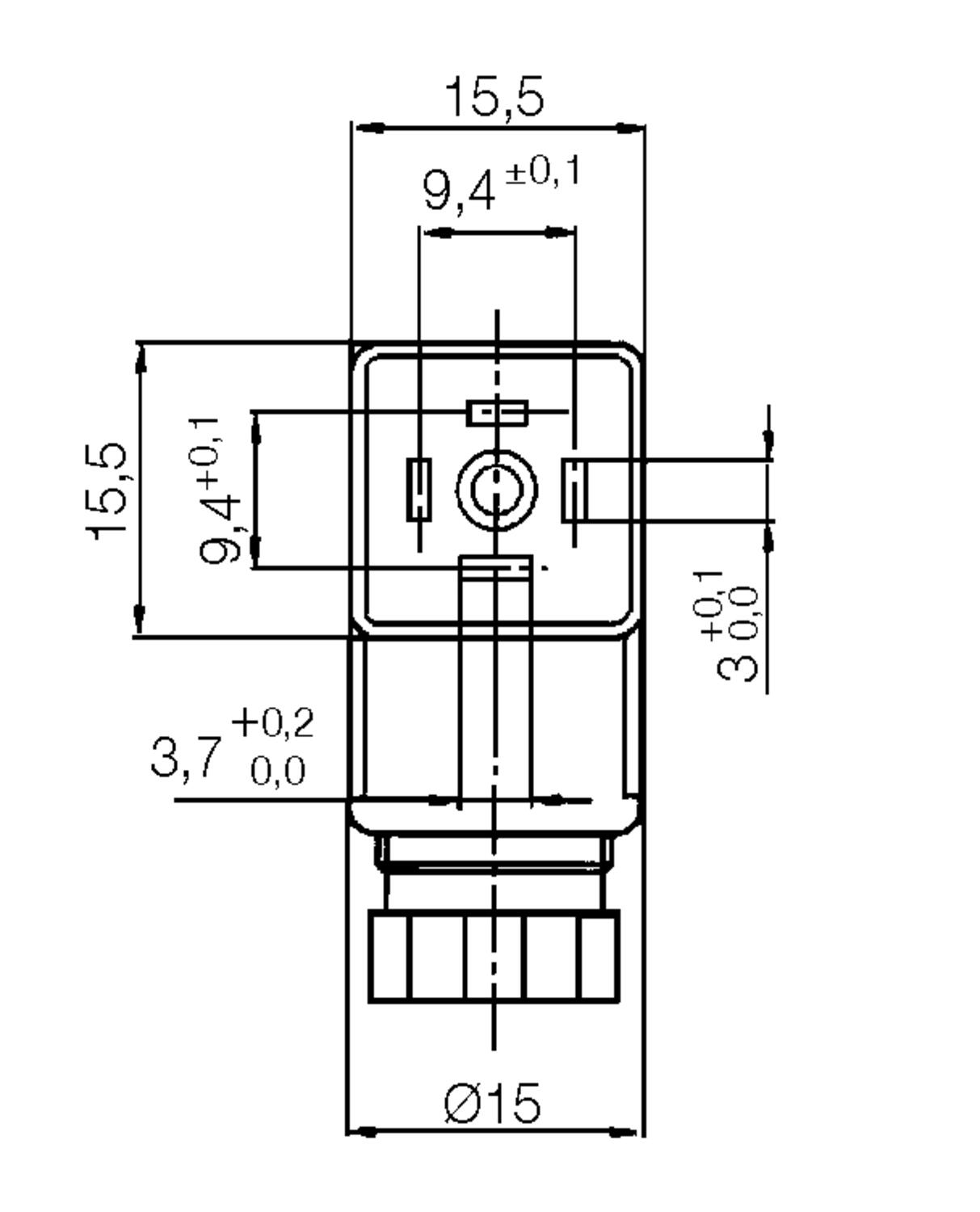

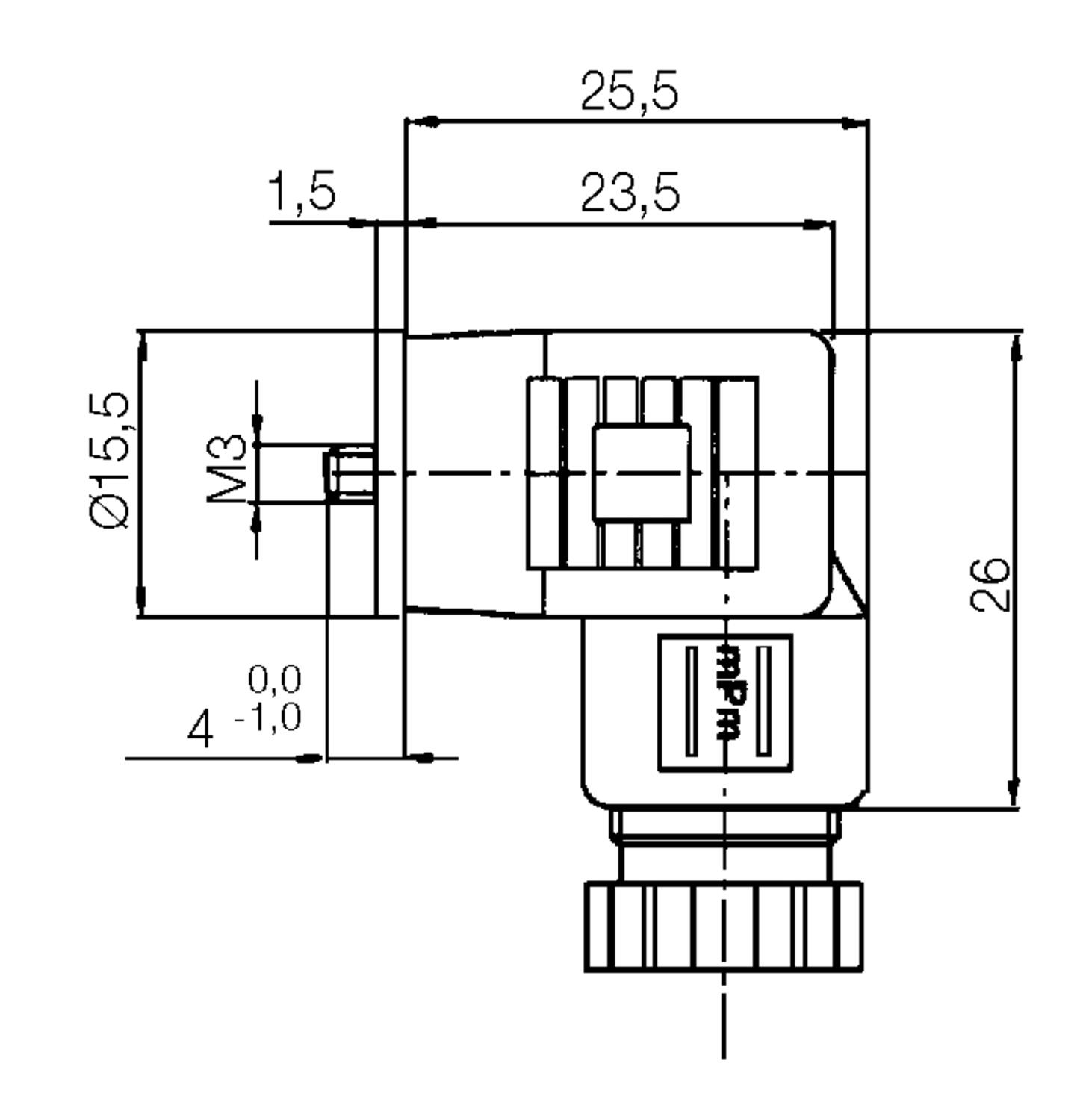

Measurements and connections

Product description

IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the internal thread connector cable range. Conforms to EN 175301-803.

Accessories

Related products

telehaase

Smarter Control Starts Here Explore the TELE Haase Range at Demesne

In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.

DEMESNE CROKEpark

Team Building and Strategy Day

A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.


We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.

Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.

Thanks to all involved and also to our amazing team for their hard work and dedication 💪

draw wire

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

klauke

Klauke Micro Allrounder & i-press Series: Smarter Crimping Starts Here

Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
OEM

Demesne Electrical Joins OEM International

We’re pleased to announce that, as of January 13th, 2022, Demesne Electrical has been acquired by OEM International, one of Europe’s leading technology trading groups. Headquartered in Sweden, OEM operates across 14 countries with 34 business units. The acquisition includes Demesne Electrical Sales Limited Ireland, and it’s important to note that there will be no changes to our day-to-day operations. This move strengthens our position in the market and opens the door to new opportunities as part of a larger international group.

PCE OVERLAY

Industrial Plugs and Sockets by PC Electric

PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.

My favourites Articles Cable Diameter Max Cable Diameter Min Cable entry CVL Central Material Circuit Color House Colour LED Connector Contact resistance Cross-Section Max Current max IP Class LED indicator Manufacturer Part No Number of poles Rated voltage Screw and Gasket Screw size Price
137375_555.tif
Form Micro, 2P+Earth, PG7, H6, Flat Gasket & Screw, Blk
Art:
19207N62 Copied
6
4
PG7
Polyamide
No circuit
Black
No
DIN C micro 94mm
0.75
10
IP65
No
1210230438
2 + earth
250 V AC/300 V DC
M3x25
137375_555.tif
Form Micro, 3P+Earth, PG7, H6, Flat NBR Gasket, Black
Art:
19307N62 Copied
6
4
PG7
Polyamide
No circuit
Black
No
DIN C micro 94mm
0.75
10
IP65
No
1210230467
3 + earth
250 V AC/300 V DC
M3x25
Form Micro, 3P+Earth, PG7, H6, flat NBR gasket, grey
Art:
19307G62 Copied
6
4
PG7
Polyamide
No circuit
Grey
No LED
≤15 mΩ
0.75
10
IP65
No
3 + earth
250 V AC/300 V DC
Flat NBR gasket & screw
Form Micro, 3P+Earth, Ext Thread, NBR Gasket, IP67, Black
Art:
29300N0T Copied
5.5
3
Polyamide
No circuit
Black
No
DIN C micro 94mm
0.75
10
IP67
No
1212050005
3 + earth
250 V AC/300 V DC

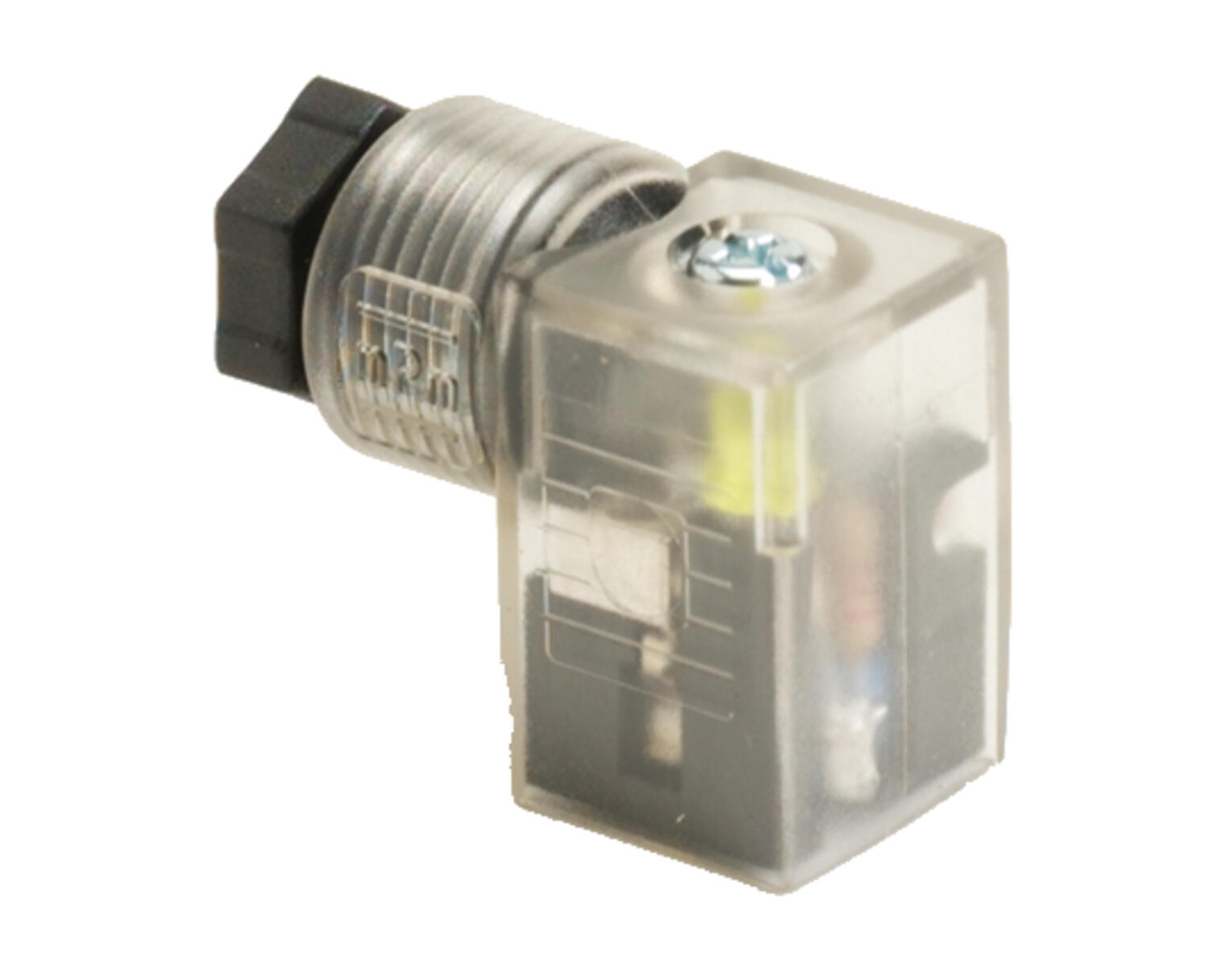

137374_555.tif
Form Micro, 2P+Earth, PG7, C4, 115V, Profile Gasket, Transparent
Art:
19207TC4L1 Copied
6
4
PG7
Polyamide
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
0.75
10
IP65
Yes
2 + earth
115 V AC/DC
Profile NBR gasket & screw
137374_555.tif
Form Micro, 2P+Earth, PG7, C4, 230V, Profile Gasket, Transparent
Art:
19207TC4M1 Copied
6
4
PG7
Polyamide
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
0.75
10
IP65
Yes
2 + earth
230 V AC/DC
Profile NBR gasket & screw
137374_555.tif
Form Micro, 2P+Earth, PG7, C3, 24V, Profile Gasket, transparent
Art:
19207TC3H1 Copied
6
4
PG7
Polyamide
C3: LED & diode
Transparent
Yellow
≤15 mΩ
0.75
10
IP65
Yes
2 + earth
24 V DC
Profile NBR gasket & screw
137374_555.tif
Form Micro, 2P+Earth, PG7, C4, 48V, Profile Gasket, Transparent
Art:
19207TC4K1 Copied
6
4
PG9
Polyamide
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
1.5
16
IP65
Yes
2 + earth
48 V AC/DC
Profile NBR gasket & screw
137374_555.tif
Form Micro, 2P+Earth, PG7, C4, 24V, Profile Gasket, Transparent
Art:
19207TC4H1 Copied
6
4
PG9
Polyamide
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
1.5
16
IP65
Yes
2 + earth
24 V AC/DC
Profile NBR gasket & screw
Form C, 2P+Earth, Ext Thread, Profile Gasket & Screw IP67
Art:
25200N0T Copied
5.5
3
Polyamide
No circuit
Black
No
DIN C 8mm
0.75
10
IP67
No
1212040001
2 + earth
250 V AC/300 V DC
137375_555.tif
Form C, 2P+Earth, PG7, H6, Flat NBR gasket, black
Art:
05207N62 Copied
6
4
PG7
Polypropylene
No circuit
Black
No LED
≤15 mΩ
0.75
10
IP65
No
121023-0085
2 + earth
250 V AC/300 V DC
Flat NBR gasket & screw
137375_555.tif
Form C, 3P+earth, PG7, H6, flat NBR gasket, Black
Art:
05307N62 Copied
6
4
PG7
Polyamide
No circuit
Black
No LED
≤15 mΩ
0.75
10
IP65
No
121023-0094
3 + earth
250 V AC/300 V DC
Flat NBR gasket & screw
Form C, 3P+Earth, PG7, H6, Flat NBR gasket, Grey
Art:
05307G62 Copied
6
4
PG7
Polyamide
No circuit
Grey
No LED
≤15 mΩ
0.75
10
IP65
No
3 + earth
250 V AC/300 V DC
Flat NBR gasket & screw
137375_555.tif
Form C, 2P+Earth, PG7, H6, Flat NBR gasket, Black
Art:
05207W62SA Copied
6
4
M16x1,5
Polyamide
No circuit
Black
No LED
≤15 mΩ
0.75
10
IP65
No
2 + earth
250 V AC/300 V DC
Flat NBR gasket & screw
137374_555.tif
Form C, 2P+Earth, PG7, C3, 24V, Profile gasket, Transparent
Art:
05207TC3H1 Copied
6
4
PG7
Polyamide
C3: LED & diode
Transparent
Yellow
≤15 mΩ
0.75
10
IP65
Yes
2 + earth
24 V DC
Profile NBR gasket & screw
137374_555.tif
Form C, 2P+Earth, PG7, C4, 24V, Profile gasket, Transparent
Art:
05207TC421 Copied
6
4
PG7
Polyamide
C4: LED & varistor
Transparent
Red
DIN C 8mm
0.75
10
IP65
Yes
1210640167
2 + earth
24 V AC/DC
Form C, 2P+Earth, Ext Thread, C4, 230V, Profile Gasket
Art:
25200TC4M0T Copied
5.5
3
Polyamide
C4: LED & varistor
Transparent
Yellow
DIN C 8mm
0.75
10
IP67
Yes
1212100045
2 + earth
230 V AC/DC
137374_555.tif
Form C, 2P+Earth, PG7, C4, 48V, Profile gasket, Transparent
Art:
05207TC4K1 Copied
6
4
PG7
Polyamide
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
0.75
10
IP65
Yes
2 + earth
48 V AC/DC
Profile NBR gasket & screw
137374_555.tif
Form C, 2P+Earth, PG7, C4, 115V, profile gasket, transparent
Art:
05207TC4L1 Copied
6
4
PG7
Polyamide
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
0.75
10
IP65
Yes
2 + earth
115 V AC/DC
Profile NBR gasket & screw
137374_555.tif
Form C, 2P+Earth, PG7, C4, 230V, Profile gasket, transparent
Art:
05207TC4M1 Copied
6
4
PG7
Polyamide
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
0.75
10
IP65
Yes
2 + earth
230 V AC/DC
Profile NBR gasket & screw
