Molex - mPm DIN Form B Industrial / DIN Form B

IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the PG9 and PG11 internal thread connector cable range. Conforms to EN 175301-803.

  • With or without LED and transient protection
  • Fibreglass-reinforced housing
  • Turnable insert
  • 11 mm or 10 mm connector distance EN175301-803 (DIN43650-B Industrial/-B)

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cable Diameter Max 9
Cable Diameter Min 4
Central Material Polyamide
Circuit No circuit
Color House Black
Colour LED No LED
Cross-Section Max 1.5
Current max 16
IP Class IP67
LED indicator No
Manufacturer Part No 1212020001
Number of poles 2 + earth
Packing Materials NBR
Rated voltage 250 V AC/300 V DC
Screw and Gasket Integrated NBR Gasket & IP67 screw
Temperature range from -40
Temperature range to 90

Downloads

Measurements and connections

Technical illustrations

Product description

IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the PG9 and PG11 internal thread connector cable range. Conforms to EN 175301-803.

Accessories

Related products

telehaase

Smarter Control Starts Here Explore the TELE Haase Range at Demesne

In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.

DEMESNE CROKEpark

Team Building and Strategy Day

A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.


We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.

Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.

Thanks to all involved and also to our amazing team for their hard work and dedication 💪

draw wire

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

klauke

Klauke Micro Allrounder & i-press Series: Smarter Crimping Starts Here

Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
OEM

Demesne Electrical Joins OEM International

We’re pleased to announce that, as of January 13th, 2022, Demesne Electrical has been acquired by OEM International, one of Europe’s leading technology trading groups. Headquartered in Sweden, OEM operates across 14 countries with 34 business units. The acquisition includes Demesne Electrical Sales Limited Ireland, and it’s important to note that there will be no changes to our day-to-day operations. This move strengthens our position in the market and opens the door to new opportunities as part of a larger international group.

PCE OVERLAY

Industrial Plugs and Sockets by PC Electric

PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.

My favourites Articles Cable Diameter Max Cable Diameter Min Cable entry CVL Circuit Color House Colour LED Contact resistance IP Class LED indicator Manufacturer Part No Rated voltage Screw and Gasket Price

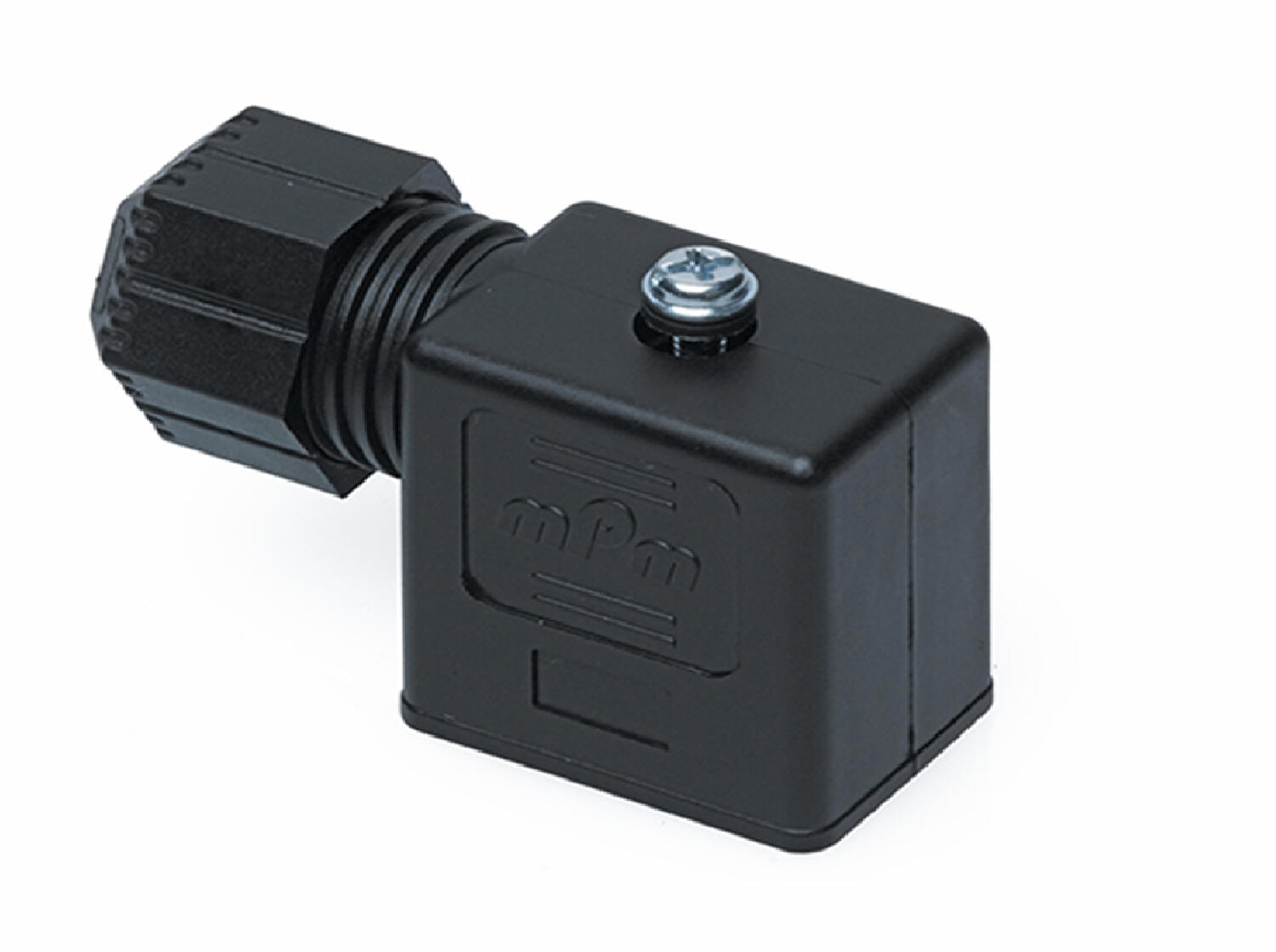

DIN B.2.png
Form Industrial, 2P+Earth, Ext Thread, NBR Gask, IP67, Black
Art:
C22200N0R Copied
9
4
No circuit
Black
No LED
IP67
No
1212020001
250 V AC/300 V DC
Integrated NBR Gasket & IP67 screw
DIN B.2.png
Form Industrial, 2P+Earth, Ext Thread, NBR Gask, IP67, Black
Art:
22200N0R Copied
9
4
No circuit
Black
No LED
≤15 mΩ
IP67
No
1212020001
250 V AC/300 V DC
Integrated NBR Gasket & IP67 screw

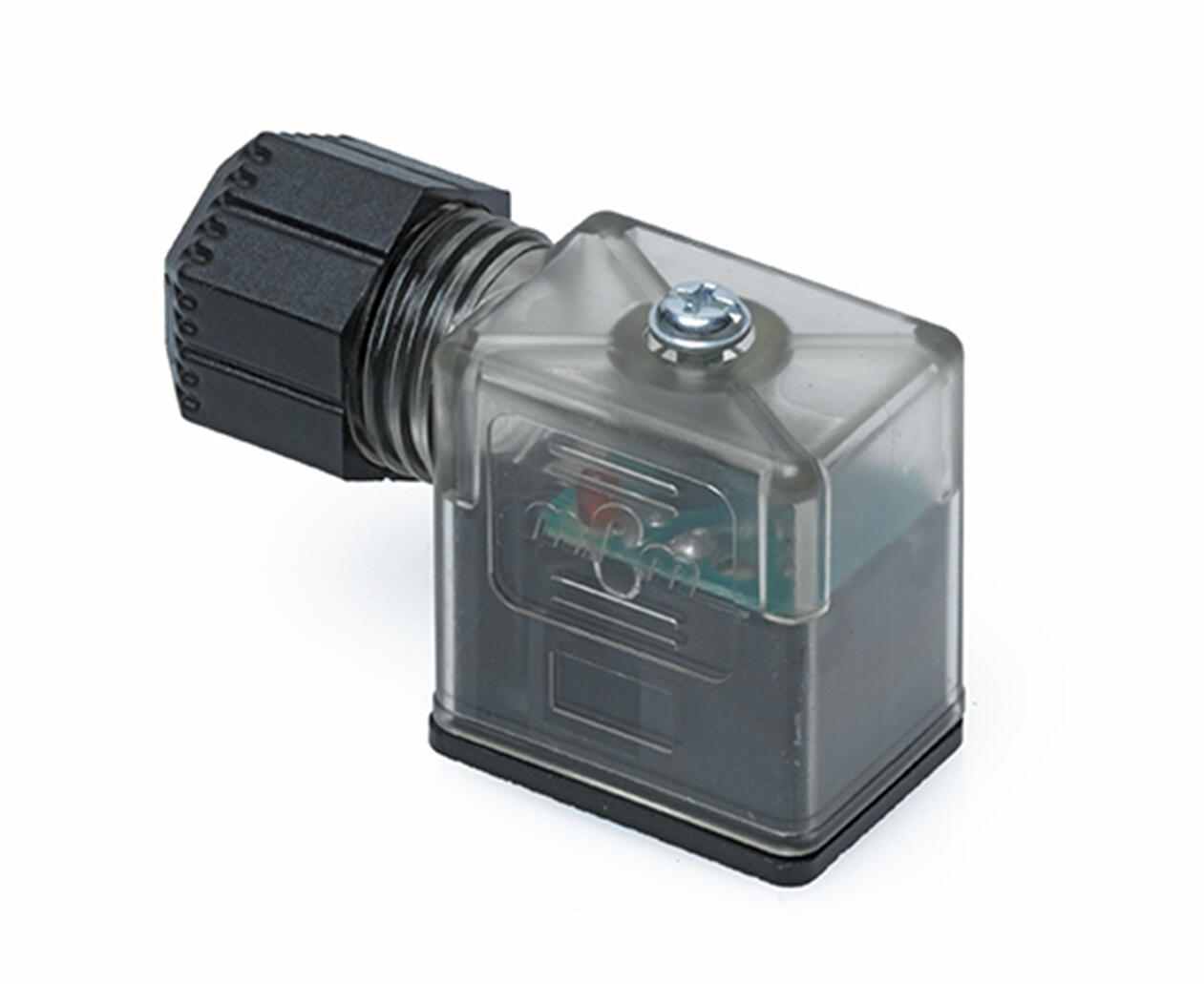

dinb krets 2.png
Form Industrial, 2P+Earth, Ext Thread, C3, 24V, IP67, Red
Art:
22200TC320R Copied
9
4
C3: LED & diode
Transparent
Red
≤15 mΩ
IP67
Yes
1212080055
24 V DC
Integrated NBR Gasket & IP67 screw
dinb krets 2.png
Form Industrial, 2P+Earth, Ext Thread, C4, 24V, IP67, Yell
Art:
22200TC4H0R Copied
9
4
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
IP67
Yes
1212080080
24 V AC/DC
Integrated NBR Gasket & IP67 screw
dinb krets 2.png
Form Industrial, 2P+Earth, Ext Thread, C4, 230V, IP67, Yell
Art:
22200TC4M0R Copied
9
4
C4: LED & varistor
Transparent
Yellow
IP67
Yes
1212080083
230V
Integrated NBR Gasket & IP67 screw
137379_812.tif
Form Industrial, 2P+Earth, PG7, 250V AC/DC
Art:
12207N21 Copied
6
4
PG7
No circuit
Black
No LED
≤15 mΩ
IP65
No
250 V AC/300 V DC
Profile NBR gasket & screw
137379_812.tif
Form Industrial, 2P+Earth, PG9, 250V AC/DC, Black Cover
Art:
12209N21 Copied
8
6
PG9
No circuit
Black
No LED
≤15 mΩ
IP65
No
1210230122
250 V AC/300 V DC
Profile NBR gasket & screw
137379_812.tif
Form Industrial, 2P+Earth, M20x1.5, H12, Profile NBR gasket, Black
Art:
122M0N21 Copied
10
8
M20x1,5
No circuit
Black
No LED
≤15 mΩ
IP65
No
250 V AC/300 V DC
Profile NBR gasket & screw
137379_812.tif
Form Industrial, 2P+Earth, M16x1.5, H12, Profile NBR gasket, black
Art:
122M6W21SA Copied
8
6
M16x1,5
No circuit
Black
No LED
≤15 mΩ
IP65
No
250 V AC/300 V DC
Profile NBR gasket & screw
137378_812.tif
Form Industrial, 2P+Earth, PG9, C3, 24 V, Red LED
Art:
02209TC321 Copied
8
6
PG9
C3: LED & diode
Transparent
Red
≤15 mΩ
IP65
Yes
1210640087
24 V DC
Profile NBR gasket & screw
137378_812.tif
Form Industrial, 2P+Earth, PG9, C3, 24 V, Yellow LED
Art:
02209TC3H1 Copied
8
6
PG9
C3: LED & diode
Transparent
Yellow
IP65
Yes
1210640094
24 V DC
Profile NBR gasket & screw
137378_812.tif
Form Industrial, 2P+Earth, PG9, C4, 24V, profile NBR gasket
Art:
02209TC421 Copied
8
6
PG9
C4: LED & varistor
Transparent
Red
≤15 mΩ
IP65
Yes
24 V AC/DC
Profile NBR gasket & screw
137378_812.tif
Form Industrial, 2P+Earth, PG9, C4, 12 V , Yellow LED
Art:
02209TC4G1 Copied
8
6
PG9
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
IP65
Yes
12 V AC/DC
Profile NBR gasket & screw
137378_812.tif
Form Industrial, 2P+Earth, PG9, C4, 24 V, Yellow LED
Art:
02209TC4H1 Copied
8
6
PG9
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
IP65
Yes
1210640120
24 V AC/DC
Profile NBR gasket & screw
137378_812.tif
Form Industrial, 2P+Earth, PG9, C4, 110 V, Yellow LED
Art:
02209TC4L1 Copied
8
6
PG9
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
IP65
Yes
115 V AC/DC
Profile NBR gasket & screw
137378_812.tif
Form Industrial, 2P+Earth, PG9, C4, 230V, Yellow LED
Art:
02209TC4M1 Copied
8
6
PG9
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
IP65
Yes
1210640124
230 V AC/DC
Profile NBR gasket & screw
Form Industrial, 2P+Earth, PG9, C4, 48V, profile NBR gasket
Art:
02209TC431 Copied
8
6
PG9
C4: LED & varistor
Transparent
Red
≤15 mΩ
IP65
Yes
48 V AC/DC
Profile NBR gasket & screw
137378_812.tif
Form Industrial, 2P+Earth, M16x1.5, C4, 24V, profile NBR gasket
Art:
022M6TC4H1 Copied
8
6
M16x1,5
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
IP65
Yes
24 V AC/DC
Profile NBR gasket & screw
137378_812.tif
Form Industrial, 2P+Earth, M20x1.5, C4, 24V, Profile NBR gasket
Art:
022M0TC4B1 Copied
10
8
M20x1,5
C4: LED & varistor
Transparent
Green
≤15 mΩ
IP65
Yes
24 V AC/DC
Profile NBR gasket & screw
