Datalogic - VSM Vision sensor monitor

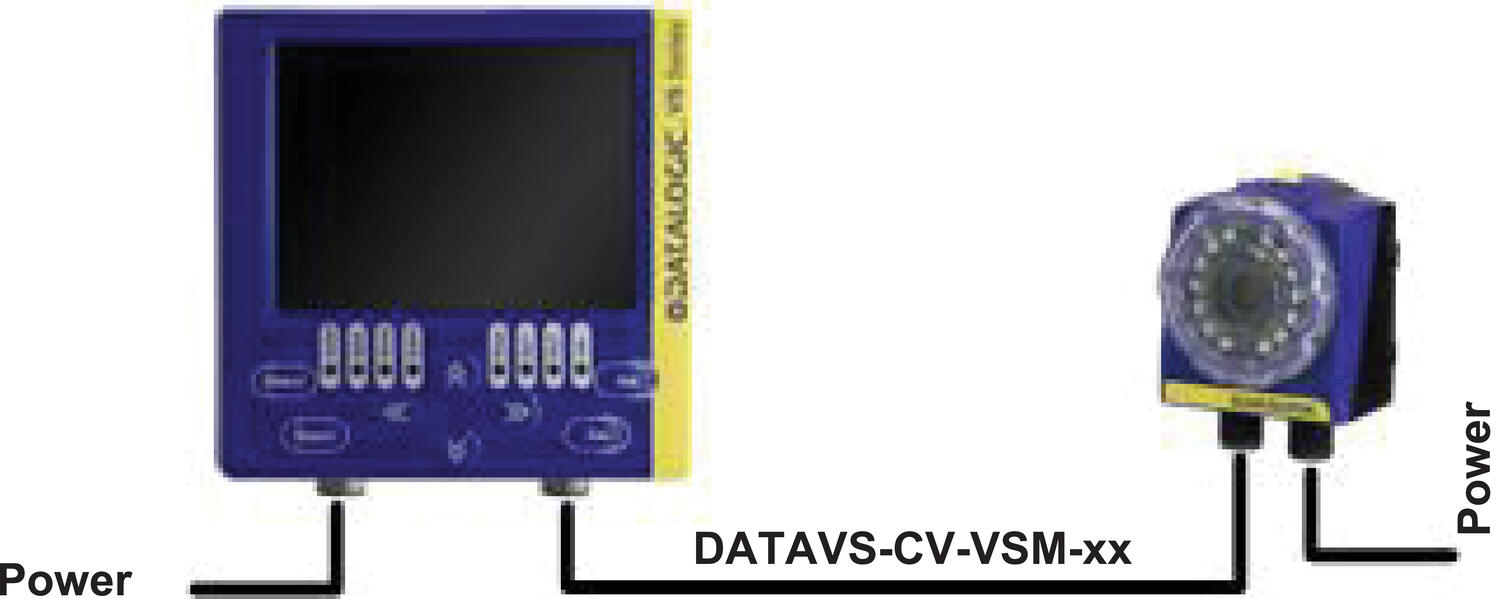

VSM is an external monitor compatible with all DataVS2 models. The unit shows images, results and statistics of the checks that the sensor carries out. The parameters can also be finely adjusted via the monitor.
Formulas that are stored in the sensor or in the VSM unit can be changed via the monitor. The monitor has a memory for 20 formulas.

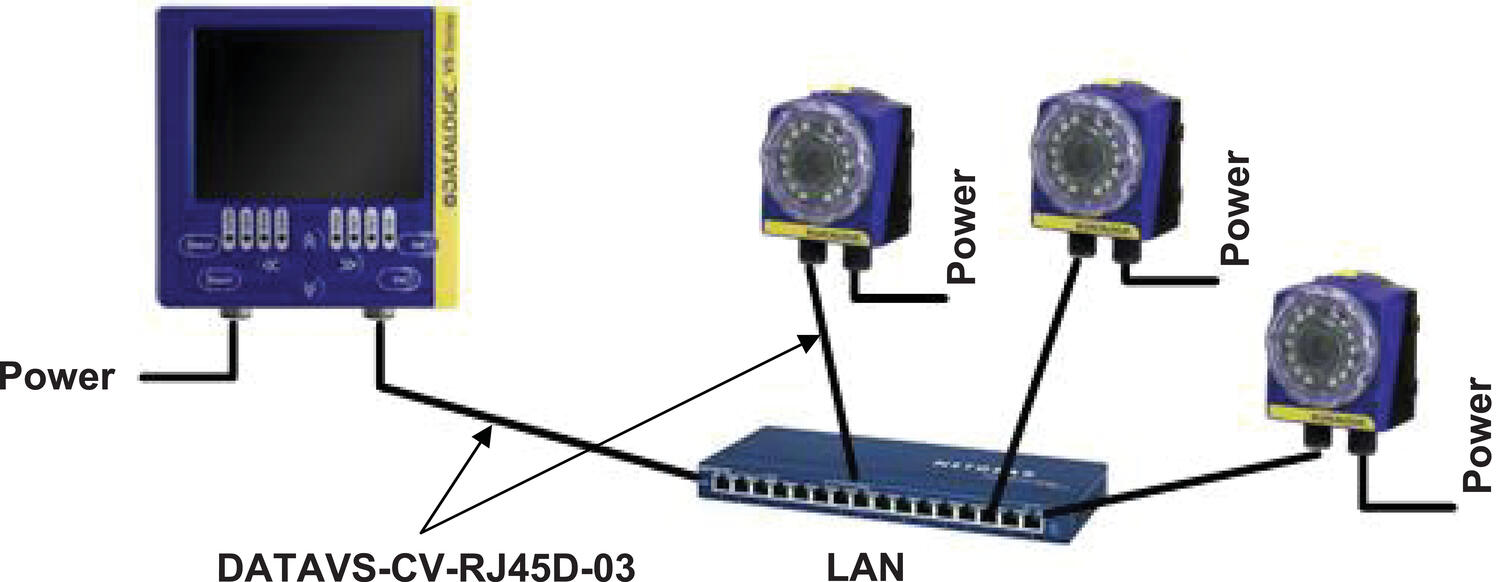

The monitor can be connected via a LAN network to be able to access several sensors with the same monitor.
- Fits all DataVS2 models
- Monitor with 3.5 ̋ LCD colour display
- Uses interface with 8 push buttons, 8 LEDs
- Display of images, results and statistics
Selected variant
Vision Sensor HMI, 3.5" colour LCD
Art:
Selected variant
Specifications

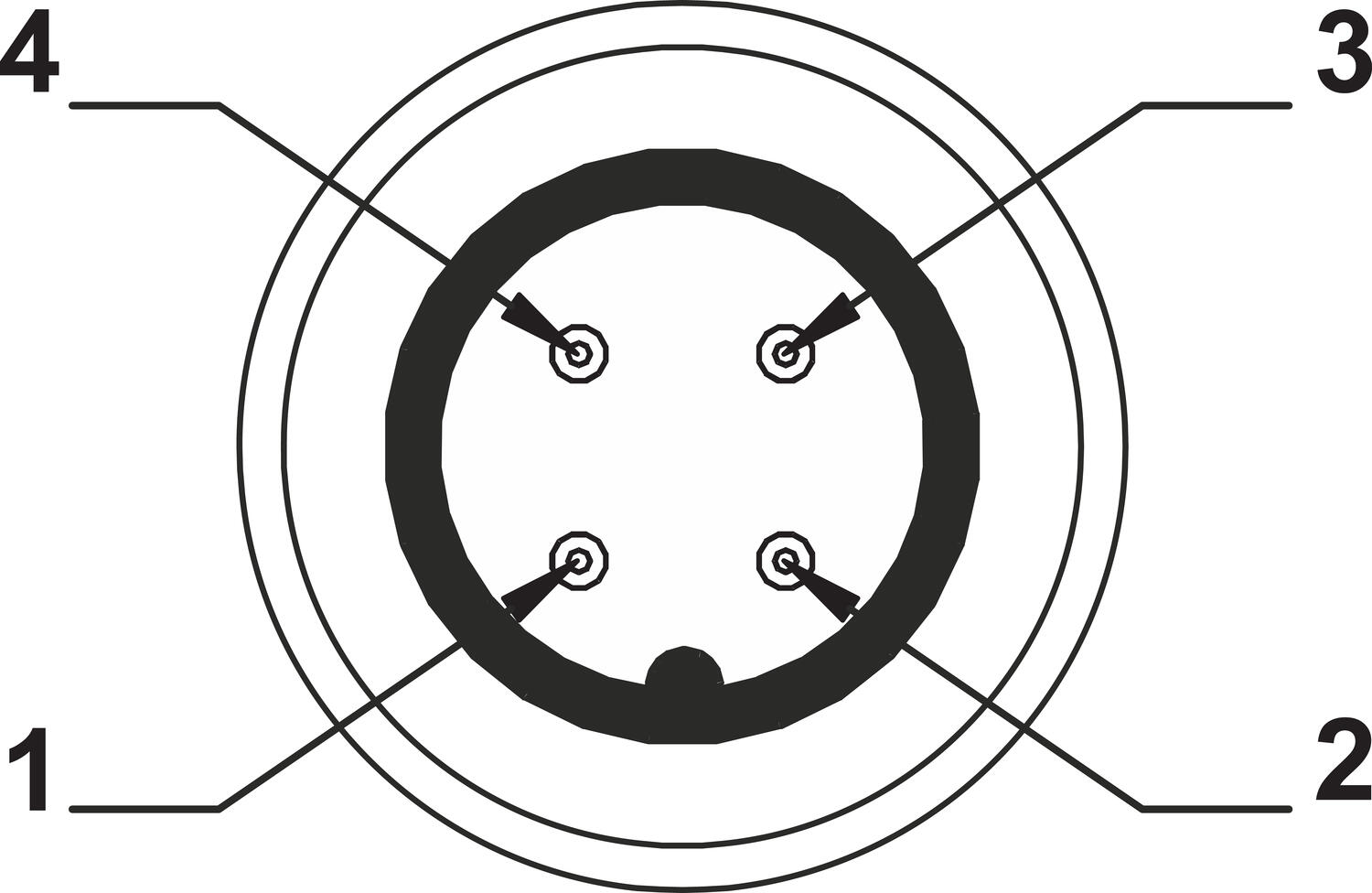

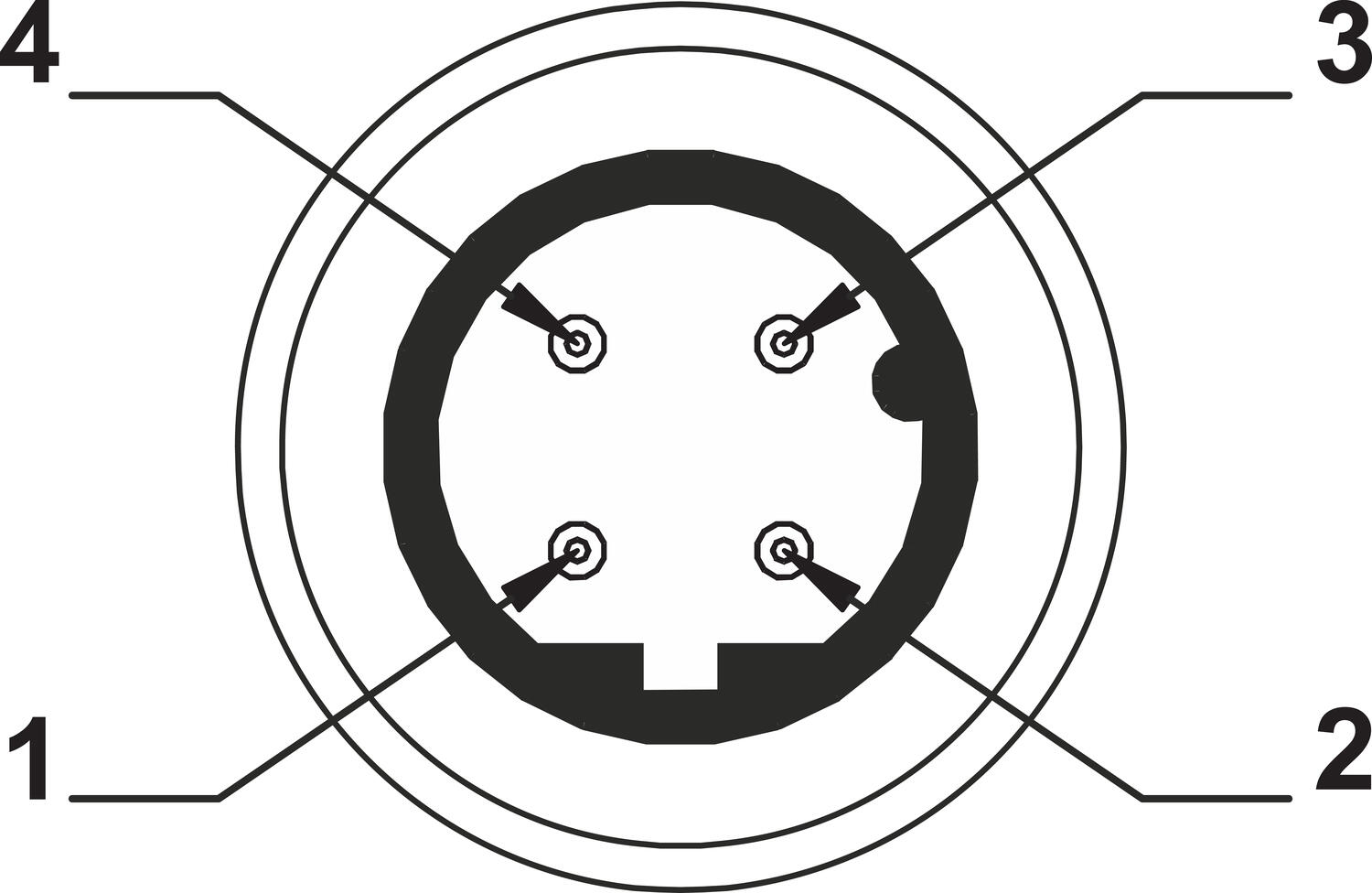

| Electrical connection | M12 4-pin connector |
|---|---|
| IP Class | IP20 |
| Material Protection | ABS plastic |
| Power consumption max | 0.15 |
| Temperature range from | -10 |
| Temperature range to | 55 |
| Voltage DC max | 24 |
| Voltage DC min | 24 |
| Voltage Tolerance | 10% |
Downloads
Product description
VSM is an external monitor compatible with all DataVS2 models. The unit shows images, results and statistics of the checks that the sensor carries out. The parameters can also be finely adjusted via the monitor.
Formulas that are stored in the sensor or in the VSM unit can be changed via the monitor. The monitor has a memory for 20 formulas.
The monitor can be connected via a LAN network to be able to access several sensors with the same monitor.
