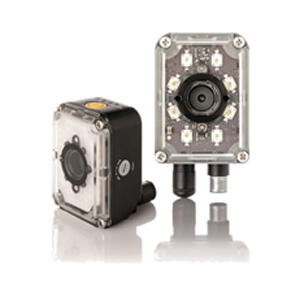

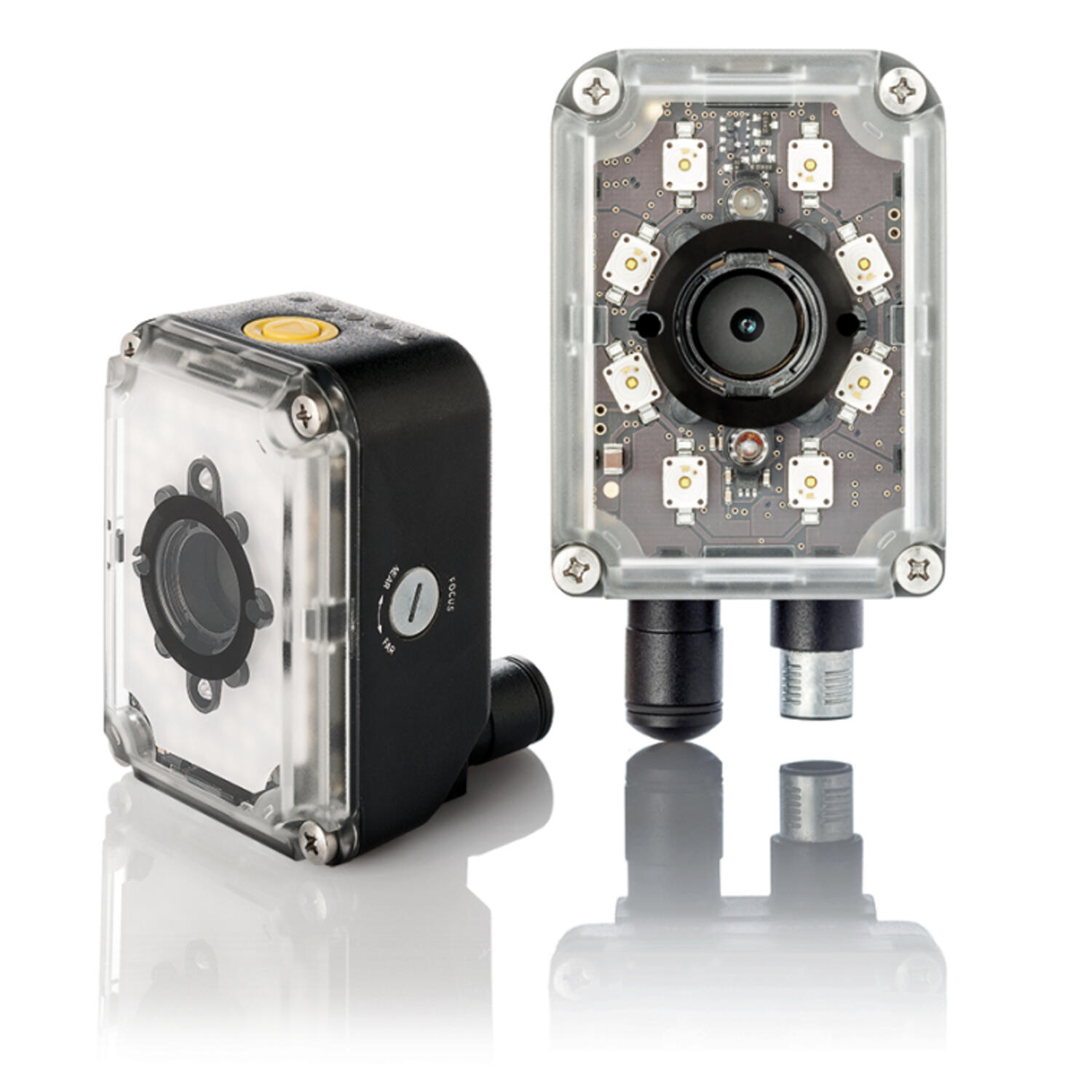

Datalogic P Series smart camera
Ultra compact cost effective smart camera

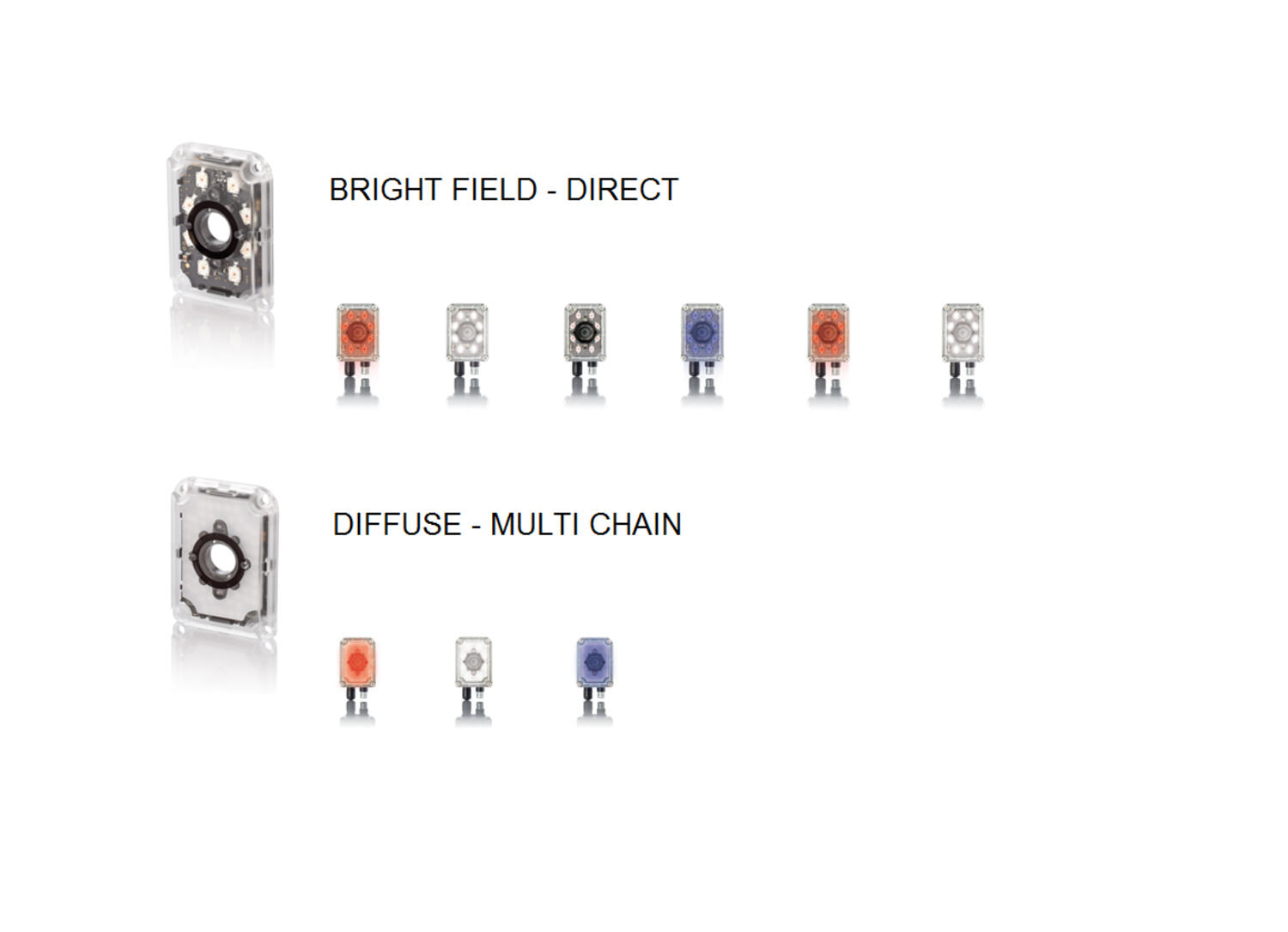

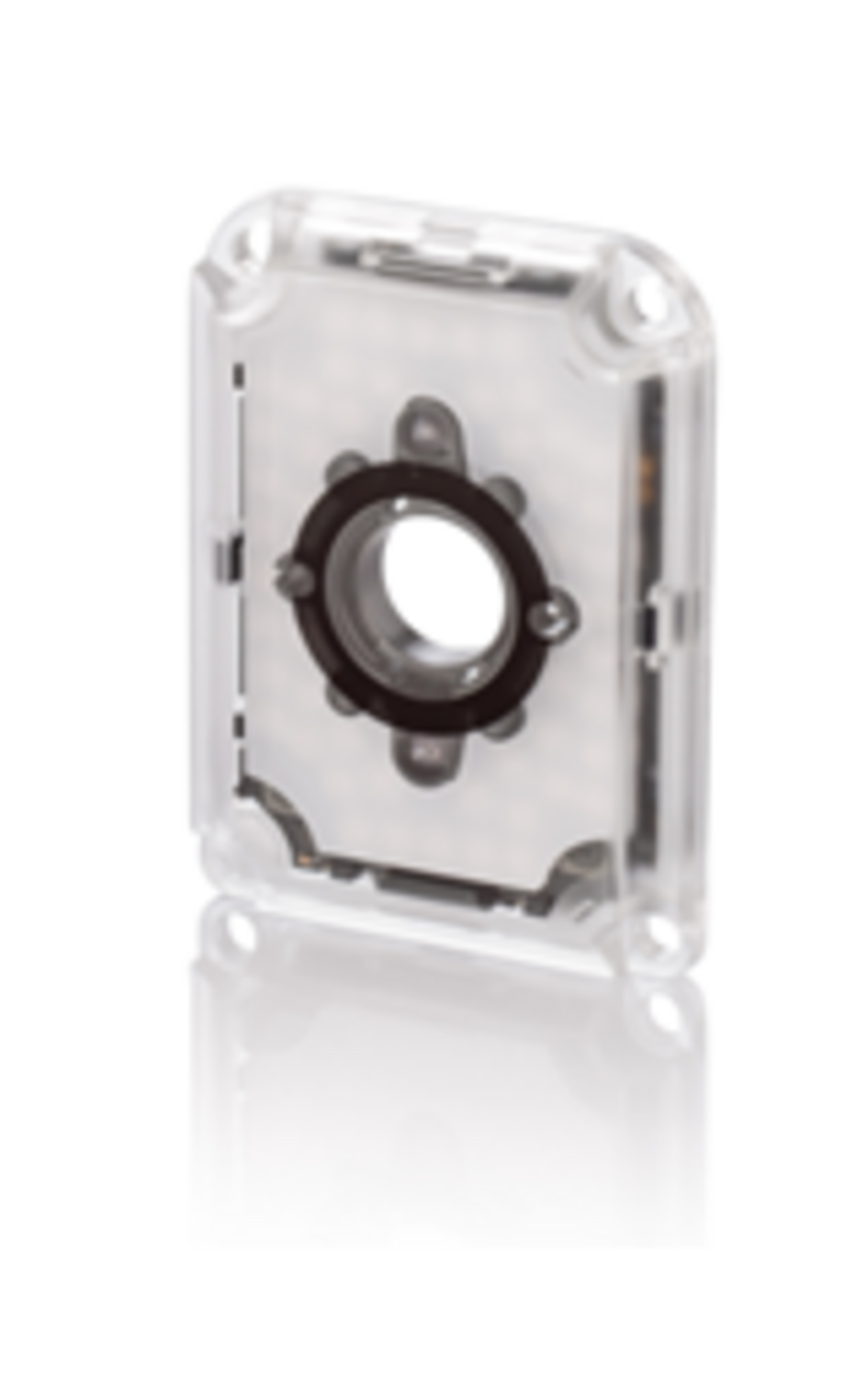

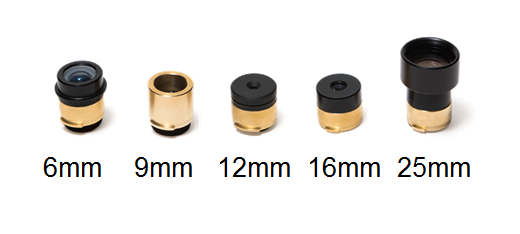

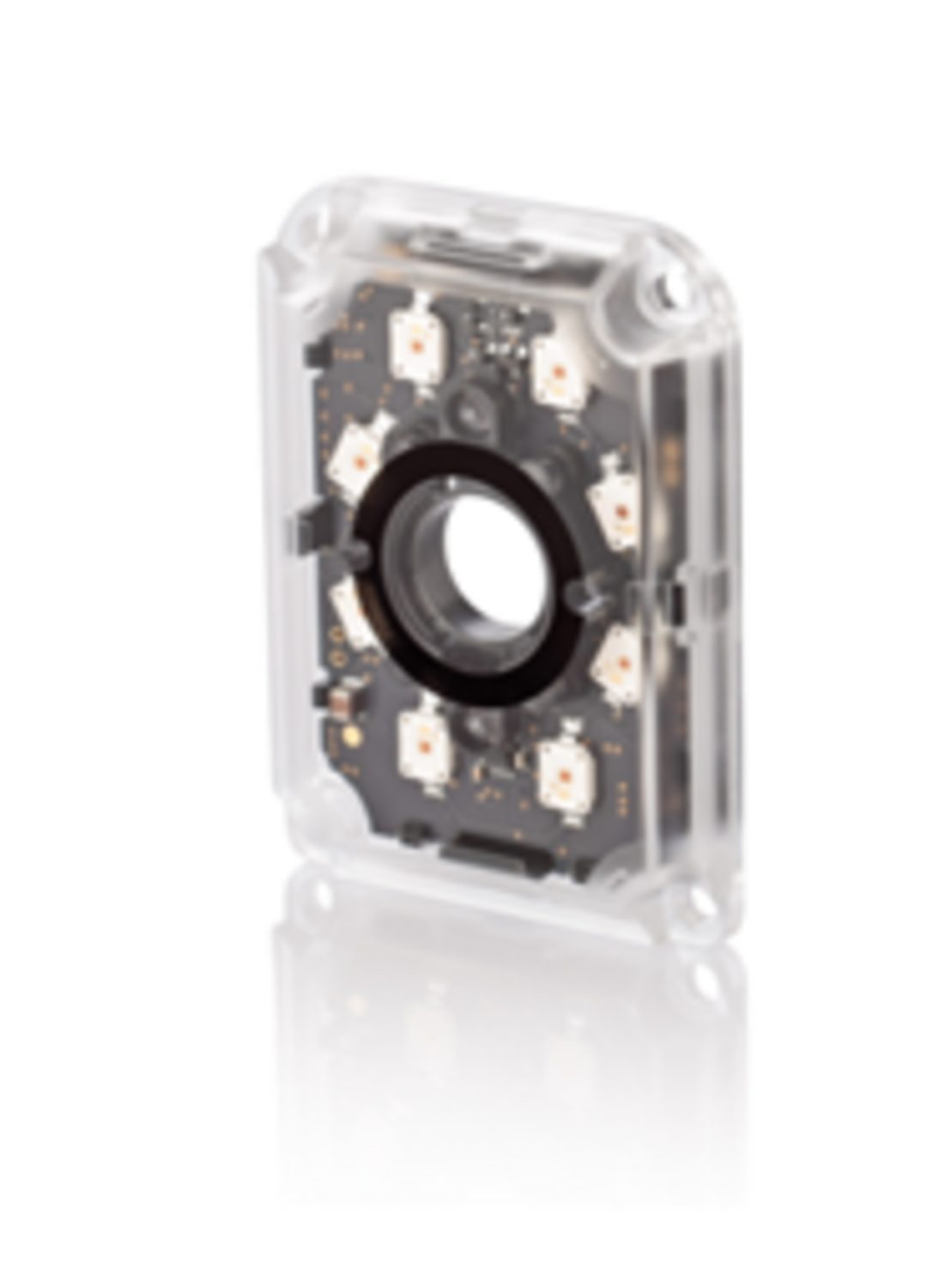

The P1x-Series is an ultra-compact cost effective smart camera offering advanced machine vision functionalities in a fully embedded stand-alone device. The P1x-Series is available with gray-scale or color CMOS image sensors with two different resolutions: VGA and 1.3MP. Lenses and illuminators are fully interchangeable and can be mounted and replaced by the user. Five focal lengths and nine lighting options result in 90 different combinations delivering outstanding installation flexibility while offering superior image acquisition capabilities. The P1x-Series is powered by the IMPACT LITE software package. With more than 25 inspection tools, IMPACT LITE revolutionizes device programming by making the inspection configuration quick and intuitive.
- VGA (640x480) or 1.3 MP (1280x1024) resolution
- Built-in digital I/Os, Serial and Profinet & ETHERNET/IP
- Grayscale or color CMOS image sensor

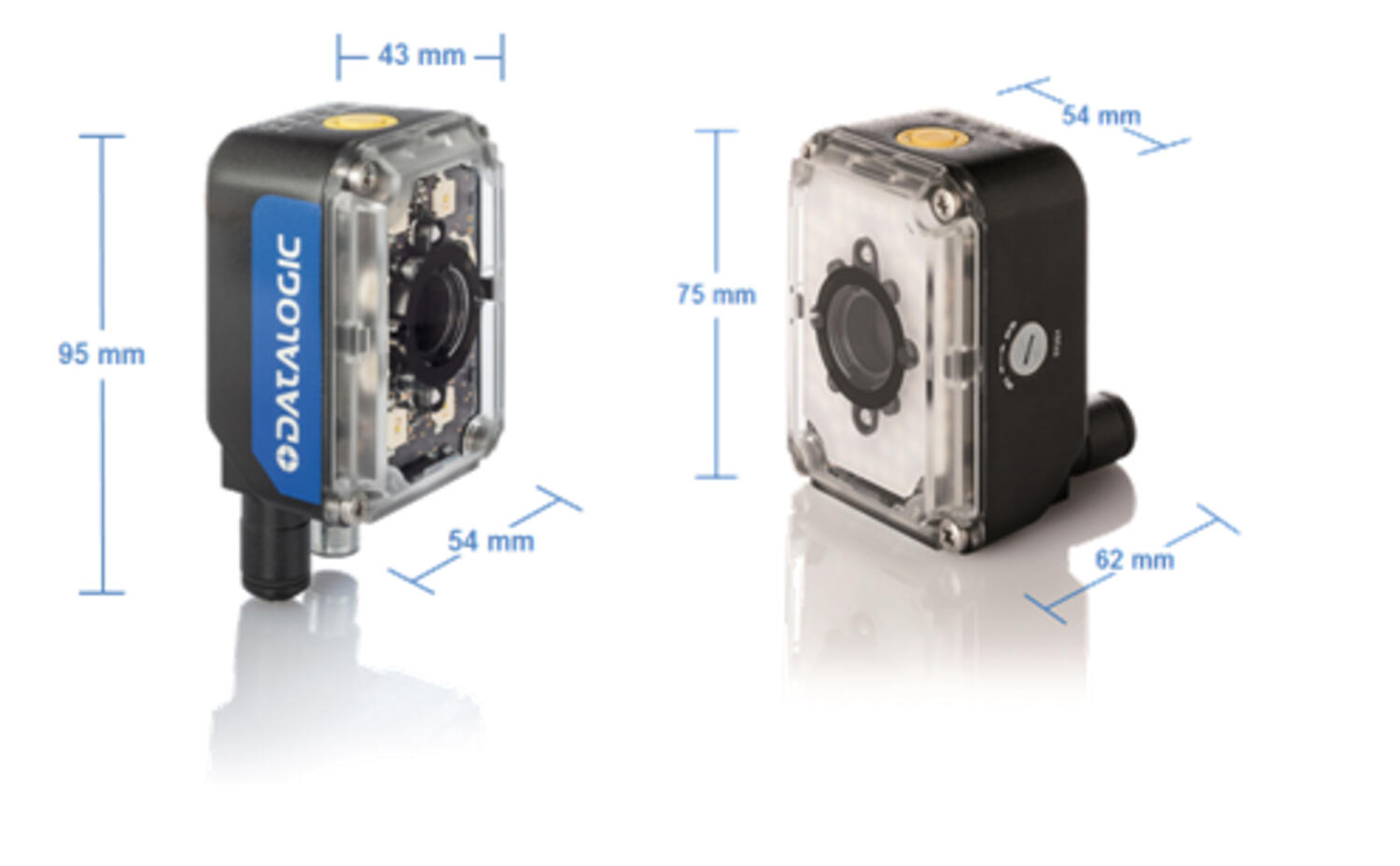

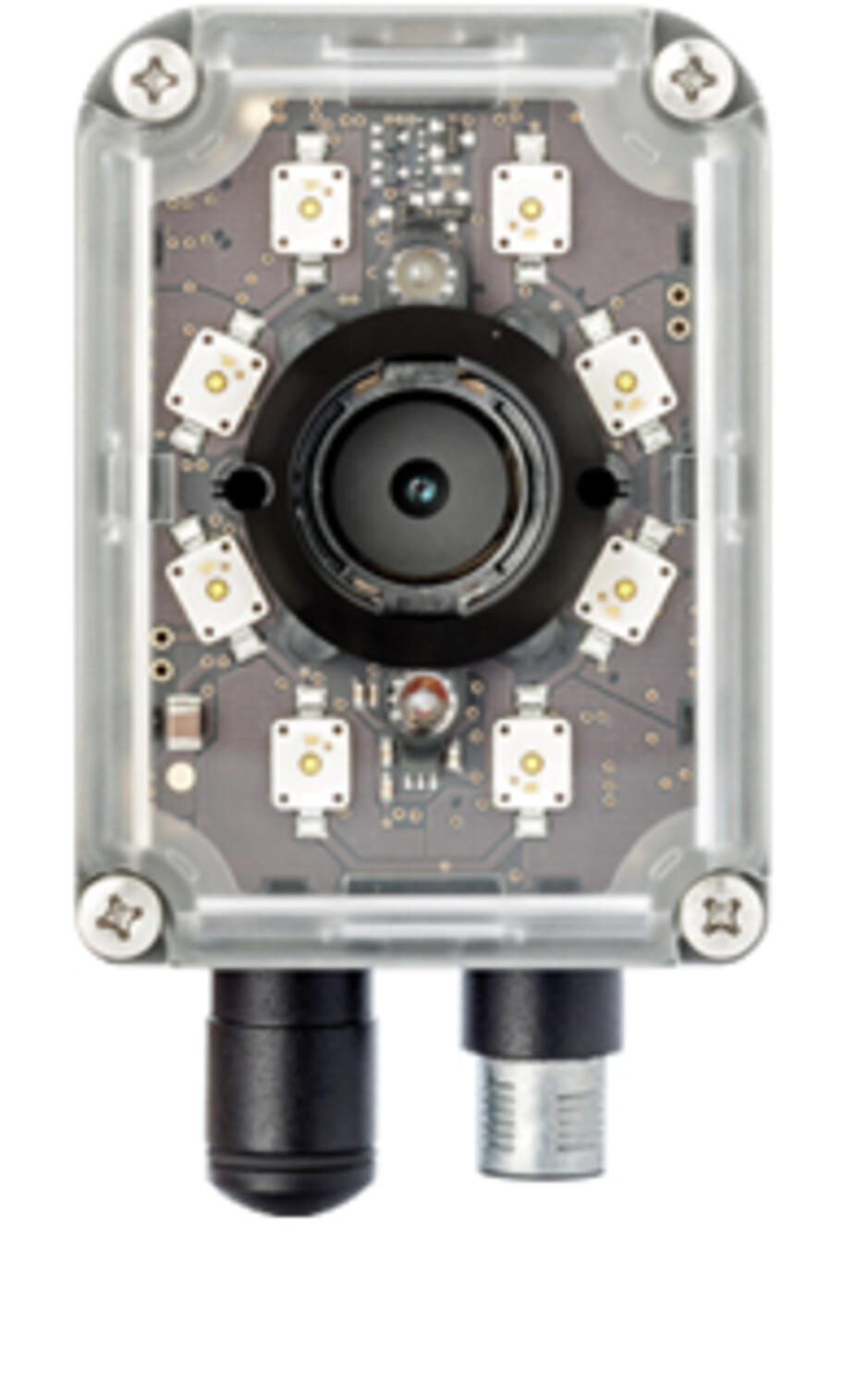

- Right-angle IP67 rated enclosure with rotating connectors
Selected variant
Selected variant
Specifications
| Electrical connection | M12 |
|---|---|
| Format The Photo Collection | VGA mono |
| IP Class | IP67 |

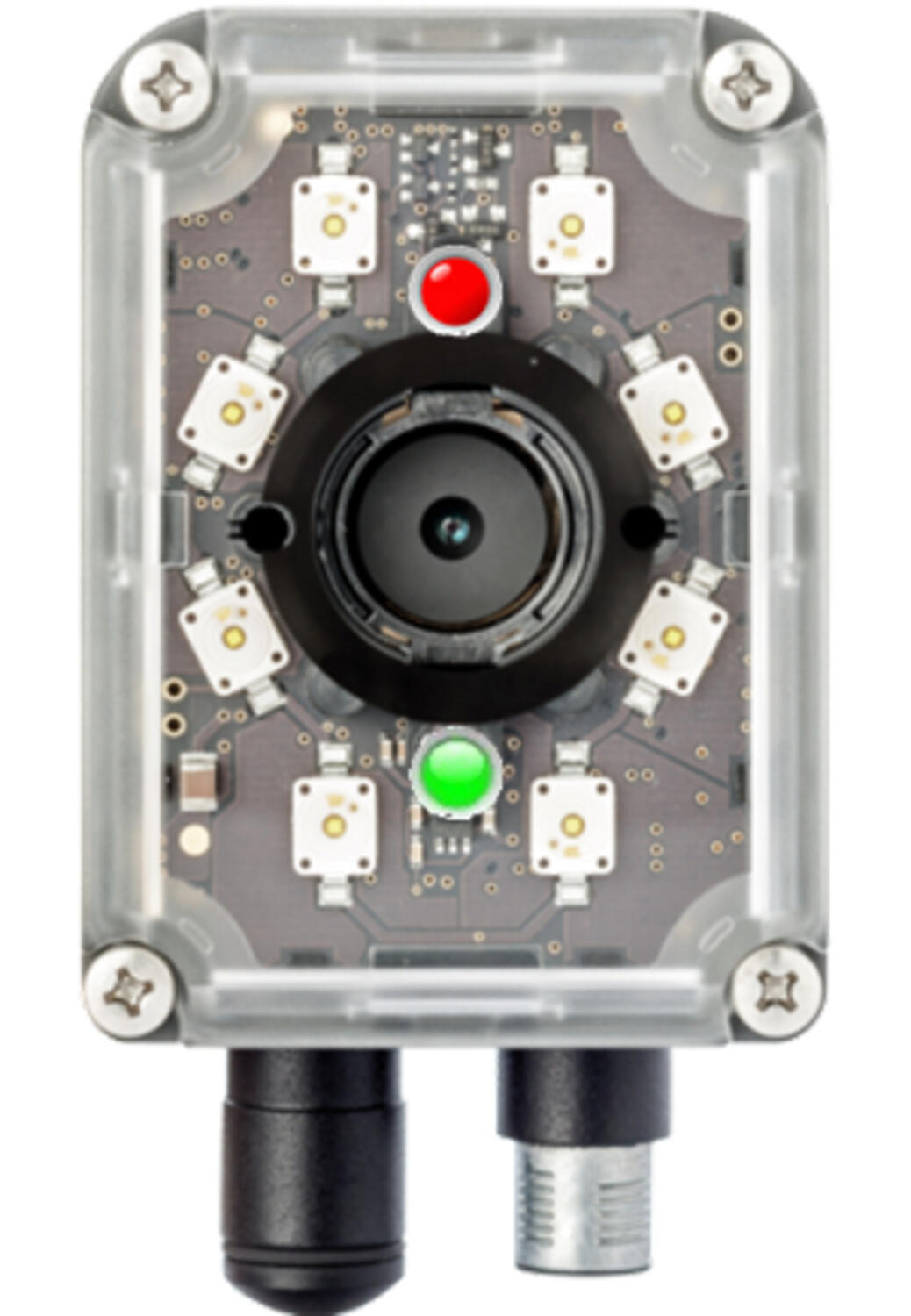

| LED Display | Green spot technology |
| Reading Speed | 120fps |
| User Interface | VPM LITE |
Product description
The P1x-Series is an ultra-compact cost effective smart camera offering advanced machine vision functionalities in a fully embedded stand-alone device. The P1x-Series is available with gray-scale or color CMOS image sensors with two different resolutions: VGA and 1.3MP. Lenses and illuminators are fully interchangeable and can be mounted and replaced by the user. Five focal lengths and nine lighting options result in 90 different combinations delivering outstanding installation flexibility while offering superior image acquisition capabilities. The P1x-Series is powered by the IMPACT LITE software package. With more than 25 inspection tools, IMPACT LITE revolutionizes device programming by making the inspection configuration quick and intuitive.
