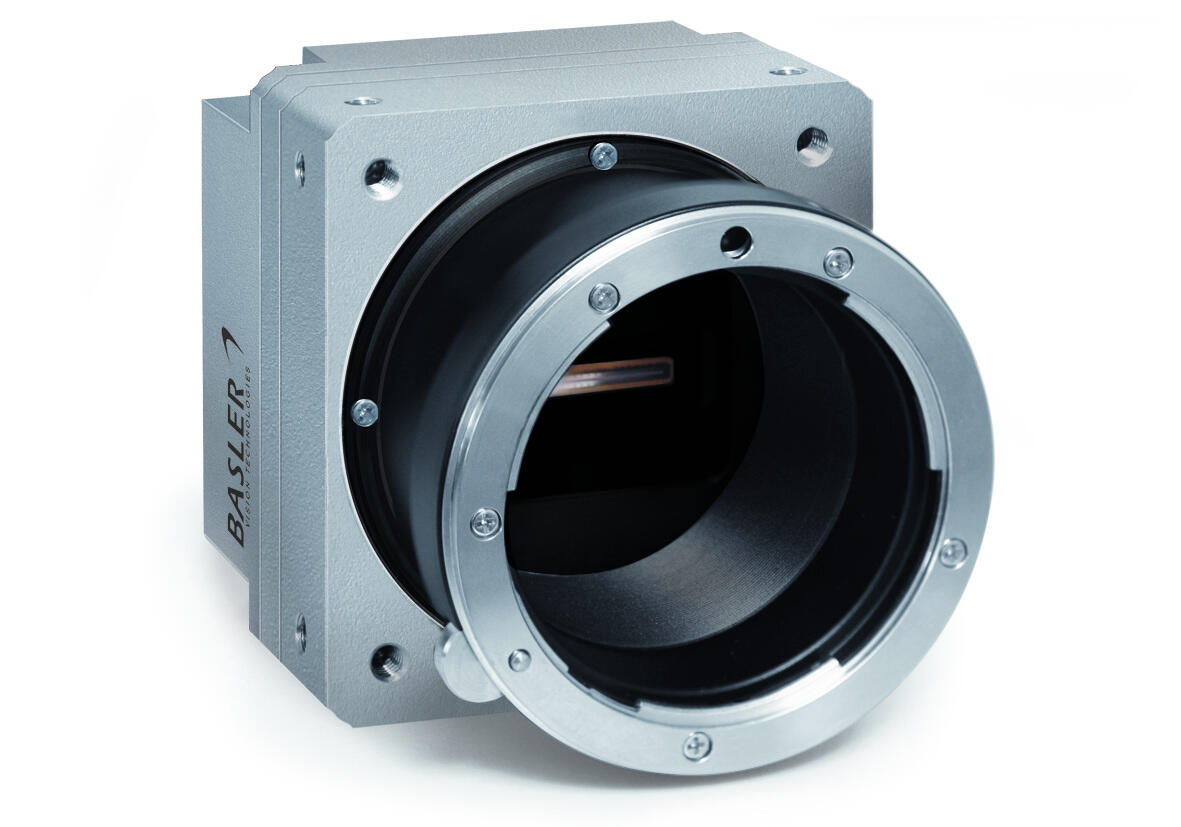

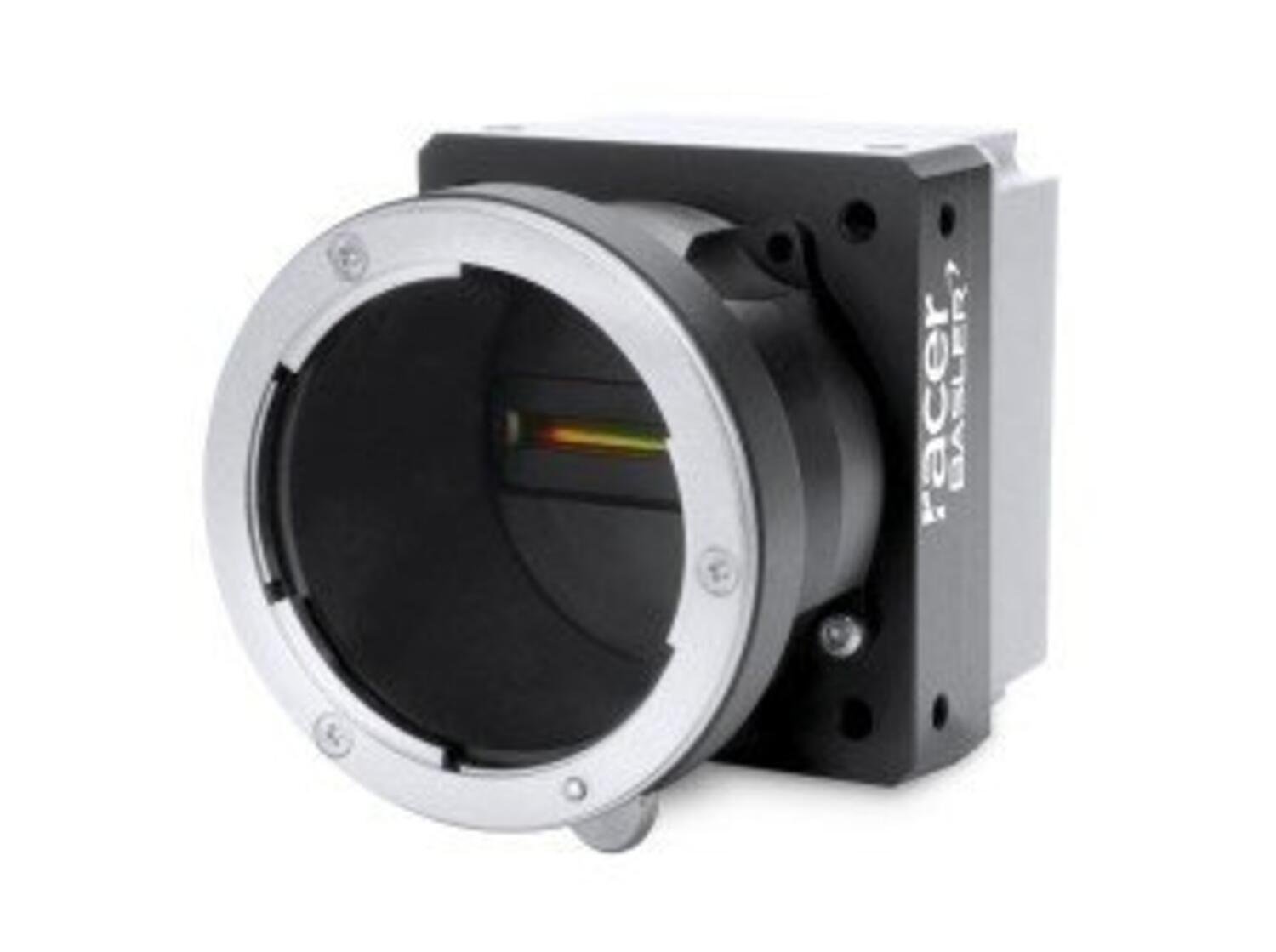

Basler Racer Line Scan Cameras

GigE & Cameralink Line Cameras

The Basler Racer Line Scan camera features a slim build of only 56mm, to easily fit into most systems, as well as being able to deliver exceptional performance even under low voltage LED lighting.

The Racer camera range is available in GigE or CameraLink with a range of resolutions from 2k to 12k, with a line rate of up to 80 kHz via camera link and up to 51 kHz via GigE.

This range of Line Scan cameras is particularly suited for applications in, web inspections (film, paper, cotton textiles), sorting and packaging (refuse, postal, foodstuffs) and transport related applications (underfloor, rail, overhead, container inspections).

  • 2 k to 12 k resolution
  • Up to 80 kHz Line Rate
  • Monochrome Cameras
  • GigE Vison Compatible

Selected variant

Avaible in several variants
basler.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

3612_Pixel size (µm) 7 x 7
Approvals CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
Digital Inputs 3
Digital Outputs 2
Height 62
Interface GigE
IP Class IP30
Length 36
Lens Barrel C-mount, F-mount, M42, M58
Line Speed Max 51
Mono/Color Mono
Operating temperature -10°C ... 60°C
Power Consumption 3
Resolution Max 2048 x 1 px
Sensor model DR-2k-7
Sensor size 14.3 mm
Sensor supplier Awaiba
Shutter type Global
Weight 240
Width 56

Downloads

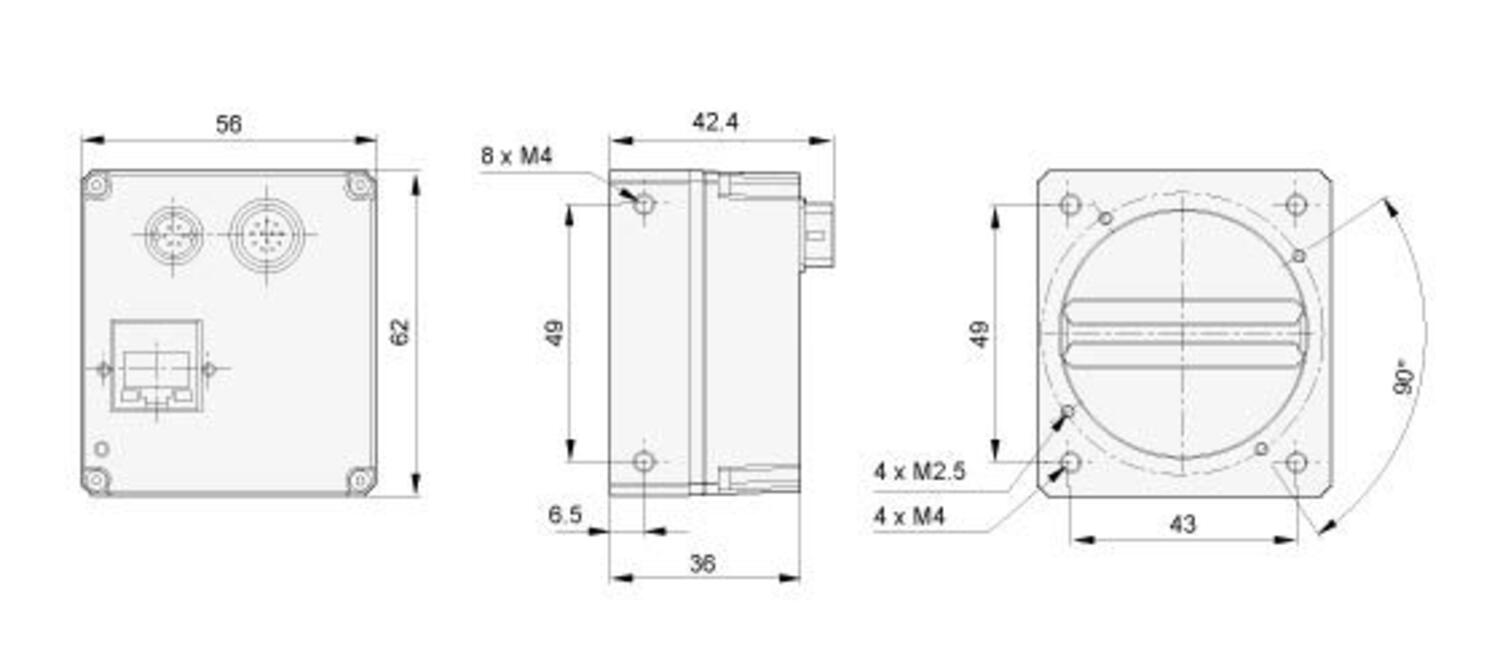

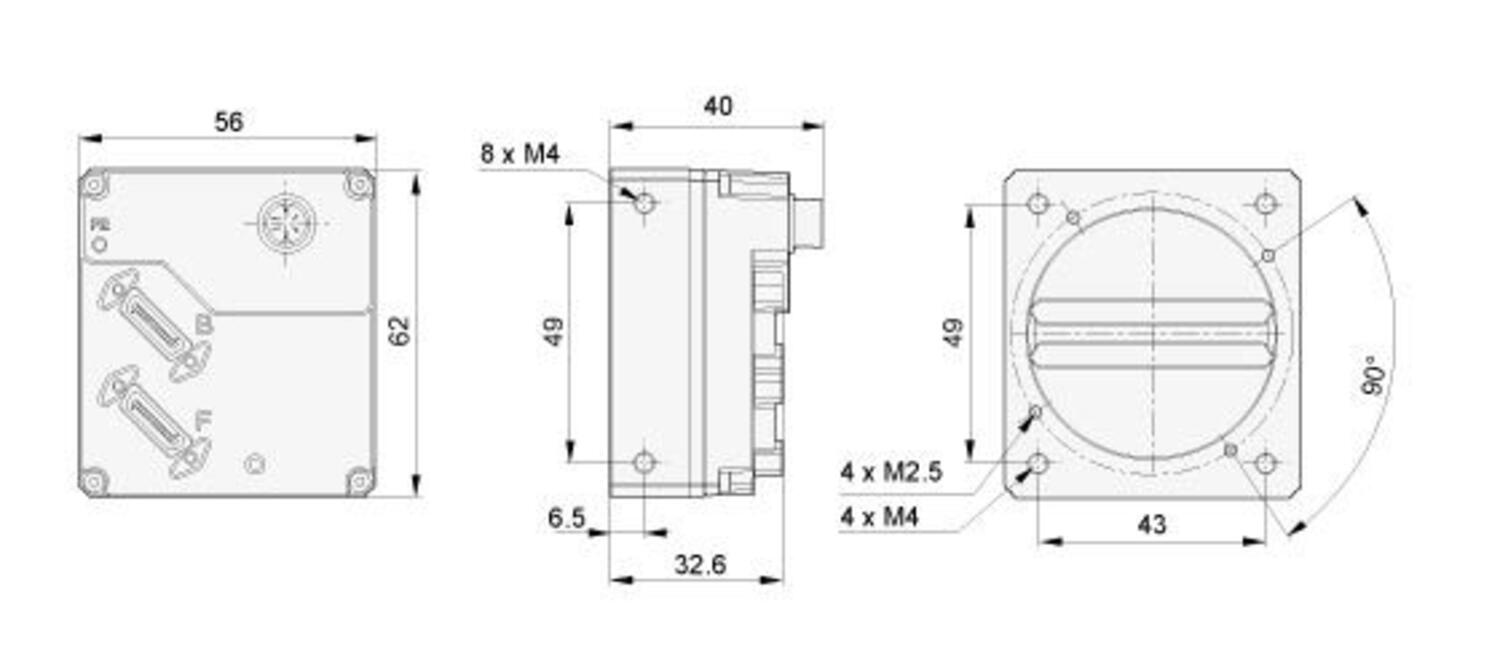

Measurements and connections

Product description

The Basler Racer Line Scan camera features a slim build of only 56mm, to easily fit into most systems, as well as being able to deliver exceptional performance even under low voltage LED lighting.

The Racer camera range is available in GigE or CameraLink with a range of resolutions from 2k to 12k, with a line rate of up to 80 kHz via camera link and up to 51 kHz via GigE.

This range of Line Scan cameras is particularly suited for applications in, web inspections (film, paper, cotton textiles), sorting and packaging (refuse, postal, foodstuffs) and transport related applications (underfloor, rail, overhead, container inspections).

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

My favourites Articles 3612_Pixel size (µm) Approvals Digital Inputs Digital Outputs Interface Length Line Speed Max Operating temperature Power Consumption Resolution Max Sensor model Sensor size Weight Price
Racer GigE Camera, DR-2K-7 14.3mm CMOS, 2k, Mono
Art:
RAL2048-48GM Copied
7 x 7
CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
3
2
GigE
36
51
-10°C ... 60°C
3
2048 x 1 px
DR-2k-7
14.3 mm
240
Racer GigE Camera, DR-4K-7 28.7mm CMOS, 4k, Mono
Art:
RAL4096-24GM Copied
7 x 7
CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
3
2
GigE
36
26
0°C ... 50°C
4
4096 x 1 px
DR-4k-7
28.7 mm
240
Racer GigE Camera, DR-6K-7 43mm CMOS, 6k, Mono
Art:
RAL6144-16GM Copied
7 x 7
CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
3
2
GigE
36
17
0°C ... 50°C
4.5
6144 x 1 px
DR-6k-7
43 mm
240
Racer GigE Camera, DR-8K-3.5 28.7mm CMOS, 8k, Mono
Art:
RAL8192-12GM Copied
3.5 x 3.5
CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
3
2
GigE
36
12
0°C ... 50°C
5.5
8192 x 1 px
DR-8k-3.5
28.7 mm
240
Racer GigE Camera, DR-12K-3.5 43mm CMOS, 12k, Mono
Art:
RAL12288-8GM Copied
3.5 x 3.5
CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
3
2
GigE
36
8
0°C ... 50°C
6.5
12288 x 1 px
DR-12k-3.5
43 mm
240
Racer CameraLink Camera, DR-2k-7 14.3mm CMOS, 2k, Mono
Art:
RAL2048-80KM Copied
7 x 7
CE, EAC, FCC, GenICam, RoHS, UL
4
4
Camera Link
34
80
0°C ... 50°C
3
2048 x 1 px
DR-2k-7
14.3 mm
210
Racer CameraLink Camera, DR-4K-7 28.7mm CMOS, 4k, Mono
Art:
RAL4096-80KM Copied
7 x 7
CE, EAC, FCC, GenICam, RoHS, UL
4
4
Camera Link
34
80
0°C ... 50°C
4
4096 x 1 px
DR-4k-7
28.7 mm
210
Racer CameraLink Camera, DR-6K-7 43mm CMOS, 6k, Mono
Art:
RAL6144-80KM Copied
7 x 7
CE, EAC, FCC, GenICam, RoHS, UL
4
4
Camera Link
34
80
0°C ... 50°C
4.5
6144 x 1 px
DR-6k-7
43 mm
210
Racer CameraLink Camera, DR-8K-3.5 28.7mm CMOS, 8k, Mono
Art:
RAL8192-80KM Copied
3.5 x 3.5
CE, EAC, FCC, GenICam, RoHS, UL
4
4
Camera Link
34
80
0°C ... 50°C
5.5
8192 x 1 px
DR-8k-3.5
28.7 mm
210
Racer CameraLink Camera, DR-12K-3.5 43mm CMOS, 12k, Mono
Art:
RAL12288-66KM Copied
3.5 x 3.5
CE, EAC, FCC, GenICam, RoHS, UL
4
4
Camera Link
34
66
0°C ... 50°C
6.5
12288 x 1 px
DR-12k-3.5
43 mm
210
