Basler Boost CoaXPress Cameras

High Speed CXP Camera

The Basler Boost series of CoaXPress 2.0 (CXP-12) cameras offer excellent image quality even at high data rates (up to 12.5 Gbps per cable), with high resolution and high performance. Equipped with Sony Pregius sensors or XGS series sensors from ON Semiconductor, the Boost range can achieve outstanding image quality with up to 45 megapixels and state-of-the-art global shutter technology.



The Boost CoaXPress 2.0 range is ideal for applications where high data rates and resolutions are important and where the image data must cover greater distance. For example, applications in the semiconductor and solar industry, display inspection, print inspection, food inspection and medical technology.



A range of adaptor plates are available, allowing the Boost camera to be used with M42x0.75, M42x1.0, C-mount or F-mount lenses.

  • Excellent image quality with Sony Pregius sensors
  • CoaXPress interface (12.5 Gbps transfer rate)
  • C-mount, 42mm and F-mount lens options
  • Frame rates up to 93fps

Selected variant

Avaible in several variants
basler.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals RoHS, CE, GenICam, UL, EAC
Digital Inputs 1
Frame Rate Max 400
Height 80
Interface CoaXPress 2.0
Length 45
Lens Barrel C-mount, F-mount, M42x0.75, M42x1
Mono/Color Mono
Operating temperature 0°C … 50°C
Pixel size 4.5 x4.5
Power Consumption 9.6
Resolution 3MP
Resolution Max 1936 x 1464 px
Sensor model IMX421
Sensor size 2/3"
Sensor supplier Sony
Sensor type CMOS
Shutter type Global
Weight 480
Width 80

Downloads

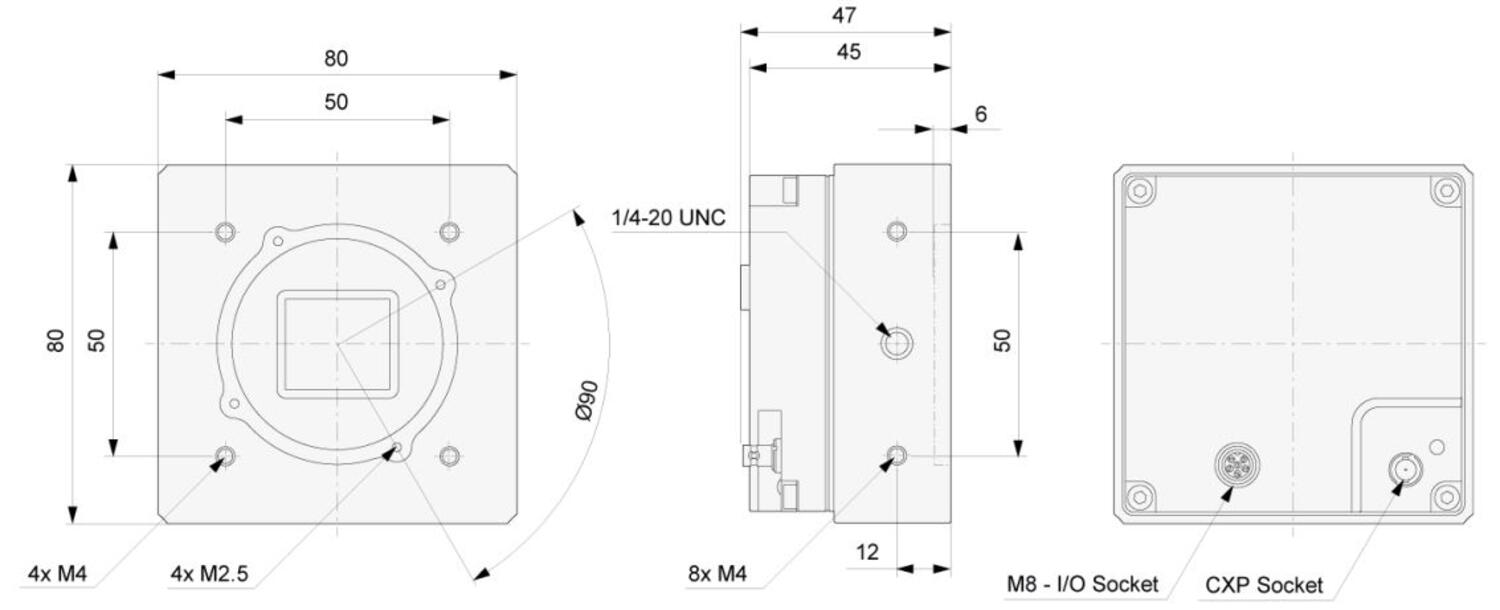

Measurements and connections

Product description

The Basler Boost series of CoaXPress 2.0 (CXP-12) cameras offer excellent image quality even at high data rates (up to 12.5 Gbps per cable), with high resolution and high performance. Equipped with Sony Pregius sensors or XGS series sensors from ON Semiconductor, the Boost range can achieve outstanding image quality with up to 45 megapixels and state-of-the-art global shutter technology.



The Boost CoaXPress 2.0 range is ideal for applications where high data rates and resolutions are important and where the image data must cover greater distance. For example, applications in the semiconductor and solar industry, display inspection, print inspection, food inspection and medical technology.



A range of adaptor plates are available, allowing the Boost camera to be used with M42x0.75, M42x1.0, C-mount or F-mount lenses.

Accessories

My favourites Articles Accessory type Frame Rate Max Length Lens Barrel Mono/Color Pixel size Resolution Resolution Max Sensor model Sensor size Sensor supplier Weight Price
Art:
BOA1936-400CM Copied
400
45
C-mount, F-mount, M42x0.75, M42x1
Mono
4.5 x4.5
3MP
1936 x 1464 px
IMX421
2/3"
Sony
480
Art:
BOA1936-400CC Copied
400
45
C-mount, F-mount, M42x0.75, M42x1
Color
4.5 x4.5
3MP
1936 x 1464 px
IMX421
2/3"
Sony
480
Art:
BOA2448-250CM Copied
250
45
C-mount, F-mount, M42x0.75, M42x1
Mono
2.74 x 2.74
5MP
2448x2048
IMX537
1/1.8"
Sony
480
Art:
BOA2448-250CC Copied
250
45
C-mount, F-mount, M42x0.75, M42x1
Color
2.74 x 2.74
5MP
2448x2048
IMX537
1/1.8"
Sony
480
Art:
BOA2832-190CM Copied
190
45
C-mount, F-mount, M42x0.75, M42x1
Mono
2.74 x 2.74
8MP
2840x2840
IMX536
2/3"
Sony
480
Art:
BOA2832-190CC Copied
190
45
C-mount, F-mount, M42x0.75, M42x1
Color
2.74 x 2.74
8MP
2840x2840
IMX536
2/3"
Sony
480
Boost CoaXPress Camera, IMX255 1" CMOS, 93fps, 9 MP, Mono
Art:
BOA4096-93CM Copied
93
45
C-mount, F-mount, M42x0.75, M42x1
Mono
3.45 x 3.45
9MP
4096 x 2168 px
IMX255
1"
Sony
480
Boost CoaXPress Camera, IMX255 1" CMOS, 93fps, 9 MP, Colour
Art:
BOA4096-93CC Copied
93
45
C-mount, F-mount, M42x0.75, M42x1
Color
3.45 x 3.45
9MP
4096 x 2168 px
IMX255
1"
Sony
480
Art:
BOA4096-180CM Copied
180
45
C-mount, F-mount, M42x0.75, M42x1
Mono
2.74 x 2.74
12MP
4096x3000
IMX535
1/1.1"
Sony
480
Art:
BOA4096-180CC Copied
180
45
C-mount, F-mount, M42x0.75, M42x1
Color
2.74 x 2.74
12MP
4096x3000
IMX535
1/1.1"
Sony
480
Boost CoaXPress Camera, IMX253 1.1" CMOS, 68fps, 12 MP, Mono
Art:
BOA4112-68CM Copied
68
45
C-mount, F-mount, M42x0.75, M42x1
Mono
3.45 x 3.45
12MP
4096 x 3000 px
IMX253
1.1"
Sony
480
Boost CoaXPress Camera, IMX253 1.1" CMOS, 68fps, 12 MP, Colour
Art:
BOA4112-68CC Copied
68
45
C-mount, F-mount, M42x0.75, M42x1
Color
3.45 x 3.45
12MP
4096 x 3000 px
IMX253
1.1"
Sony
480
Art:
BOA5320-150CM Copied
150
45
C-mount, F-mount, M42x0.75, M42x1
Mono
2.74 x 2.74
16.1MP
5320x3032
IMX532
1.1"
Sony
480
Art:
BOA5320-150CC Copied
150
45
C-mount, F-mount, M42x0.75, M42x1
Color
2.74 x 2.74
16.1MP
5320x3032
IMX532
1.1"
Sony
480
Art:
BOA4504-100CM Copied
100
45
C-mount, F-mount, M42x0.75, M42x1
Mono
2.74 x 2.74
20.2MP
4504x4504
IMX531
1.1"
Sony
480
Art:
BOA4504-100CC Copied
100
45
C-mount, F-mount, M42x0.75, M42x1
Color
2.74 x 2.74
20.2MP
4504x4504
IMX531
1.1"
Sony
480
Art:
BOA5328-100CM Copied
100
45
C-mount, F-mount, M42x0.75, M42x1
Mono
2.74 x 2.74
24.4MP
5328x4608
IMX530
1.2"
Sony
480
Art:
BOA5328-100CC Copied
100
45
C-mount, F-mount, M42x0.75, M42x1
Color
2.74 x 2.74
24.4MP
5328x4608
IMX530
1.2"
Sony
480
Boost CoaXPress Camera, XGS20000 1.3" CMOS, 45fps, 20 MP, Mono
Art:
BOA4500-45CM Copied
45
49.1
F-mount, M42x0.75, M42x1
Mono
3.2 x 3.2
20 MP
4500 x 4500 px
XGS 20000
1.3"
ON Semiconductor
525
Boost CoaXPress Camera, XGS20000 1.3" CMOS, 45fps, 20 MP, Colour
Art:
BOA4500-45CC Copied
45
49.1
F-mount, M42x0.75, M42x1
Color
3.2 x 3.2
20 MP
4500 x 4500 px
XGS 20000
1.3"
ON Semiconductor
525
Boost CoaXPress Camera, XGS32000 APS-C" CMOS, 35fps, 32.4 MP, Mono
Art:
BOA6500-36CM Copied
35
49.1
F-mount, M42x0.75, M42x1
Mono
3.2 x 3.2
32.4 MP
6580 x 4935 px
XGS 32000
APS-C"
ON Semiconductor
525
Boost CoaXPress Camera, XGS32000 APS-C" CMOS, 35fps, 32.4 MP, Colour
Art:
BOA6500-36CC Copied
35
49.1
F-mount, M42x0.75, M42x1
Color
3.2 x 3.2
32.4 MP
6580 x 4935 px
XGS 32000
APS-C"
ON Semiconductor
525
Boost CoaXPress Camera, XGS45000 35mm" CMOS, 15fps, 44.7 MP, Mono
Art:
BOA8100-16CM Copied
15
49.1
F-mount, M42x0.75, M42x1
Mono
3.2 x 3.2
44.7 MP
8192 x 5460 px
XGS 45000
35 mm
ON Semiconductor
525
Boost CoaXPress Camera, XGS45000 35mm" CMOS, 15fps, 44.7 MP, Colour
Art:
BOA8100-16CC Copied
15
49.1
F-mount, M42x0.75, M42x1
Color
3.2 x 3.2
44.7 MP
8192 x 5460 px
XGS 45000
35 mm
ON Semiconductor
525
Art:
BOA1936-400CM EVAL Copied

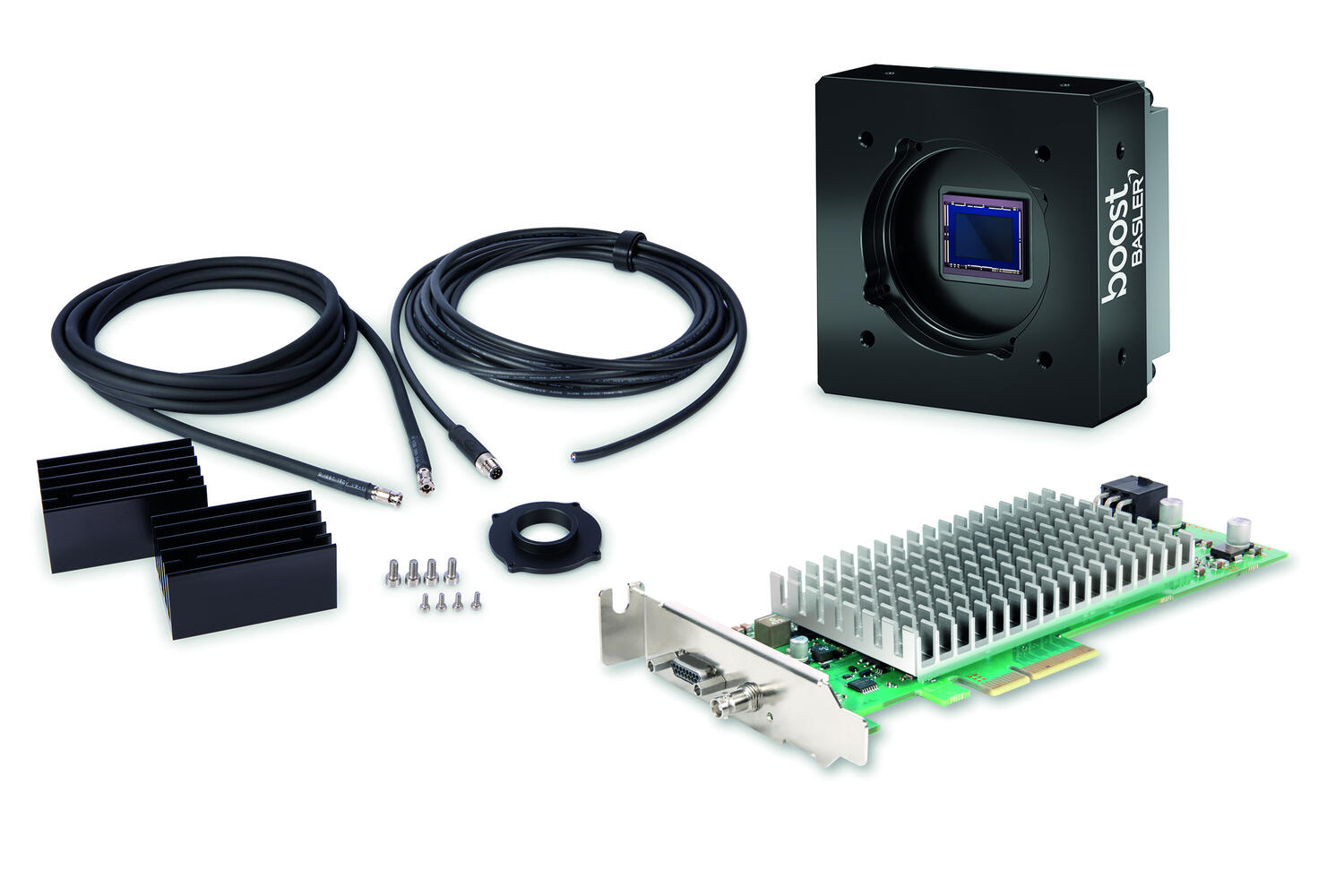

Data cable, Card, Power and I/O
400
45
C-mount, F-mount, M42x0.75, M42x1
Mono
4.5 x4.5
3MP
1936 x 1464 px
IMX421
2/3"
Sony
480
Art:
BOA1936-400CC EVAL Copied
Data cable, Card, Power and I/O
400
45
C-mount, F-mount, M42x0.75, M42x1
Color
4.5 x4.5
3MP
1936 x 1464 px
IMX421
2/3"
Sony
480
Art:
BOA8100-16CC EVAL Copied
Data cable, Card, Power and I/O
15
49.1
F-mount, M42x0.75, M42x1
Color
3.2 x 3.2
44.7 MP
8192 x 5460 px
XGS 45000
35 mm
ON Semiconductor
525
