BASLER
Basler Beat CameraLink cameras
High Resolution
The Basler Beat series of cameras offer high resolution, super-sensitive, CMOSIS sensor CMV12000. The image quality achievable with these cameras is comparable with that of CCD sensor cameras and exceeds the image quality offered by older CMOS sensors. Featuring both mono and colour models with progressive scan and global shutter, the Basler Beat camera has a full resolution of 12 megapixels, offering high capture rates and high resolution with superior image quality.
Basler Beat Product Features:
- Next-Generation CMOS sensors
- 12 megapixels
- More than 60 frames per second
- Easily integrated due its compact housing
- Basler pylon Camera Software Suite
- Compatible with all common frame grabbers for maximum grabbing speed and high bandwidth connection
Examples of application areas:
- Semiconductor manufacturing
- Electronics manufacturing
- ITS (Intelligent Traffic Systems)
- Medical Applications (Medical Imaging)
- 12 Mega Pixel
- High speed and Excellent Quality
- Super sensitive CMOS sensor
- More than 60 frames per second
Selected variant
Selected variant

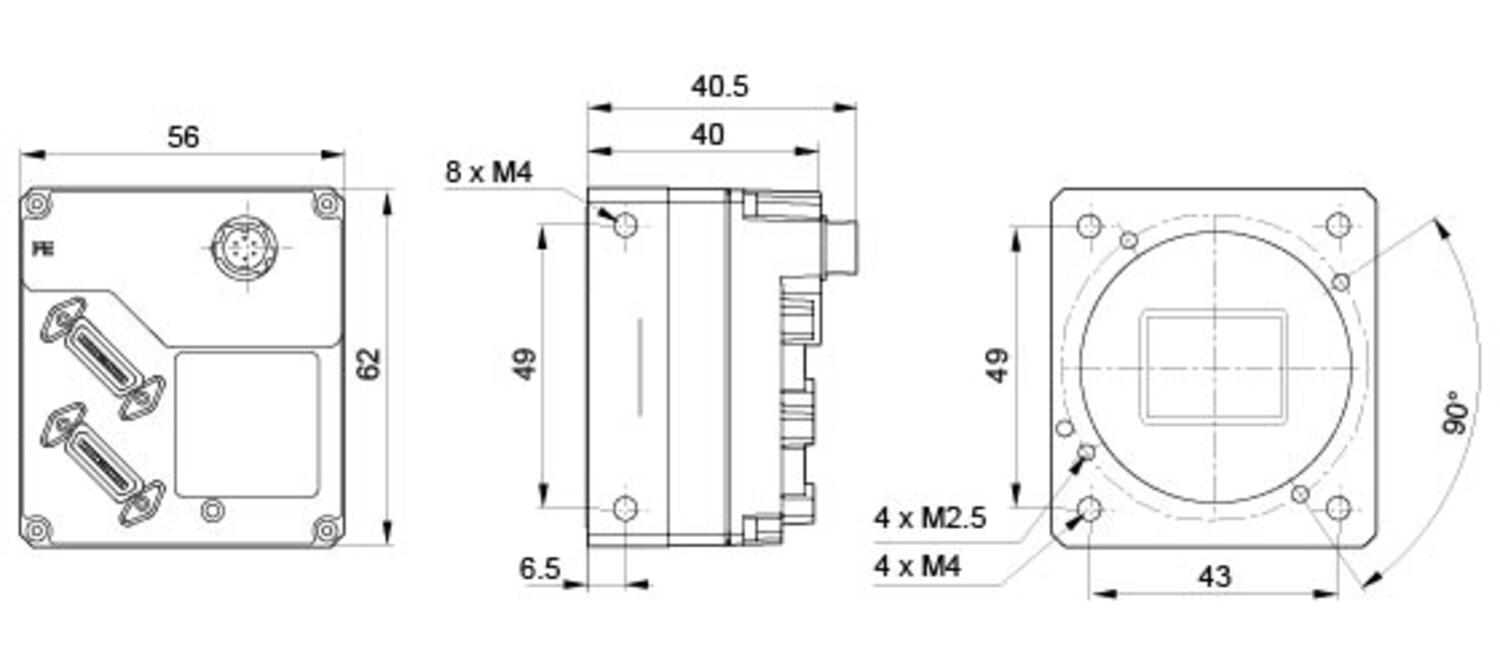

Specifications
| 3612_Pixel size (µm) | 5.5 x 5.5 |
|---|---|
| Approvals | CE, EAC, FCC, GenICam, RoHS, UL |
| Frame Rate Max | 62 |
| Height | 62 |
| Interface | Camera Link |
| IP Class | IP30 |
| Length | 40 |
| Lens Barrel | F-mount, M42-mount or M58-mount |
| Mono/Color | Mono |
| Operating temperature | 0°C ... 60°C |
| Power Consumption | 6 |
|---|---|
| Resolution Max | 4096 x 3072 px |
| Sensor model | CMV12000 |
| Sensor size | 1.75" |
| Sensor supplier | ams |
| Shutter type | Global |
| Weight | 210 |
| Width | 56 |
Downloads
Product description
The Basler Beat series of cameras offer high resolution, super-sensitive, CMOSIS sensor CMV12000. The image quality achievable with these cameras is comparable with that of CCD sensor cameras and exceeds the image quality offered by older CMOS sensors. Featuring both mono and colour models with progressive scan and global shutter, the Basler Beat camera has a full resolution of 12 megapixels, offering high capture rates and high resolution with superior image quality.
Basler Beat Product Features:
- Next-Generation CMOS sensors
- 12 megapixels
- More than 60 frames per second
- Easily integrated due its compact housing
- Basler pylon Camera Software Suite
- Compatible with all common frame grabbers for maximum grabbing speed and high bandwidth connection
Examples of application areas:
- Semiconductor manufacturing
- Electronics manufacturing
- ITS (Intelligent Traffic Systems)
- Medical Applications (Medical Imaging)
