ADVANCED ILLUMINATION
Advanced Illumination - AL46120 - BALA Lighting
20" Broad Area Linear Array
The AL46120 range of BALA (Broad Area Linear Array) bar lights are legacy part number derived from the AL150 range.
Designed for applications that require broad illumination over a wide area, or for applications requiring an even broader field of illumintion, utilise 2 BALA bar lights in parallel.
The AL46120 bar light series is expandable in 1" increments up to 82".
Power options include:
- C1 connector - for use with DCS series controllers
- C5 connector - for use with Pulsar 320 strobe controller
- Continuous in-line controller - powered by 24V power supply
- Combination strobe/continuous in-line controller - powered by 24V power supply
- Default-OFF strobe/continuous in-line controller - powered by 24V power supply
- Flying/tinned leads - powered by 24V power supply
Other Wavelength options:
- UV - 395
- Blue - 470
- Green - 520
- Red - 625, 660
- Infrared - 880
- White - WHI
For enquiries or quotes for sizes and power options not listed here please contact us.
- Developed to handle a long, wide field with low angle of view
- Very even lighting throughout the area
- Legacy product see AL150
Selected variant
Selected variant

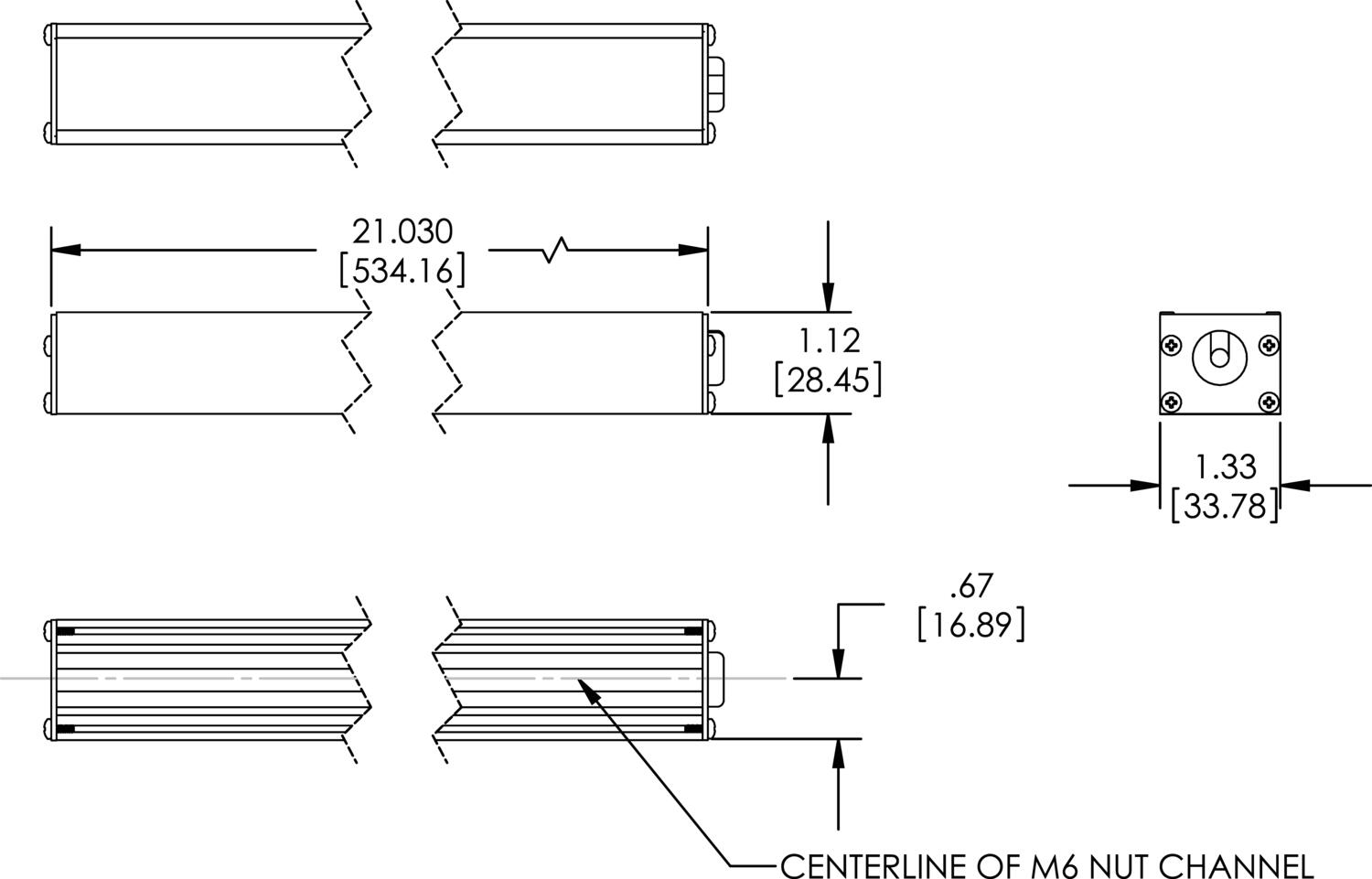

Specifications
| Approvals | CE, RoHS, IEC |
|---|---|
| Color | Ultraviolet |
| Connector/controller | C5 connector |
| IP Class | IP50 |
| Length | 535 |
| Operating temperature | 0 - 60°C |
| Wave-Length | 395 |
| Weight | 508.9 |
| Width | 34 |
Product description
The AL46120 range of BALA (Broad Area Linear Array) bar lights are legacy part number derived from the AL150 range.
Designed for applications that require broad illumination over a wide area, or for applications requiring an even broader field of illumintion, utilise 2 BALA bar lights in parallel.
The AL46120 bar light series is expandable in 1" increments up to 82".
Power options include:
- C1 connector - for use with DCS series controllers
- C5 connector - for use with Pulsar 320 strobe controller
- Continuous in-line controller - powered by 24V power supply
- Combination strobe/continuous in-line controller - powered by 24V power supply
- Default-OFF strobe/continuous in-line controller - powered by 24V power supply
- Flying/tinned leads - powered by 24V power supply
Other Wavelength options:
- UV - 395
- Blue - 470
- Green - 520
- Red - 625, 660
- Infrared - 880
- White - WHI
For enquiries or quotes for sizes and power options not listed here please contact us.
