STULZ

STEGOJET Spot cooling fan

SJ 019

The STEGOJET is a compact directional powerful fan. It allows precise cooling of heat sources and the air flow prevents formation of heat pockets. This product is ideal for spot cooling on high wattage components and can be used in conjunction with the standard filter fans in critical installations.

Prevents hot spots
Directional outlet
Wide voltage range
Compact design
DIN rail or screw mounting

Selected variant

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Air Volume Free Blowing	27.6
Approvals	CE, cULus, EAC, RoHS, UL, UL E234324, VDE
Color	Black
Depth	136
Flamklass	UL94-V0
Frequenze	50/60 Hz
Height	60
Humidity Storage	<90% RH
IP Class	IP20
Life span	40 000 h @ +60 ºC (+140 ºF)

Operating Humidity	< 90% RH
Operational Temperature	-10°C ... +60°C
Power Consumption	4
Storage temperature	-30°C ... +70°C
Weight	0.2
Width	50
Voltage max	265 V ac
Voltage min	90 V ac

Downloads

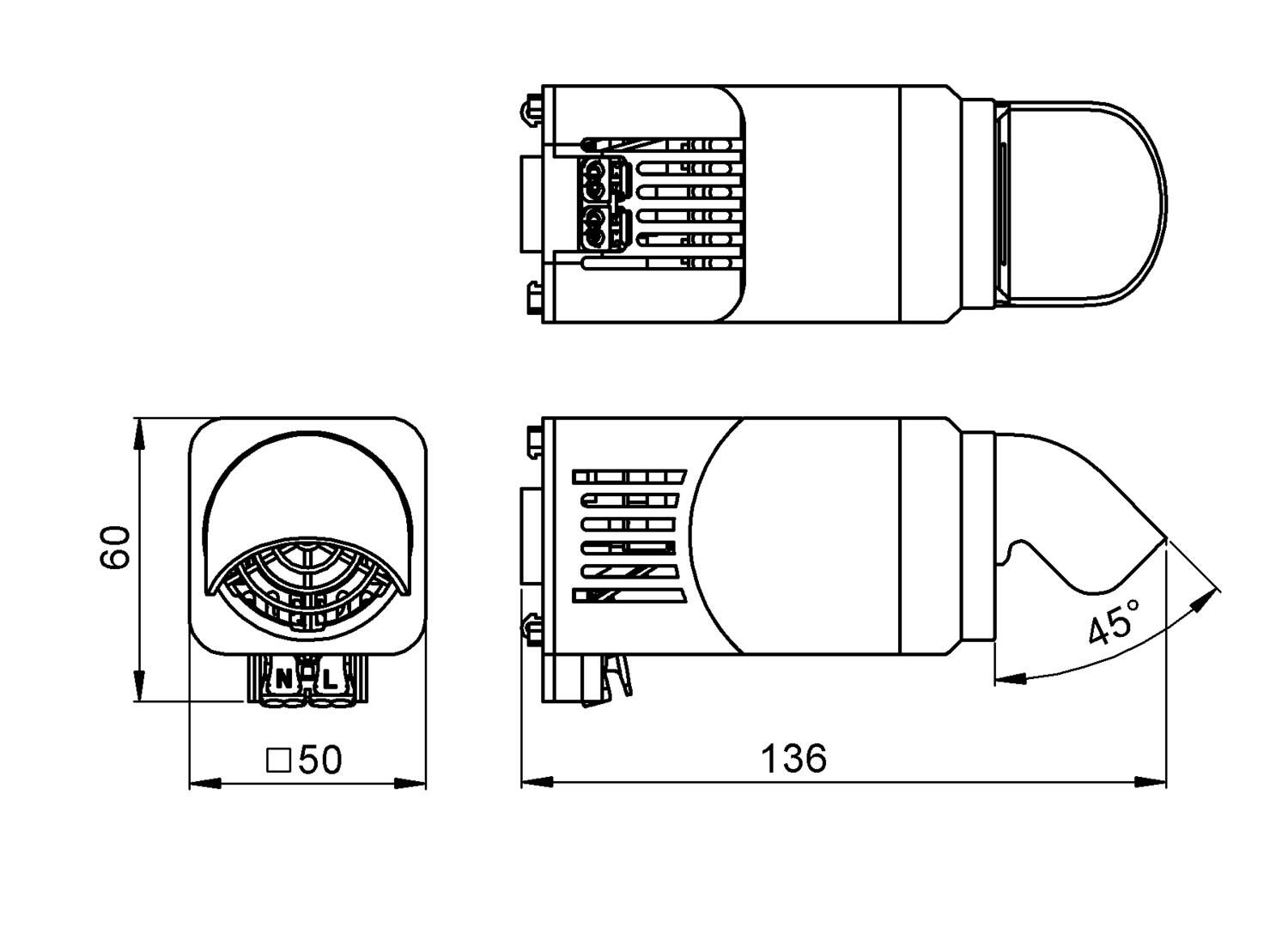

Measurements and connections

Product description

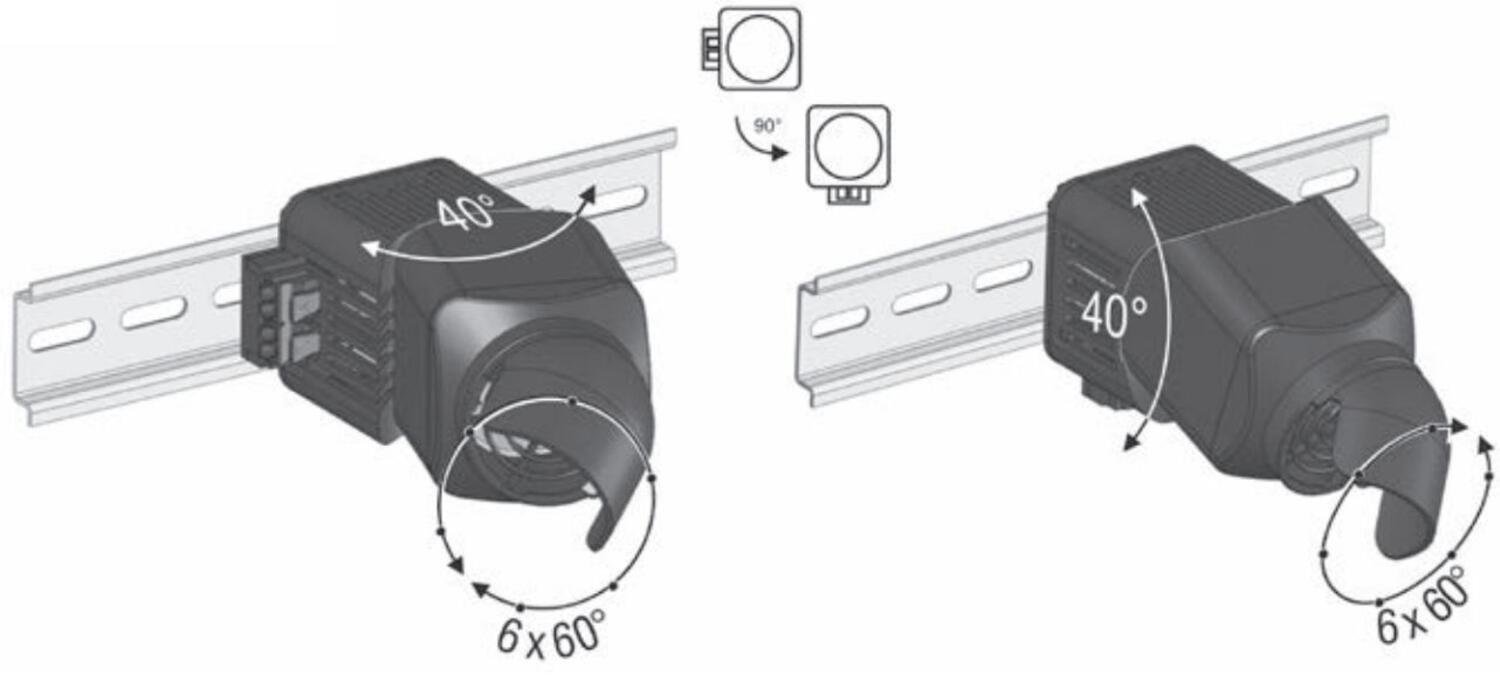

Its design offers a maximum rotation range with an air output in almost any direction. On one hand the dual clip system (two clips in a 90° angle) allows four different positions on a DIN rail, while on the other hand the hinge in the housing can be moved in a 40° angle. The airflow at the air outlet can also be directed in a 45° angle and the air duct can be rotated in steps of 60°.
