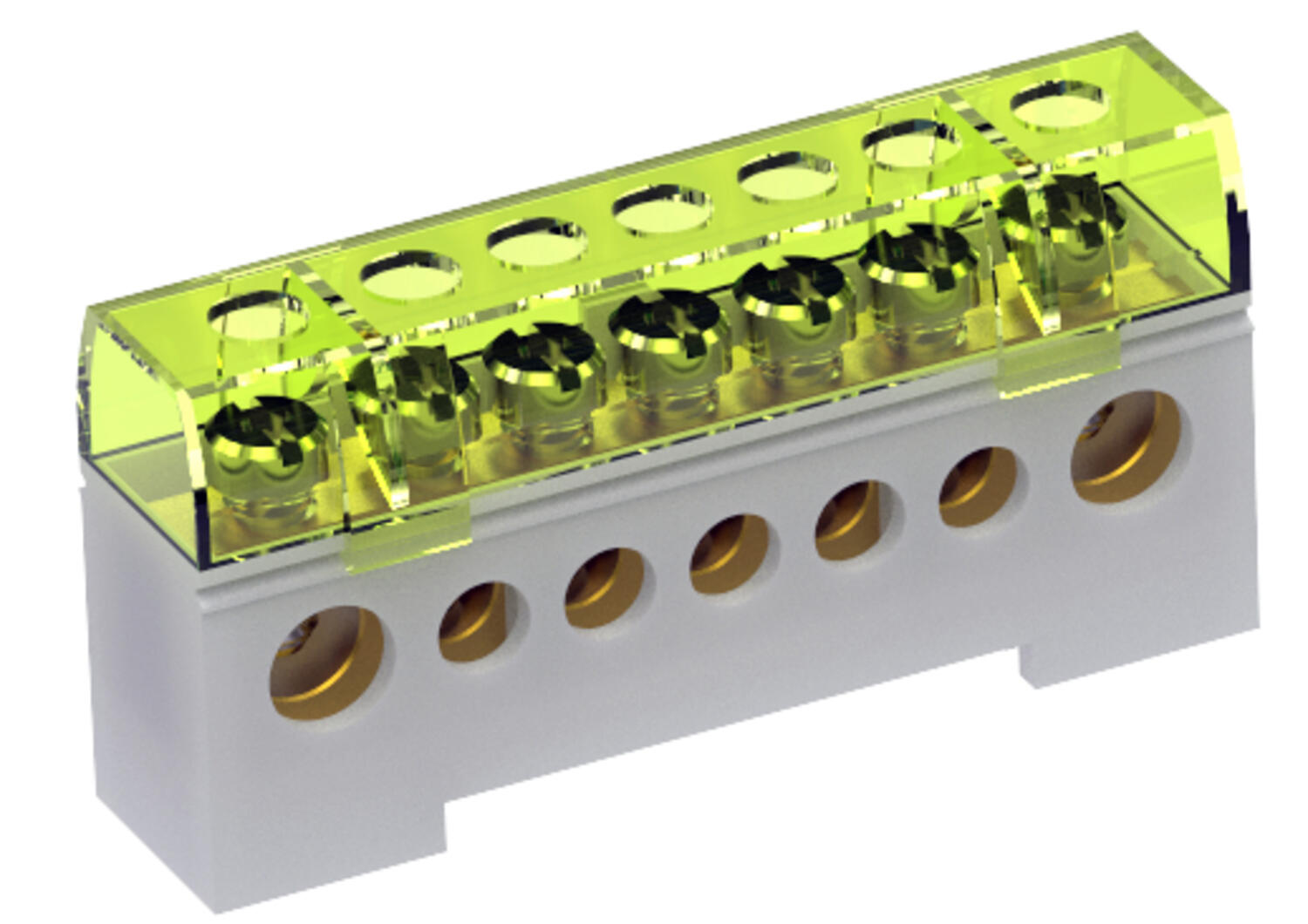

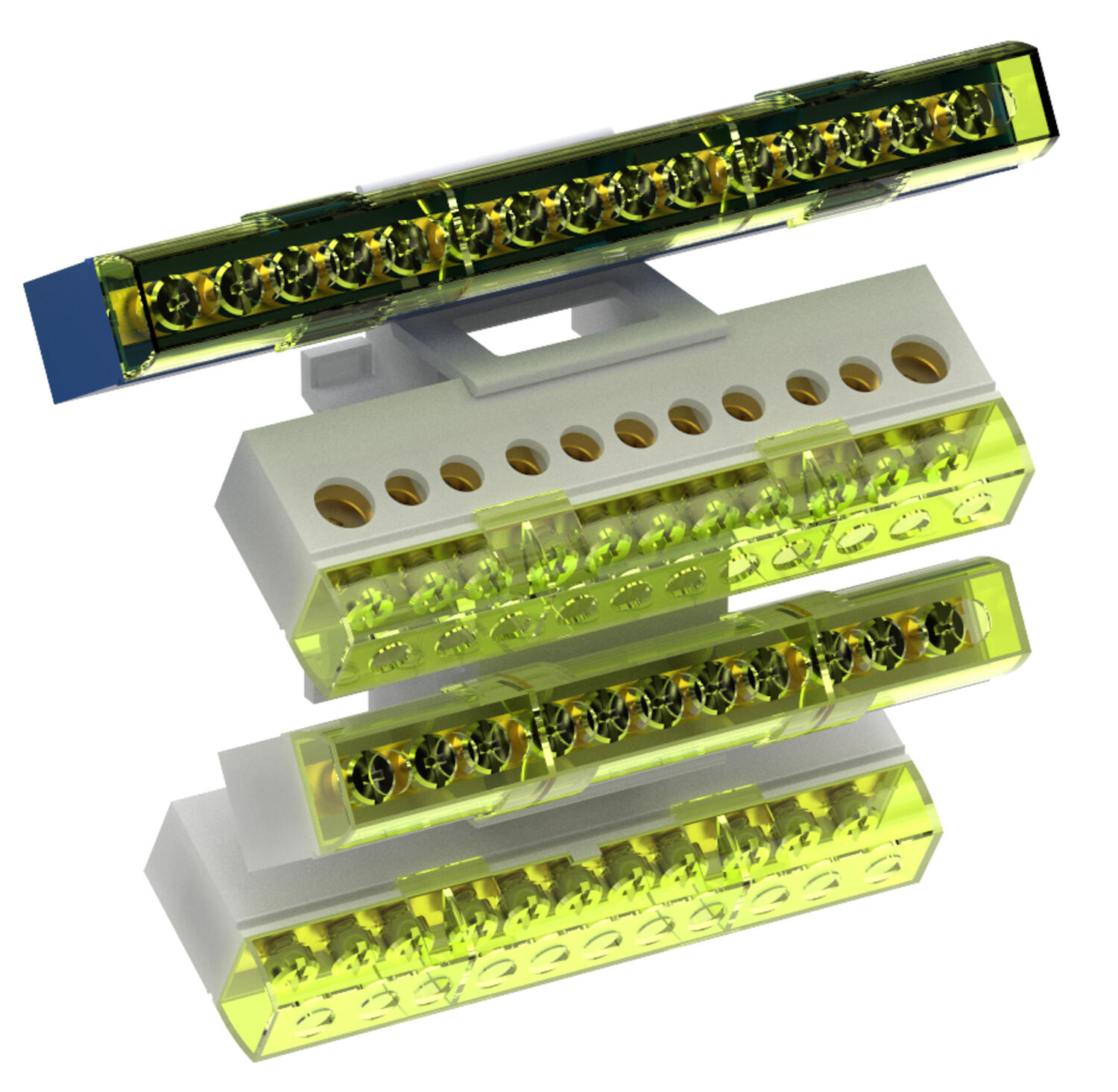

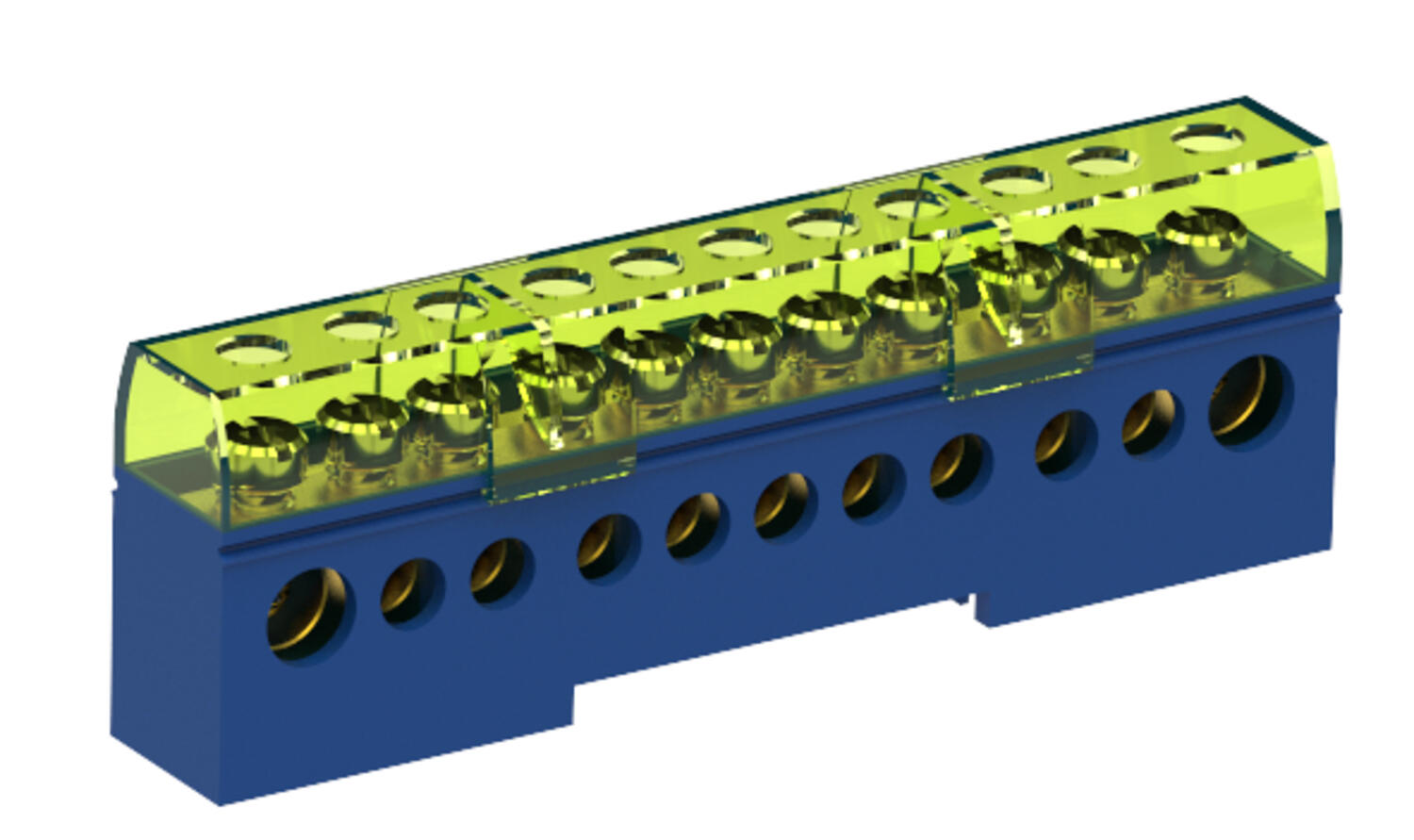

Unipolar terminal blocks are for mounting on DIN rails.
With various lengths the blocks are all rate at 80A with a nominal insulation voltage of 500 V. In
All ITB blocks comply with EN 60947-7-1 regulation
| Color | Blue |
|---|---|
| Connections | 7 |
| Height (H) | 31 |
| Input A: diameter | 7.5 |
| Input A: torque, max. | 2 |
| Input A: wire cross-section stranded, max. | 16 |
| Input A: wire cross-section stranded, min. | 4 |
| Input A: wire cross-section with wire-end ferrules, max. | 16 |
| Input A: wire cross-section with wire-end ferrules, min. | 2.5 |
| Input B: diameter | 5.5 |
| Input B: torque, max. | 1.5 |
| Input B: wire cross-section stranded with wire-end ferrules, max. | 6 |
| Input B: wire cross-section stranded, max. | 6 |
| Input B: wire cross-section stranded, min. | 2.5 |
|---|---|
| Input B: wire cross-section, stranded with wire-end ferrules, min. | 1.5 |
| Length (L) | 63 |

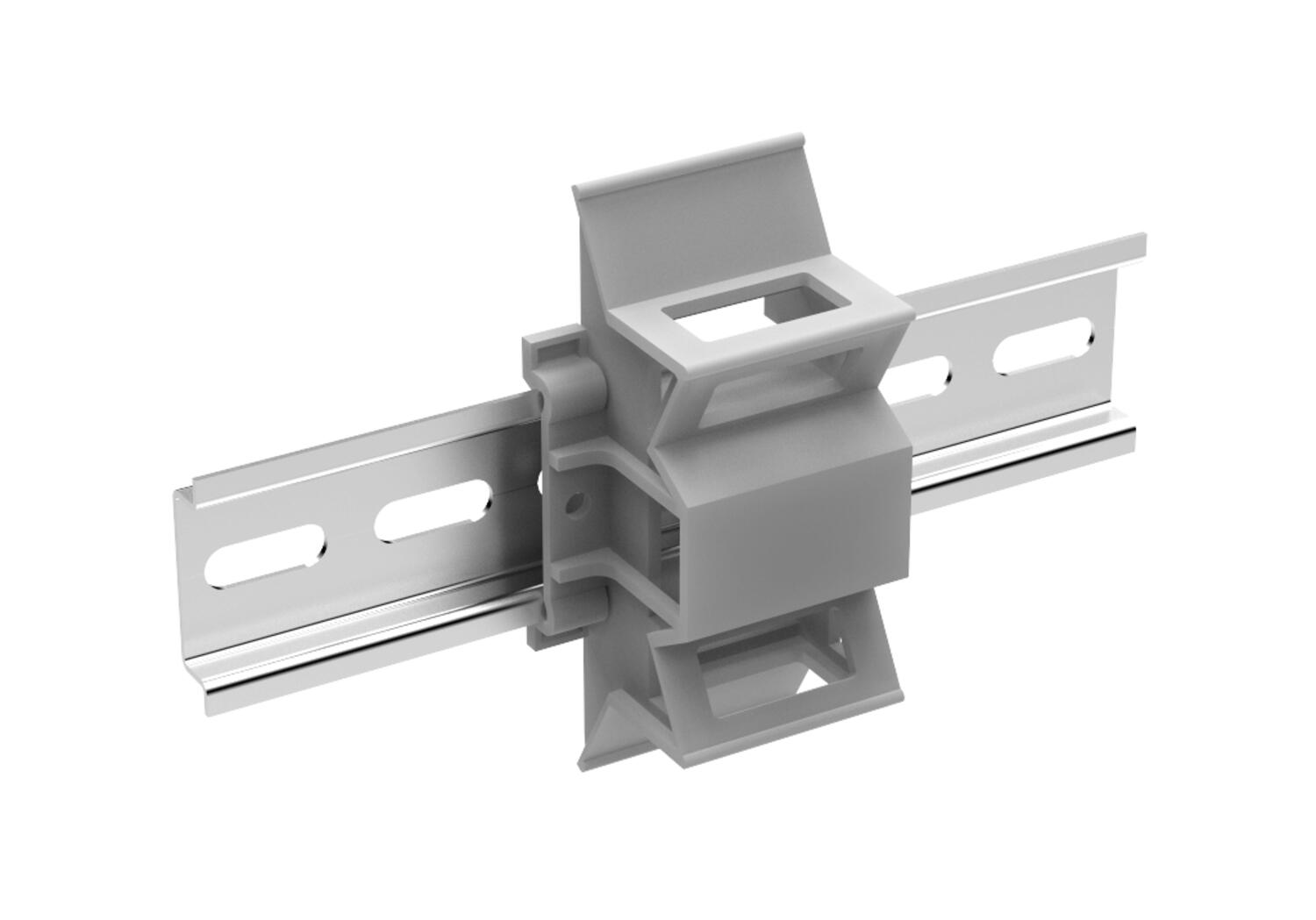

| Mounting | DIN rail |
| Nominal insulation voltage | 500 |
| Number of inputs A | 2 |
| Number of inputs B | 5 |
| Pack size | 10 |
| Rated Current | 80 |
| Screw type | Galvanized steel screws |
| Weight | 46 |
| Width | 15 |
Unipolar terminal blocks are for mounting on DIN rails.
With various lengths the blocks are all rate at 80A with a nominal insulation voltage of 500 V. In
All ITB blocks comply with EN 60947-7-1 regulation
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Color | Connections | Length (L) | Number of inputs B | Weight | Price | |
|---|---|---|---|---|---|---|---|---|
Terminal Block 7 Way Blue 80A ITB80-7B
Art:
ITB1015
Copied
|
Blue
|
7
|
63
|
5
|
46
|
| ||
Terminal Block 7 Way Green 80A ITB80-7G
Art:
ITB1030
Copied
|
Green
|
7
|
63
|
5
|
46
|
| ||
|

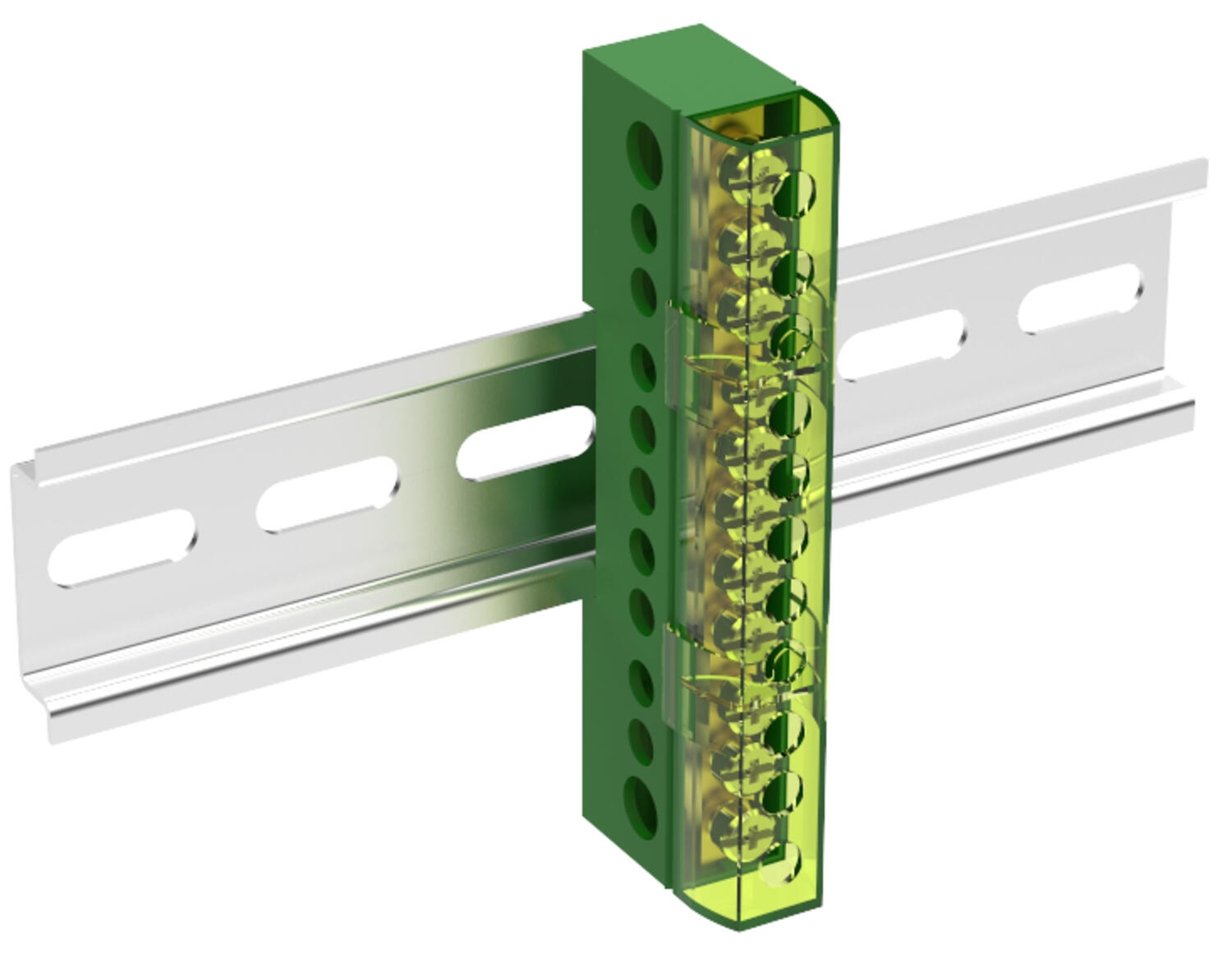

Terminal Block 11 Way Green 80A ITB80-11G
Art:
ITB1035
Copied
|
Green
|
11
|
95
|
9
|
70
|
| ||
|
Terminal Block 15 Way Blue 80A ITB80-15B
Art:
ITB1025
Copied
|
Blue
|
15
|
125
|
13
|
94
|
| ||
|

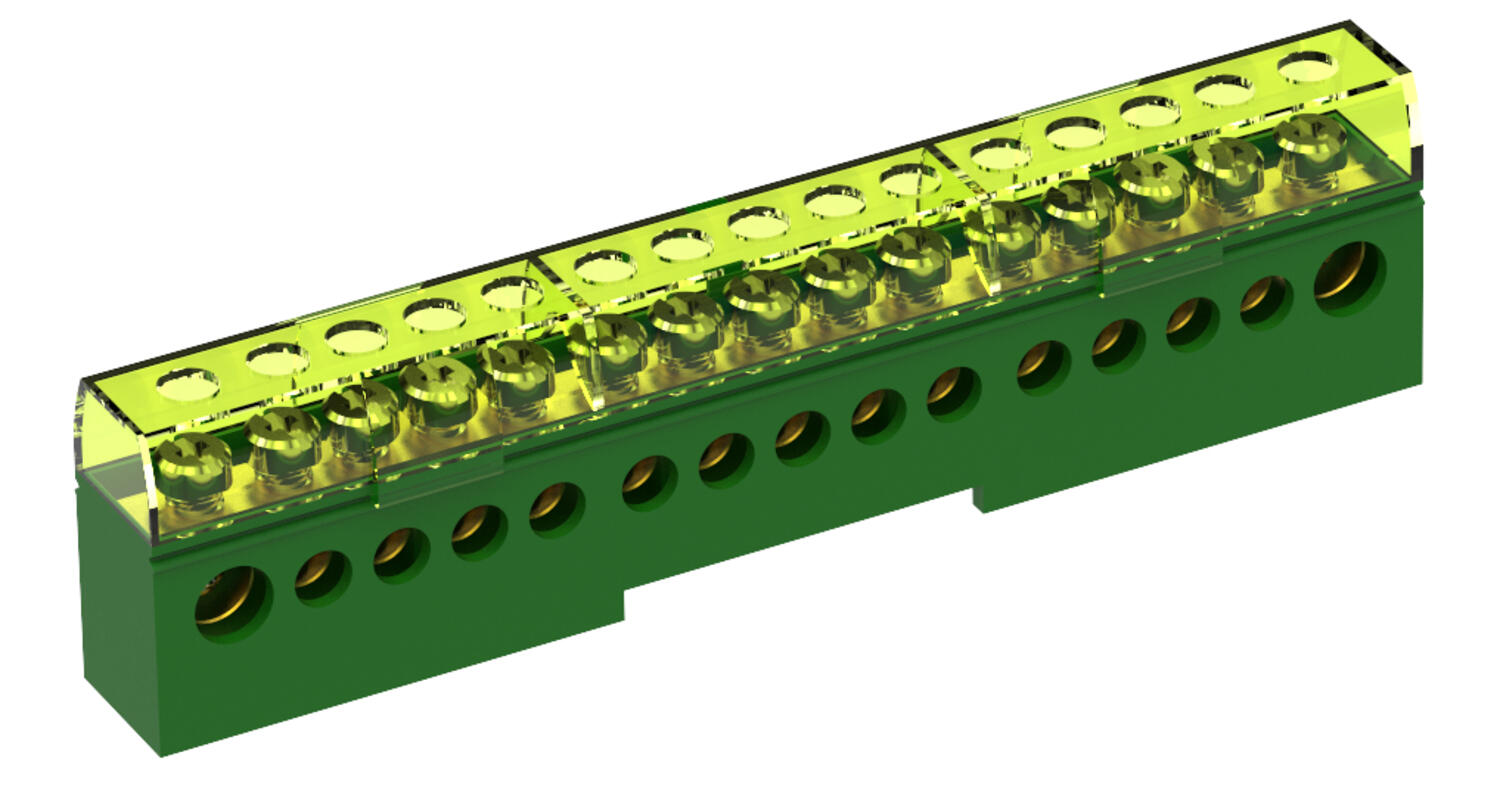

Terminal Block 15 Way Green 80A ITB80-15G
Art:
ITB1040
Copied
|
Green
|
15
|
125
|
13
|
94
|
|
