Busbar clamping yoke terminals - ZB series

ZB, SSCH

 Busbars and clamping yokes



The ZB clamping yoke can be used in conjunction with the 10 x 3 or 6 x 6 busbars in order to bring the neutral conductor or Earth (PE) conductor together at one point.



The SH and ES busbar supports are used to mount the busbar, either directly to the back plate or on the DIN rail.

With longer rails, these can be positioned between the clamping yokes to give extra support.







The clamping yokes are available with or without insulating caps, green/yellow as a PE connection, blue for Neutral and Black.



These caps stogether with the labelling tags help the connections wires to be clearly assigned.

  • Screw couplings
  • Clamp sizes, 4mm², 16mm² or 35mm²
  • Available for 10x3mm or 6x6mm bar
  • Material polyamide 6.6 - UL94-V2

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Country of origin DE
Cross section single wire from 0.5
Cross section single wire to 4
Cross section stranded wire from 5
Cross section stranded wire to 4
Cross-Section 4
Flamklass UL94-V2
Height 11.7
Length 15.5
Operating temperature from -40
Operating temperature to 105
Pack Size 50
Stripping Length 16
Tariff code 85369010
Weight 3.02
Width 5.3

Downloads

Product description

 Busbars and clamping yokes



The ZB clamping yoke can be used in conjunction with the 10 x 3 or 6 x 6 busbars in order to bring the neutral conductor or Earth (PE) conductor together at one point.



The SH and ES busbar supports are used to mount the busbar, either directly to the back plate or on the DIN rail.

With longer rails, these can be positioned between the clamping yokes to give extra support.







The clamping yokes are available with or without insulating caps, green/yellow as a PE connection, blue for Neutral and Black.



These caps stogether with the labelling tags help the connections wires to be clearly assigned.

Accessories

My favourites Articles Color Country of origin Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross-Section Flamklass Height Length Operating temperature from Operating temperature to Pack Size Stripping Length Tariff code Weight Width Price

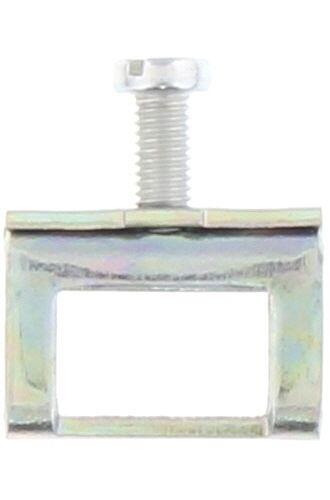

ZB 4, 4mm² clamping yoke for 10 x 3 busbar - no cap
Art:
2138.0 Copied
DE
0.5
4
5
4
4
UL94-V2
11.7
15.5
-40
105
50
16
85369010
3.02
5.3

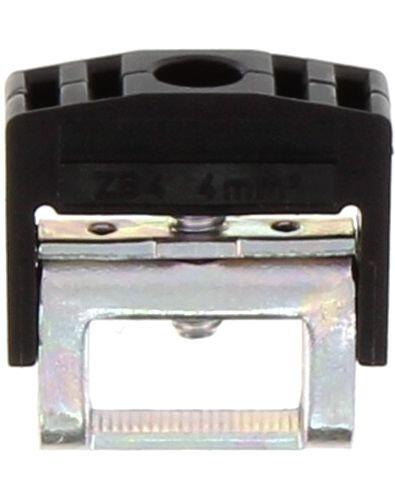

ZB 4/K Black, 4mm² clamping yoke for 10 x 3 busbar
Art:
2483.4 Copied
Black
DE
0.5
4
0.5
4
4
UL94-V2
11.7
15.5
-40
105
50
16
85369010
3.6
5.3

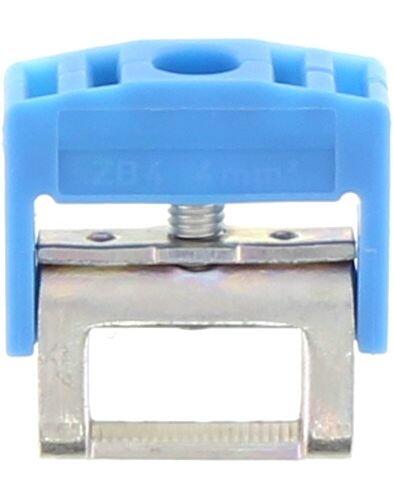

ZB 4/K Blue, 4mm² clamping yoke for 10 x 3 busbar
Art:
2483.5 Copied
Blue
DE
0.5
4
0.5
4
4
UL94-V2
11.7
15.5
-40
105
50
16
85369010
3.6
5.3

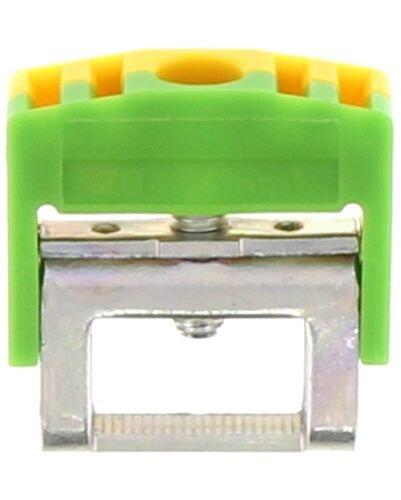

ZB 4/K Green/Yellow, 4mm² clamping yoke for 10 x 3 busbar
Art:
2483.1 Copied
DE
0.5
4
0.5
4
4
UL94-V2
11.7
15.5
-40
105
50
16
85369010
3.6
5.3
ZB 4/6, 4mm² clamping yoke for 6 x 6 busbar - no cap
Art:
2328.0 Copied
DE
0.5
4
5
4
4
UL94-V2
15
12
-40
105
50
12
85369010
2.8
5.5

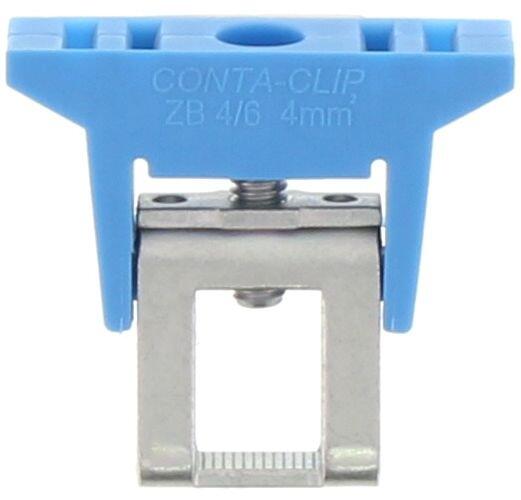

ZB 4/6/K Blue, 4mm² clamping yoke for 6 x 6 busbar
Art:
2486.5 Copied
Blue
DE
0.5
4
0.5
4
4
UL94-V2
15
12
-40
105
50
12
85369010
3.78
5.5
ZB 4/6/K Green/Yellow, 4mm² clamping yoke for 6 x 6 busbar
Art:
2486.1 Copied
DE
0.5
4
0.5
4
4
UL94-V2
15
12
-40
105
50
12
85369010
3.78
5.5

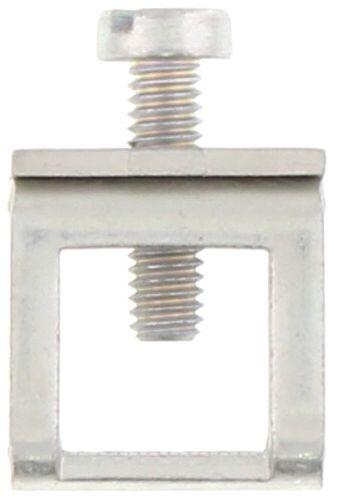

ZB 16, 16mm² clamping yoke for 10 x 3 busbar - no cap
Art:
2139.0 Copied
DE
2.5
16
2.5
16
16
UL94-V2
16.5
15.5
-40
105
50
16
85369010
7.6
10

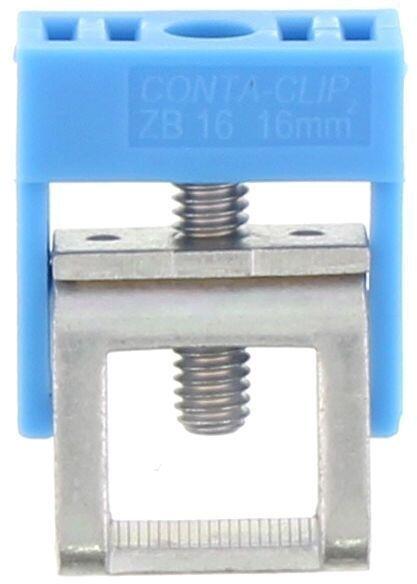

ZB 16/K Blue, 16mm² clamping yoke for 10 x 3 busbar
Art:
2484.5 Copied
Blue
DE
2.5
16
2.5
16
16
UL94-V2
165
15.5
-40
105
50
16
85369010
8.6
10
ZB 16/K Green/Yellow, 16mm² clamping yoke for 10 x 3 busbar
Art:
2484.1 Copied
DE
2.5
16
2.5
16
16
UL94-V2
165
15.5
-40
105
50
16
85369010
8.6
10

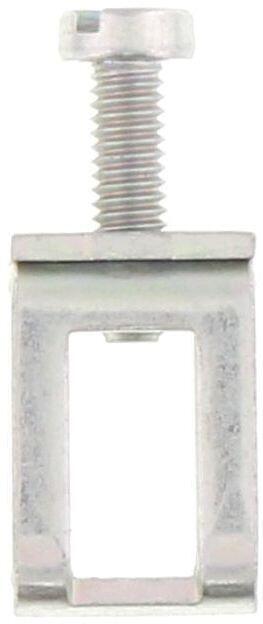

ZB 16/6, 16mm² clamping yoke for 6 x 6 busbar - no cap
Art:
2329.0 Copied
DE
2.5
16
2.5
16
16
UL94-V2
19.9
12
-40
105
50
12
85369010
6.76
9.5

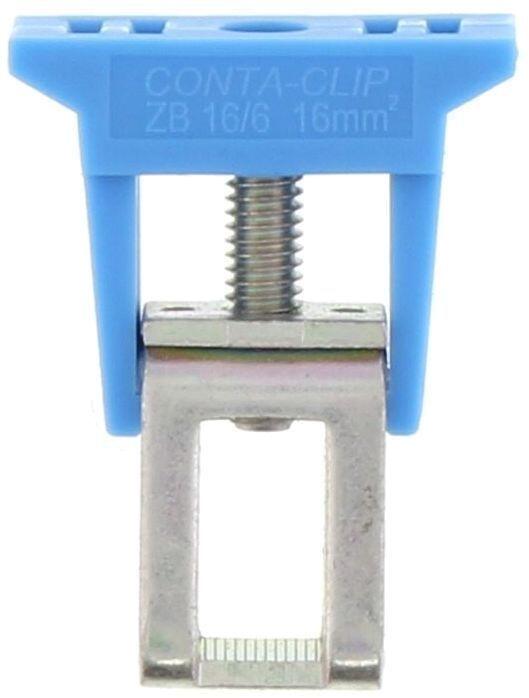

ZB 16/6/K Blue, 16mm² clamping yoke for 6 x 6 busbar
Art:
2487.5 Copied
Blue
DE
2.5
16
2.5
16
16
UL94-V2
19.9
12
-40
105
50
12
85369010
8.45
9.5
ZB 16/6/K Green/Yellow, 35mm² clamping yoke for 6 x 6 busbar
Art:
2487.1 Copied
DE
2.5
16
2.5
16
16
UL94-V2
19.9
12
-40
105
50
12
85369010
8.45
9.5

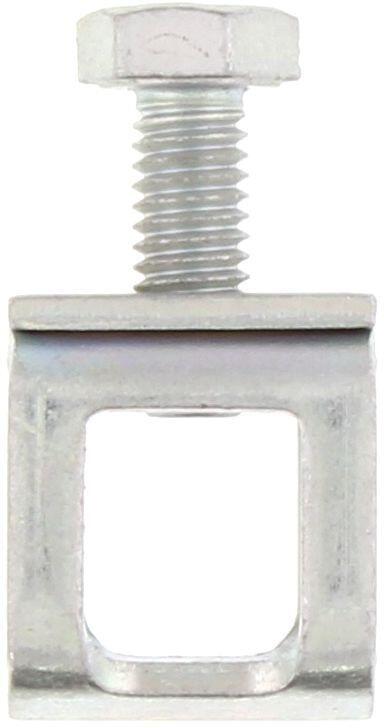

ZB 35, 35mm² clamping yoke for 10 x 3 busbar - no cap
Art:
2305.0 Copied
DE
16
35
16
35
35
UL94-V2
21
18
-40
105
20
18
85369010
17.7
14
246122_566.tif
ZB 35/K Black, 35mm² clamping yoke for 10 x 3 busbar
Art:
2485.4 Copied
Black
DE
16
35
16
35
35
UL94-V2
21
18
-40
105
20
18
85369010
18.75
14

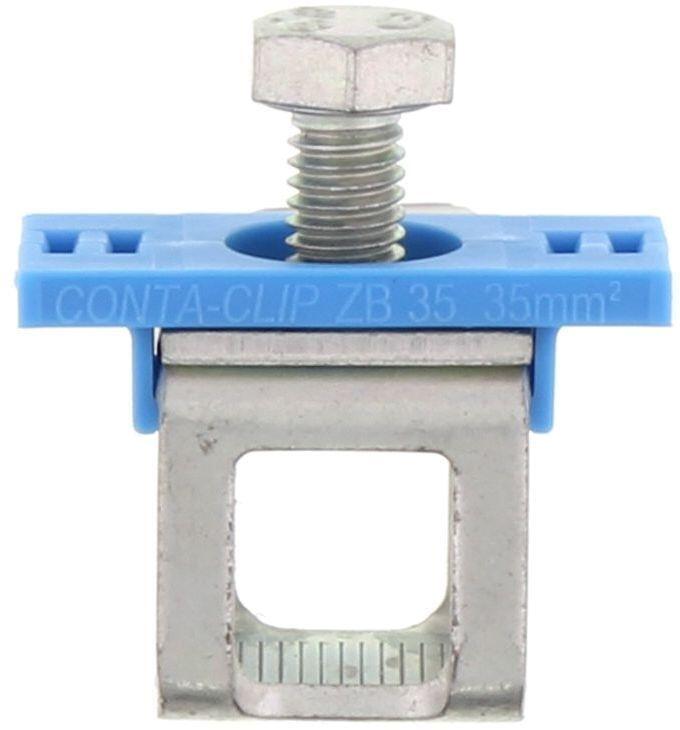

ZB 35/K Blue, 35mm² clamping yoke for 10 x 3 busbar
Art:
2485.5 Copied
Blue
DE
16
35
16
35
35
UL94-V2
21
18
-40
105
20
18
85369010
18.75
14
ZB 35/K Green/Yellow, 35mm² clamping yoke for 10 x 3 busbar
Art:
2485.1 Copied
DE
16
35
16
35
35
UL94-V2
21
18
-40
105
20
18
85369010
18.75
14

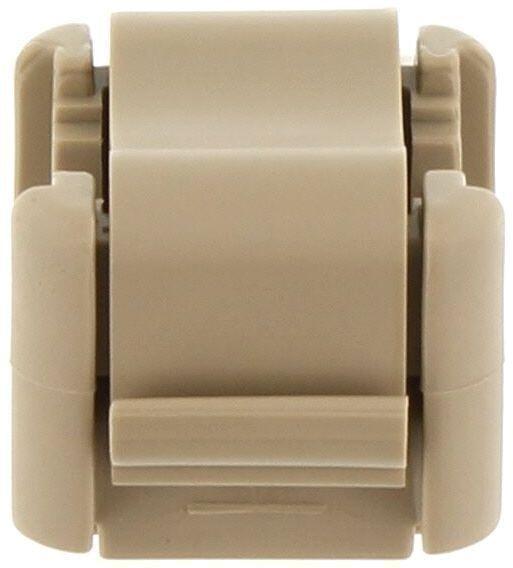

SH 1, Busbar support mounting block, direct mount
Art:
2318.2 Copied
Beige
DE
UL94-V2
23.7
24
-40
105
20
85369010
5.85
24
10 x3.JPG

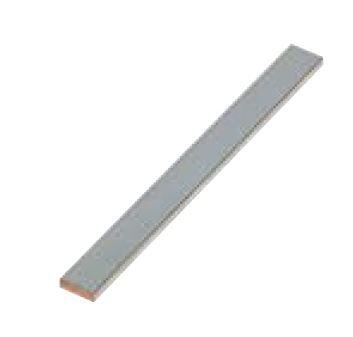

SSCH 10X3, Copper Busbar 10 x 3mm - 1m long
Art:
2129.0 Copied
10 x3.JPG
SSCH 10X3, Brass Busbar 10 x 3mm 1m long
Art:
2128.0 Copied

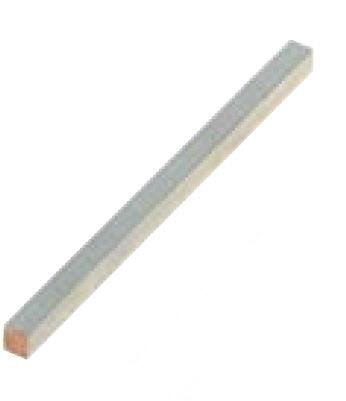

SSCH 6X6, Copper busbar 6 x 6 mm - 1m long
Art:
2131.0 Copied
SSCH 6X6, Brass Busbar 6 x 6mm - 1m longSsch 6x6 MS
Art:
2132.0 Copied
