MOLEX

Molex - M12 field wireable connector female

  • IP67

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cable Connection Screw
Cable Diameter Max 6.6
Cable Diameter Min 3.3
Coding A
Connection Thread M12
Contact Embodiment Straight female
Cross-Section Max 0.75
Current max 4
IP Class IP67
LED indicator No
Manufacturer Part No 1200710035
Material of body Plastic
Materials Contacts Silver-plated copper
Number of poles 4
Shielded No
Temperature range from -25
Temperature range to 90
Voltage AC max 250
Voltage DC max 300

Downloads

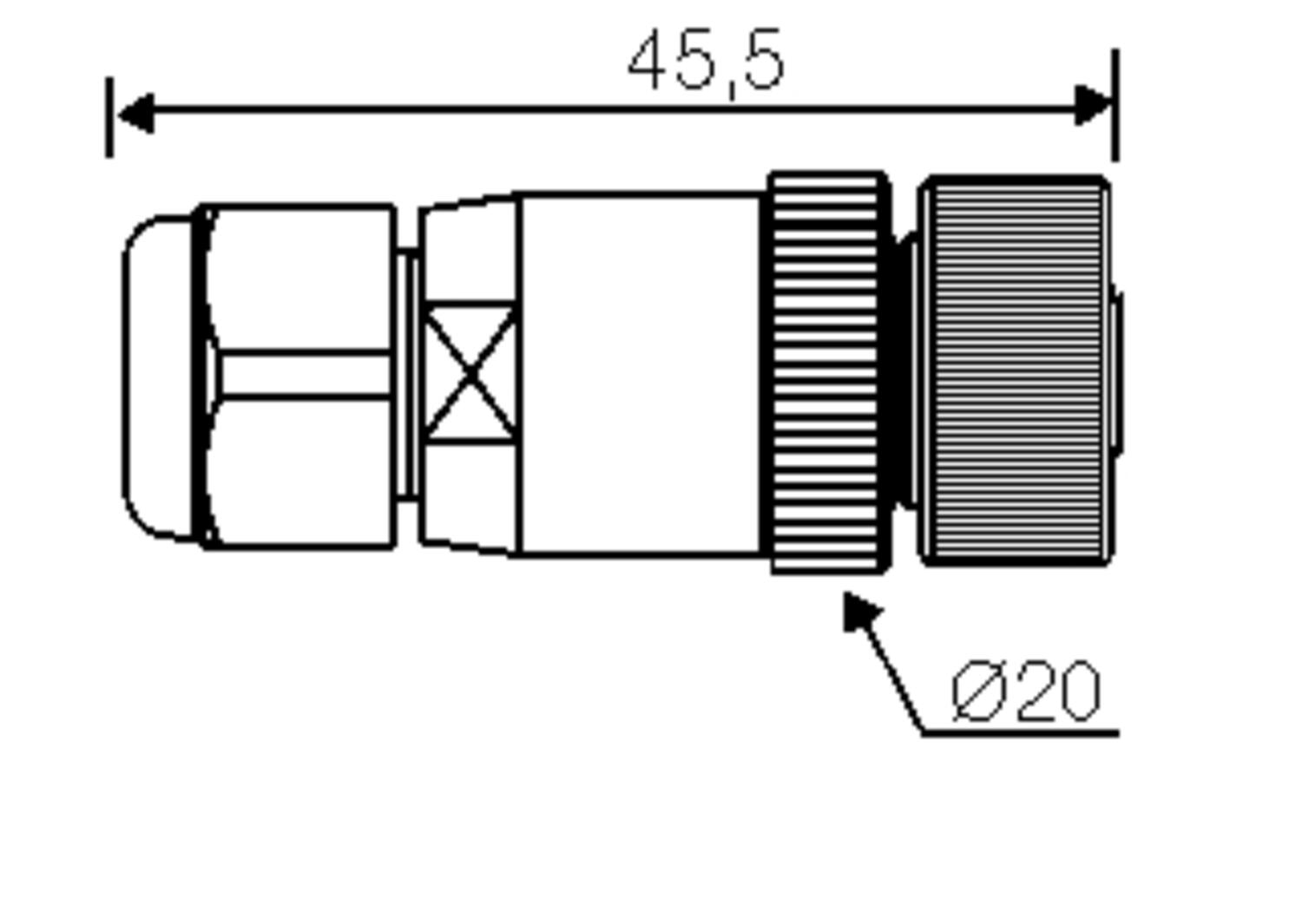

Measurements and connections

Accessories

Related products

My favourites Articles Cable Diameter Max Cable Diameter Min Contact Embodiment Manufacturer Part No Number of poles Voltage AC max Voltage DC max Price
137677_812.tif
MMC-4P-FE-ST-FIELD ATT-PG7
Art:
8A4000315 Copied
6.6
3.3
Straight female
1200710035
4
250
300
8A4000325_photo.tif
MICRO CHANGE WIREABLE FEM STRT
Art:
8A4000325 Copied
8.1
4.1
Straight female
1200710036
4
250
300

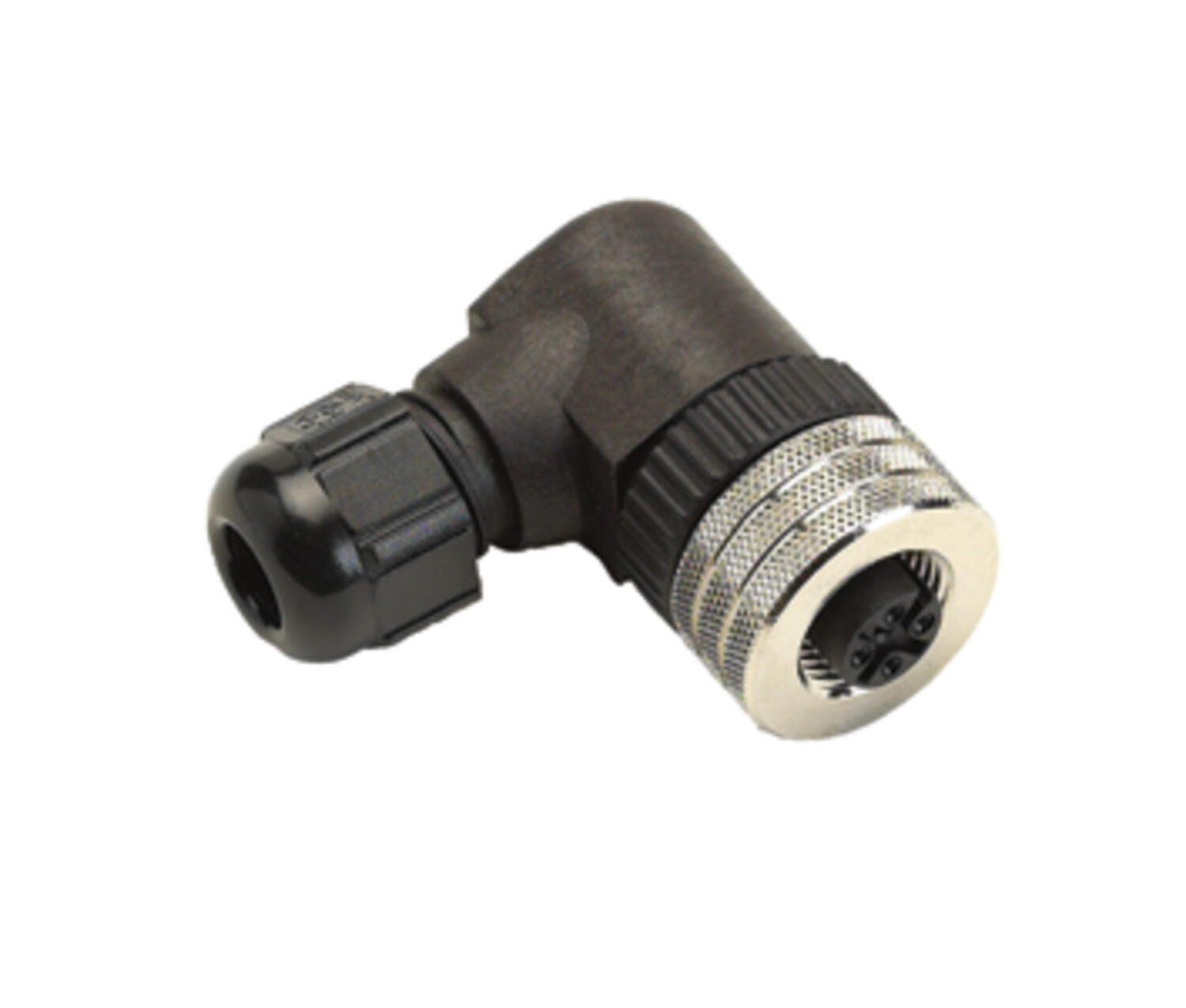

137675_812.tif
MMC-4P-FE-90-FIELD ATT-PG7
Art:
8A4001315 Copied
6.6
3.3
Angled female
1200710037
4
250
300
137677_812.tif
Field attachable M12-F-ST-5p-PG7
Art:
8A5000315 Copied
6.6
3.3
Straight female
1200710041
5
30
36
8A4000325_photo.tif
MMC-5P-FE-ST-FIELD ATT-PG9
Art:
8A5000325 Copied
8.1
4.1
Straight female
1200710043
5
30
36
137675_812.tif
MMC-5P-FE-90-FIELD ATT-PG7
Art:
8A5001315 Copied
6.6
3.3
Angled female
1200710044
5
30
36

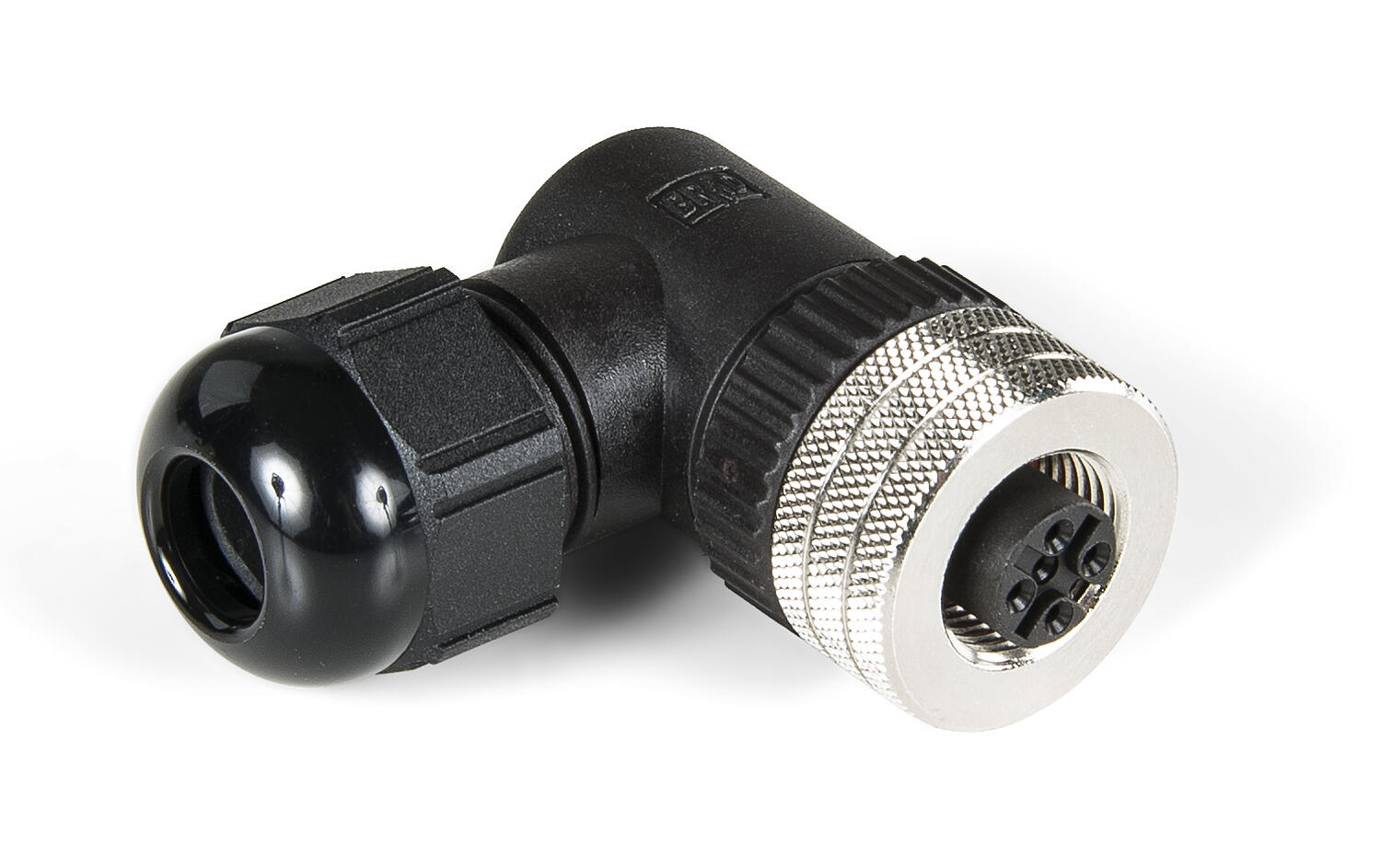

8A5001325_photo.tif
Field attachable M12-F-90-5p-PG9
Art:
8A5001325 Copied
8.1
4.1
Angled female
1200710070
5
30
36
