Honsberg - UR1 Series Flow Switch

Paddle

The Honsberg UR1 is a simple flow switch which can easily be adjusted and also changed from normally open to normally closed. The flow switch works via a spring-supported paddle which moves according to the flow and when the specific flow is reach a magnetic reed switch is activated.

Special versions

• Plastic materials
• Weld/solder connection
• High volume OEM version
• Ex

• Switching ranges for oil or gas
• Special values
• High volume OEM version
• PVC (solder fitting)



  • Switching range 1,3..35 l/min
  • Water (oils, gases and aggressive media available on request)
  • G⅜" up to G2"
  • Brass or stainless steel wetted parts
  • Max pressure 25 bar

Selected variant

Avaible in several variants

Selected variant

Specifications

Accuracy ±15% fs
Adjustable Switching Point L / Min Of Water 30..38 l/min
Connection G1½" female
Contact Rating Max 50
Electrical Connection 1.5m cable
Flow Max l/min Double 100
Function Normally open or normally closed (SPST)
IP Class IP65
Material breaker body Hard ferrite
Material of body Nickel-plated brass, Stainless steel 303
Material of connection Nickel-plated brass
Material of seals NBR
Materials Paddle Stainless steel 301
Materials Wetted Parts Nickel-plated brass, Stainless steel, Hard ferrite, NBR
Media Water (oil, air and aggressive media on request)
Pressure drop Approx. 0.01 bar at max. flow
Pressure Range Max 25
Temperature range of media from 20
Temperature range of media to 110
Type of flow component Flow Switches
Weight 0.55
Viscosity 1
Voltage AC max 230

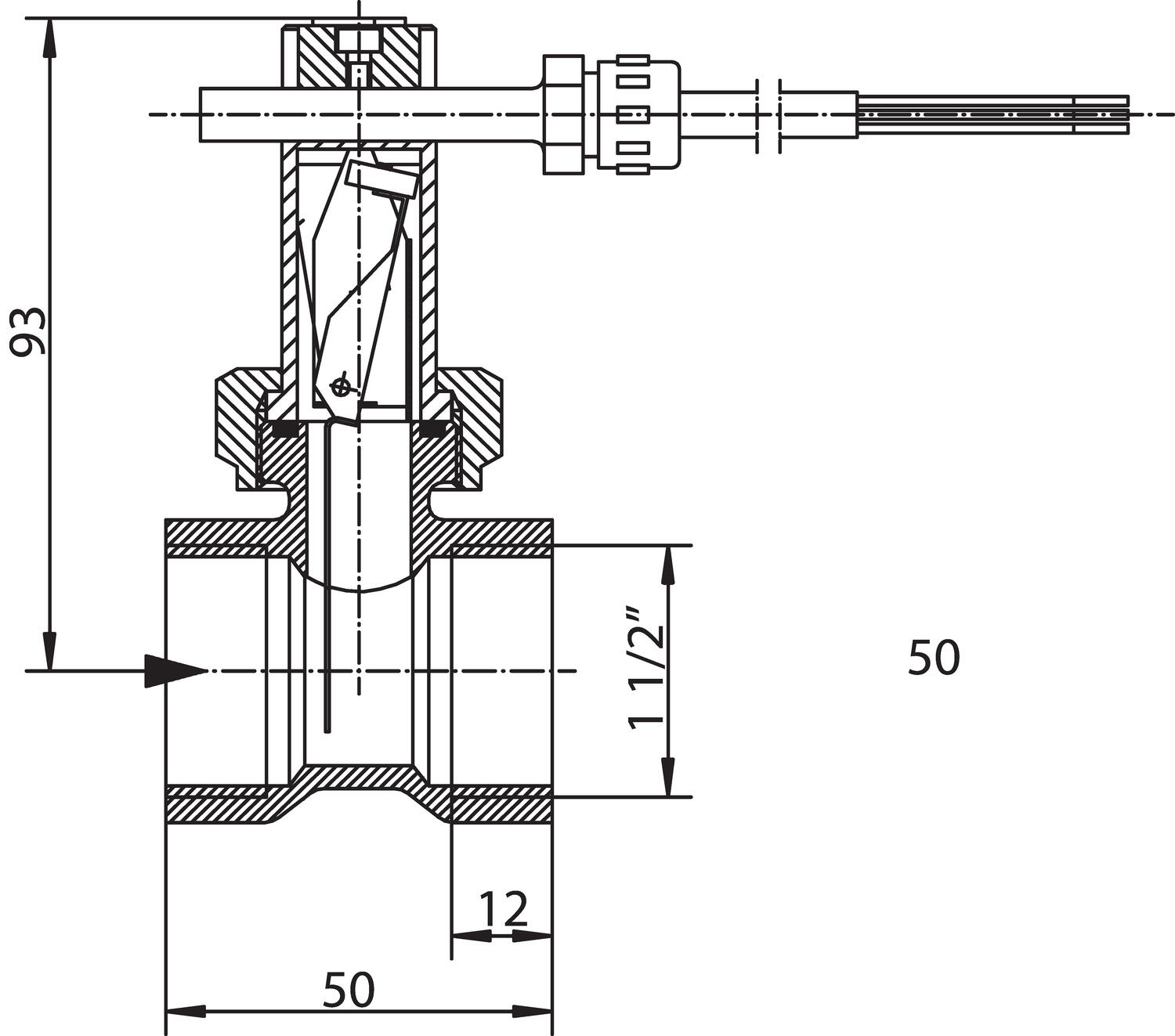

Measurements and connections

Technical illustrations

Product description

The Honsberg UR1 is a simple flow switch which can easily be adjusted and also changed from normally open to normally closed. The flow switch works via a spring-supported paddle which moves according to the flow and when the specific flow is reach a magnetic reed switch is activated.

Special versions

• Plastic materials
• Weld/solder connection
• High volume OEM version
• Ex

• Switching ranges for oil or gas
• Special values
• High volume OEM version
• PVC (solder fitting)



Ordering information

Ordering information



● Specify direction of flow, medium, and switching range, UR1 or switching value UR2.

● For UR2 specify normally closed (n.c.) or normally open (n.o.).

● For oils, state viscosity, temperature and designation (e.g. ISO VG 68) (enquire about range).

● For gases, state pressure (relative or absolute), temperature and medium (e.g. air) (enquire about range).





Installation



  • Include straight calming section of 5 x DN in inlet and outlet.
  • Include a filter if the media is dirty (use magnetic filter for ferritic components).
  • It must be ensured that the values given for voltage, current and power are not exceeded.
  • When switched on, a load must be connected in series.
  • The electrical details apply to ohmic loads. Capacitive, inductive and lamp loads must be operated using a protective circuit.
  • Standard: horizontal inwards flow; switching head not recommended underneath; other installation positions are possible; the installation position affects the switching point and range.

Accessories

Related products

telehaase

Smarter Control Starts Here Explore the TELE Haase Range at Demesne

In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection…

DEMESNE CROKEpark

Team Building and Strategy Day

A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.


draw wire

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

klauke

Klauke Micro Allrounder & i-press Series: Smarter Crimping Starts Here

Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.

PCE  OVERLAY

Industrial Plugs and Sockets by PC Electric

PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.

rct cables

RCT Cables

Elevating Safety with RCT Cable Solutions
RCT Cable Solutions are designed with safety, efficiency, and durability at their core—ensuring reliable cable management in even the most demanding industrial environments. From cable clamps to cleats, glands, and routing systems, RCT products help protect installations from strain, damage, and fire risk…

My favourites Articles Accuracy Adjustable Switching Point L / Min Of Water Connection Flow Max l/min Double Material breaker body Material of body Material of connection Material of seals Materials Paddle Materials Wetted Parts Pressure drop Type of flow component Weight Viscosity Voltage AC / DC Max Price
±15% fs
2,5..3,5 l/min
G3/8" female
10
Hard ferrite
Nickel-plated brass, Stainless steel 303
Nickel-plated brass
NBR
Stainless steel 301
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
Approx. 0.01 bar at max. flow
Flow Switches
0.35
1
±15% fs
2,5..3,5 l/min
G3/8" female
10
Hard ferrite, PTFE coating
Stainless steel 303
Stainless steel
FKM
Stainless steel 301
Stainless steel, Hard ferrite, PTFE coating, FKM
Approx. 0.01 bar at max. flow
0.4
1
±15% fs
4..4,5 l/min
G1/2" female
20
Hard ferrite
Nickel-plated brass, Stainless steel 303
Nickel-plated brass
NBR
Stainless steel 301
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
Approx. 0.01 bar at max. flow
Flow Switches
0.35
1
±15% fs
4..4,5 l/min
G1/2" female
20
Stainless steel
Stainless steel, Hard ferrite, PTFE coating, FKM
Approx. 0.01 bar at max. flow
0.4
1
±15% fs
5..6 l/min
G3/4" female
40
Hard ferrite
Nickel-plated brass, Stainless steel 303
Nickel-plated brass
NBR
Stainless steel 301
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
Approx. 0.01 bar at max. flow
Flow Switches
0.35
1
±15% fs
5..6 l/min
G3/4" female
40
Hard ferrite, PTFE coating
Stainless steel 303
Stainless steel
FKM
Stainless steel 301
Stainless steel, Hard ferrite, PTFE coating, FKM
Approx. 0.01 bar at max. flow
0.35
1
±15% fs
9,5..11,5 l/min
G1" female
60
Hard ferrite
Nickel-plated brass, Stainless steel 303
Nickel-plated brass
NBR
Stainless steel 301
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
Approx. 0.01 bar at max. flow
Flow Switches
0.4
1
±15% fs
9,5..11,5 l/min
G1" female
60
Hard ferrite, PTFE coating
Stainless steel 303
Stainless steel
FKM
Stainless steel 301
Stainless steel, Hard ferrite, PTFE coating, FKM
Approx. 0.01 bar at max. flow
0.45
1
±15% fs
13,5..17,5 l/min
G1¼" female
80
Hard ferrite
Nickel-plated brass, Stainless steel 303
Nickel-plated brass
NBR
Stainless steel 301
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
Approx. 0.01 bar at max. flow
Flow Switches
0.45
1
±15% fs
13,5..17,5 l/min
G1¼" female
80
Stainless steel
Stainless steel, Hard ferrite, PTFE coating, FKM
Approx. 0.01 bar at max. flow
0.5
1
±15% fs
30..38 l/min
G1½" female
100
Hard ferrite
Nickel-plated brass, Stainless steel 303
Nickel-plated brass
NBR
Stainless steel 301
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
Approx. 0.01 bar at max. flow
Flow Switches
0.55
1
±15% fs
30..38 l/min
G1½" female
100
Stainless steel
Stainless steel, Hard ferrite, PTFE coating, FKM
Approx. 0.01 bar at max. flow
0.65
1
±15% fs
42..53 l/min
G2" female
150
Hard ferrite
Nickel-plated brass, Stainless steel 303
Nickel-plated brass
NBR
Stainless steel 301
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
Approx. 0.01 bar at max. flow
Flow Switches
0.8
1
42..53 l/min
G2" female
150
Stainless steel
Stainless steel, Hard ferrite, PTFE coating, FKM
0.95
1
