AZURE PHOTONICS

Azure 2/3 3MP fixed focal lenses

2/3", 3MP

  • Sensor Size: 2/3"
  • Focal lengths up to 50mm
  • Resolution: 3 Megapixel
  • C-Mount

Selected variant

Avaible in several variants
AZUREPHOTONICS.tif

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Aperture Range Max 1.8
Aperture Range Min 16
Diameter 29
Distortion -0.5
Filter 27
Focal Length 9
Focus Manual
Focus distance min 100
Iris Manual iris
Lens Barrel C-Mount
Pixel size min 4.2
Resolution max 3
Sensor size max 2/3"
Type of lens Standard
Weight 0.063

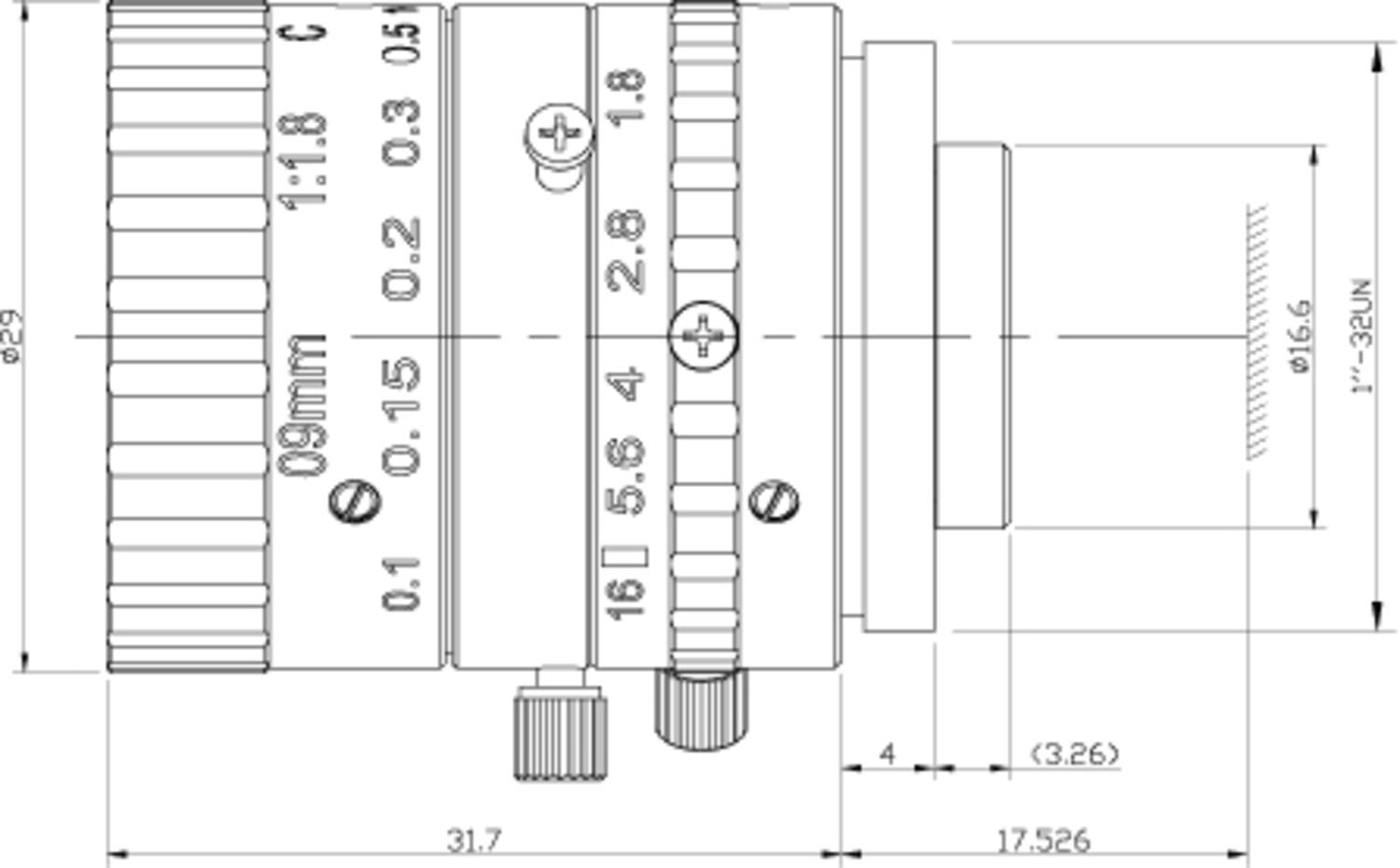

Measurements and connections

Accessories

My favourites Articles Aperture Range Max Diameter Distortion Filter Focal Length Focus distance min Weight Price
Lens C 8mm F1.8 2/3" Azure
Art:
AZURE-0818M3M Copied
1.4
39
0.5
37
8
100
0.22
Lens C 9mm F1.8 2/3" Azure
Art:
AZURE-0918M3M Copied
1.8
29
-0.5
27
9
100
0.063
Lens C 12mm F1.8 2/3" Azure
Art:
AZURE-1218M3M Copied
1.8
29
-0.3
27
12
100
0.073
Lens C 16mm F1.8 2/3" Azure
Art:
AZURE-1618M3M Copied
1.8
29
-0.3
27
16
100
0.071
Lens C 25mm F1.8 2/3" Azure
Art:
AZURE-2518M3M Copied
1.8
29
-0.1
27
25
150
0.0605
Lens C 35mm F1.8 2/3" Azure
Art:
AZURE-3518M3M Copied
1.8
29
0.1
27
35
250
0.071
Lens C 50mm F1.8 2/3" Azure
Art:
AZURE-5018M3M Copied
1.8
29
-0.1
27
50
500
0.06

Selected variant

Select a variant in the list
