TAKEX

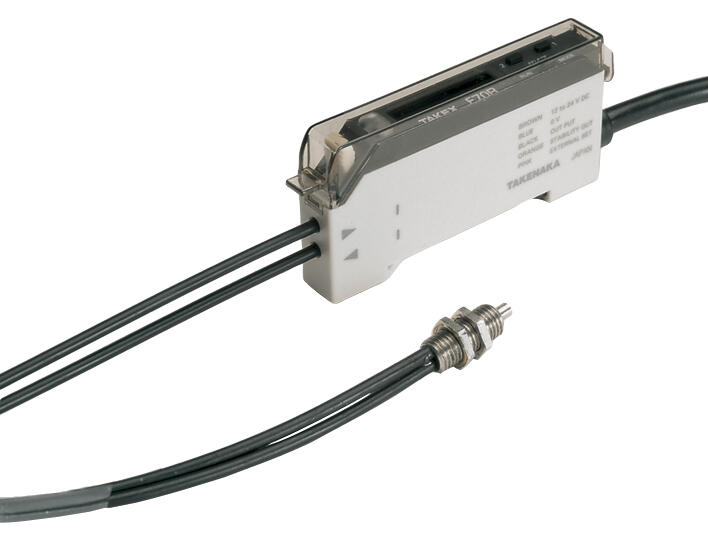

Takex - F70 fibre amplifier with digital display

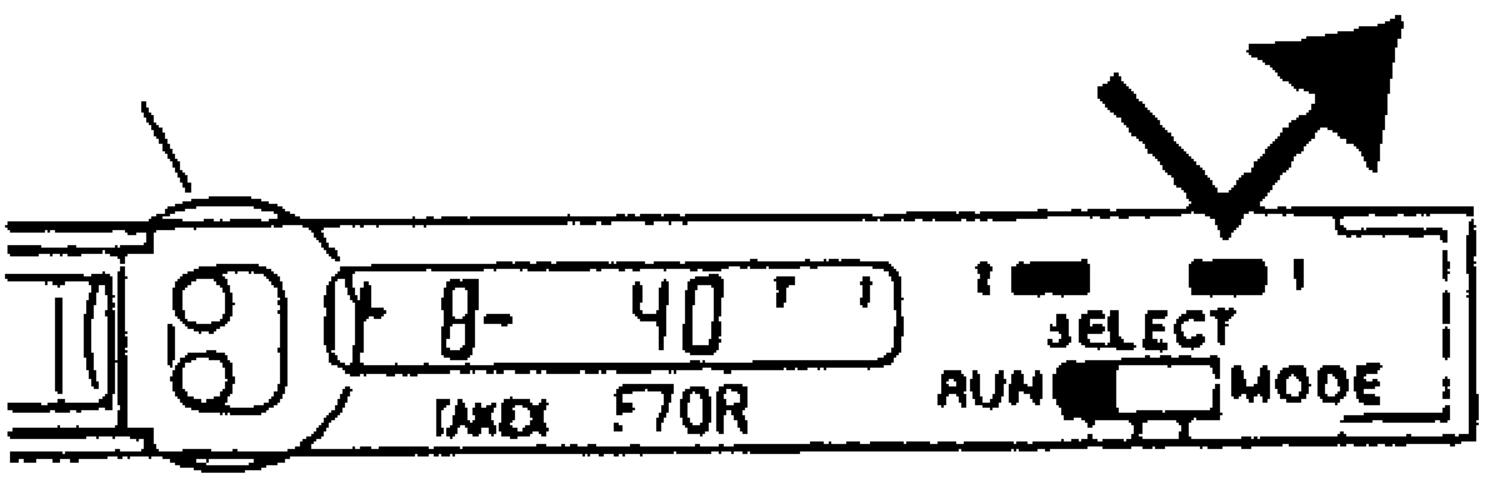

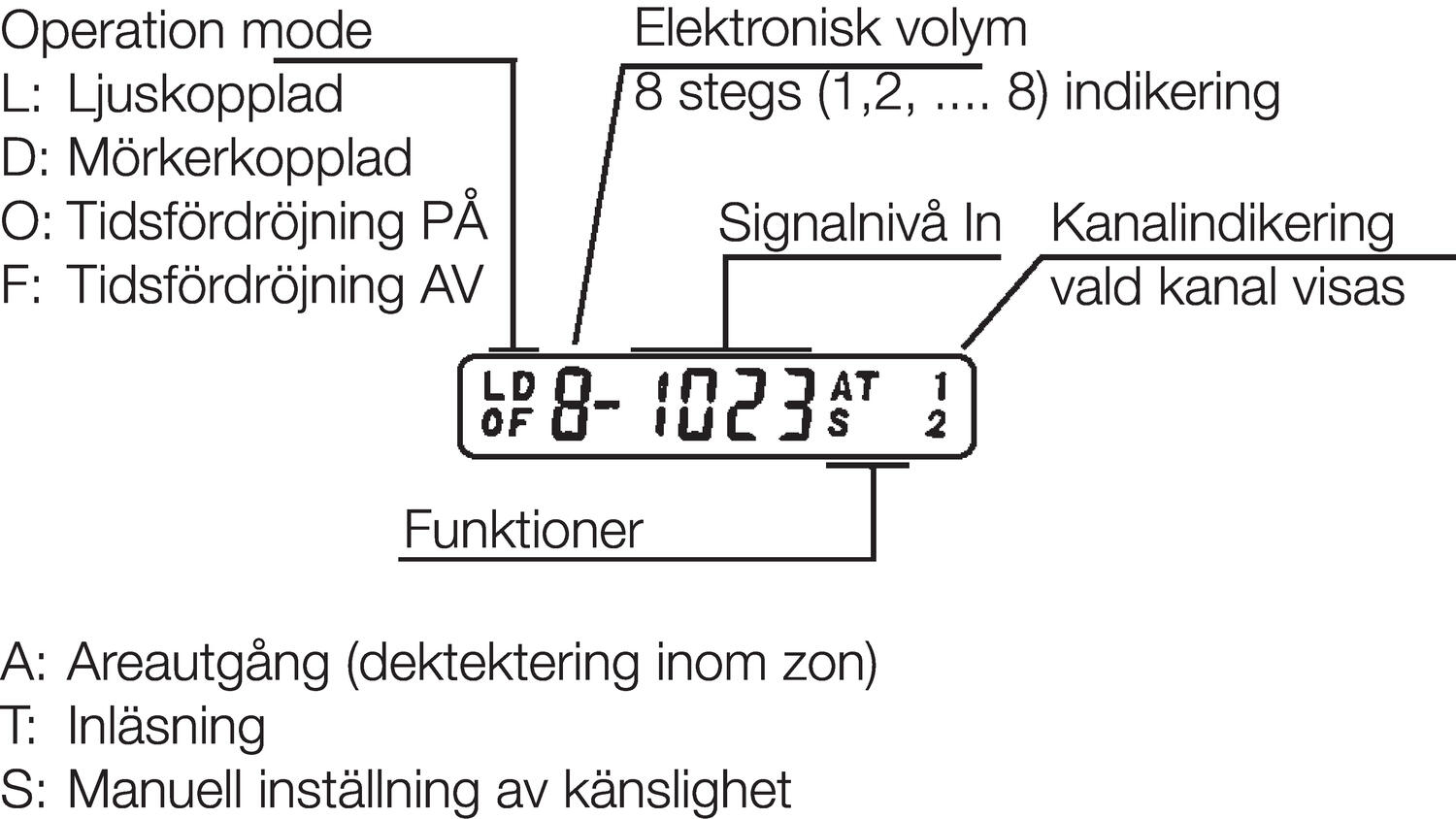

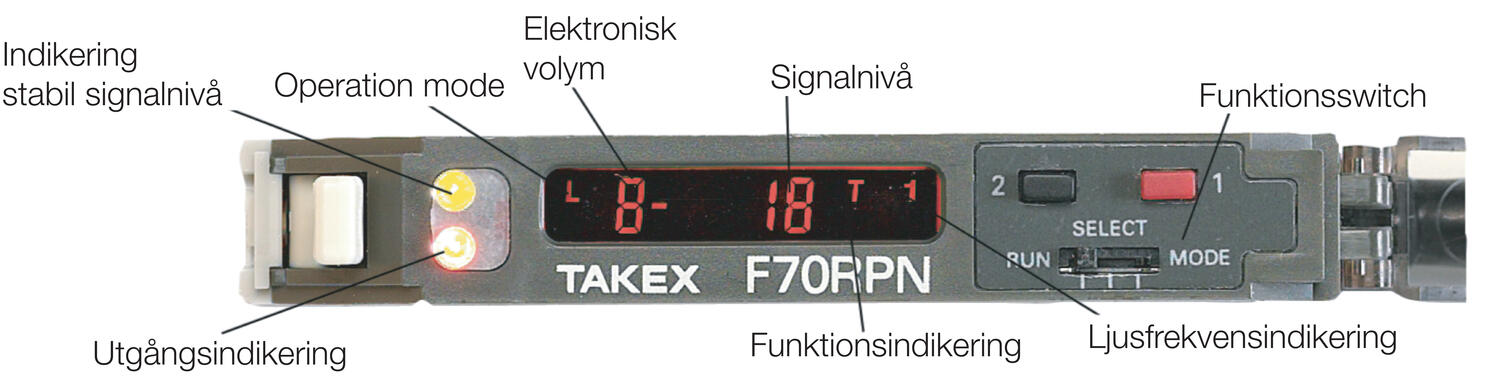

Simple operation with the Teach In function. Setting may take place with both stationary objects and objects in motion. The F70 also has an LCD display showing information on reflection level, operation mode and light/dark on and time function. The hysteresis can also be adjusted manually. Interference protection for 2 units. Alarm output for uncertain signal level. External Teach In from e.g. PLC.
- Teach In function
- High amplification, long distances
- Many setting options

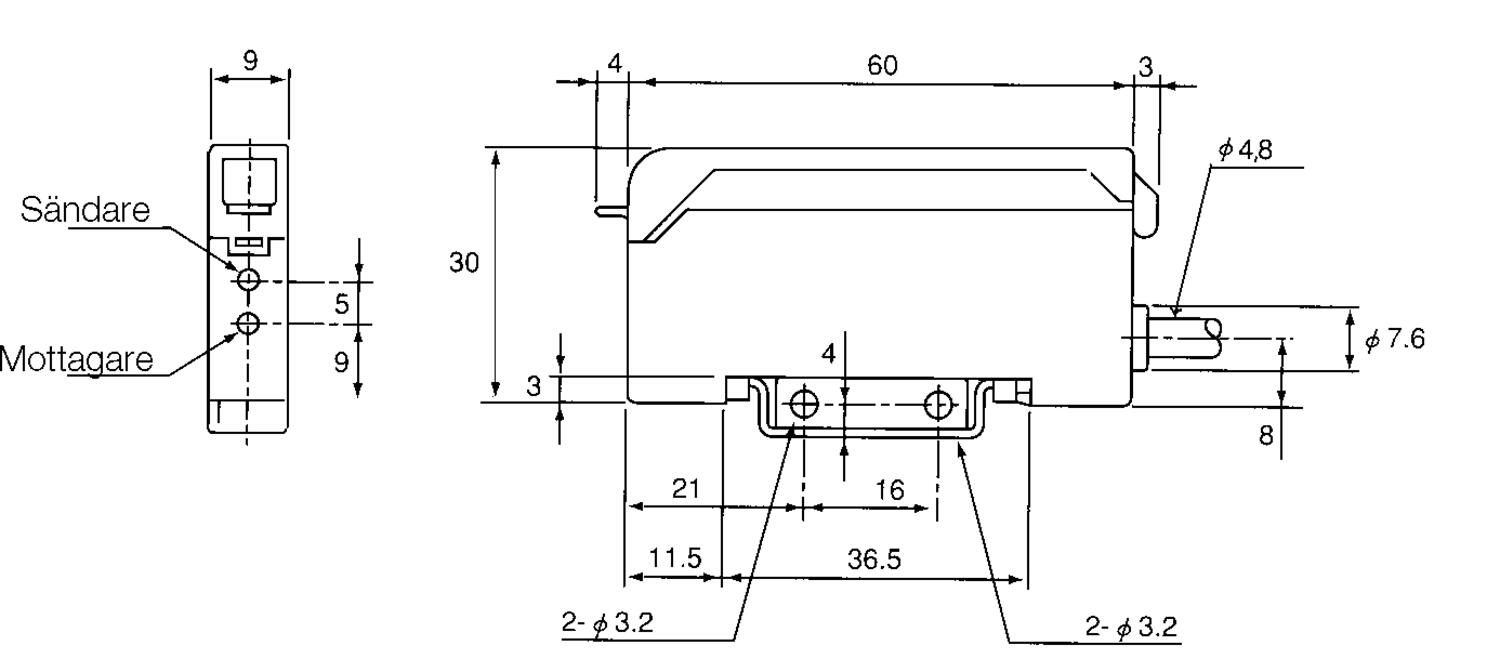

- Small construction dimensions (9 mm)
Selected variant
Selected variant
Specifications
| Approvals | CE |
|---|---|

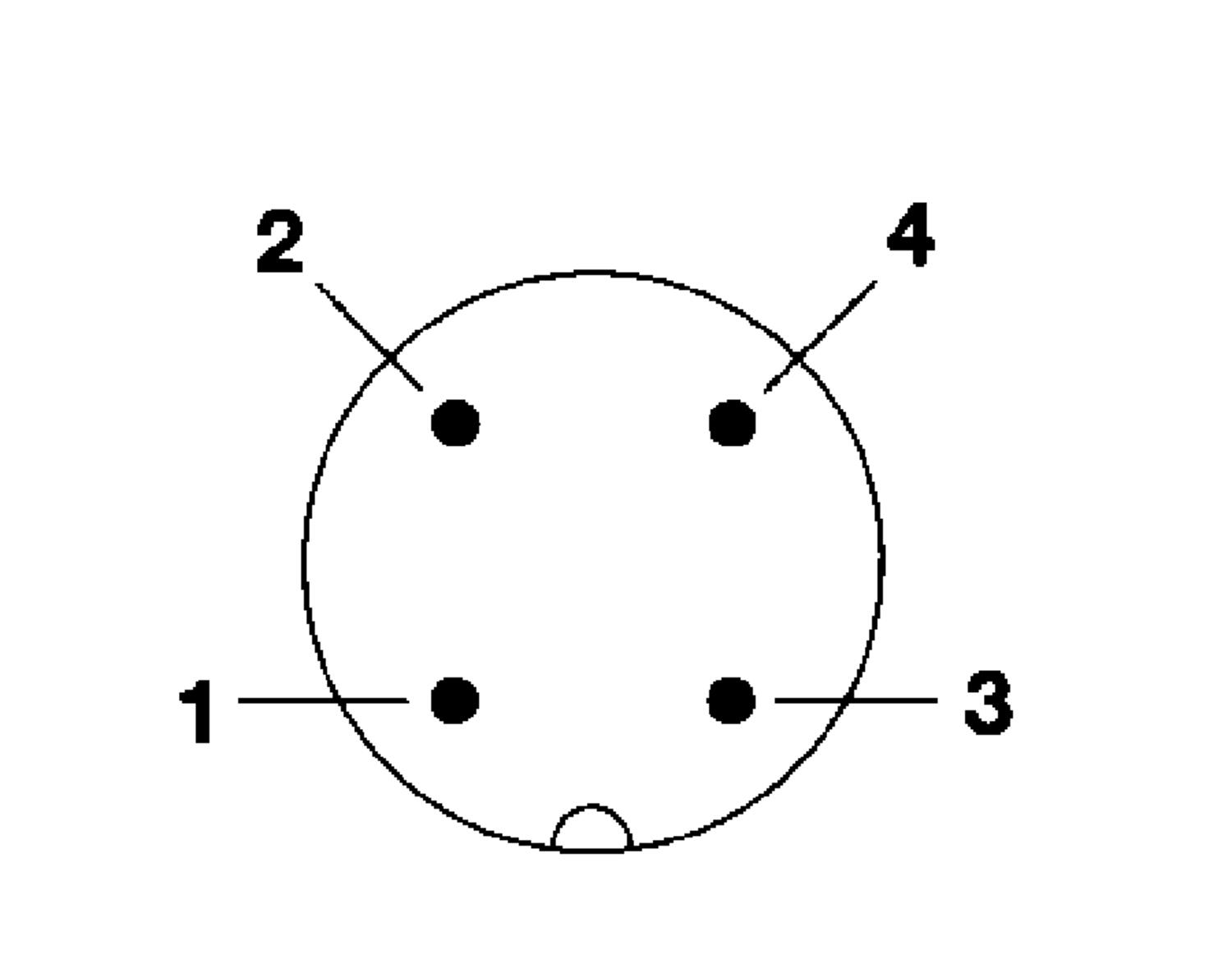

| Electrical connection | Embedded 2m cable |
| Function | Dark on / Light on |
| IP Class | IP40 |
| Light / Dark Switching | Yes |
| Light type | Red LED |

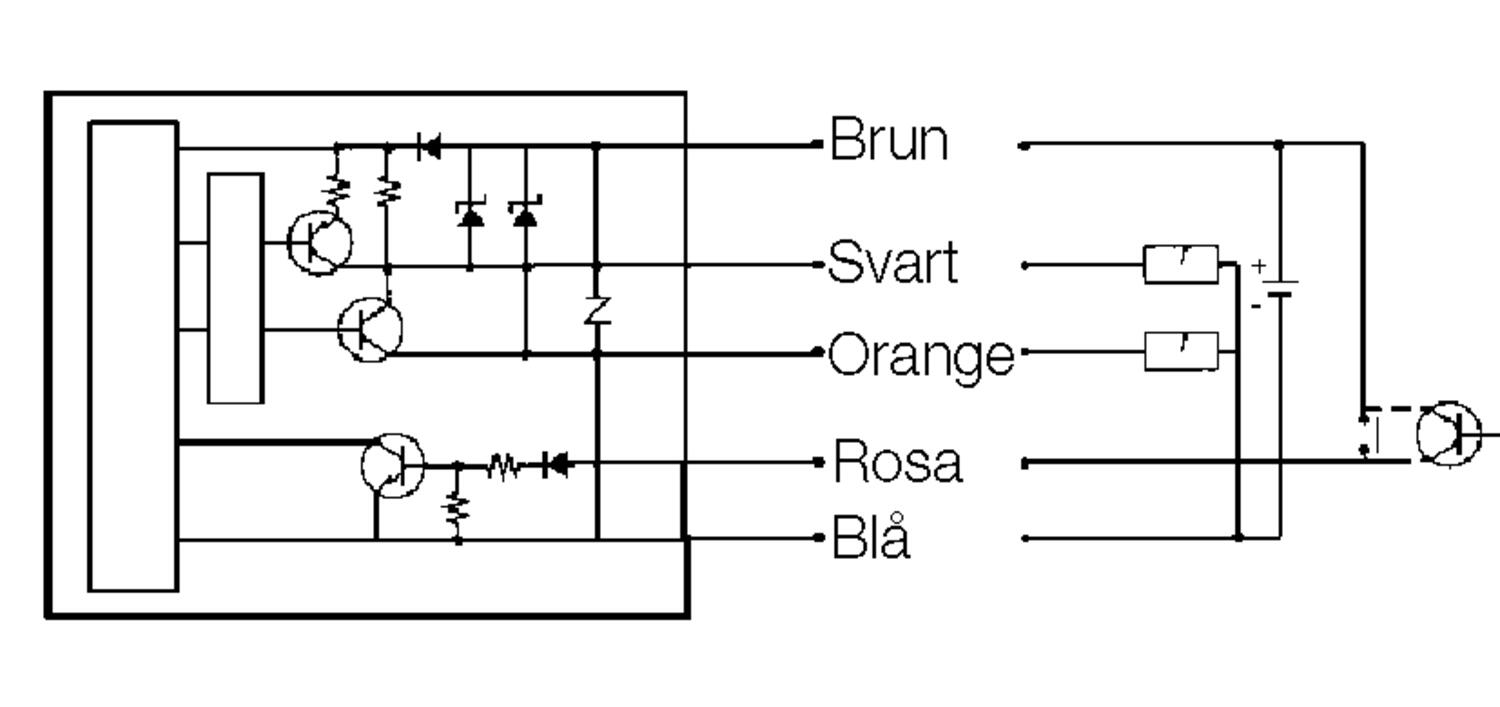

| Output | PNP |
| Output current max | 0.1 |
| Photocell technology | Fiber amblified |
|---|---|
| Power consumption max | 0.05 |
| Reaction time | 0.5 |
| Temperature range from | -25 |
| Temperature range to | 55 |
| Voltage DC max | 24 |
| Voltage DC min | 12 |
Product description
Simple operation with the Teach In function. Setting may take place with both stationary objects and objects in motion. The F70 also has an LCD display showing information on reflection level, operation mode and light/dark on and time function. The hysteresis can also be adjusted manually. Interference protection for 2 units. Alarm output for uncertain signal level. External Teach In from e.g. PLC.
